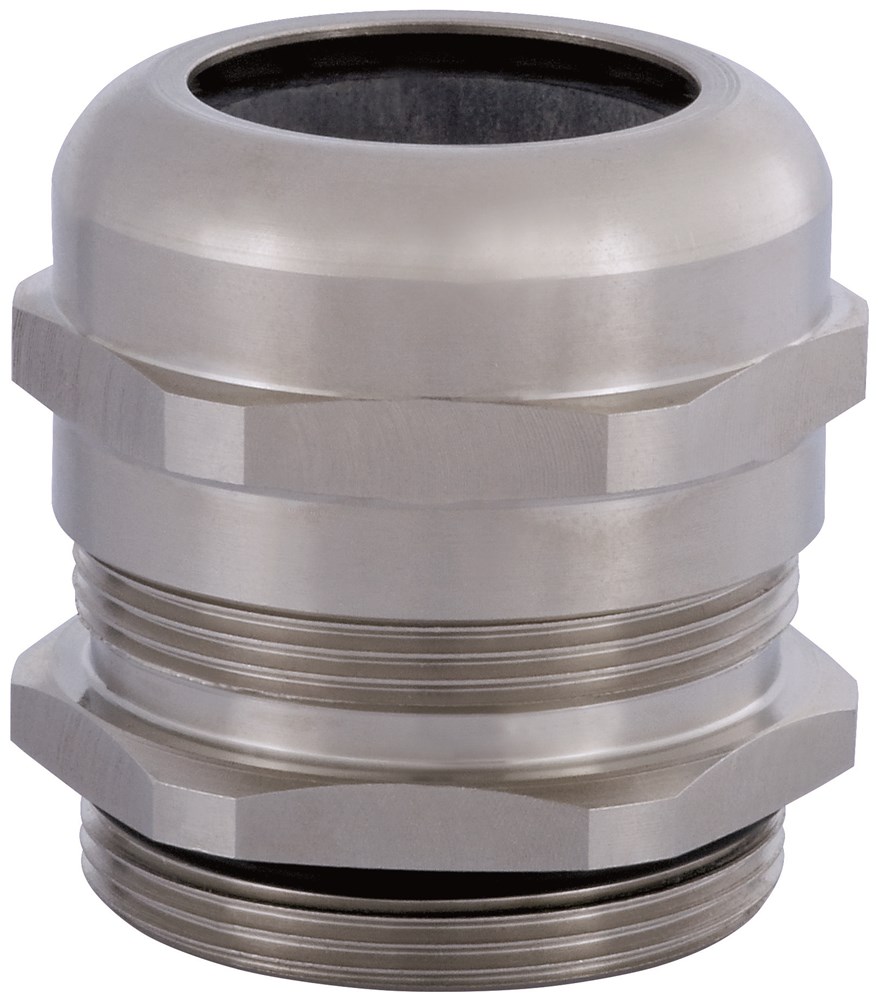

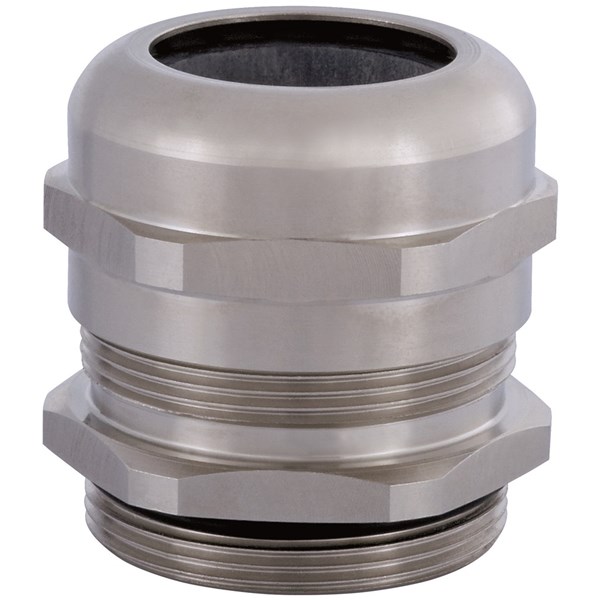

METRICA-M-EVE-E
EMC-förskruvning i förnicklad mässing.
Material: Förnicklad mässing
Tätningsinsats: Polyamid
Formtätning: NBRO-ring NBR
Skyddsklass: IP 68 - 5 bar
Drifttemperatur kontinuerligt: -40° C till +100° C
Technical properties
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- No
- For armoured cable:
- No

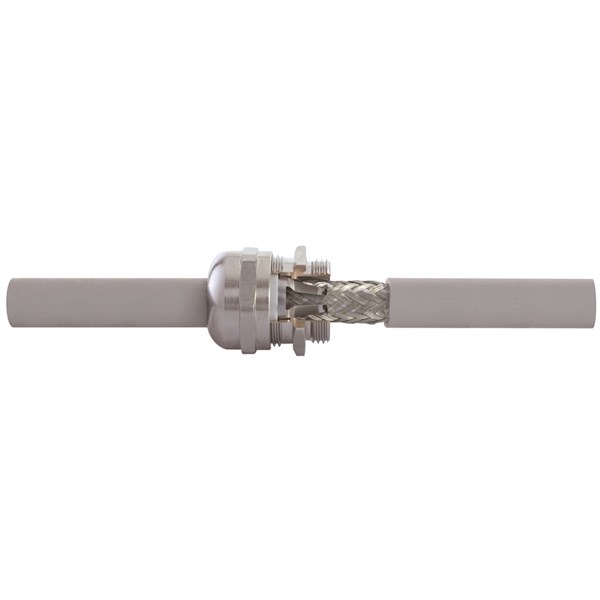

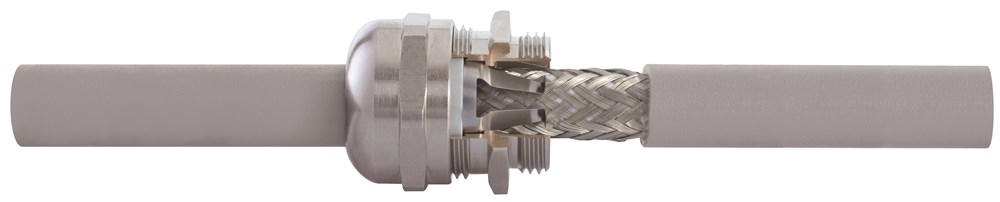

- EMC-version:
- Yes
- Screened:
- Yes
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- None
- For Ex-Zone dust:
- None
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -40-100 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 19 mm, 24 mm, 22 mm, 29 mm, 34 mm, 68 mm
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 6
| Product Description | MOQ | Unit | Suitable for cable diameter | Nominal thread size metric/PG | Pitch thread | Thread length | Wrench width | Nominal thread size inch/gas pipe thread | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, METRICA-M-EVE-E M16, 4.5-10mm | 50 . | pcs | 4.5-10 mm | 16 . | 1.5 mm | 6 mm | 19 mm | Other |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M20, 7.5-14mm | 50 . | pcs | 7.5-14 mm | 20 . | 1.5 mm | 6 mm | 24 mm | Other |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M20, 6-12mm | 50 . | pcs | 6-12 mm | 20 . | 1.5 mm | 6 mm | 22 mm | Other |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M25, 9-17mm | 25 . | pcs | 9-17 mm | 25 . | 1.5 mm | 7 mm | 29 mm | Other |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M32, 11-21mm | 25 . | pcs | 11-21 mm | 32 . | 1.5 mm | 8 mm | 34 mm | Other |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M63, 34-48mm | 5 . | pcs | 34-48 mm | 63 . | 1.5 mm | 10 mm | 68 mm | Other |
No
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
| Product Description | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|
| CABLE GLAND, METRICA-M-EVE-E M16, 4.5-10mm | IP68 |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M20, 7.5-14mm | IP68 |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M20, 6-12mm | IP68 |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M25, 9-17mm | IP68 |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M32, 11-21mm | IP68 |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M63, 34-48mm | IP68 |
No
|
|
|
- Total: 6
Technical Properties
- Total: 6
| Product Description | Pressure-compensating | Degree of protection (IP) | With strain relief | Model | Material quality | RAL-number | Thread type | Glass-fibre reinforced | Shock resistant | Bend radius protection/trumpet flare | With locknut | Snapping in opening | Multi seal area | Flat cable coupling | Explosion-tested version | For armoured cable | EMC-version | Screened | Type of sealing | For Ex-zone gas | For Ex-Zone dust | Colour | Surface protection | Operating temperature | Material | Halogen free | Wrench width | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, METRICA-M-EVE-E M16, 4.5-10mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 19 mm |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M20, 7.5-14mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 24 mm |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M20, 6-12mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 22 mm |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M25, 9-17mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 29 mm |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M32, 11-21mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 34 mm |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M63, 34-48mm | No | IP68 | Yes | Straight | Brass | 0 N/A | Metric | No | Yes | No | No | No | No | No | No | No | Yes | Yes | Sealing ring | None | None | Brass | Nickel-plated | -40-100 °C | Metal | Yes | 68 mm |
No
|
|
|
- Total: 6
Other information
- Total: 6
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE GLAND, METRICA-M-EVE-E M16, 4.5-10mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.607.1600.50 |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M20, 7.5-14mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.607.2000.50 |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M20, 6-12mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.607.2013.50 |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M25, 9-17mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.607.2500.50 |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M32, 11-21mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.607.3200.50 |
No
|
|
|
| CABLE GLAND, METRICA-M-EVE-E M63, 34-48mm | EC000441 - Cable gland | 9.0 |
|
EMC | 1.607.6300.50 |
No
|
|
|
- Total: 6
