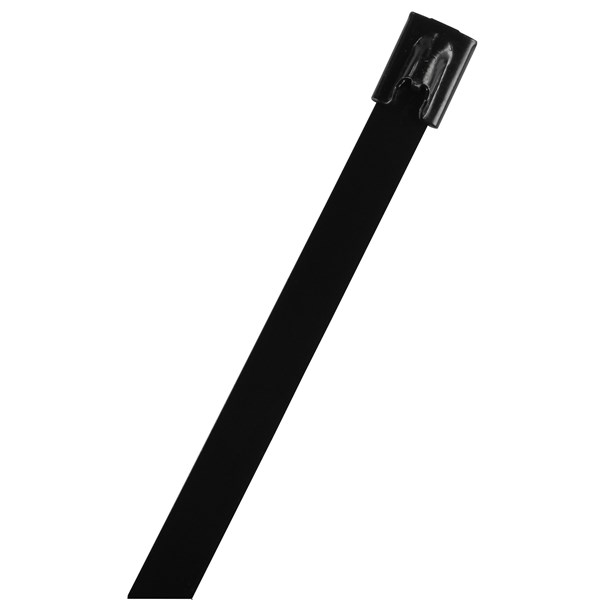

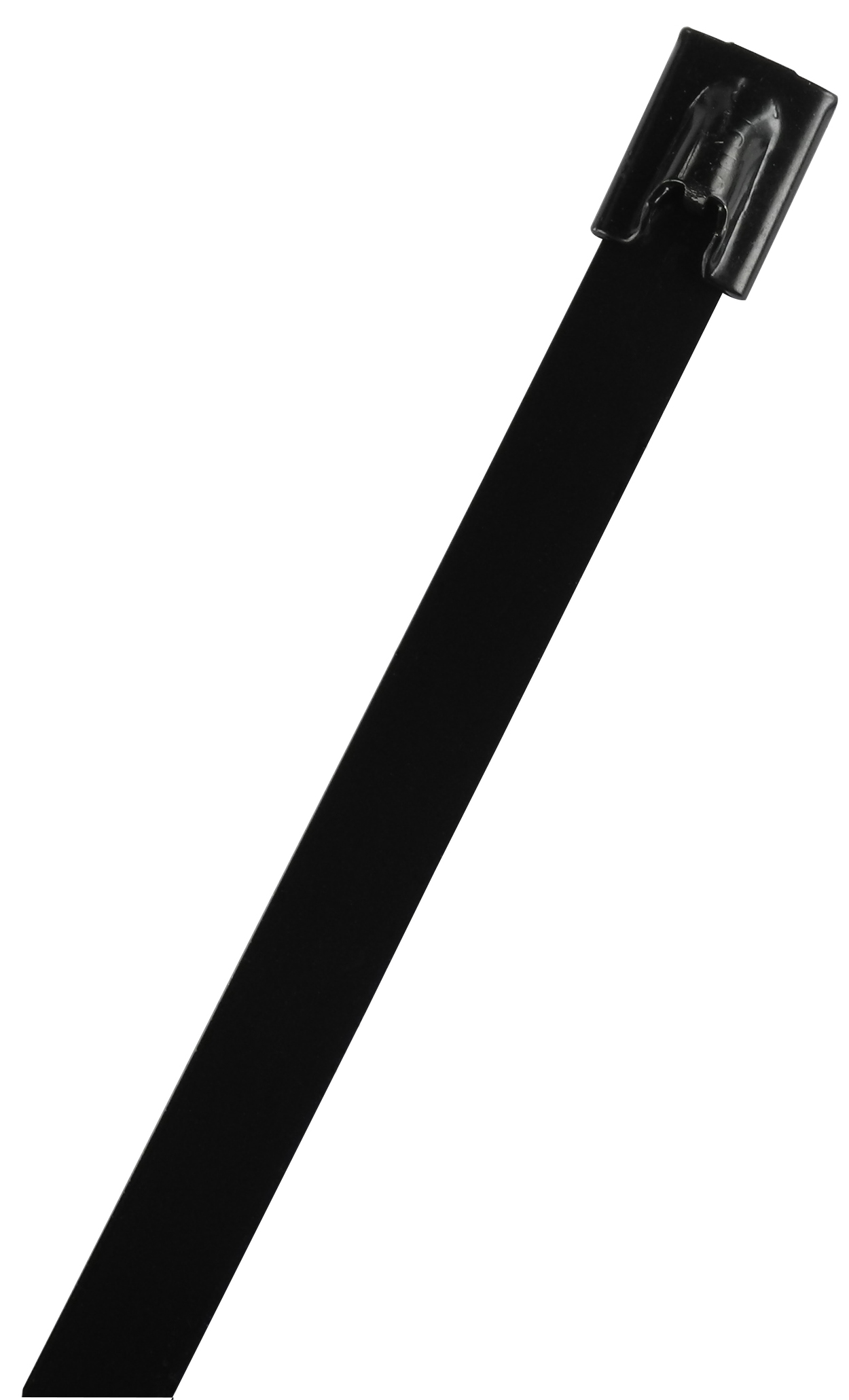

ST2, släta stålbuntband med låskula, med beläggning
Self-locking stainless steel cable ties for use in or outside. The strong locking mechanism includes a steel ball and it is easy to enter the back end that is dawning. This givesa simple, fast and safe installation.Properties coated cable ties: Material: Stainless steel type 316Temperature range: -40ºC - +150ºC Colour: Black
Buntbandet har en halogenfri polyesterbeläggning vilket ger flera fördelar:
• Bandet blir smidigare och mjukare att använda.
• Mindre risk för skador på kabeln.
• Bättre isolering mellan olika metaller
Technical properties
- Detectable:
- No
- Min. tensile strength:
- 1200 N, 465 N
- Model:
- Without toothing
- Material quality:
- Stainless steel 316 (V4A)
- Operating temperature:
- -80-150 °C
- Mounting temperature:
- -80-150 °C
- Band closure:
- Ball latch
- UV-stable acc. ASTM D6779:
- No
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- None
- Colour:
- Black
- Surface protection:
- Plastic-coated
- Material:
- Metal
- Halogen free:
- Yes
- Packaging:
- Loose piece
- Max. tensile force:
- 1200 N, 465 N
Show more
Item List
- Total: 13
- Total: 13
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 13
| Product Description | Bundle diameter | MOQ | Unit | Length belt/tape/tie | Tie thickness | Band width | Max. bundle diameter | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CABLE TIE, 200x7.9mm SS316, COATED | 50 . | pcs | 200 mm | 0.36 mm | 7.9 mm | 56 mm | 1200 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 260x7.9mm SS316, COATED | 50 . | pcs | 260 mm | 0.36 mm | 7.9 mm | 75 mm | 1200 N |
No
|
|
|
|
| STAINLESS STEEL CABLE TIE, 360x7.9mm SS316, COATED | 50 . | pcs | 360 mm | 0.36 mm | 7.9 mm | 107 mm | 1200 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 520x7.9mm SS316, COATED | 50 . | pcs | 520 mm | 0.36 mm | 7.9 mm | 158 mm | 1200 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 679x7.9mm SS316, COATED | 50 . | pcs | 680 mm | 0.36 mm | 7.9 mm | 200 mm | 1200 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 200x4.6mm SS316, COATED | 20-51 mm | 100 . | pcs | 200 mm | 0.36 mm | 4.6 mm | 56 mm | 465 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 260x4.6mm SS316, COATED | 20-65 mm | 100 . | pcs | 260 mm | 0.36 mm | 4.6 mm | 75 mm | 465 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 360x4.6mm SS316, COATED | 20-100 mm | 100 . | pcs | 360 mm | 0.36 mm | 4.6 mm | 107 mm | 465 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 520x4.6mm SS316, COATED | 20-150 mm | 100 . | pcs | 520 mm | 0.36 mm | 4.6 mm | 158 mm | 465 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 680x4.6mm SS316, COATED | 20-200 mm | 100 . | pcs | 680 mm | 0.36 mm | 4.6 mm | 200 mm | 465 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 1000x7.9mm SS316, COATED | 50 . | pcs |
No
|
|
|
||||||
| STAINLESS STEEL CABLE TIE, 1200x4.6mm SS316, COATED | 50 . | pcs |
No
|
|
|
||||||
| STAINLESS STEEL CABLE TIE, 1200x7.9mm SS316, COATED | 50 . | pcs |
No
|
|
|
- Total: 13
Similar Options
Approvals
- Total: 13
| Product Description | MIL approval | VG approval | UL approval | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CABLE TIE, 200x7.9mm SS316, COATED | No | No |
|
Other |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 260x7.9mm SS316, COATED | No | No |
|
Other |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 360x7.9mm SS316, COATED | No | No |
|
Other |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 520x7.9mm SS316, COATED | No | No |
|
Other |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 679x7.9mm SS316, COATED | No | No |
|
Other |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 200x4.6mm SS316, COATED | No | No |
|
Other |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 260x4.6mm SS316, COATED | No | No |
|
Other |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 360x4.6mm SS316, COATED | No | No |
|
Other |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 520x4.6mm SS316, COATED | No | No |
|
Other |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 680x4.6mm SS316, COATED | No | No |
|
Other |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 1000x7.9mm SS316, COATED |
No
|
|
|
||||
| STAINLESS STEEL CABLE TIE, 1200x4.6mm SS316, COATED |
No
|
|
|
||||
| STAINLESS STEEL CABLE TIE, 1200x7.9mm SS316, COATED |
No
|
|
|
- Total: 13
Technical Properties
- Total: 13
| Product Description | Detectable | Min. tensile strength | Model | Material quality | Operating temperature | Mounting temperature | Band closure | UV-stable acc. ASTM D6779 | Transparent | Fluorescent | Solvable fastener | Text strip | Type of fastening | Colour | Surface protection | Material | Halogen free | Packaging | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CABLE TIE, 200x7.9mm SS316, COATED | No | 1200 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1200 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 260x7.9mm SS316, COATED | No | 1200 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1200 N |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 360x7.9mm SS316, COATED | No | 1200 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1200 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 520x7.9mm SS316, COATED | No | 1200 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1200 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 679x7.9mm SS316, COATED | No | 1200 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1200 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 200x4.6mm SS316, COATED | No | 465 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 465 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 260x4.6mm SS316, COATED | No | 465 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 465 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 360x4.6mm SS316, COATED | No | 465 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 465 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 520x4.6mm SS316, COATED | No | 465 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 465 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 680x4.6mm SS316, COATED | No | 465 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 465 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 1000x7.9mm SS316, COATED |
No
|
|
|
|||||||||||||||||||
| STAINLESS STEEL CABLE TIE, 1200x4.6mm SS316, COATED |
No
|
|
|
|||||||||||||||||||
| STAINLESS STEEL CABLE TIE, 1200x7.9mm SS316, COATED |
No
|
|
|
- Total: 13
Other information
- Total: 13
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CABLE TIE, 200x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | STÅLBUNTBAND, ROSTFRITT, 201X7.9MM ENR2023V | ST2-200-LHD-YB |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 260x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | STÅLBUNTBAND, ROSTFRITT, 260X7.9MM | ST2-260-LHD-YB |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 360x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | STÅLBUNTBAND ENR2023V | ST2-360-LHD-YB |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 520x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | STÅLBUNTBAND, ROSTFRITT, 520X7.9MM | ST2-520-LHD-YB |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 679x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | STÅLBUNTBAND, ROSTFRITT, 679X7.9MM | ST2-680-LHD-YB |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 200x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | STÅLBUNTBAND, ROSTFRITT, 200X4.6MM | ST2-200-S-YB |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 260x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | STÅLBUNTBAND, ROSTFRITT, 260X4.6MM | ST2-260-S-YB |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 360x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | STÅLBUNTBAND, ROSTFRITT, 360X4.6MM | ST2-360-S-YB |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 520x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | STÅLBUNTBAND, ROSTFRITT, 520X4.6MM | ST2-520-S-YB |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 680x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | STÅLBUNTBAND, ROSTFRITT, 680X4.6MM | ST2-680-S-YB |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 1000x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 | Cable ties, steel | STÅLBUNTBAND, ROSTFRITT, 1000X7.9MM | ST2-1000-LHD-YB |
No
|
|
|
|
| STAINLESS STEEL CABLE TIE, 1200x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 | Cable ties, steel | ST2-1200-S-YB |
No
|
|
|
||
| STAINLESS STEEL CABLE TIE, 1200x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 | Cable ties, steel | STÅLBUNTBAND, ROSTFRITT, 1200X7.9MM | ST2-1200-LHD-YB |
No
|
|
|
- Total: 13
