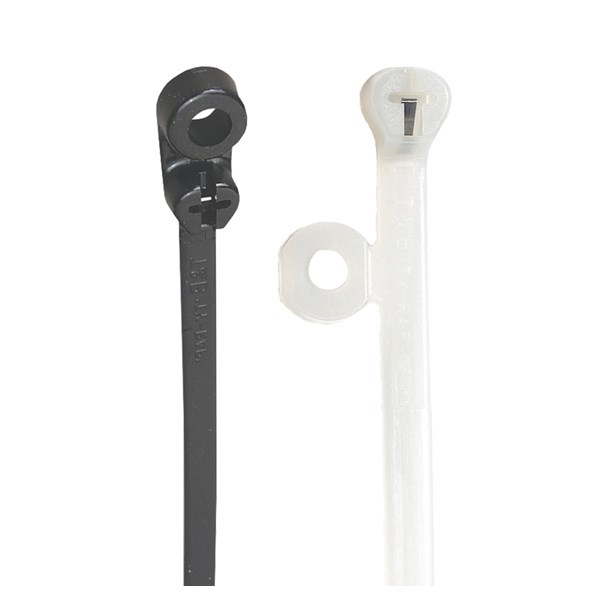

Ty-Rap, plastbuntband med monteringshål

Characteristics
Can be directly mounted on to a support with screws, bolts or rivets. Mounting and bundling in one maintenance-friendly assembly.
Typical application: cable harness manufacture and pre- and end- mounting of bundles andparts. Maintenance friendly mounting of cables, tubes and parts in all types and sizes of machines and installations - indoor and outdoor.

Show item list

Technical properties

Detectable:: No
Min. tensile strength:: 220 N, 80 N, 180 N, 540 N
Model:: Without toothing
Material quality:: Polyamide (PA)
Operating temperature:: -40-85 °C
Band closure:: Plastic lip/-cam, Steel nose
UV-stable acc. ASTM D6779:: No, Yes
Transparent:: No
Fluorescent:: No
Solvable fastener:: No
Text strip:: None
Type of fastening:: Screw hole
Colour:: Natural colour, Black
Surface protection:: Untreated
Material:: Plastic
Halogen free:: Yes
Max. tensile force:: 220 N, 80 N, 180 N, 540 N
Inflammability class of insulation material according to with UL94:: V2

Item List

Page size:

Total: 19

TY 33 M

BUNTBAND, TY-RAP, 102x2.3mm, NATURELL, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 533 M

BUNTBAND, TY-RAP, 102x2.3mm, NATURELL, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 33 MX

BUNTBAND, TY-RAP, 102x2.3mm, SVART, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 533 MX

BUNTBAND, TY-RAP, 102x2.3mm, SVART, STÅLTUNGA, ÖGLA

Availability:: No

TY 34 M

BUNTBAND, TY-RAP, 151x3.5mm, NATURELL, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 534 M

BUNTBAND, TY-RAP, 151x3.5mm, NATURELL, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 34 MX

BUNTBAND, TY-RAP, 151x3.5mm, SVART, STÅLTUNGA, ÖGLA

Availability:: No

TY 534 MX

BUNTBAND, TY-RAP, 151x3.5mm, SVART, STÅLTUNGA, ÖGLA

Availability:: No

TY 635 M

BUNTBAND, TY-RAP, 198x4.7mm, NATURELL, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 35 M

BUNTBAND, TY-RAP, 199x4.7mm, NATURELL, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 535 M

BUNTBAND, TY-RAP, 199x4.7mm, NATURELL, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 35 MX

BUNTBAND, TY-RAP, 199x4.7mm, SVART, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 535 MX

BUNTBAND, TY-RAP, 199x4.7mm, SVART, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 1435 M

BUNTBAND, TY-RAP, 198x4.8mm, NATURELL, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 37 M

BUNTBAND, TY-RAP, 356x7.7mm, NATURELL, STÅLTUNGA, ÖGLA

Availability:: No

TY 537 M

BUNTBAND, TY-RAP, 356x7.7mm, NATURELL, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 37 MX

BUNTBAND, TY-RAP, 356x7.7mm, SVART, STÅLTUNGA, ÖGLA

Availability:: Yes

TY 537 MX

BUNTBAND, TY-RAP, 356x7.7mm, SVART, STÅLTUNGA, ÖGLA

Availability:: No

TYF 35 M

BUNTBAND, TY-RAP, 186x4.7mm, NATURELL, STÅLTUNGA, ÖGLA

Availability:: No

Total: 19

Accessories

Spare Parts

Product video

Documents

Dimensions

Page size:

Total: 19

Product Description	Stock code	Bundle diameter	MOQ	Diameter of mounting hole	Unit	Length belt/tape/tie	Band width	Max. bundle diameter	Max. tensile force	Availability
Cable Tie, TY-RAP, 102x2.3mm, Natural Steel Barb, Mountable Head	TY 33 M	2-16 mm	1000 .	3 mm	pcs	102 mm	2.3 mm		80 N	Yes
Cable Tie, TY-RAP, 102x2.3mm, Natural Steel Barb, Mountable Head	TY 533 M		100 .	3 mm	pcs	102 mm	2.3 mm	16 mm	80 N	Yes
Cable Tie, TY-RAP, 102x2.3mm, Black Steel Barb, Mountable Head	TY 33 MX	2-16 mm	1000 .	3 mm	pcs	102 mm	2.3 mm		80 N	Yes
Cable Tie, TY-RAP, 102x2.3mm, Black Steel Barb, Mountable Head	TY 533 MX		100 .	3 mm	pcs	102 mm	2.3 mm	16 mm	80 N	No
Cable Tie, TY-RAP, 151x3.5mm, Natural Steel Barb, Mountable Head	TY 34 M	2-29 mm	1000 .	4.4 mm	pcs	151 mm	3.5 mm		180 N	Yes
Cable Tie, TY-RAP, 151x3.5mm, Natural Steel Barb, Mountable Head	TY 534 M		100 .	4.4 mm	pcs	151 mm	3.5 mm	29 mm	180 N	Yes
Cable Tie, TY-RAP, 151x3.5mm, Black Steel Barb, Mountable Head	TY 34 MX	2-29 mm	1000 .	4.4 mm	pcs	151 mm	3.5 mm		180 N	No
Cable Tie, TY-RAP, 151x3.5mm, Black Steel Barb, Mountable Head	TY 534 MX		100 .	4.4 mm	pcs	151 mm	3.5 mm	29 mm	180 N	No
Cable Tie, TY-RAP, 198x4.7mm, Natural Steel Barb, Mountable Head	TY 635 M	3.5-45 mm	100 .	4 mm	pcs	198 mm	4.7 mm		220 N	Yes
Cable Tie, TY-RAP, 199x4.7mm, Natural Steel Barb, Mountable Head	TY 35 M	4-45 mm	1000 .	5.1 mm	pcs	199 mm	4.7 mm		220 N	Yes
Cable Tie, TY-RAP, 199x4.7mm, Natural Steel Barb, Mountable Head	TY 535 M	3.5-45 mm	100 .	5.1 mm	pcs	199 mm	4.7 mm		220 N	Yes
Cable Tie, TY-RAP, 199x4.7mm, Black Steel Barb, Mountable Head	TY 35 MX	4-45 mm	1000 .	5.1 mm	pcs	199 mm	4.7 mm		220 N	Yes
Cable Tie, TY-RAP, 199x4.7mm, Black Steel Barb, Mountable Head	TY 535 MX	3.5-45 mm	100 .	5.1 mm	pcs	199 mm	4.7 mm		220 N	Yes
Cable Tie, TY-RAP, 198x4.8mm, Natural Steel Barb, Mountable Head	TY 1435 M		1000 .	6.7 mm	pcs	198 mm	4.8 mm	45 mm	220 N	Yes
Cable Tie, TY-RAP, 356x7.7mm, Natural Steel Barb, Mountable Head	TY 37 M	6-90 mm	500 .	6.7 mm	pcs	356 mm	7.7 mm		540 N	No
Cable Tie, TY-RAP, 356x7.7mm, Natural Steel Barb, Mountable Head	TY 537 M	6-90 mm	50 .	6.7 mm	pcs	356 mm	7.7 mm		540 N	Yes
Cable Tie, TY-RAP, 356x7.7mm, Black Steel Barb, Mountable Head	TY 37 MX	6-90 mm	500 .	6.7 mm	pcs	356 mm	7.7 mm		540 N	Yes
Cable Tie, TY-RAP, 356x7.7mm, Black Steel Barb, Mountable Head	TY 537 MX	6-90 mm	50 .	6.7 mm	pcs	356 mm	7.7 mm		540 N	No
Cable Tie, TY-RAP, 186x4.7mm, Natural Steel Barb, Mountable Head	TYF 35 M	3.5-45 mm	1000 .	5.1 mm	pcs	186 mm	4.7 mm		220 N	No

Total: 19

Similar Options

Approvals

Page size:

Total: 19

Product Description	Stock code	Approved according to Lloyd's Register TA	VG approval	Availability
Cable Tie, TY-RAP, 102x2.3mm, Natural Steel Barb, Mountable Head	TY 33 M		Yes	Yes
Cable Tie, TY-RAP, 102x2.3mm, Natural Steel Barb, Mountable Head	TY 533 M		Yes	Yes
Cable Tie, TY-RAP, 102x2.3mm, Black Steel Barb, Mountable Head	TY 33 MX		Yes	Yes
Cable Tie, TY-RAP, 102x2.3mm, Black Steel Barb, Mountable Head	TY 533 MX		Yes	No
Cable Tie, TY-RAP, 151x3.5mm, Natural Steel Barb, Mountable Head	TY 34 M		Yes	Yes
Cable Tie, TY-RAP, 151x3.5mm, Natural Steel Barb, Mountable Head	TY 534 M		Yes	Yes
Cable Tie, TY-RAP, 151x3.5mm, Black Steel Barb, Mountable Head	TY 34 MX		Yes	No
Cable Tie, TY-RAP, 151x3.5mm, Black Steel Barb, Mountable Head	TY 534 MX		Yes	No
Cable Tie, TY-RAP, 198x4.7mm, Natural Steel Barb, Mountable Head	TY 635 M		Yes	Yes
Cable Tie, TY-RAP, 199x4.7mm, Natural Steel Barb, Mountable Head	TY 35 M		Yes	Yes
Cable Tie, TY-RAP, 199x4.7mm, Natural Steel Barb, Mountable Head	TY 535 M		Yes	Yes
Cable Tie, TY-RAP, 199x4.7mm, Black Steel Barb, Mountable Head	TY 35 MX		Yes	Yes
Cable Tie, TY-RAP, 199x4.7mm, Black Steel Barb, Mountable Head	TY 535 MX		Yes	Yes
Cable Tie, TY-RAP, 198x4.8mm, Natural Steel Barb, Mountable Head	TY 1435 M	Yes		Yes
Cable Tie, TY-RAP, 356x7.7mm, Natural Steel Barb, Mountable Head	TY 37 M		Yes	No
Cable Tie, TY-RAP, 356x7.7mm, Natural Steel Barb, Mountable Head	TY 537 M		Yes	Yes
Cable Tie, TY-RAP, 356x7.7mm, Black Steel Barb, Mountable Head	TY 37 MX		Yes	Yes
Cable Tie, TY-RAP, 356x7.7mm, Black Steel Barb, Mountable Head	TY 537 MX		Yes	No
Cable Tie, TY-RAP, 186x4.7mm, Natural Steel Barb, Mountable Head	TYF 35 M			No

Total: 19

Technical Properties

Page size:

Total: 19

Product Description	Stock code	Detectable	Min. tensile strength	Model	Material quality	Operating temperature	Band closure	UV-stable acc. ASTM D6779	Transparent	Fluorescent	Solvable fastener	Text strip	Type of fastening	Colour	Surface protection	Material	Halogen free	Max. tensile force	Availability
Cable Tie, TY-RAP, 102x2.3mm, Natural Steel Barb, Mountable Head	TY 33 M	No	80 N	Without toothing	Polyamide (PA)	-40-85 °C	Steel nose	No	No	No	No	None	Screw hole	Natural colour	Untreated	Plastic	Yes	80 N	Yes
Cable Tie, TY-RAP, 102x2.3mm, Natural Steel Barb, Mountable Head	TY 533 M	No	80 N	Without toothing	Polyamide (PA)	-40-85 °C	Steel nose	No	No	No	No	None	Screw hole	Natural colour	Untreated	Plastic	Yes	80 N	Yes
Cable Tie, TY-RAP, 102x2.3mm, Black Steel Barb, Mountable Head	TY 33 MX	No	80 N	Without toothing	Polyamide (PA)	-40-105 °C	Steel nose	Yes	No	No	No	None	Screw hole	Black	Untreated	Plastic	Yes	80 N	Yes
Cable Tie, TY-RAP, 102x2.3mm, Black Steel Barb, Mountable Head	TY 533 MX	No	80 N	Without toothing	Polyamide (PA)	-40-105 °C	Steel nose	Yes	No	No	No	None	Screw hole	Black	Untreated	Plastic	Yes	80 N	No
Cable Tie, TY-RAP, 151x3.5mm, Natural Steel Barb, Mountable Head	TY 34 M	No	180 N	Without toothing	Polyamide (PA)	-40-85 °C	Steel nose	No	No	No	No	None	Screw hole	Natural colour	Untreated	Plastic	Yes	180 N	Yes
Cable Tie, TY-RAP, 151x3.5mm, Natural Steel Barb, Mountable Head	TY 534 M	No	180 N	Without toothing	Polyamide (PA)	-40-85 °C	Steel nose	No	No	No	No	None	Screw hole	Natural colour	Untreated	Plastic	Yes	180 N	Yes
Cable Tie, TY-RAP, 151x3.5mm, Black Steel Barb, Mountable Head	TY 34 MX	No	180 N	Without toothing	Polyamide (PA)	-40-105 °C	Steel nose	Yes	No	No	No	None	Screw hole	Black	Untreated	Plastic	Yes	180 N	No
Cable Tie, TY-RAP, 151x3.5mm, Black Steel Barb, Mountable Head	TY 534 MX	No	180 N	Without toothing	Polyamide (PA)	-40-105 °C	Steel nose	Yes	No	No	No	None	Screw hole	Black	Untreated	Plastic	Yes	180 N	No
Cable Tie, TY-RAP, 198x4.7mm, Natural Steel Barb, Mountable Head	TY 635 M	No	220 N	Without toothing	Polyamide (PA)	-40-85 °C	Steel nose	No	No	No	No	None	Screw hole	Natural colour	Untreated	Plastic	Yes	220 N	Yes
Cable Tie, TY-RAP, 199x4.7mm, Natural Steel Barb, Mountable Head	TY 35 M	No	220 N	Without toothing	Polyamide (PA)	-40-85 °C	Steel nose	No	No	No	No	None	Screw hole	Natural colour	Untreated	Plastic	Yes	220 N	Yes
Cable Tie, TY-RAP, 199x4.7mm, Natural Steel Barb, Mountable Head	TY 535 M	No	220 N	Without toothing	Polyamide (PA)	-40-85 °C	Steel nose	No	No	No	No	None	Screw hole	Natural colour	Untreated	Plastic	Yes	220 N	Yes
Cable Tie, TY-RAP, 199x4.7mm, Black Steel Barb, Mountable Head	TY 35 MX	No	220 N	Without toothing	Polyamide (PA)	-40-105 °C	Steel nose	Yes	No	No	No	None	Screw hole	Black	Untreated	Plastic	Yes	220 N	Yes
Cable Tie, TY-RAP, 199x4.7mm, Black Steel Barb, Mountable Head	TY 535 MX	No	220 N	Without toothing	Polyamide (PA)	-40-105 °C	Steel nose	Yes	No	No	No	None	Screw hole	Black	Untreated	Plastic	Yes	220 N	Yes
Cable Tie, TY-RAP, 198x4.8mm, Natural Steel Barb, Mountable Head	TY 1435 M	No	220 N	Without toothing	Polyamide (PA)	-40-85 °C	Plastic lip/-cam	No	No	No	No	None	Screw hole	Natural colour	Untreated	Plastic	Yes	220 N	Yes
Cable Tie, TY-RAP, 356x7.7mm, Natural Steel Barb, Mountable Head	TY 37 M	No	540 N	Without toothing	Polyamide (PA)	-40-85 °C	Steel nose	No	No	No	No	None	Screw hole	Natural colour	Untreated	Plastic	Yes	540 N	No
Cable Tie, TY-RAP, 356x7.7mm, Natural Steel Barb, Mountable Head	TY 537 M	No	540 N	Without toothing	Polyamide (PA)	-40-85 °C	Steel nose	No	No	No	No	None	Screw hole	Natural colour	Untreated	Plastic	Yes	540 N	Yes
Cable Tie, TY-RAP, 356x7.7mm, Black Steel Barb, Mountable Head	TY 37 MX	No	540 N	Without toothing	Polyamide (PA)	-40-105 °C	Steel nose	Yes	No	No	No	None	Screw hole	Black	Untreated	Plastic	Yes	540 N	Yes
Cable Tie, TY-RAP, 356x7.7mm, Black Steel Barb, Mountable Head	TY 537 MX	No	540 N	Without toothing	Polyamide (PA)	-40-105 °C	Steel nose	Yes	No	No	No	None	Screw hole	Black	Untreated	Plastic	Yes	540 N	No
Cable Tie, TY-RAP, 186x4.7mm, Natural Steel Barb, Mountable Head	TYF 35 M	No	220 N	Without toothing	Polyamide (PA)	-40-85 °C	Steel nose	No	No	No	No	None	Screw hole	Natural colour	Untreated	Plastic	Yes	220 N	No

Total: 19
