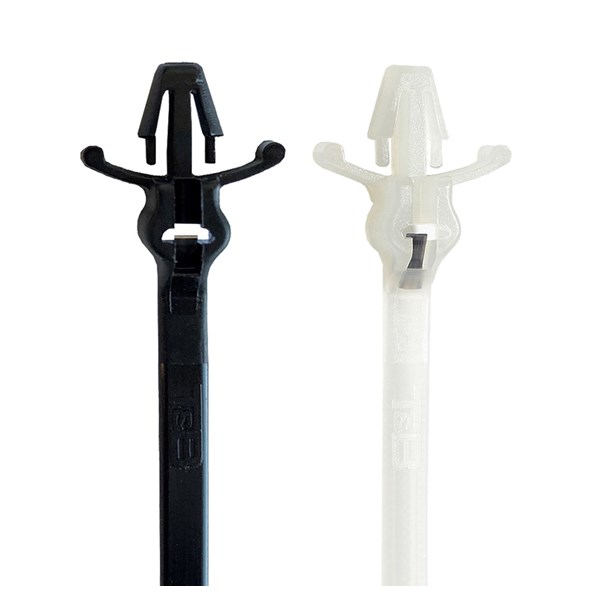

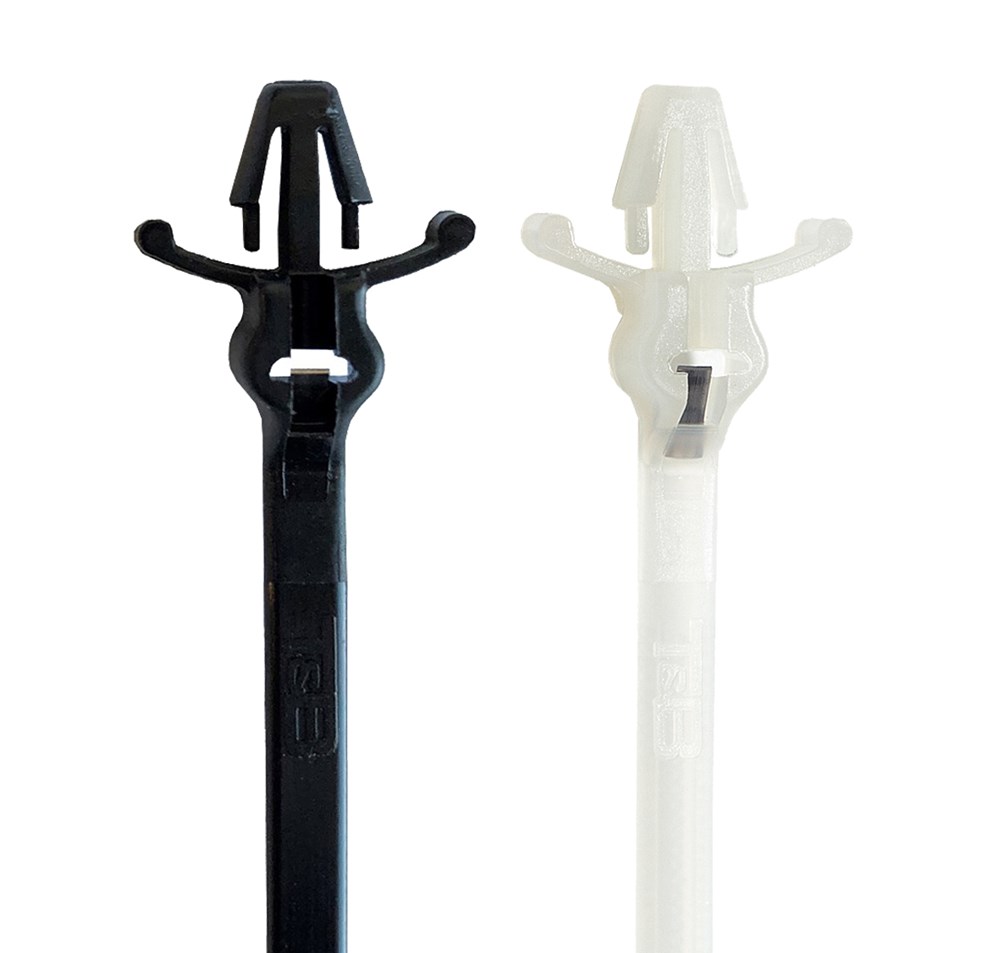

Ty-Rap, plastic cable ties for panel mounting
Cable ties for panel mountingCable ties for panel mounting up to 4.0 mm, anchor type.
The Ty-Rap non-magnetic stainless steel locking device ensures a strong, reliable and long lasting fastening under adverse conditions. The locking tongue of stainless steel in the nylon head gives the cable ties a superior locking in all temperatures and environments.The smooth, notchless body reduces stress concentration points and ensures a precise fastening.
All Ty-Rap cable ties with locking device meets and exceeds the performance requirements according to MIL-S--23190 (USA).
Smooth and rounded edges on head and strap provides a comfortable handling and prevents sharp edges from damaging the cables.
Material locking tongue: Stainless steel 316
Color: Natural, UV-resistant black
Other features: Silicone free
Only TY 38 M and TY 538 M are UL approved.
Technical properties
- Detectable:
- No
- Min. tensile strength:
- 220 N, 130 N
- Model:
- Without toothing
- Material quality:
- Polyamide (PA)
- Operating temperature:
- -40-85 °C
- Band closure:
- Steel nose
- UV-stable acc. ASTM D6779:
- No, Yes
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- Plug-in anchor/plug-in cam
- Colour:
- Natural colour, Black
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
- Max. tensile force:
- 220 N, 130 N
- Inflammability class of insulation material according to with UL94:
- V2
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
| Product Description | Bundle diameter | MOQ | Diameter of mounting hole | Unit | Length belt/tape/tie | Band width | Max. bundle diameter | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable Tie, TY-RAP, 150x3.5mm, Natural Steel Barb, Push Mount | 2-32 mm | 1000 . | 4.5-5.2 mm | pcs | 150 mm | 3.5 mm | 130 N |
No
|
|
|
|
| Cable Tie, TY-RAP, 150x3.5mm, Black Steel Barb, Push Mount | 2-32 mm | 1000 . | 4.5-5.2 mm | pcs | 150 mm | 3.5 mm | 130 N |
No
|
|
|
|
| Cable Tie, TY-RAP, 200x4.7mm, Natural Steel Barb, Push Mount | 1000 . | 6.4-6.7 mm | pcs | 200 mm | 4.7 mm | 44 mm | 220 N |
Yes
|
|
|
|
| Cable Tie, TY-RAP, 200x4.7mm, Black Steel Barb, Push Mount | 4-44 mm | 1000 . | 6.4-6.7 mm | pcs | 200 mm | 4.7 mm | 220 N |
Yes
|
|
|
|
| Cable Tie, TY-RAP, 200x4.7mm, Natural Steel Barb, Push Mount | 3.5-44 mm | 100 . | 6.4-6.7 mm | pcs | 200 mm | 4.7 mm | 220 N |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | UL approval | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|
| Cable Tie, TY-RAP, 150x3.5mm, Natural Steel Barb, Push Mount |
|
|
No
|
|
|
| Cable Tie, TY-RAP, 150x3.5mm, Black Steel Barb, Push Mount |
|
|
No
|
|
|
| Cable Tie, TY-RAP, 200x4.7mm, Natural Steel Barb, Push Mount |
|
|
Yes
|
|
|
| Cable Tie, TY-RAP, 200x4.7mm, Black Steel Barb, Push Mount |
|
|
Yes
|
|
|
| Cable Tie, TY-RAP, 200x4.7mm, Natural Steel Barb, Push Mount |
|
|
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Detectable | Min. tensile strength | Model | Material quality | Operating temperature | Band closure | UV-stable acc. ASTM D6779 | Transparent | Fluorescent | Solvable fastener | Text strip | Type of fastening | Colour | Surface protection | Material | Halogen free | Max. tensile force | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable Tie, TY-RAP, 150x3.5mm, Natural Steel Barb, Push Mount | No | 130 N | Without toothing | Polyamide (PA) | -40-85 °C | Steel nose | No | No | No | No | None | Plug-in anchor/plug-in cam | Natural colour | Untreated | Plastic | Yes | 130 N |
|
No
|
|
|
| Cable Tie, TY-RAP, 150x3.5mm, Black Steel Barb, Push Mount | No | 130 N | Without toothing | Polyamide (PA) | -40-85 °C | Steel nose | Yes | No | No | No | None | Plug-in anchor/plug-in cam | Black | Untreated | Plastic | Yes | 130 N |
|
No
|
|
|
| Cable Tie, TY-RAP, 200x4.7mm, Natural Steel Barb, Push Mount | No | 220 N | Without toothing | Polyamide (PA) | -40-85 °C | Steel nose | No | No | No | No | None | Plug-in anchor/plug-in cam | Natural colour | Untreated | Plastic | Yes | 220 N |
|
Yes
|
|
|
| Cable Tie, TY-RAP, 200x4.7mm, Black Steel Barb, Push Mount | No | 220 N | Without toothing | Polyamide (PA) | -40-105 °C | Steel nose | Yes | No | No | No | None | Plug-in anchor/plug-in cam | Black | Untreated | Plastic | Yes | 220 N |
|
Yes
|
|
|
| Cable Tie, TY-RAP, 200x4.7mm, Natural Steel Barb, Push Mount | No | 220 N | Without toothing | Polyamide (PA) | -40-85 °C | Steel nose | No | No | No | No | None | Plug-in anchor/plug-in cam | Natural colour | Untreated | Plastic | Yes | 220 N |
|
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| Cable Tie, TY-RAP, 150x3.5mm, Natural Steel Barb, Push Mount | EC000046 - Cable tie | 9.0 |
|
Cable ties with fixing elements | TY54SM, 7TCG009460R0104 | TY54SM |
No
|
|
|
| Cable Tie, TY-RAP, 150x3.5mm, Black Steel Barb, Push Mount | EC000046 - Cable tie | 9.0 |
|
Cable ties with fixing elements | TY54SMX, 7TCG009460R0105 | TY54SMX |
No
|
|
|
| Cable Tie, TY-RAP, 200x4.7mm, Natural Steel Barb, Push Mount | EC000046 - Cable tie | 9.0 |
|
Cable ties with fixing elements | TY38M, 7TAG009530R0005 | TY38M |
Yes
|
|
|
| Cable Tie, TY-RAP, 200x4.7mm, Black Steel Barb, Push Mount | EC000046 - Cable tie | 9.0 |
|
Cable ties with fixing elements | TY38MX, 7TAG009530R0006 | TY38MX |
Yes
|
|
|
| Cable Tie, TY-RAP, 200x4.7mm, Natural Steel Barb, Push Mount | EC000046 - Cable tie | 9.0 |
|
Cable ties with fixing elements | TY538M, 7TAG009530R0007 | TY538M |
Yes
|
|
|
- Total: 5
