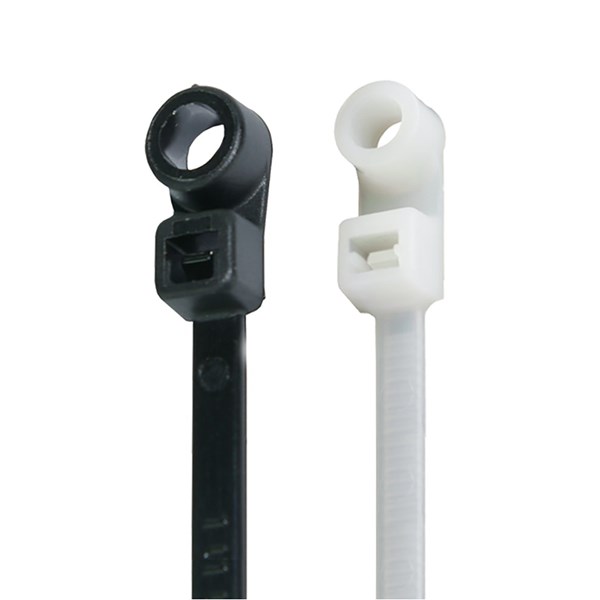

Plastic cable ties with mounting hole
Internally ribbed cable ties provide a secure grip on the cables and hoses.
Read-out head design ensures a high tensile strength.
Very little force is needed for the assembly and the curved end of the bands further facilitates a simple and quick installation.
Technical properties
- Detectable:
- No
- Min. tensile strength:
- 535 N, 80 N, 135 N, 225 N
- Model:
- Internal toothing
- Material quality:
- Polyamide (PA)
- Operating temperature:
- -40-85 °C
- Band closure:
- Plastic lip/-cam
- UV-stable acc. ASTM D6779:
- Yes, No
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- Screw hole
- Colour:
- Black, Natural colour
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
- Max. tensile force:
- 535 N, 80 N, 135 N, 225 N
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
| Product Description | MOQ | Diameter of mounting hole | Unit | Length belt/tape/tie | Band width | Max. bundle diameter | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Cable Tie, 110x2.5mm, Natural Plastic Barb, Mountable Head | 100 . | 3.1 mm | pcs | 110 mm | 2.5 mm | 20 mm | 80 N |
Yes
|
|
|
| Cable Tie, 215x4.6mm, Natural Plastic Barb, Mountable Head | 100 . | 5.4 mm | pcs | 215 mm | 4.6 mm | 102 mm | 225 N |
Yes
|
|
|
| Cable Tie, 160x3.5mm, Black Plastic Barb, Mountable Head | 100 . | 4.3 mm | pcs | 160 mm | 3.5 mm | 32 mm | 135 N |
No
|
|
|
| Cable Tie, 215x4.6mm, Black Plastic Barb, Mountable Head | 100 . | 5.4 mm | pcs | 215 mm | 4.6 mm | 45 mm | 225 N |
Yes
|
|
|
| Cable Tie, 395x7.6mm, Black Plastic Barb, Mountable Head | 100 . | 6.5 mm | pcs | 395 mm | 7.6 mm | 102 mm | 535 N |
No
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | UL approval | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|
| Cable Tie, 110x2.5mm, Natural Plastic Barb, Mountable Head |
|
|
Yes
|
|
|
| Cable Tie, 215x4.6mm, Natural Plastic Barb, Mountable Head |
|
|
Yes
|
|
|
| Cable Tie, 160x3.5mm, Black Plastic Barb, Mountable Head |
|
|
No
|
|
|
| Cable Tie, 215x4.6mm, Black Plastic Barb, Mountable Head |
|
|
Yes
|
|
|
| Cable Tie, 395x7.6mm, Black Plastic Barb, Mountable Head |
|
No
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Detectable | Min. tensile strength | Model | Material quality | Operating temperature | Band closure | UV-stable acc. ASTM D6779 | Transparent | Fluorescent | Solvable fastener | Text strip | Type of fastening | Colour | Surface protection | Material | Halogen free | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable Tie, 110x2.5mm, Natural Plastic Barb, Mountable Head | No | 80 N | Internal toothing | Polyamide (PA) | -40-85 °C | Plastic lip/-cam | No | No | No | No | None | Screw hole | Natural colour | Untreated | Plastic | Yes | 80 N |
Yes
|
|
|
| Cable Tie, 215x4.6mm, Natural Plastic Barb, Mountable Head | No | 225 N | Internal toothing | Polyamide (PA) | -40-85 °C | Plastic lip/-cam | No | No | No | No | None | Screw hole | Natural colour | Untreated | Plastic | Yes | 225 N |
Yes
|
|
|
| Cable Tie, 160x3.5mm, Black Plastic Barb, Mountable Head | No | 135 N | Internal toothing | Polyamide (PA) | -40-85 °C | Plastic lip/-cam | Yes | No | No | No | None | Screw hole | Black | Untreated | Plastic | Yes | 135 N |
No
|
|
|
| Cable Tie, 215x4.6mm, Black Plastic Barb, Mountable Head | No | 225 N | Internal toothing | Polyamide (PA) | -40-85 °C | Plastic lip/-cam | Yes | No | No | No | None | Screw hole | Black | Untreated | Plastic | Yes | 225 N |
Yes
|
|
|
| Cable Tie, 395x7.6mm, Black Plastic Barb, Mountable Head | No | 535 N | Internal toothing | Polyamide (PA) | -40-85 °C | Plastic lip/-cam | Yes | No | No | No | None | Screw hole | Black | Untreated | Plastic | Yes | 535 N |
No
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| Cable Tie, 110x2.5mm, Natural Plastic Barb, Mountable Head | EC000046 - Cable tie | 9.0 |
|
Cable ties with fixing elements | T518MR |
Yes
|
|
|
| Cable Tie, 215x4.6mm, Natural Plastic Barb, Mountable Head | EC000046 - Cable tie | 9.0 |
|
Cable ties with fixing elements | T550MR |
Yes
|
|
|
| Cable Tie, 160x3.5mm, Black Plastic Barb, Mountable Head | EC000046 - Cable tie | 9.0 |
|
Cable ties with fixing elements | T530MRX |
No
|
|
|
| Cable Tie, 215x4.6mm, Black Plastic Barb, Mountable Head | EC000046 - Cable tie | 9.0 |
|
Cable ties with fixing elements | T550MRX |
Yes
|
|
|
| Cable Tie, 395x7.6mm, Black Plastic Barb, Mountable Head | EC000046 - Cable tie | 9.0 |
|
Cable ties with fixing elements | T5120MRX |
No
|
|
|
- Total: 5
