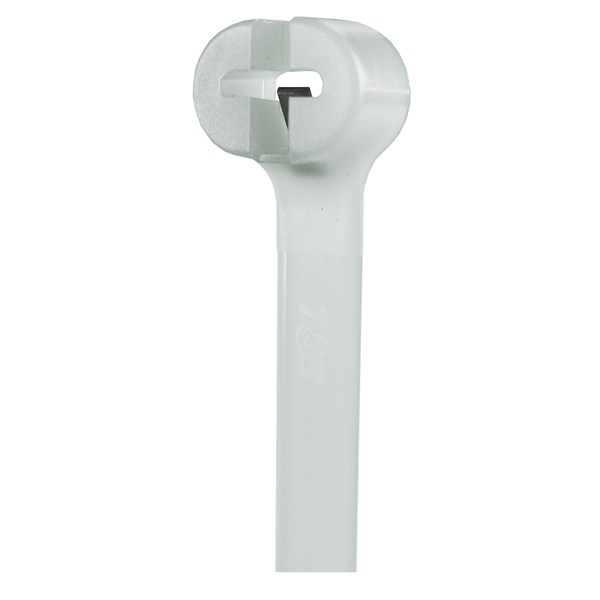

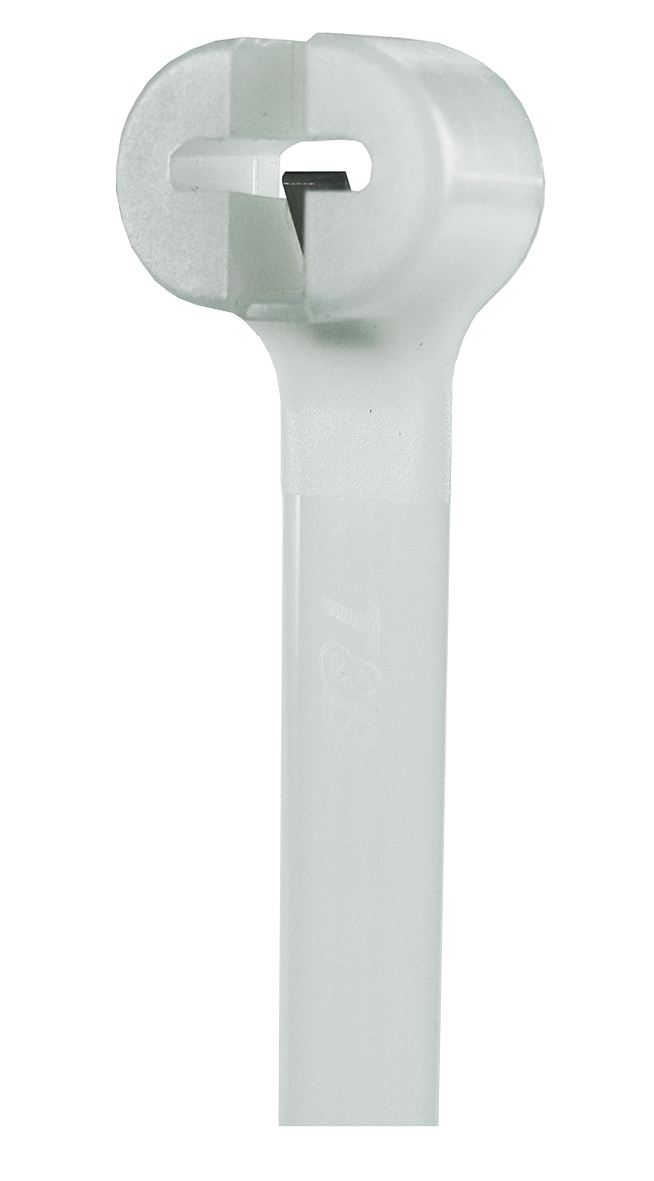

Ty-Rap, cable ties, metal barb - TYH-series
Extra heat resistant.
Material cable tie: Polyamid 6.6
Material locking tongue: Stainless steel 316
Color: Natural (may have a greenish tint)
Technical properties
- Detectable:
- No
- Min. tensile strength:
- 80 N, 180 N, 220 N
- Model:
- Without toothing
- Material quality:
- Polyamide (PA)
- Operating temperature:
- -40-105 °C
- Band closure:
- Steel nose
- UV-stable acc. ASTM D6779:
- No
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- None
- Colour:
- Natural colour
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
- Max. tensile force:
- 80 N, 180 N, 220 N
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 6
| Product Description | Bundle diameter | MOQ | Unit | Length belt/tape/tie | Band width | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| Cable Tie, TY-RAP, 92x2.4mm, Natural/HS Steel Barb | 2-22 mm | 1000 . | pcs | 92 mm | 2.4 mm | 80 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 203x2.4mm, Natural/HS Steel Barb | 2-51 mm | 1000 . | pcs | 203 mm | 2.4 mm | 80 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 140x3.6mm, Natural/HS Steel Barb | 2-35 mm | 1000 . | pcs | 140 mm | 3.6 mm | 180 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 208x3.6mm, Natural/HS Steel Barb | 2-51 mm | 1000 . | pcs | 208 mm | 3.6 mm | 180 N |
No
|
|
|
| Cable Tie, TY-RAP, 186x4.8mm, Natural/HS Steel Barb | 3-48 mm | 1000 . | pcs | 186 mm | 4.8 mm | 220 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 284x3.6mm, Natural/HS Steel Barb | 2-76 mm | 1000 . | pcs | 284 mm | 3.6 mm | 180 N |
No
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
| Product Description | UL approval | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|
| Cable Tie, TY-RAP, 92x2.4mm, Natural/HS Steel Barb |
|
|
Yes
|
|
|
| Cable Tie, TY-RAP, 203x2.4mm, Natural/HS Steel Barb |
|
|
Yes
|
|
|
| Cable Tie, TY-RAP, 140x3.6mm, Natural/HS Steel Barb |
|
|
Yes
|
|
|
| Cable Tie, TY-RAP, 208x3.6mm, Natural/HS Steel Barb |
|
|
No
|
|
|
| Cable Tie, TY-RAP, 186x4.8mm, Natural/HS Steel Barb |
|
|
Yes
|
|
|
| Cable Tie, TY-RAP, 284x3.6mm, Natural/HS Steel Barb |
|
|
No
|
|
|
- Total: 6
Technical Properties
- Total: 6
| Product Description | Detectable | Min. tensile strength | Model | Material quality | Operating temperature | Band closure | UV-stable acc. ASTM D6779 | Transparent | Fluorescent | Solvable fastener | Text strip | Type of fastening | Colour | Surface protection | Material | Halogen free | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable Tie, TY-RAP, 92x2.4mm, Natural/HS Steel Barb | No | 80 N | Without toothing | Polyamide (PA) | -40-105 °C | Steel nose | No | No | No | No | None | None | Natural colour | Untreated | Plastic | Yes | 80 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 203x2.4mm, Natural/HS Steel Barb | No | 80 N | Without toothing | Polyamide (PA) | -40-105 °C | Steel nose | No | No | No | No | None | None | Natural colour | Untreated | Plastic | Yes | 80 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 140x3.6mm, Natural/HS Steel Barb | No | 180 N | Without toothing | Polyamide (PA) | -40-105 °C | Steel nose | No | No | No | No | None | None | Natural colour | Untreated | Plastic | Yes | 180 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 208x3.6mm, Natural/HS Steel Barb | No | 180 N | Without toothing | Polyamide (PA) | -40-105 °C | Steel nose | No | No | No | No | None | None | Natural colour | Untreated | Plastic | Yes | 180 N |
No
|
|
|
| Cable Tie, TY-RAP, 186x4.8mm, Natural/HS Steel Barb | No | 220 N | Without toothing | Polyamide (PA) | -40-105 °C | Steel nose | No | No | No | No | None | None | Natural colour | Untreated | Plastic | Yes | 220 N |
Yes
|
|
|
| Cable Tie, TY-RAP, 284x3.6mm, Natural/HS Steel Barb | No | 180 N | Without toothing | Polyamide (PA) | -40-105 °C | Steel nose | No | No | No | No | None | None | Natural colour | Untreated | Plastic | Yes | 180 N |
No
|
|
|
- Total: 6
Other information
- Total: 6
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| Cable Tie, TY-RAP, 92x2.4mm, Natural/HS Steel Barb | EC000046 - Cable tie | 9.0 |
|
Cable ties with higher technical spec | TYHB23M, 7TCG009460R0111 | TYHB23M |
Yes
|
|
|
| Cable Tie, TY-RAP, 203x2.4mm, Natural/HS Steel Barb | EC000046 - Cable tie | 9.0 |
|
Cable ties with higher technical spec | TYH232M, 7TCG009590R0001 | TYH232M |
Yes
|
|
|
| Cable Tie, TY-RAP, 140x3.6mm, Natural/HS Steel Barb | EC000046 - Cable tie | 9.0 |
|
Cable ties with higher technical spec | TYH24M, 7TAG009590R0004 | TYH24M |
Yes
|
|
|
| Cable Tie, TY-RAP, 208x3.6mm, Natural/HS Steel Barb | EC000046 - Cable tie | 9.0 |
|
Cable ties with higher technical spec | TYH242M, 7TCG009590R0003 | TYH242M |
No
|
|
|
| Cable Tie, TY-RAP, 186x4.8mm, Natural/HS Steel Barb | EC000046 - Cable tie | 9.0 |
|
Cable ties with higher technical spec | TYH25M, 7TAG009590R0006 | TYH25M |
Yes
|
|
|
| Cable Tie, TY-RAP, 284x3.6mm, Natural/HS Steel Barb | EC000046 - Cable tie | 9.0 |
|
Cable ties with higher technical spec | TYH26M, 7TCG009590R0007 | TYH26M |
No
|
|
|
- Total: 6
