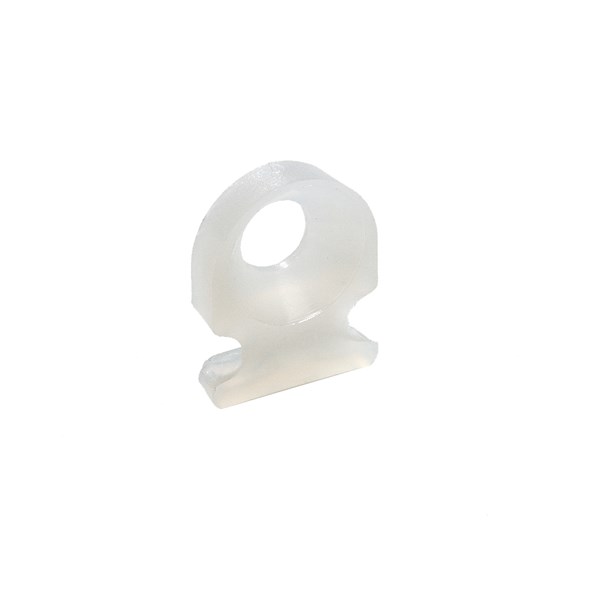

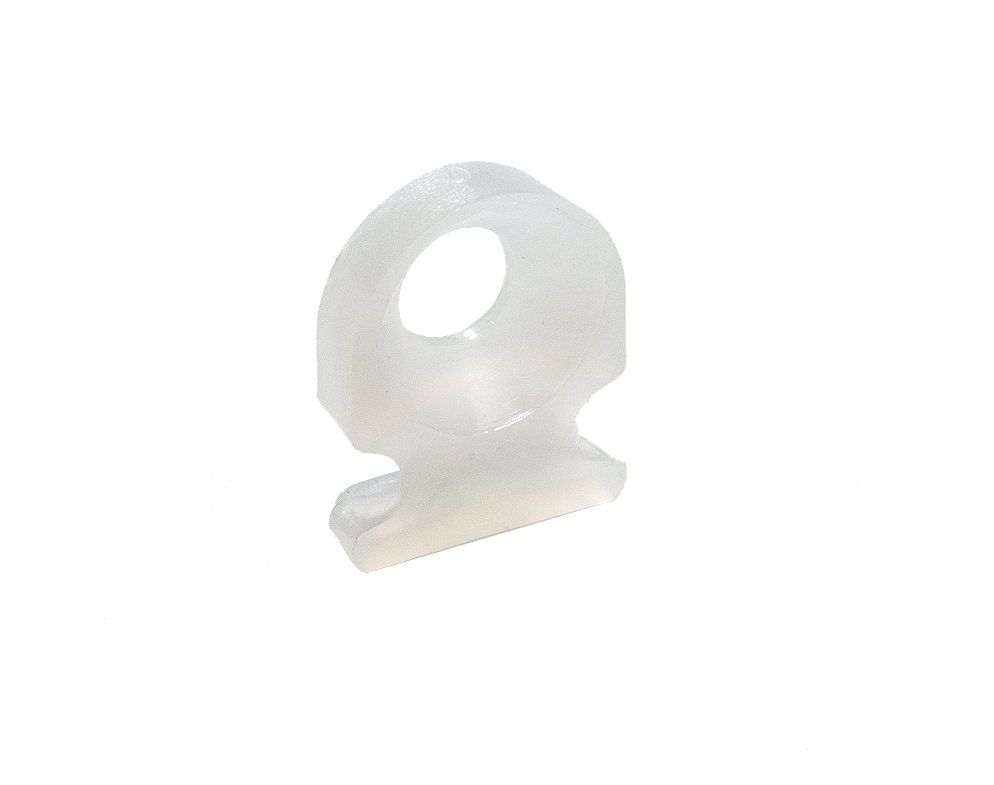

Skruvsocklar för buntband
TC 804 / TC 102 / TC 104-serien
Skruvsockel med mycket låg profil.
Bandbredd: Upp till 2.4 mm (TC 804 & TC 104), 4.8 mm (TC 102)
Material: Polyamid 6.6
Temperaturområde: -40º C till +85º C
Brännbarhetsklass: UL 94 V-2
Färg: Naturell
Övrigt: Halogenfri, silikonfri
Fabrikat: Thomas & Betts
Technical properties
- Type of fastening:
- Screw/rivet
- Colour:
- Colourless
- Material:
- Plastic
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents

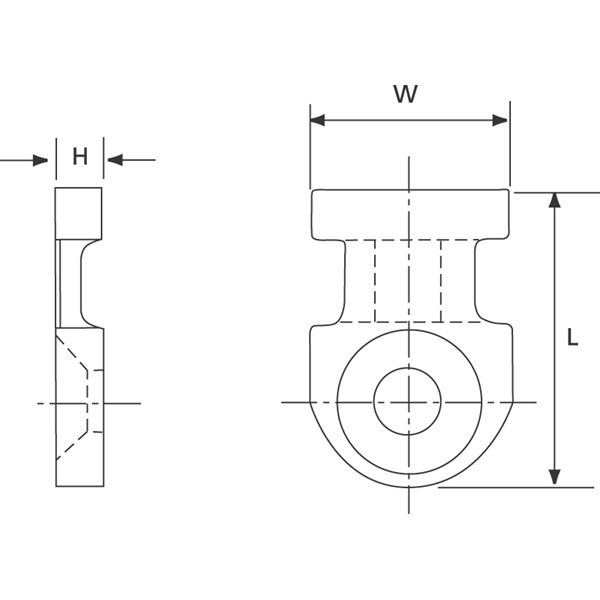

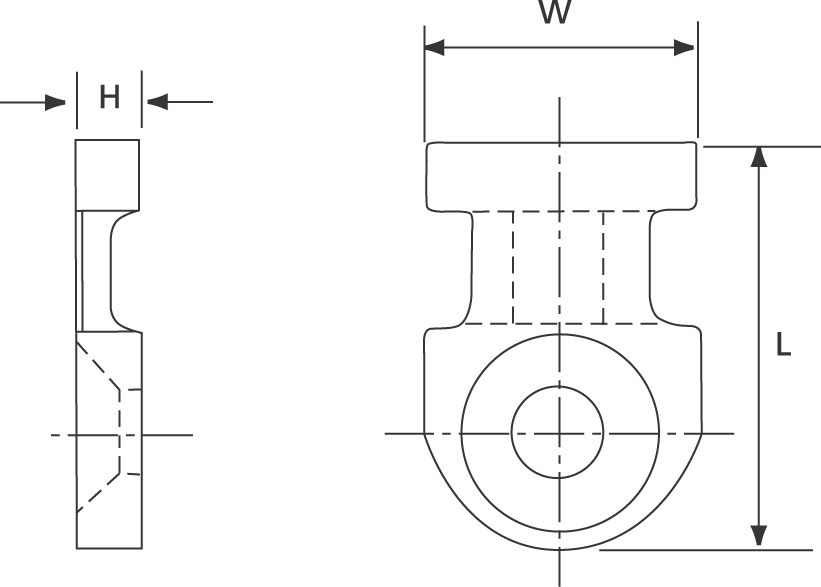

Dimensions
- Total: 3
| Product Description | Width | Height | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| BUNTBANDSFÄSTE, LxWxH=10.2x7.9x2.4. Hål 2.3mm | 7.9 mm | 2.4 mm | 1000 . | pcs | 10.2 mm |
Yes
|
|
|
| BUNTBANDSFÄSTE, NATUR, LxWxH=19.1x12.7x3.2. Hål 4.4mm | 13 mm | 5 mm | 1000 . | pcs | 18 mm |
Yes
|
|
|
| BUNTBANDSFÄSTE, NATUR, LxWxH=10.3x7.9x2.4. Hål 3.4mm | 8 mm | 3 mm | 1000 . | pcs | 10 mm |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Availability | ||
|---|---|---|---|
| BUNTBANDSFÄSTE, LxWxH=10.2x7.9x2.4. Hål 2.3mm |
Yes
|
|
|
| BUNTBANDSFÄSTE, NATUR, LxWxH=19.1x12.7x3.2. Hål 4.4mm |
Yes
|
|
|
| BUNTBANDSFÄSTE, NATUR, LxWxH=10.3x7.9x2.4. Hål 3.4mm |
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Type of fastening | Colour | Material | Availability | ||
|---|---|---|---|---|---|---|
| BUNTBANDSFÄSTE, LxWxH=10.2x7.9x2.4. Hål 2.3mm | Screw/rivet | Colourless | Plastic |
Yes
|
|
|
| BUNTBANDSFÄSTE, NATUR, LxWxH=19.1x12.7x3.2. Hål 4.4mm | Screw/rivet | Colourless | Plastic |
Yes
|
|
|
| BUNTBANDSFÄSTE, NATUR, LxWxH=10.3x7.9x2.4. Hål 3.4mm | Screw/rivet | Colourless | Plastic |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| BUNTBANDSFÄSTE, LxWxH=10.2x7.9x2.4. Hål 2.3mm | EC000449 - Mounting base and -element for cable ties | 9.0 |
|
Mounting base, screw mounted | TC804-TB, 7TAG009880R0008 | TC804 |
Yes
|
|
|
| BUNTBANDSFÄSTE, NATUR, LxWxH=19.1x12.7x3.2. Hål 4.4mm | EC000449 - Mounting base and -element for cable ties | 9.0 |
|
Mounting base, screw mounted | TC102, 7TAG009880R0001 | TC102 |
Yes
|
|
|
| BUNTBANDSFÄSTE, NATUR, LxWxH=10.3x7.9x2.4. Hål 3.4mm | EC000449 - Mounting base and -element for cable ties | 9.0 |
|
Mounting base, screw mounted | TC104, 7TAG009880R0003 | TC104 |
Yes
|
|
|
- Total: 3
