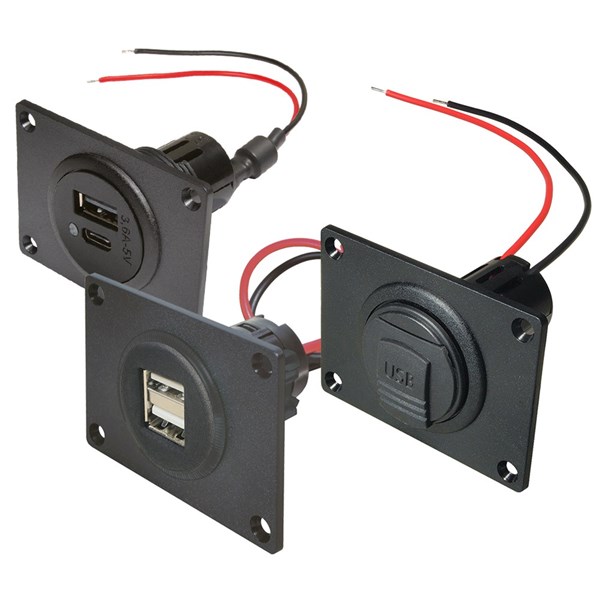

Power USB Built-In Socket
12-24 V DC / 5 V DC, 5 A (2 x 2.5 A) with integrated power voltage converter.
For charging and operating electronical devices that are suitable for charging by 5 Volt USB.
Fastening by plastic srew nut, installation dimensions Ø 28 mm, pre-assembled cable connection approx. 15 cm.
Technical Details:
Input voltage 8-34 Volt
E1 certificate
Current consumption: < 3 mA
Cable connection: 15 cm, Cable cross section 0.5 mm²
Panel thickness 2-8 mm, Install dimensions 28 mm +/- 0.1 mm
Output current: max. 5 A (2 x 2.5 A)
Output current duration: 4.4 A (2 x 2.2 A)
Supplied with or without cover, see below
175467322000: Without cover
175467322100: With cover
Technical properties
- Type of product:
- Uttag
- Input connection:
- USB
- Output connection:
- Kabel
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
175467322000_spec
Dimensions
- Total: 2
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| SOCKET USBx2, 12-24 VDC, 2x 2500mA MOUNTING PLATE | 1 . | pcs |
Yes
|
|
|
| SOCKET USBx2, 12-24 VDC, 2x 2500mA MOUNTING PLATE, CAP | 1 . | pcs |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| SOCKET USBx2, 12-24 VDC, 2x 2500mA MOUNTING PLATE |
Yes
|
|
|
| SOCKET USBx2, 12-24 VDC, 2x 2500mA MOUNTING PLATE, CAP |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Type of product | Input connection | Output connection | Availability | ||
|---|---|---|---|---|---|---|
| SOCKET USBx2, 12-24 VDC, 2x 2500mA MOUNTING PLATE | Uttag | USB | Kabel |
Yes
|
|
|
| SOCKET USBx2, 12-24 VDC, 2x 2500mA MOUNTING PLATE, CAP | Uttag | USB | Kabel |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|
| SOCKET USBx2, 12-24 VDC, 2x 2500mA MOUNTING PLATE |
|
Socket USB | 175467322000 |
Yes
|
|
|
| SOCKET USBx2, 12-24 VDC, 2x 2500mA MOUNTING PLATE, CAP |
|
Socket USB | 175467322100 |
Yes
|
|
|
