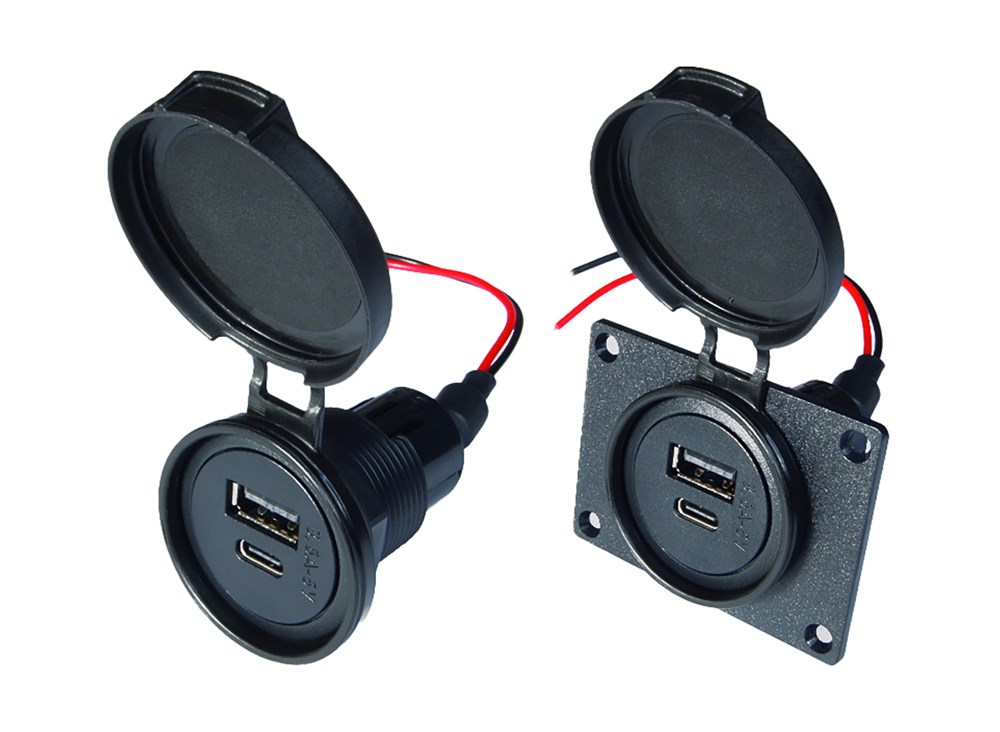

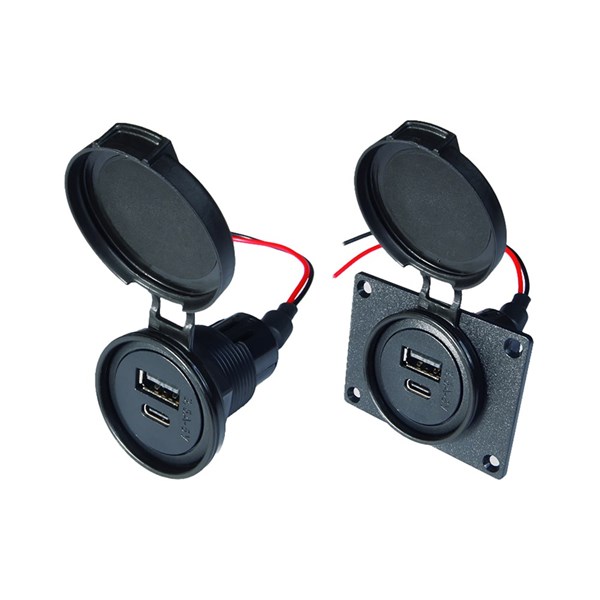

Power Double USB-C/A socket with protective cap IP54
12-24 V DC, output 5 V DC, 3.6 A with integrated power voltage converter.
For charging and operating electronical devices that are suitable for charging by 5 V USB.
Overload protection, overtemperature protection, reverse polarity protection, short-circuit protection, overvoltage protection at short voltage peaks.
Technical details USB:
Input: 8-34 V DC
Output: 3.6 A
E1 certificate
Max connection: 1x USB-C and 1 x USB-A
Current consumption ≤ 1 mA.
Mounting hole: Ø 28 mm / Ø 36 mm with mounting plate.
Panel thickness 2-16 mm.
Fastening by hexagon nut (and screws).
Cable connection pre-assembled, approx. 15 cm, 0.5 mm².
Technical properties
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| UTTAG 1xUSB-C, 1xUSB-A, 12-24 VDC, 3.6A, PANELMONTERAD, LOCK | 1 . | pcs |
No
|
|
|
| UTTAG 1xUSB-C, 1xUSB-A, 12-24 VDC, 3.6A, MONTERINGSPLATTA, LOCK | 1 . | pcs |
No
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| UTTAG 1xUSB-C, 1xUSB-A, 12-24 VDC, 3.6A, PANELMONTERAD, LOCK |
No
|
|
|
| UTTAG 1xUSB-C, 1xUSB-A, 12-24 VDC, 3.6A, MONTERINGSPLATTA, LOCK |
No
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| UTTAG 1xUSB-C, 1xUSB-A, 12-24 VDC, 3.6A, PANELMONTERAD, LOCK |
No
|
|
|
| UTTAG 1xUSB-C, 1xUSB-A, 12-24 VDC, 3.6A, MONTERINGSPLATTA, LOCK |
No
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|
| UTTAG 1xUSB-C, 1xUSB-A, 12-24 VDC, 3.6A, PANELMONTERAD, LOCK |
|
Socket USB | UTTAG 1XUSB-C, 1XUSB-A, 12-24 VDC, 3.6A | 175467341650 |
No
|
|
|
| UTTAG 1xUSB-C, 1xUSB-A, 12-24 VDC, 3.6A, MONTERINGSPLATTA, LOCK |
|
Socket USB | UTTAG 1XUSB-C, 1XUSB-A, 12-24 VDC, 3.6A | 175467342150 |
No
|
|
|
- Total: 2
