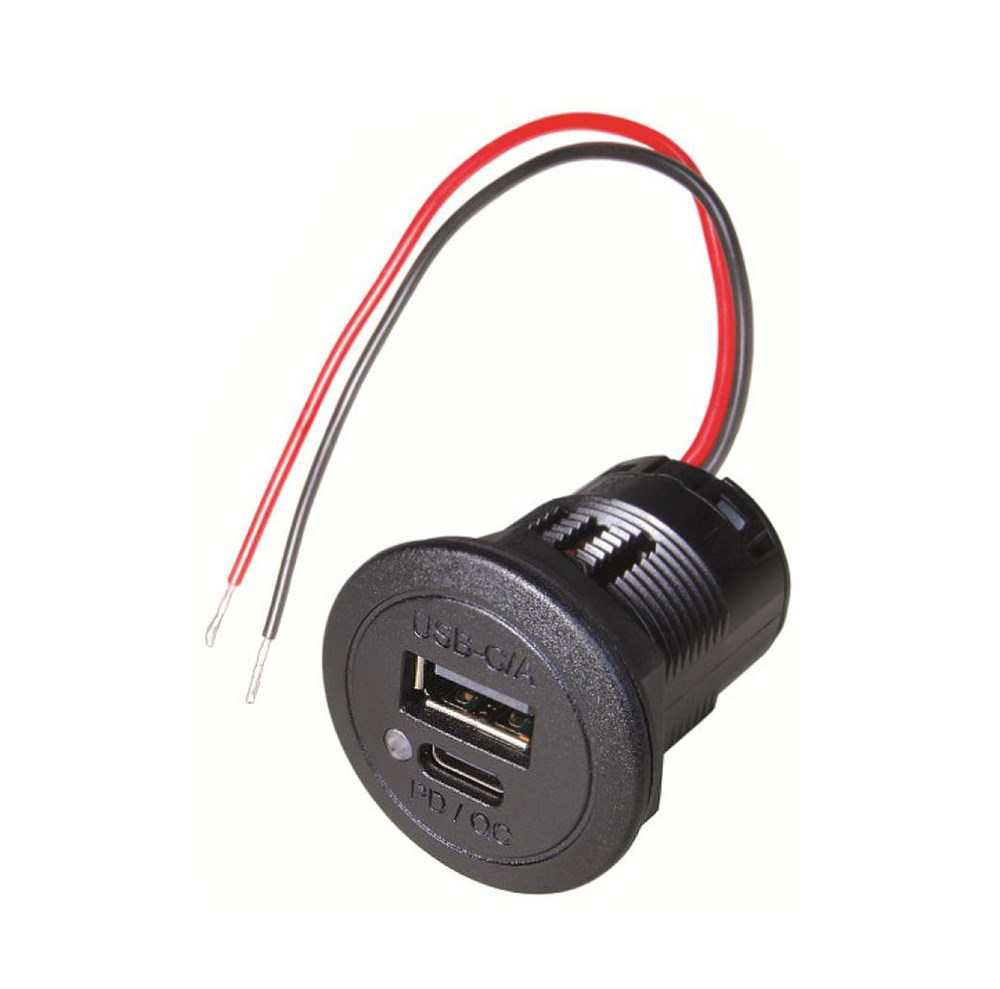

Power Double USB-C/A Socket PD/QC
12-24 V DC with integrated power voltage converter.
Supports fast charging methods as Power Delivery (Port C) and Quick Charge (Port C and A).
Fastening by hexagon nut.
Technical Details:
Input voltage: 8-34 Volt
Output: 5 V, 9 V, 12 V and with 24 V input voltage also 15 V and 20 V; max. 2 x 30 watt
USB-C Port up to 3 A
USB-A Port up to 2.2 A
Current consumption: < 1 mA
Protection against overload, overtemperature, reverse polarity, short-curcuit, overvoltage protection at short voltage peaks.
Cable connection 15 cm, Cable cross section 0.5 mm²
Panel thickness 2-16 mm, Install dimensions 28 mm +/- 0.1 mm
E1 certificate
Technical properties
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| UTTAG 1xUSB-C, 1xUSB-A, 12-24 VDC, 3A/2.2A, PANELMONTERAD, MED LED | 1 . | pcs |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| UTTAG 1xUSB-C, 1xUSB-A, 12-24 VDC, 3A/2.2A, PANELMONTERAD, MED LED |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| UTTAG 1xUSB-C, 1xUSB-A, 12-24 VDC, 3A/2.2A, PANELMONTERAD, MED LED |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|
| UTTAG 1xUSB-C, 1xUSB-A, 12-24 VDC, 3A/2.2A, PANELMONTERAD, MED LED |
|
Socket USB | UTTAG 1XUSB-C, 1XUSB-A, 12-24 VDC, 3A/2.2A | 175467353000 |
Yes
|
|
|
- Total: 1
