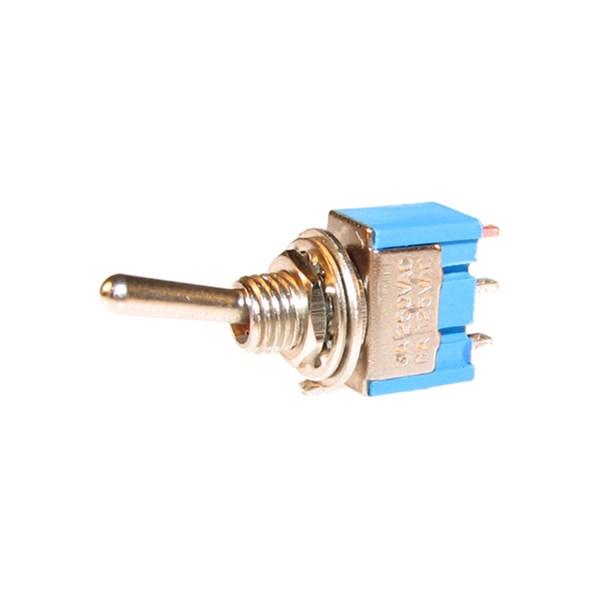

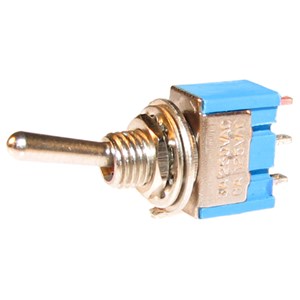

Toggle switch
K871
1-Polig On/On Miniature vippströmställare.
Brytförmåga: 6 A @ 12 V DC eller 3 A @ 24 V DC
Lödanslutningar: 3 st 2.0 x 0.8 mm
Passar i hål: 6 mm
Denna artikel finns även butiksförpackad i påse med streckkod, då med ändelse -PP på artikelnumret.
Technical properties
- Product Group:
- Strömställare
- Type of product:
- Vippströmställare
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents

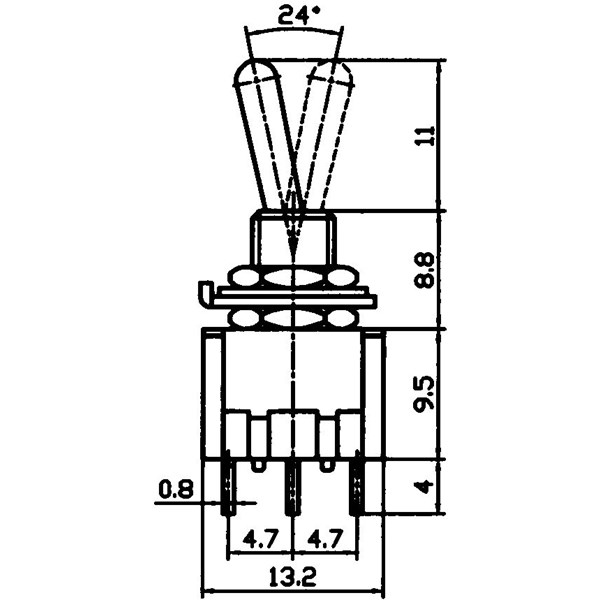

Dimensions
- Total: 2
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| TOGGLE SWITCH, 1-POL, ON/ON 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC | 1 . | pck |
Yes
|
|
|
| TOGGLE SWITCH, 1-POL, ON/ON 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC | 10 . | pcs |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| TOGGLE SWITCH, 1-POL, ON/ON 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC |
Yes
|
|
|
| TOGGLE SWITCH, 1-POL, ON/ON 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Product Group | Type of product | Availability | ||
|---|---|---|---|---|---|
| TOGGLE SWITCH, 1-POL, ON/ON 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC | Vippströmställare |
Yes
|
|
|
|
| TOGGLE SWITCH, 1-POL, ON/ON 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC | Strömställare | Vippströmställare |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| TOGGLE SWITCH, 1-POL, ON/ON 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC | EC000443 - Device built-in switch and -push button | 9.0 |
|
Toggle switches | VIPPSTRÖMSTÄLLARE, 1-POL, ON/ON | K871-PP1 |
Yes
|
|
|
| TOGGLE SWITCH, 1-POL, ON/ON 6A@12VDC, 3A@12VDC, 6A@125VAC, 3A@125VAC | EC000443 - Device built-in switch and -push button | 9.0 |
|
Toggle switches | VIPPSTRÖMSTÄLLARE, 1-POL, ON/ON | K871 |
Yes
|
|
|
- Total: 2
