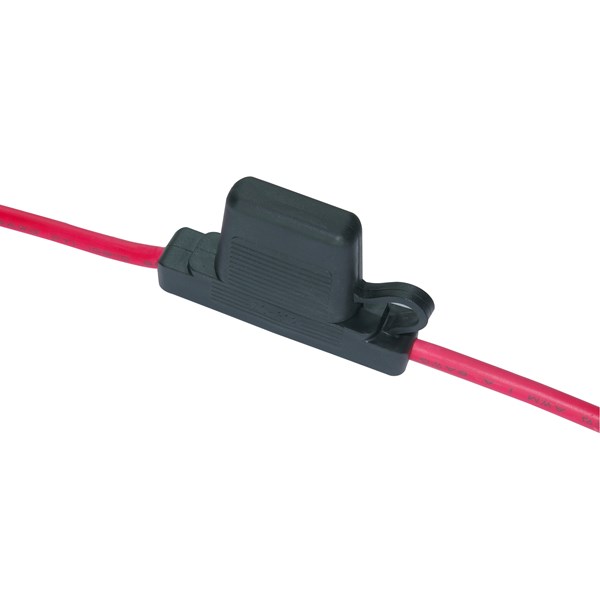

Fuse holder with cover and cable
För Maxisäkring.
Svart hus med röd förtent mässingskabel.
Längd: 300 mm
Skyddsklass: IP54
Kabelarea: AWG 8 (8.35 mm²)
Max: 80A
Denna artikel finns även butiksförpackad i påse med streckkod, då med ändelse -PP på artikelnumret.
Technical properties
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Connection type:
- Other
- Rated current:
- 100 A
- Rated voltage:
- 32 V
- Type of current:
- DC
- Mounting method:
- Other
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved

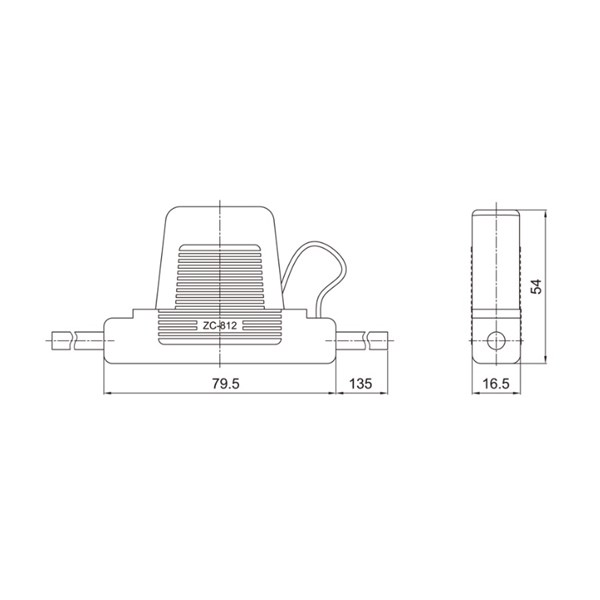

Dimensions
- Total: 2
| Product Description | MOQ | Unit | Rated voltage | Dimensions glass fuse | Availability | ||
|---|---|---|---|---|---|---|---|
| FUSE HOLDER, MAXI BLACK HOUSE, AWG12, 8.35mm2, 300mm RED CABLE | 10 . | pcs | 32 V | Blade fuse |
Yes
|
|
|
| FUSE HOLDER, MAXI BLACK HOUSE, AWG8, 8.35mm2, 300mm RED CABLE | 10 . | pck | 32 V | Blade fuse |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Approved according to CE | Availability | ||
|---|---|---|---|---|
| FUSE HOLDER, MAXI BLACK HOUSE, AWG12, 8.35mm2, 300mm RED CABLE |
|
Yes
|
|
|
| FUSE HOLDER, MAXI BLACK HOUSE, AWG8, 8.35mm2, 300mm RED CABLE |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Permitted cable outer temperature after assembling without vibration | Connection type | Rated current | Rated voltage | Type of current | Mounting method | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| FUSE HOLDER, MAXI BLACK HOUSE, AWG12, 8.35mm2, 300mm RED CABLE | -30-70 °C | Other | 100 A | 32 V | DC | Other |
Yes
|
|
|
| FUSE HOLDER, MAXI BLACK HOUSE, AWG8, 8.35mm2, 300mm RED CABLE | -30-70 °C | Other | 100 A | 32 V | DC | Other |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| FUSE HOLDER, MAXI BLACK HOUSE, AWG12, 8.35mm2, 300mm RED CABLE | EC000036 - Miniature fuse holder | 9.0 |
|
Fuse Holder - Maxi | ZC812 |
Yes
|
|
|
| FUSE HOLDER, MAXI BLACK HOUSE, AWG8, 8.35mm2, 300mm RED CABLE | EC000036 - Miniature fuse holder | 9.0 |
|
Fuse Holder - Maxi | ZC812-PP1 |
Yes
|
|
|
