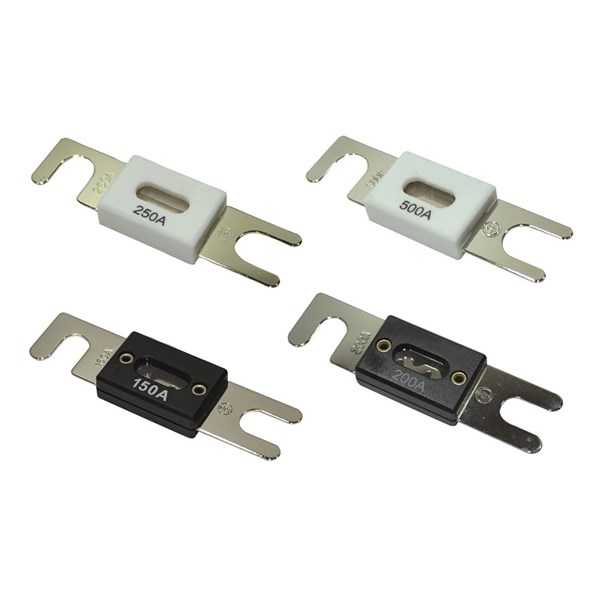

Bolt-on - Mega L-serien i Konsumentförpackning
MEGA L
Maximum voltage: 32 V DC
Current rating: 50-500 A
Slow acting fuse, gold plated
Stud size: See table below.

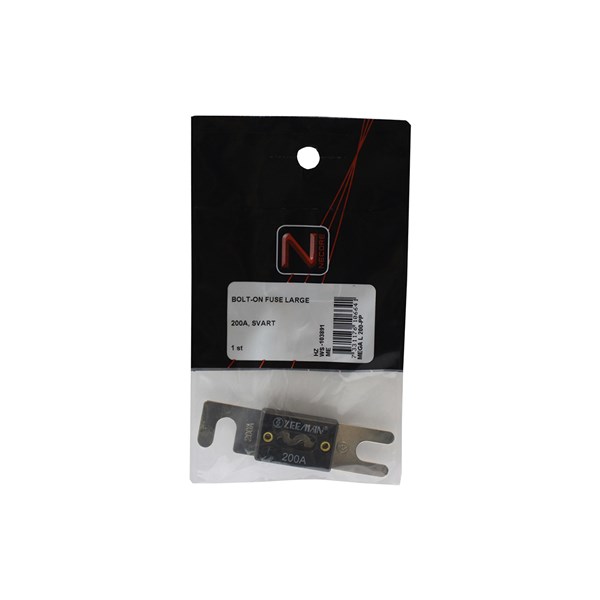

This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
Technical properties
- Explosion-proof:
- No
- Release characteristic:
- Time-lag (T)
- Rated voltage:
- 32 V
- Optical defect indication:
- Yes
- Type of current:
- DC
- Colour code:
- Black
- Nominal voltage DC:
- 32 V
- Max. continuous voltage DC:
- 32 V
- Number of fuses:
- 1 .
- Model:
- Other
- Max. current (Imax):
- 100 A, 150 A, 200 A, 250 A, 300 A, 400 A, 50 A
- Nominal current:
- 100 A, 150 A, 200 A, 250 A, 300 A, 400 A, 50 A
- Fuse type:
- Mega
- Packaging:
- Bag
Show more
Item List
- Total: 7
- Total: 7
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Mega L Drawing
Dimensions
- Total: 7
| Product Description | Width | MOQ | Unit | Rated voltage | Mounting holes | Centre-to-centre distance of connections | Thickness | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| BOLT-ON FUSE, LARGE, 100A BLACK, M8, BAKELITE | 82 mm | 1 . | pck | 32 V | M8 | 60 mm | 10 mm | 22 mm |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 150A BLACK, M8, BAKELITE | 82 mm | 1 . | pck | 32 V | M8 | 60 mm | 10 mm | 22 mm |
No
|
|
|
| BOLT-ON FUSE, LARGE, 200A BLACK, M8, BAKELITE | 82 mm | 1 . | pck | 32 V | M8 | 60 mm | 10 mm | 22 mm |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 250A WHITE, M10, CERAMIC | 82 mm | 1 . | pck | 32 V | M10 | 60 mm | 10 mm | 22 mm |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 300A WHITE, M10, CERAMIC | 82 mm | 1 . | pck | 32 V | M10 | 60 mm | 10 mm | 22 mm |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 400A WHITE, M10, CERAMIC | 82 mm | 1 . | pck | 32 V | M10 | 60 mm | 10 mm | 22 mm |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 50A BLACK, M8, BAKELITE | 82 mm | 1 . | pck | 32 V | M8 | 60 mm | 10 mm | 22 mm |
Yes
|
|
|
- Total: 7
Similar Options
Approvals
- Total: 7
- Total: 7
Technical Properties
- Total: 7
| Product Description | Explosion-proof | Release characteristic | Rated voltage | Optical defect indication | Type of current | Colour code | Nominal voltage DC | Max. continuous voltage DC | Number of fuses | Model | Max. current (Imax) | Nominal current | Fuse type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOLT-ON FUSE, LARGE, 100A BLACK, M8, BAKELITE | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 100 A | 100 A | Mega | Bag |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 150A BLACK, M8, BAKELITE | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 150 A | 150 A | Mega | Bag |
No
|
|
|
| BOLT-ON FUSE, LARGE, 200A BLACK, M8, BAKELITE | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 200 A | 200 A | Mega | Bag |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 250A WHITE, M10, CERAMIC | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 250 A | 250 A | Mega | Bag |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 300A WHITE, M10, CERAMIC | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 300 A | 300 A | Mega | Bag |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 400A WHITE, M10, CERAMIC | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 400 A | 400 A | Mega | Bag |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 50A BLACK, M8, BAKELITE | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 50 A | 50 A | Mega | Bag |
Yes
|
|
|
- Total: 7
Other information
- Total: 7
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| BOLT-ON FUSE, LARGE, 100A BLACK, M8, BAKELITE | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BOLT-ON FUSE LARGE | MEGAL100-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 150A BLACK, M8, BAKELITE | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BOLT-ON FUSE LARGE | MEGAL150-PP1 |
No
|
|
|
| BOLT-ON FUSE, LARGE, 200A BLACK, M8, BAKELITE | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BOLT-ON FUSE LARGE | MEGAL200-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 250A WHITE, M10, CERAMIC | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BOLT-ON FUSE LARGE | MEGAL250-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 300A WHITE, M10, CERAMIC | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BOLT-ON FUSE LARGE | MEGAL300-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 400A WHITE, M10, CERAMIC | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BOLT-ON FUSE LARGE | MEGAL400-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, LARGE, 50A BLACK, M8, BAKELITE | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | BOLT-ON FUSE LARGE | MEGAL50-PP1 |
Yes
|
|
|
- Total: 7
