JM 20A

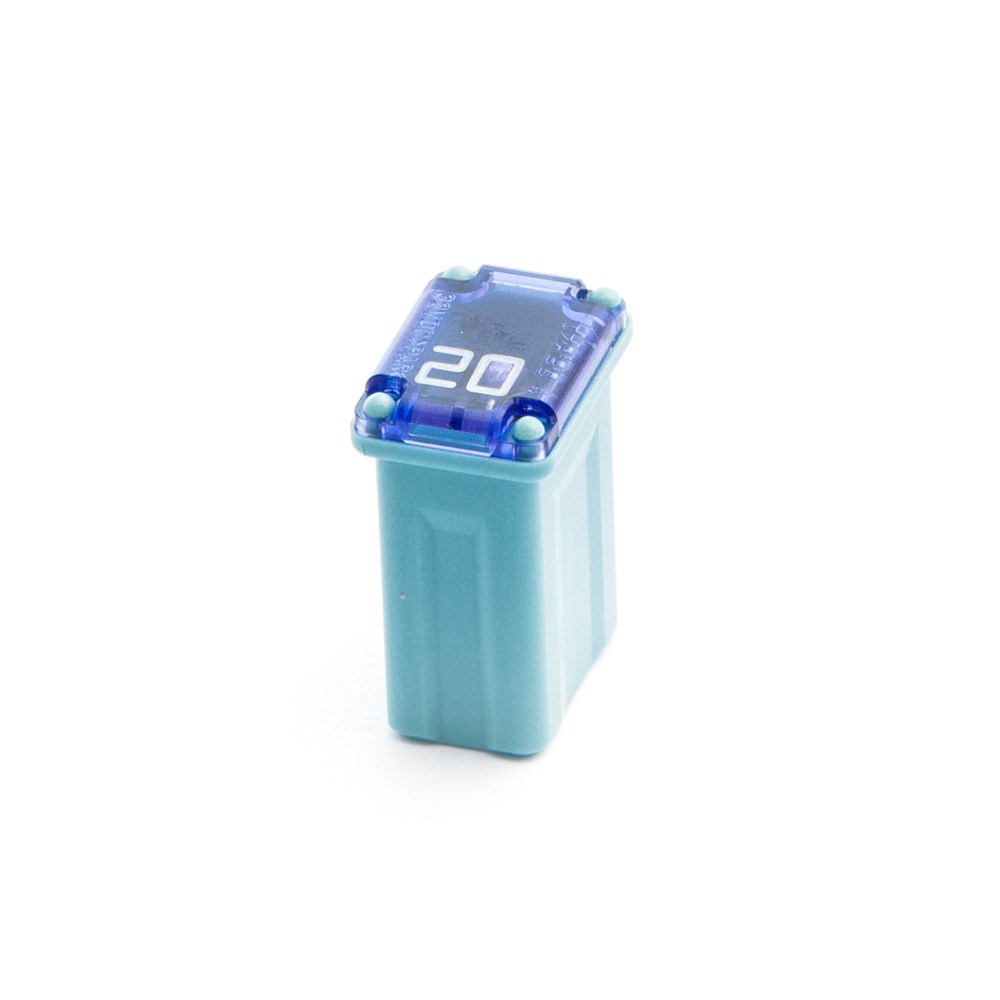

JAPANESE FUSE LINKS, MICRO, 20A LJUSBLUE
JM 20A
- Availability:
-
Yes
- Total: 1
Related items

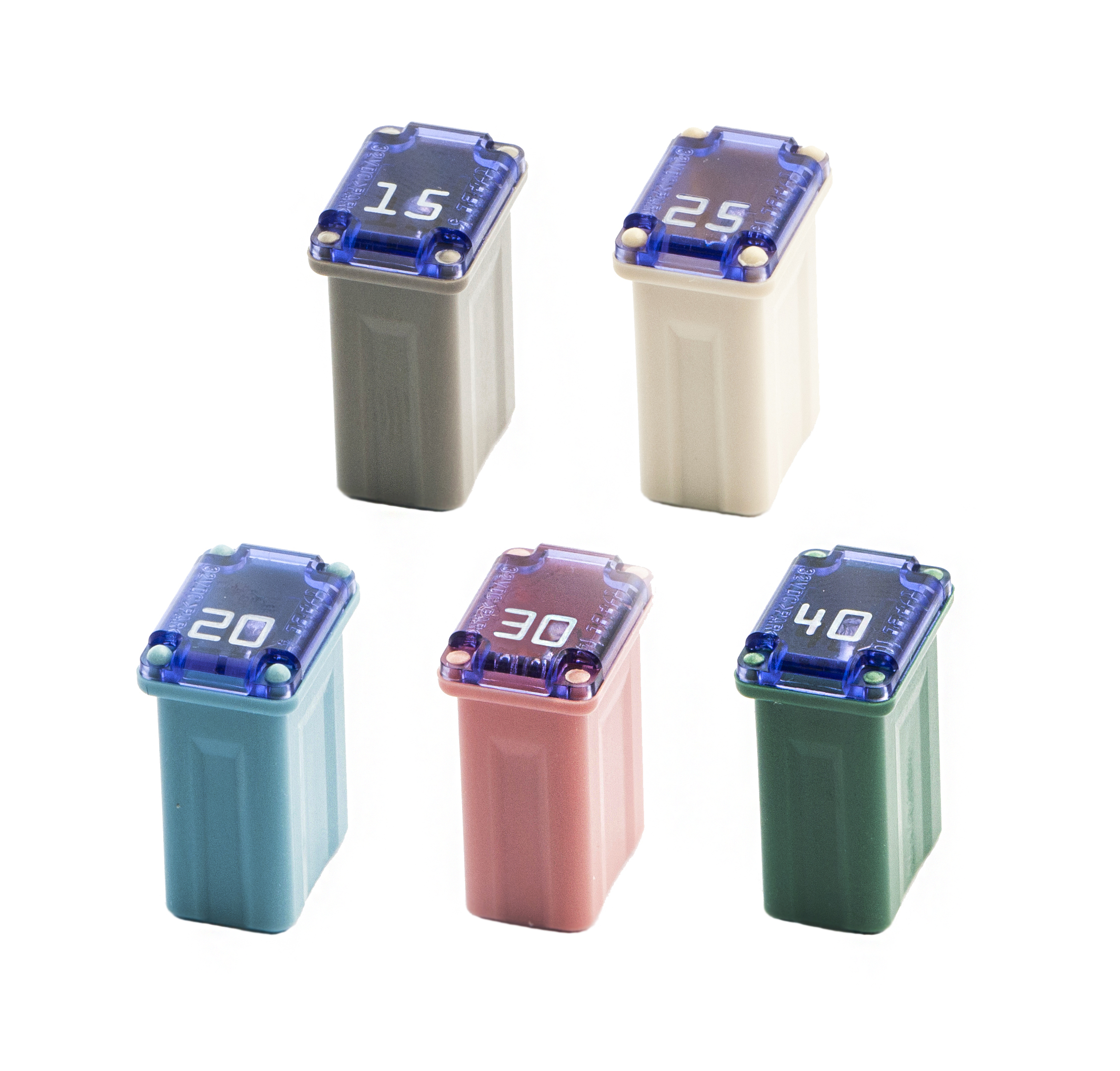

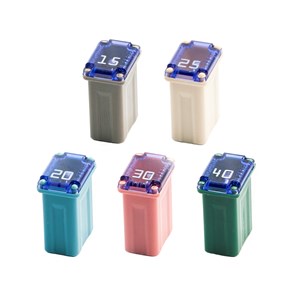

Japanese fuses - JM series
2.8 mm pin. Unslotted. Developed for Asian cars.Maximum voltage: 32 V DCCurrent rating: 15-40 A
- Total: 1
Product Properties
| Explosion-proof | No |
|---|---|
| Release characteristic | Time-lag (T) |
| Optical defect indication | Yes |
| Type of current | DC |
| Colour code | Grey |
| Nominal voltage DC | 32 V |
| Max. continuous voltage DC | 32 V |
| Max. current (Imax) | 20 A |
| Nominal current | 20 A |
| Packaging | Loose piece |
Dimensions
| Width | 10.7 mm |
|---|---|
| MOQ | 10 . |
| Unit | pcs |
| Mounting holes | Other |
| Thickness | 7.7 mm |
| Length | 15 mm |
Logistics
| Barcode | 733117616203 |
|---|---|
| Country of origin | JP |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Packaging | Loose piece |
| Stock code | JM 20A |
| Taric code | 85361050 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC004122 - Strip fuse |
|---|---|
| ETIM-Release | DYNAMIC |
| Product Group | Japanese fuses |
| Search Description | MCASE UNSLOTTED |
| Alternative SKU | JM20A |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Complied |
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
