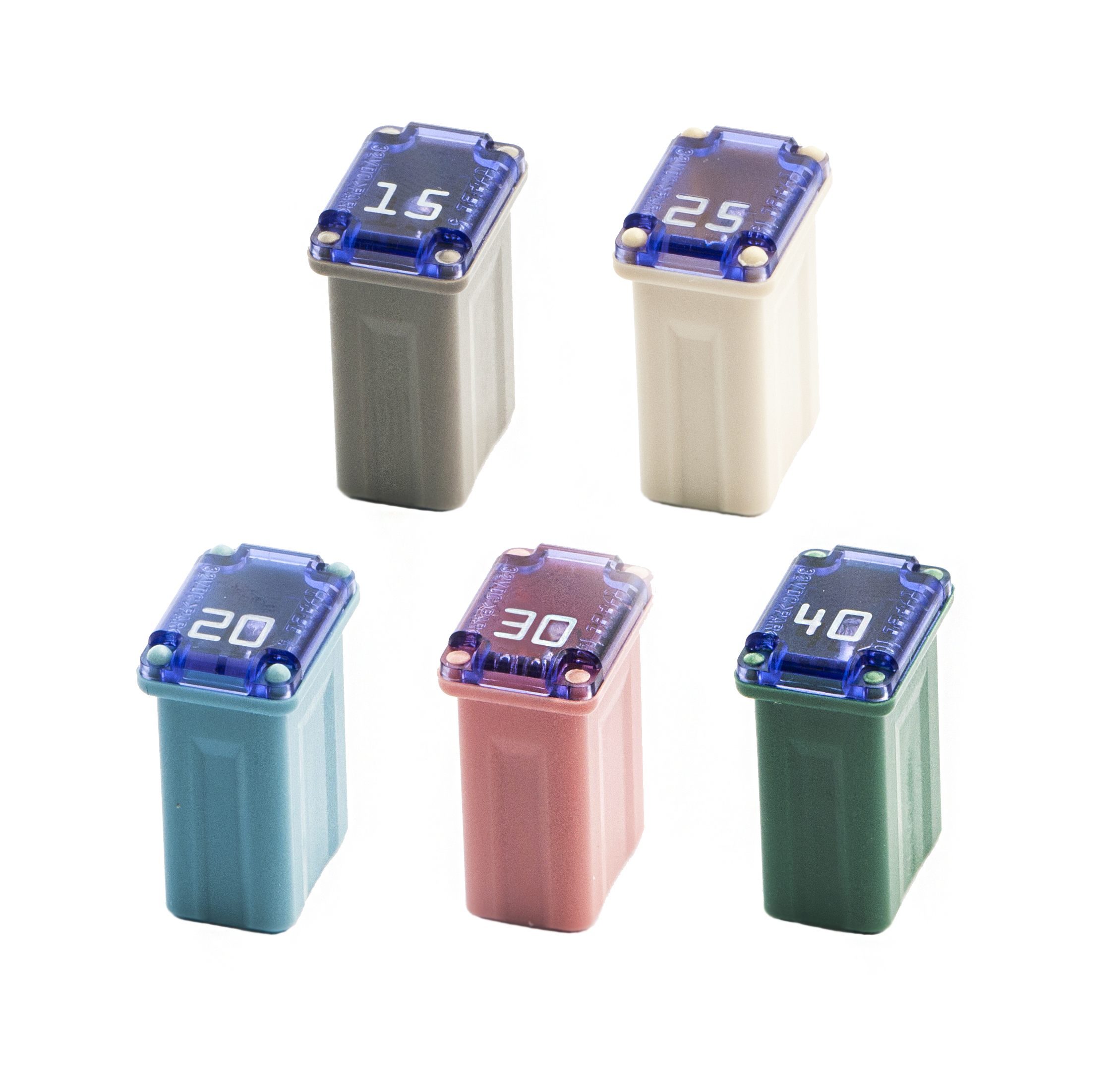

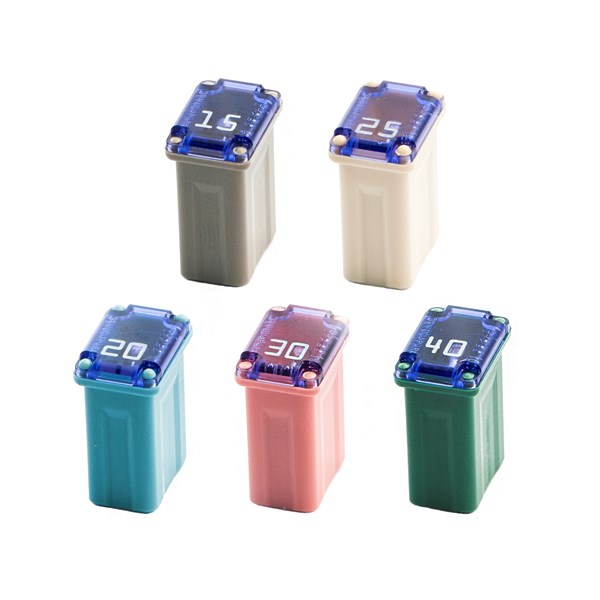

Japanese fuses - JM series
2.8 mm pin. Unslotted. Developed for Asian cars.Maximum voltage: 32 V DCCurrent rating: 15-40 A
Technical properties
- Explosion-proof:
- No
- Release characteristic:
- Time-lag (T)
- Optical defect indication:
- Yes
- Type of current:
- DC
- Colour code:
- Grey
- Nominal voltage DC:
- 32 V
- Max. continuous voltage DC:
- 32 V
- Max. current (Imax):
- 15 A, 20 A, 25 A, 30 A, 40 A
- Nominal current:
- 15 A, 20 A, 25 A, 30 A, 40 A
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
JM-drawing
Dimensions
- Total: 5
| Product Description | Width | MOQ | Unit | Mounting holes | Thickness | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| JAPANESE FUSE LINKS, MICRO, 15A GREY | 10.7 mm | 10 . | pcs | Other | 7.7 mm | 15 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 20A LJUSBLUE | 10.7 mm | 10 . | pcs | Other | 7.7 mm | 15 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 25A WHITE | 10.7 mm | 10 . | pcs | Other | 7.7 mm | 15 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 30A ROSA | 10.7 mm | 10 . | pcs | Other | 7.7 mm | 15 mm |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 40A GREEN | 10.7 mm | 10 . | pcs | Other | 7.7 mm | 15 mm |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | Availability | ||
|---|---|---|---|
| JAPANESE FUSE LINKS, MICRO, 15A GREY |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 20A LJUSBLUE |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 25A WHITE |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 30A ROSA |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 40A GREEN |
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Explosion-proof | Release characteristic | Optical defect indication | Type of current | Colour code | Nominal voltage DC | Max. continuous voltage DC | Max. current (Imax) | Nominal current | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JAPANESE FUSE LINKS, MICRO, 15A GREY | No | Time-lag (T) | Yes | DC | Grey | 32 V | 32 V | 15 A | 15 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 20A LJUSBLUE | No | Time-lag (T) | Yes | DC | Grey | 32 V | 32 V | 20 A | 20 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 25A WHITE | No | Time-lag (T) | Yes | DC | Grey | 32 V | 32 V | 25 A | 25 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 30A ROSA | No | Time-lag (T) | Yes | DC | Grey | 32 V | 32 V | 30 A | 30 A | Loose piece |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 40A GREEN | No | Time-lag (T) | Yes | DC | Grey | 32 V | 32 V | 40 A | 40 A | Loose piece |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| JAPANESE FUSE LINKS, MICRO, 15A GREY | EC004122 - Strip fuse | DYNAMIC | Japanese fuses | MCASE UNSLOTTED | JM15A |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 20A LJUSBLUE | EC004122 - Strip fuse | DYNAMIC | Japanese fuses | MCASE UNSLOTTED | JM20A |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 25A WHITE | EC004122 - Strip fuse | DYNAMIC | Japanese fuses | MCASE UNSLOTTED | JM25A |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 30A ROSA | EC004122 - Strip fuse | DYNAMIC | Japanese fuses | MCASE UNSLOTTED | JM30A |
Yes
|
|
|
| JAPANESE FUSE LINKS, MICRO, 40A GREEN | EC004122 - Strip fuse | DYNAMIC | Japanese fuses | MCASE UNSLOTTED | JM40A |
Yes
|
|
|
- Total: 5
