MEGA L 50 M10

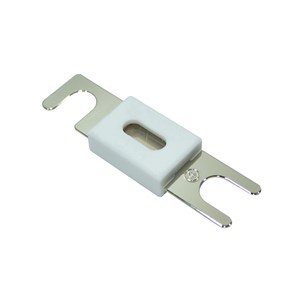

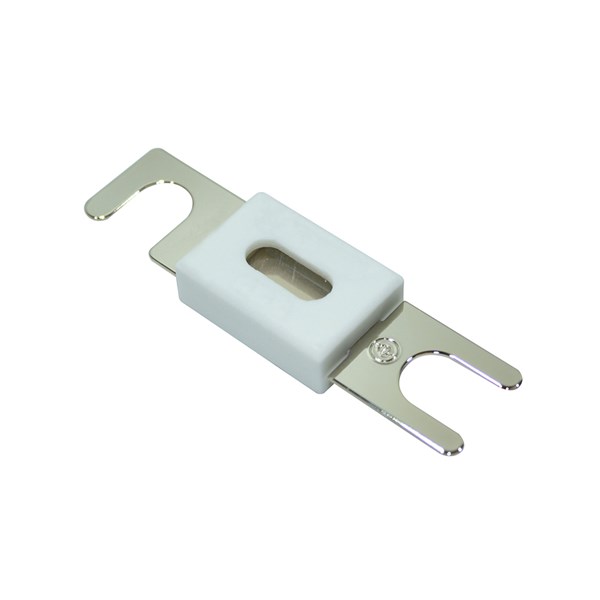

BOLT-ON FUSE, LARGE, 50A WHITE, M10, CERAMIC
MEGA L 50 M10
- Availability:
-
Yes
Product Properties
| Explosion-proof | No |
|---|---|
| Release characteristic | Time-lag (T) |
| Optical defect indication | Yes |
| Type of current | DC |
| Colour code | Black |
| Nominal voltage DC | 80 V |
| Max. continuous voltage DC | 80 V |
| Nominal current | 50 A |
Dimensions
| Width | 82 mm |
|---|---|
| MOQ | 10 . |
| Unit | pcs |
| Mounting holes | M10 |
| Centre-to-centre distance of connections | 60 mm |
| Thickness | 10 mm |
| Length | 22 mm |
Logistics
| Barcode | 733117637049 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Stock code | MEGA L 50 M10 |
| Taric code | 85361010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC004122 - Strip fuse |
|---|---|
| ETIM-Release | DYNAMIC |
| Trademark | NEMIQ |
| Product Group | Bolt-on / Strip fuses |
| Search Description | BOLT-ON SÄKRING, LARGE, 50A |
| Alternative SKU | MEGAL50M10 |
Compliance
| Extended Minerals | Yes, contain Mica on the top cover |
|---|---|
| Iron and Steel Sanction | Compliance |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
