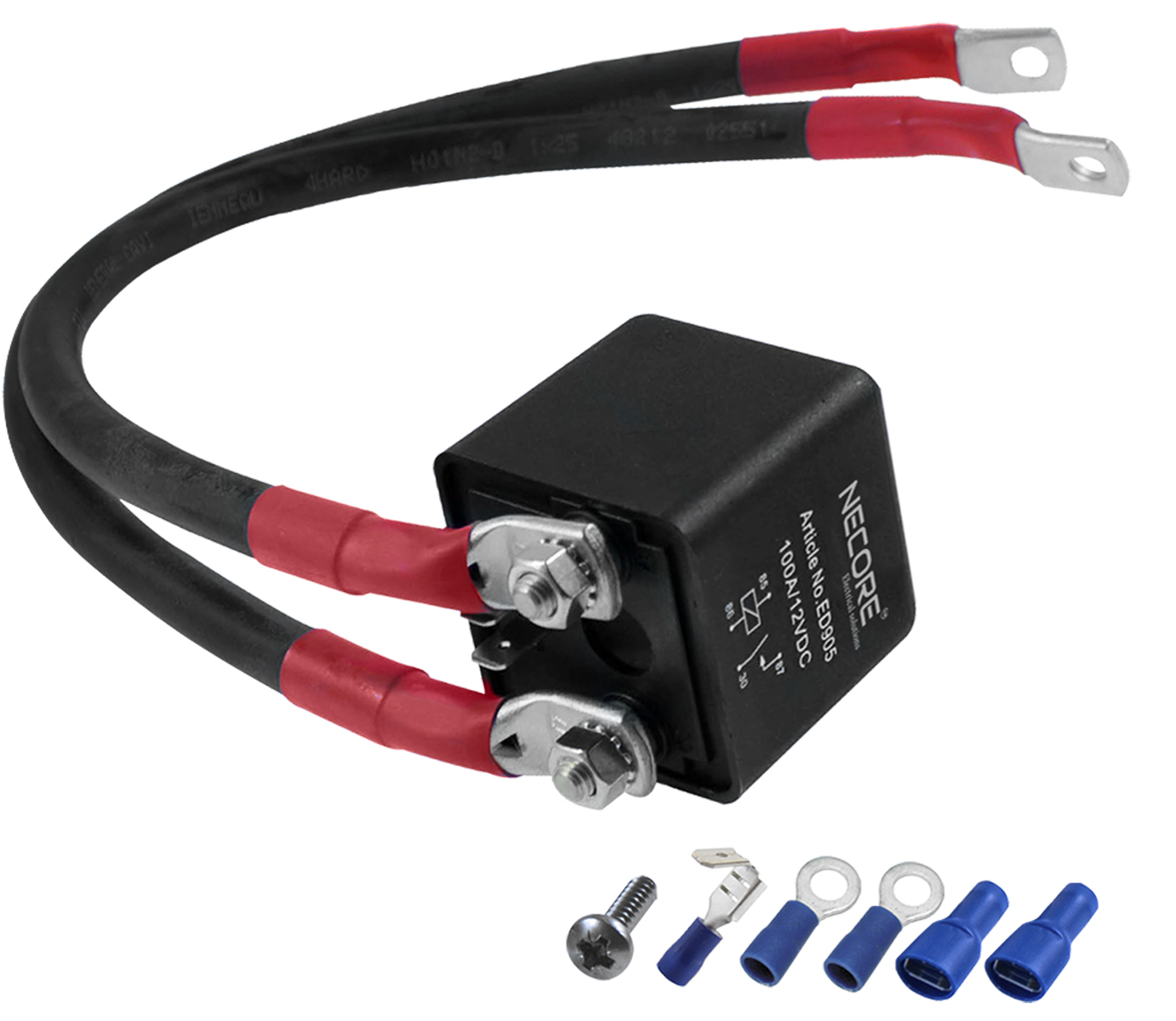

SRS 905
12V, 100A (200A peak). Säkerställ att det alltid finns ström
kvar i startbatteriet genom att separera det från övriga
förbrukningsbatterier på din båt. Reläet sluter så att alla
batterier laddas när motorn är igång och bryter då motorn
är avstängd.
Levereras med följande:
2 st 25 mm² förtenta kablar med M6 kabelskor i vardera ände. Längd 35 cm.
2 st helisolerade flatstiftshylsor för 2.5 mm²
2 st ringkabelskor M6 för 2.5 mm² kabel.
1 st flatstiftshylsa med extra nabb för 2.5 mm² kabel.
1 st rostfriskruv 5.5 x 25 mm.
Technical properties
- Complete with socket:
- No
- Operating voltage DC:
- 12 V
- Type of switch contact:
- Single contact
- Voltage type (operating voltage):
- DC
- Voltage type for actuating:
- DC
- With LED indication:
- No
- Voltage type:
- DC
- Nominal current:
- 100 A
- Number of contacts as normally closed contact:
- 0 .
- Number of contacts as normally open contact:
- 1 .
- Number of contacts as change-over contact:
- 0 .
- Max. starting current:
- 200 A
- Nominal measuring voltage:
- 12 V
- Nominal operating current:
- 100 A
- Rated control supply voltage DC:
- 12 V
- With detachable clamps:
- No
- Number of phases:
- 1 .
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
Product Description | Number of phases | MOQ | Unit | Availability | ||
---|---|---|---|---|---|---|
SKILJERELÄ MED ANSLUTNINGSKABLAR, RELÄ + 2xFPK 25-6/6 0.35+ | 1 . | 1 . | pck |
No
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
Product Description | Voltage type | Availability | ||
---|---|---|---|---|
SKILJERELÄ MED ANSLUTNINGSKABLAR, RELÄ + 2xFPK 25-6/6 0.35+ | DC |
No
|
|
|
- Total: 1
Technical Properties
- Total: 1
Product Description | Complete with socket | Operating voltage DC | Type of switch contact | Voltage type (operating voltage) | Voltage type for actuating | With LED indication | Voltage type | Nominal current | Number of contacts as normally closed contact | Number of contacts as normally open contact | Number of contacts as change-over contact | Max. starting current | Nominal measuring voltage | Nominal operating current | Rated control supply voltage DC | With detachable clamps | Number of phases | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SKILJERELÄ MED ANSLUTNINGSKABLAR, RELÄ + 2xFPK 25-6/6 0.35+ | No | 12 V | Single contact | DC | DC | No | DC | 100 A | 0 . | 1 . | 0 . | 200 A | 12 V | 100 A | 12 V | No | 1 . |
No
|
|
|
- Total: 1
Other information
- Total: 1
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|---|
SKILJERELÄ MED ANSLUTNINGSKABLAR, RELÄ + 2xFPK 25-6/6 0.35+ | EC001437 - Switching relay | 9.0 |
|
Voltage sensitve relays & Relay kits | SKILJERELĂ„ MED ANSLUTNINGSKABLAR | SRS905 |
No
|
|
|
