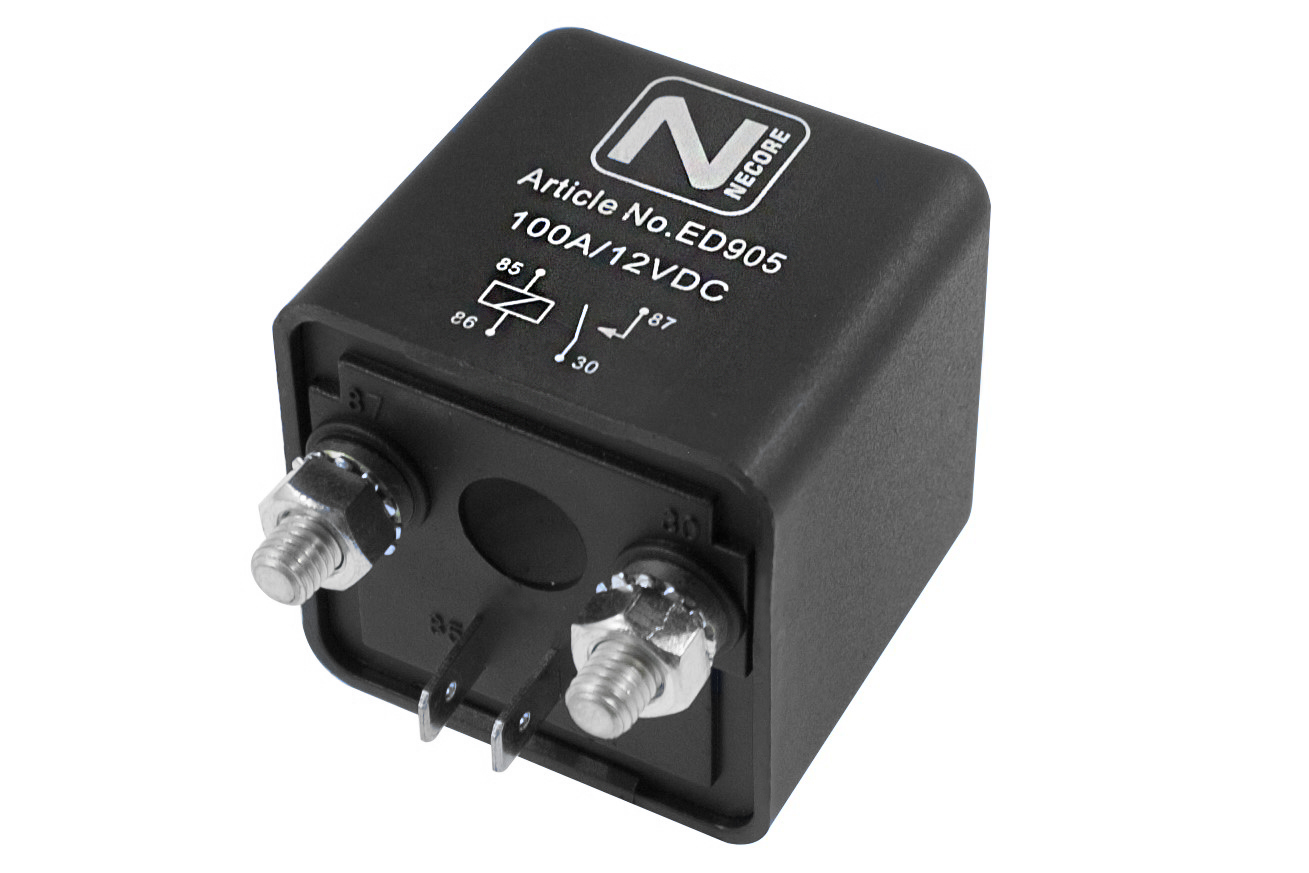

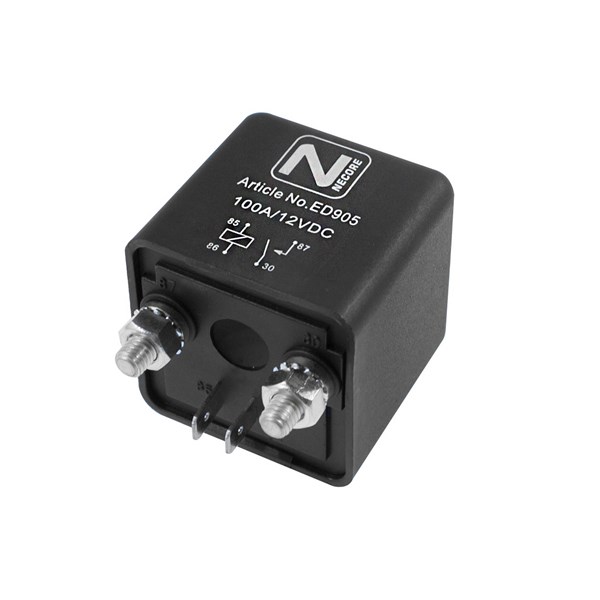

Elektromagnetiska - Enkel, On/Off, 4-pol, fast hållare - Butiksförpackad
Elektromagnetiskt Kraftrelä On/Off

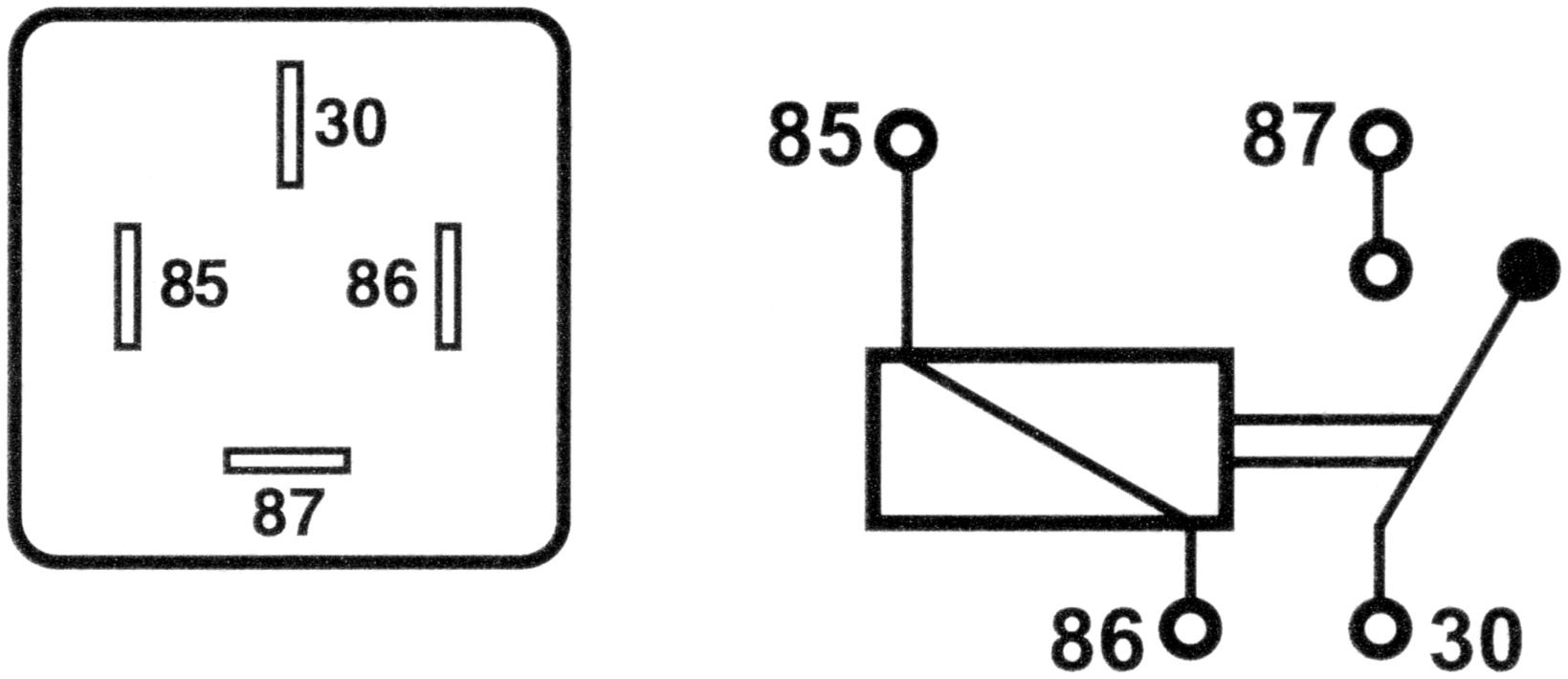

4-pol (2x 6.3 x 0.8 mm flatstift & 2x M6 bult) Normally open contacts
Plasthus i storlek (L x B x H): 46 x 46 x 45mm
Hållare med skruvhål: 6mm
Technical properties
- Complete with socket:
- No
- Operating voltage DC:
- 12 V
- Type of switch contact:
- Single contact
- Voltage type (operating voltage):
- DC
- Voltage type for actuating:
- DC
- With LED indication:
- No
- Nominal current:
- 100 A
- Type of electric connection:
- Flat plug-in connection
- Number of contacts as normally closed contact:
- 0 .
- Number of contacts as normally open contact:
- 1 .
- Number of contacts as change-over contact:
- 0 .
- Rated control supply voltage DC:
- 12 V
- With detachable clamps:
- No
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 1
| Product Description | Depth | Width | Height | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|
| SEPARATING RELAY, SINGLE BREAKING, ON/OFF 2xM6 + 2x6.3mm, 12V, 100A, ELECTROMAGNETIC | 46 mm | 46 mm | 45 mm | 1 . | pck |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| SEPARATING RELAY, SINGLE BREAKING, ON/OFF 2xM6 + 2x6.3mm, 12V, 100A, ELECTROMAGNETIC |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Complete with socket | Operating voltage DC | Type of switch contact | Voltage type (operating voltage) | Voltage type for actuating | With LED indication | Nominal current | Type of electric connection | Number of contacts as normally closed contact | Number of contacts as normally open contact | Number of contacts as change-over contact | Rated control supply voltage DC | With detachable clamps | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SEPARATING RELAY, SINGLE BREAKING, ON/OFF 2xM6 + 2x6.3mm, 12V, 100A, ELECTROMAGNETIC | No | 12 V | Single contact | DC | DC | No | 100 A | Flat plug-in connection | 0 . | 1 . | 0 . | 12 V | No |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SEPARATING RELAY, SINGLE BREAKING, ON/OFF 2xM6 + 2x6.3mm, 12V, 100A, ELECTROMAGNETIC | EC001437 - Switching relay | 9.0 |
|
Power Relays | SKILJERELÄ, ENKELBRYTANDE, ON/OFF | ED905-PP1 |
Yes
|
|
|
