Resistor - Enkel, On/On, 5 stift, löstagbar hållare

Cart 0 /

Product Description	Qty	Price

Cart Checkout

Logged in as:

Login

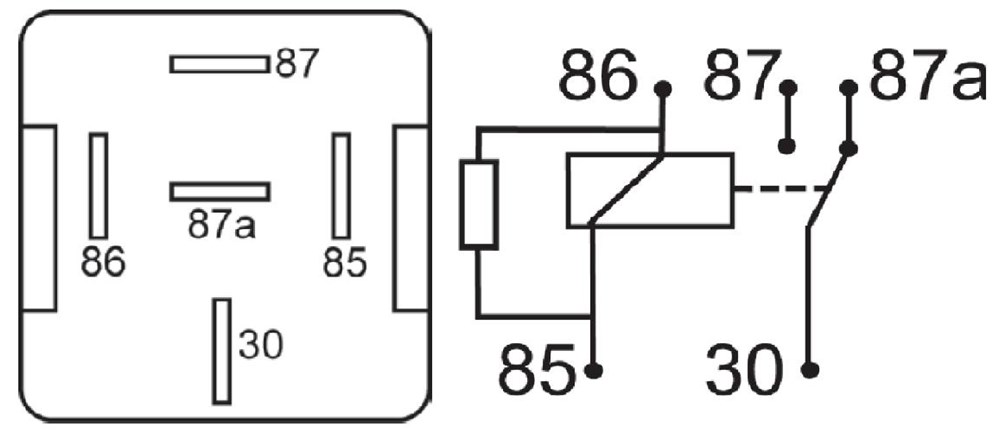

On/On, 5-stifts (6.3 x 0.8 mm) resistor-relä.

Plasthus i storlek (L x B x H): 26 x 26 x 24 mm
Löstagbar hållare i metall.
Skruvhål: 5 mm.

Resistor-reläer minimerar spänningsspikar och skyddar elektroniken.

Technical properties

Complete with socket:: No
Operating voltage DC:: 12 V, 24 V
Type of switch contact:: Single contact
Voltage type (operating voltage):: DC
Voltage type for actuating:: DC
With LED indication:: No
Nominal current:: 30-40 A
Type of electric connection:: Flat plug-in connection
Number of contacts as normally closed contact:: 1 .
Number of contacts as normally open contact:: 1 .
Number of contacts as change-over contact:: 0 .
Rated control supply voltage DC:: 12 V, 24 V
Voltage:: 12V, 24V
With detachable clamps:: No
Function:: On/On

Show more

Item List

Page size:

Total: 2

RD006

MINIRELÄ, ENKEL, ON/ON, RESISTOR, 5 STIFT, 12V, 30/40A

Availability:: Yes
Delivery date:: 4/4/2025

RD007

MINIRELÄ, ENKEL, ON/ON, RESISTOR, 5 STIFT, 24V, 10/20A

Availability:: Yes
Delivery date:: 4/4/2025

Total: 2

Documents

Manuals, Datasheets, Sketches & Drawings

Conflict Minerals Reporting Template Version 6.31_Approved

Dimensions

Page size:

Total: 2

Product Description	Stock code	Depth	Width	Height	MOQ	Unit	Availability
MINI RELAY, SINGLE, ON/ON, RESISTOR 5 PIN, 12V, 30/40A	RD006	26 mm	26 mm	24 mm	1 .	pcs	Yes
MINI RELAY, SINGLE, ON/ON, RESISTOR 5 PIN, 24V, 10/20A	RD007	26 mm	26 mm	24 mm	1 .	pcs	Yes

Total: 2

Approvals

Page size:

Total: 2

Product Description	Stock code	Availability
MINI RELAY, SINGLE, ON/ON, RESISTOR 5 PIN, 12V, 30/40A	RD006	Yes
MINI RELAY, SINGLE, ON/ON, RESISTOR 5 PIN, 24V, 10/20A	RD007	Yes

Total: 2

Technical Properties

Page size:

Total: 2

Product Description	Stock code	Complete with socket	Operating voltage DC	Type of switch contact	Voltage type (operating voltage)	Voltage type for actuating	With LED indication	Nominal current	Type of electric connection	Number of contacts as normally closed contact	Number of contacts as normally open contact	Number of contacts as change-over contact	Rated control supply voltage DC	Voltage	With detachable clamps	Function	Availability
MINI RELAY, SINGLE, ON/ON, RESISTOR 5 PIN, 12V, 30/40A	RD006	No	12 V	Single contact	DC	DC	No	30-40 A	Flat plug-in connection	1 .	1 .	0 .	12 V	12V	No	On/On	Yes
MINI RELAY, SINGLE, ON/ON, RESISTOR 5 PIN, 24V, 10/20A	RD007	No	24 V	Single contact	DC	DC	No	10-20 A	Flat plug-in connection	1 .	1 .	0 .	24 V	24V	No	On/On	Yes

Total: 2

Other information

Page size:

Total: 2

Product Description	Stock code	ETIM-Class	ETIM-Release	Trademark	Product Group	Search Description	Alternative SKU	Availability
MINI RELAY, SINGLE, ON/ON, RESISTOR 5 PIN, 12V, 30/40A	RD006	EC001437 - Switching relay	9.0		Mini relays - Resistor	MINIRELÄ, ENKEL, ON/ON, RESISTOR	RD006	Yes
MINI RELAY, SINGLE, ON/ON, RESISTOR 5 PIN, 24V, 10/20A	RD007	EC001437 - Switching relay	9.0		Mini relays - Resistor	MINIRELÄ, ENKEL, ON/ON, RESISTOR	RD007	Yes

Total: 2

Documents

Manuals, Datasheets, Sketches & Drawings

Conflict Minerals Reporting Template Version 6.31_Approved

Dimensions

Page size:

Total: 2

Product Description	Stock code	Depth	Width	Height	MOQ	Unit	Availability
MINI RELAY, SINGLE, ON/ON, RESISTOR 5 PIN, 12V, 30/40A	RD006	26 mm	26 mm	24 mm	1 .	pcs	Yes
MINI RELAY, SINGLE, ON/ON, RESISTOR 5 PIN, 24V, 10/20A	RD007	26 mm	26 mm	24 mm	1 .	pcs	Yes

Total: 2

Page size:

Total: 2

MINI RELAY, SINGLE, ON/ON, RESISTOR 5 PIN, 12V, 30/40A

RD006

Availability:
Yes
MINI RELAY, SINGLE, ON/ON, RESISTOR 5 PIN, 24V, 10/20A

RD007

Availability:
Yes

Total: 2
