ED006LH-PP1

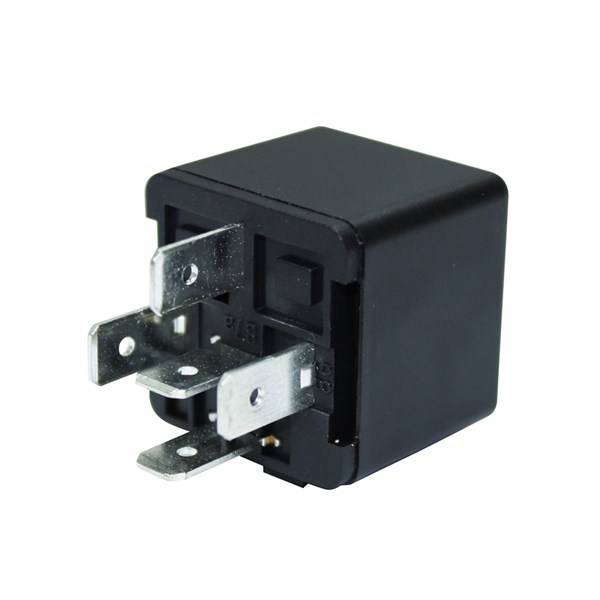

MINI RELAY, SINGLE BREAKING, ON/ON 5 PIN, 12V, 20/30A, REMOVABLE HOLDER
ED006LH-PP1
- Availability:
-
No
- Total: 1
Related items
Elektromagnetiska - Enkel, On/On, 5 stift, löstagbar hållare

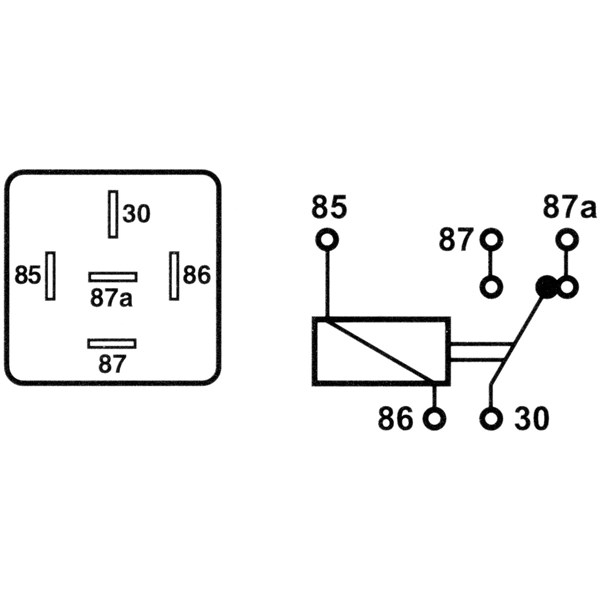

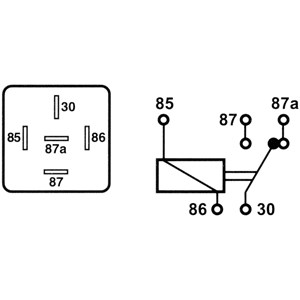

On/On, 5-stifts (6.3 x 0.8 mm) relä.
Plasthus i storlek (L x B x H): 27 x 26 x 24 mm
Löstagbar hållare.
- Total: 1
Product Properties
| Complete with socket | No |
|---|---|
| Operating voltage DC | 12 V |
| Type of switch contact | Single contact |
| Voltage type (operating voltage) | DC |
| Voltage type for actuating | DC |
| With LED indication | No |
| Nominal current | 20-30 A |
| Type of electric connection | Flat plug-in connection |
| Number of contacts as normally closed contact | 1 . |
| Number of contacts as normally open contact | 1 . |
| Number of contacts as change-over contact | 0 . |
| Rated control supply voltage DC | 12 V |
| With detachable clamps | No |
Dimensions
| Depth | 27 mm |
|---|---|
| Width | 26 mm |
| Height | 24 mm |
| MOQ | 10 . |
| Unit | pck |
Logistics
| Barcode | 733117617330 |
|---|---|
| Country of origin | CN |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 10 . |
| Stock code | ED006LH-PP1 |
| Taric code | 85364190 |
| Unit | pck |
Approvals
Other info
| ETIM-Class | EC001437 - Switching relay |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Mini relays - Electromagnetic |
| Search Description | MINIRELÄ, ENKELBRYTANDE, ON/ON, ELEKTROMAGNETISK |
| Alternative SKU | ED006LH-PP1 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
