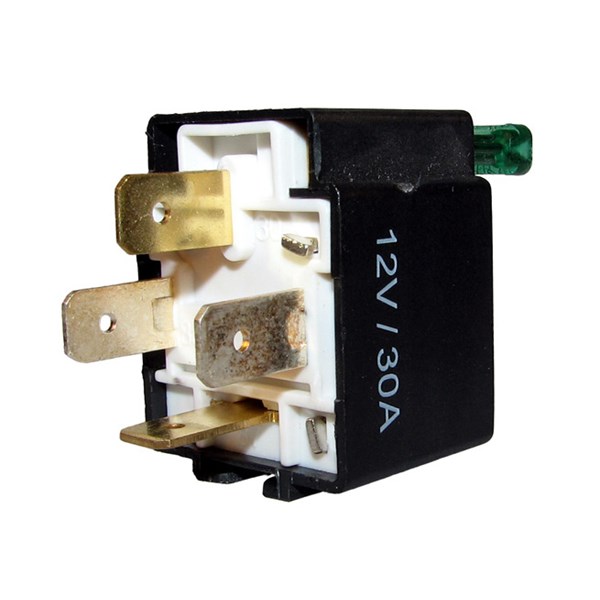

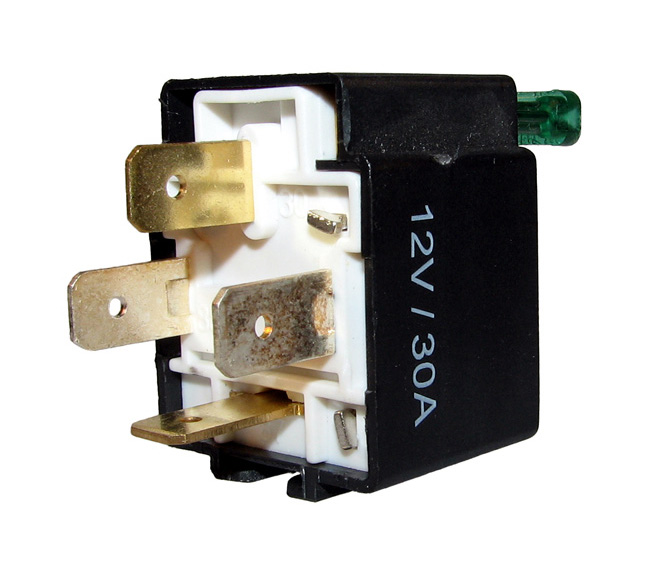

Elektromagnetiska - Enkel, On/Off, 4 stift, säkring, löstagbar hållare

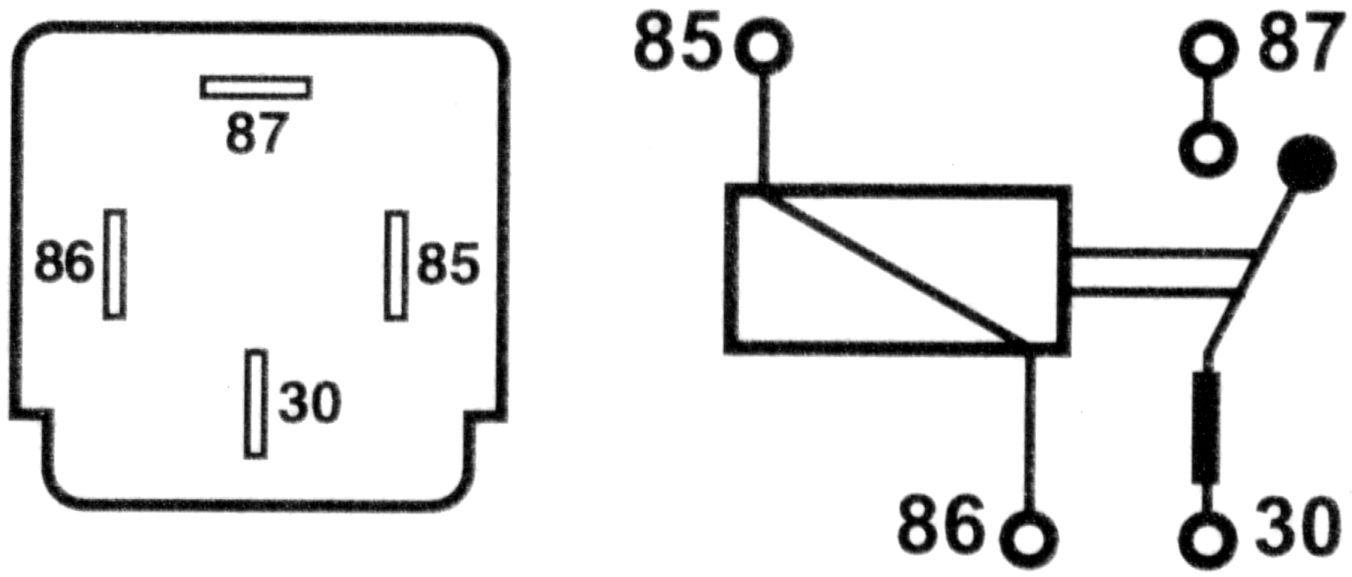

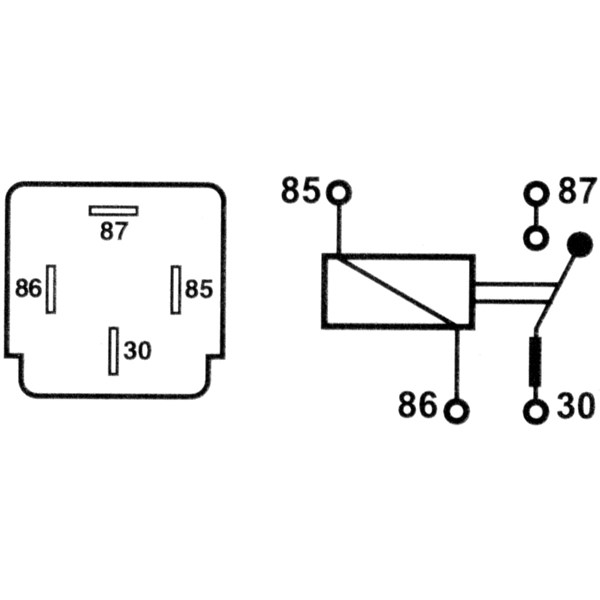

On/Off, 4-stifts (6.3 x 0.8 mm) relä med säkring. Normally open contacts.
Plasthus i storlek (L x B x H): 31 x 26 x 24 mm.
Löstagbar hållare.
Skruvhål: 5mm.
Technical properties
- Complete with socket:
- No
- Operating voltage DC:
- 12 V
- Type of switch contact:
- Single contact
- Voltage type (operating voltage):
- DC
- Voltage type for actuating:
- DC
- With LED indication:
- No
- Nominal current:
- 30 A, 15 A
- Type of electric connection:
- Flat plug-in connection
- Number of contacts as normally closed contact:
- 0 .
- Number of contacts as normally open contact:
- 1 .
- Number of contacts as change-over contact:
- 0 .
- Rated control supply voltage DC:
- 12 V
- With detachable clamps:
- No
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 3
| Product Description | Depth | Width | Height | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 30A, REMOVABLE HOLDER, ELECTROMAGNETIC | 31 mm | 26 mm | 24 mm | 10 . | pcs |
Yes
|
|
|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 30A, REMOVABLE HOLDER, ELECTROMAGNETIC | 31 mm | 26 mm | 24 mm | 1 . | pck |
Yes
|
|
|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 15A,REMOVABLE HOLDER, ELECTROMAGNETIC | 31 mm | 26 mm | 24 mm | 1 . | pcs |
No
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
- Total: 3
Technical Properties
- Total: 3
| Product Description | Complete with socket | Operating voltage DC | Type of switch contact | Voltage type (operating voltage) | Voltage type for actuating | With LED indication | Nominal current | Type of electric connection | Number of contacts as normally closed contact | Number of contacts as normally open contact | Number of contacts as change-over contact | Rated control supply voltage DC | With detachable clamps | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 30A, REMOVABLE HOLDER, ELECTROMAGNETIC | No | 12 V | Single contact | DC | DC | No | 30 A | Flat plug-in connection | 0 . | 1 . | 0 . | 12 V | No |
Yes
|
|
|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 30A, REMOVABLE HOLDER, ELECTROMAGNETIC | No | 12 V | Single contact | DC | DC | No | 30 A | Flat plug-in connection | 0 . | 1 . | 0 . | 12 V | No |
Yes
|
|
|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 15A,REMOVABLE HOLDER, ELECTROMAGNETIC | No | 12 V | Single contact | DC | DC | No | 15 A | Flat plug-in connection | 0 . | 1 . | 0 . | 12 V | No |
No
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 30A, REMOVABLE HOLDER, ELECTROMAGNETIC | EC001437 - Switching relay | 9.0 |
|
Mini relays - Electromagnetic | RELÄ, ENKELBRYTANDE, ON/OFF, ELEKTROMAGNETISK | ED541LH |
Yes
|
|
|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 30A, REMOVABLE HOLDER, ELECTROMAGNETIC | EC001437 - Switching relay | 9.0 |
|
Mini relays - Electromagnetic | RELÄ, ENKELBRYTANDE, ON/OFF, ELEKTROMAGNETISK | ED541LH-PP1 |
Yes
|
|
|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 15A,REMOVABLE HOLDER, ELECTROMAGNETIC | EC001437 - Switching relay | 9.0 | Mini relays - Electromagnetic | RELÄ, ENKELBRYTANDE, ON/OFF, ELEKTROMAGNETISK | ED510LH |
No
|
|
|
- Total: 3
