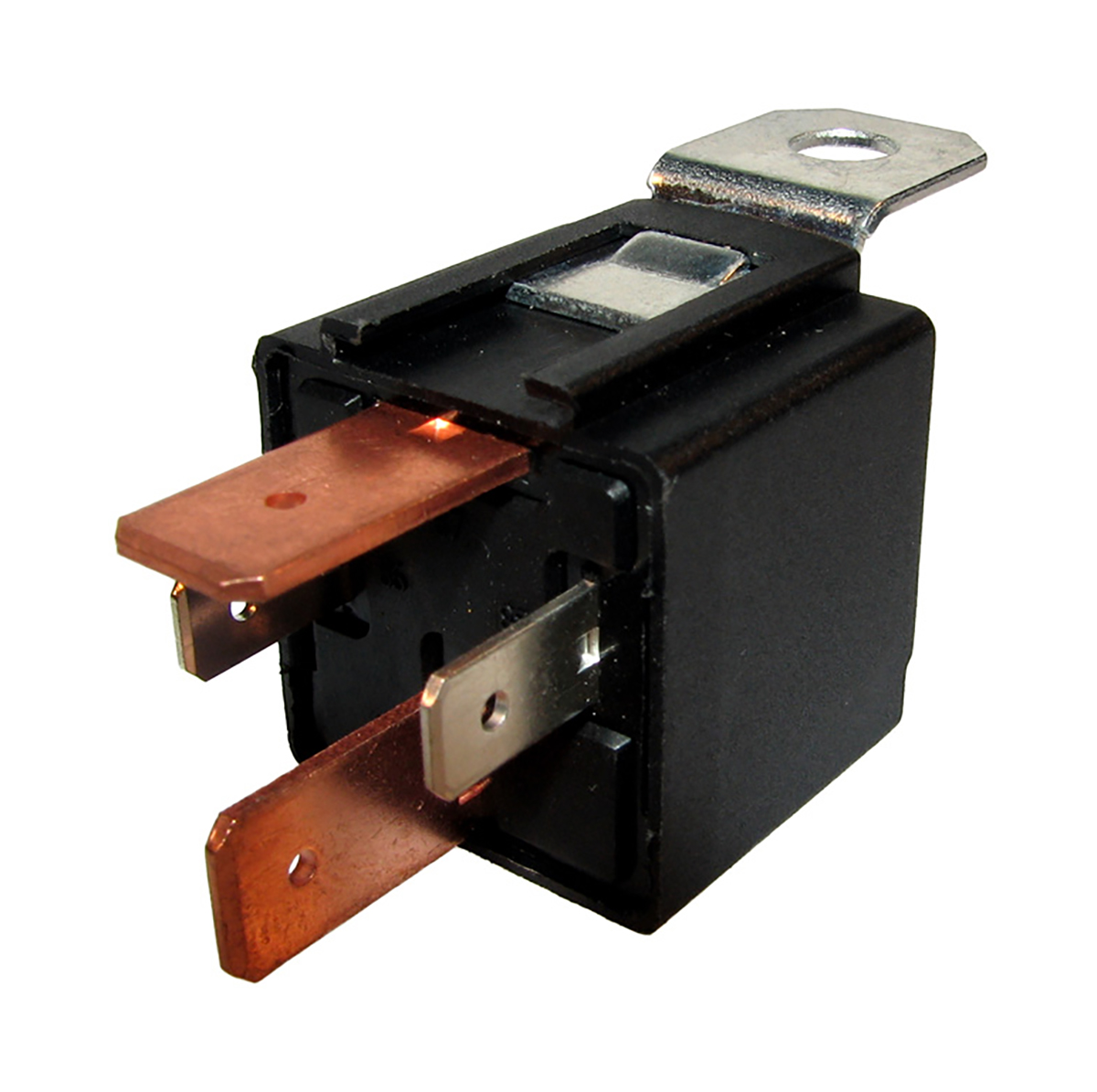

Elektromagnetiska - Enkel, On/Off, 4 stift, löstagbar hållare
Kraftfullare reläer. On/Off, 4-stifts (2 st 6.3 x 0.8 & 2 st 9.5 x 1.2 mm). Normally open contacts.
Plasthus i storlek (L x B x H): 26 x 26 x 25 mm.
Löstagbar hållare i metall.
Skruvhål: 6 mm.
Technical properties
- Complete with socket:
- No
- Operating voltage DC:
- 12 V, 24 V
- Type of switch contact:
- Single contact
- Voltage type (operating voltage):
- DC
- Voltage type for actuating:
- DC
- With LED indication:
- No
- Voltage type:
- DC
- Nominal current:
- 70 A, 40 A
- Type of electric connection:
- Flat plug-in connection
- Number of contacts as normally closed contact:
- 0 .
- Number of contacts as normally open contact:
- 1 .
- Number of contacts as change-over contact:
- 0 .
- Nominal measuring voltage:
- 12 V, 24 V
- Nominal operating current:
- 70 A, 40 A
- Rated control supply voltage DC:
- 12 V, 24 V
- Voltage:
- 12V
- With detachable clamps:
- No
- Function:
- On/Off (Normally open)
- Packaging:
- Loose piece
- Number of phases:
- 1 .
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 4
| Product Description | Number of phases | Depth | Width | Height | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 70A, REMOVABLE HOLDER, ELECTROMAGNETIC | 26 mm | 26 mm | 25 mm | 1 . | pcs |
Yes
|
|
|
|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 24V, 40A, REMOVABLE HOLDER, ELECTROMAGNETIC | 26 mm | 26 mm | 25 mm | 10 . | pcs |
Yes
|
|
|
|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 70A, REMOVABLE HOLDER, ELECTROMAGNETIC | 1 . | 26 mm | 26 mm | 25 mm | 10 . | pck |
Yes
|
|
|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 24V, 40A, REMOVABLE HOLDER, ELECTROMAGNETIC | 1 . | 26 mm | 26 mm | 25 mm | 10 . | pck |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
- Total: 4
Technical Properties
- Total: 4
| Product Description | Complete with socket | Operating voltage DC | Type of switch contact | Voltage type (operating voltage) | Voltage type for actuating | With LED indication | Voltage type | Nominal current | Type of electric connection | Number of contacts as normally closed contact | Number of contacts as normally open contact | Number of contacts as change-over contact | Nominal measuring voltage | Nominal operating current | Rated control supply voltage DC | Voltage | With detachable clamps | Function | Packaging | Number of phases | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 70A, REMOVABLE HOLDER, ELECTROMAGNETIC | No | 12 V | Single contact | DC | DC | No | 70 A | Flat plug-in connection | 0 . | 1 . | 0 . | 12 V | 12V | No | On/Off (Normally open) | Loose piece |
Yes
|
|
|
||||
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 24V, 40A, REMOVABLE HOLDER, ELECTROMAGNETIC | No | 24 V | Single contact | DC | DC | No | 40 A | Flat plug-in connection | 0 . | 1 . | 0 . | 24 V | No |
Yes
|
|
|
|||||||
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 70A, REMOVABLE HOLDER, ELECTROMAGNETIC | No | 12 V | Single contact | DC | DC | No | DC | 70 A | Flat plug-in connection | 0 . | 1 . | 0 . | 12 V | 70 A | 12 V | 12V | No | 1 . |
Yes
|
|
|
||
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 24V, 40A, REMOVABLE HOLDER, ELECTROMAGNETIC | No | 24 V | Single contact | DC | DC | No | DC | 40 A | Flat plug-in connection | 0 . | 1 . | 0 . | 24 V | 40 A | 24 V | No | 1 . |
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 70A, REMOVABLE HOLDER, ELECTROMAGNETIC | EC001437 - Switching relay | 9.0 |
|
Mini relays - Electromagnetic | RELÄ, ENKELBRYTANDE, ON/OFF, ELEKTROMAGNETISK | ED542LH |
Yes
|
|
|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 24V, 40A, REMOVABLE HOLDER, ELECTROMAGNETIC | EC001437 - Switching relay | 9.0 |
|
Mini relays - Electromagnetic | RELÄ, ENKELBRYTANDE, ON/OFF, ELEKTROMAGNETISK | ED552LH |
Yes
|
|
|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 70A, REMOVABLE HOLDER, ELECTROMAGNETIC | EC001437 - Switching relay | 9.0 |
|
Mini relays - Electromagnetic | RELÄ, ENKELBRYTANDE, ON/OFF, ELEKTROMAGNETISK | ED542LH-PP1 |
Yes
|
|
|
| RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 24V, 40A, REMOVABLE HOLDER, ELECTROMAGNETIC | EC001437 - Switching relay | 9.0 |
|
Mini relays - Electromagnetic | RELÄ, ENKELBRYTANDE, ON/OFF, ELEKTROMAGNETISK | ED552LH-PP1 |
Yes
|
|
|
- Total: 4
