Elektromagnetiska - Dubbel, On/Off, 5 stift, löstagbar hållare

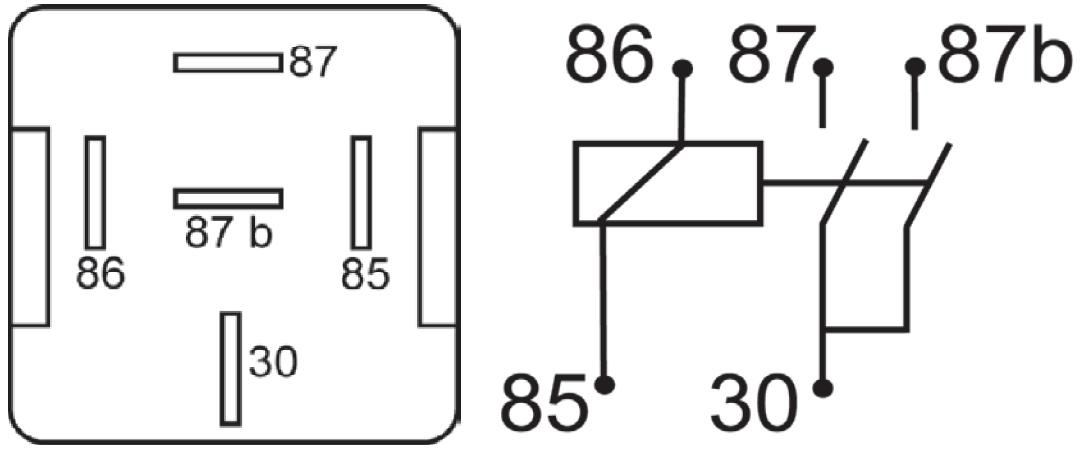

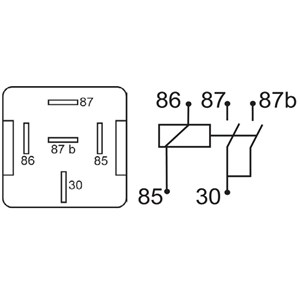

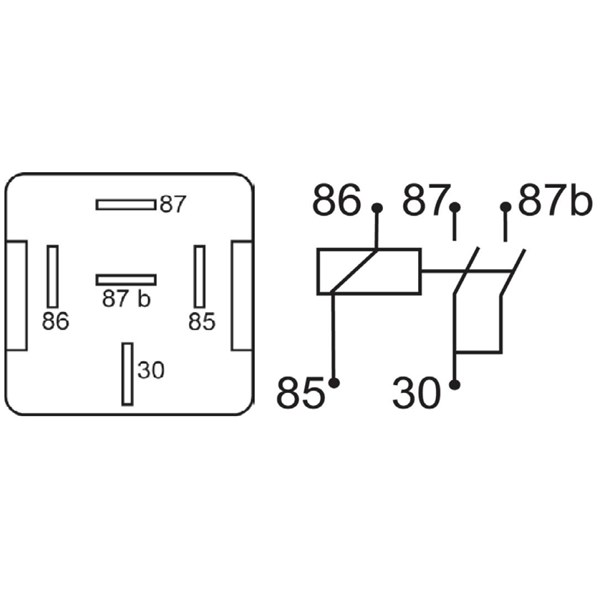

Dubbelbrytande On/Off, 5-stifts (6.3 x 0.8 mm) relä. Normally open contacts.
Plasthus i storlek (L x B x H): 28 x 28 x 26 mm

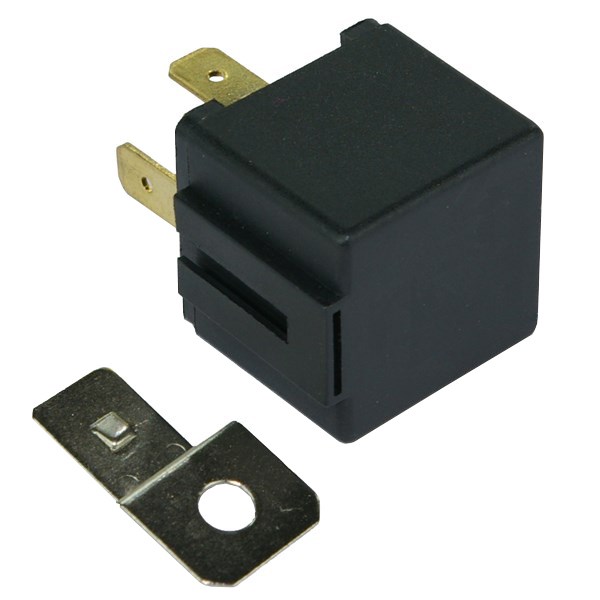

Löstagbar hållare i metall.
Skruvhål 5 mm.
Technical properties
- Complete with socket:
- No
- Operating voltage DC:
- 12 V, 24 V
- Type of switch contact:
- Double contact
- Voltage type (operating voltage):
- DC
- Voltage type for actuating:
- DC
- With LED indication:
- No
- Nominal current:
- 25 A, 10 A
- Type of electric connection:
- Flat plug-in connection
- Number of contacts as normally closed contact:
- 0 .
- Number of contacts as normally open contact:
- 2 .
- Number of contacts as change-over contact:
- 0 .
- Rated control supply voltage DC:
- 12 V, 24 V
- Voltage:
- 12V, 24V
- With detachable clamps:
- No
- Function:
- 2 x On/Off (Normally open)
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 2
| Product Description | Depth | Width | Height | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|
| MINI RELAY, DOUBLE BREAKING, ON/OFF 4 PIN, 12V, 40A, REMOVABLE HOLDER, ELECTROMAGNETIC | 28 mm | 28 mm | 26 mm | 1 . | pcs |
Yes
|
|
|
| MINI RELAY, DOUBLE BREAKING, ON/OFF, ELECTROMAGN. 5 PIN, 24V, 2 x 10A, REMOVABLE HOLDER | 28 mm | 28 mm | 26 mm | 1 . | pcs |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
- Total: 2
Technical Properties
- Total: 2
| Product Description | Complete with socket | Operating voltage DC | Type of switch contact | Voltage type (operating voltage) | Voltage type for actuating | With LED indication | Nominal current | Type of electric connection | Number of contacts as normally closed contact | Number of contacts as normally open contact | Number of contacts as change-over contact | Rated control supply voltage DC | Voltage | With detachable clamps | Function | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MINI RELAY, DOUBLE BREAKING, ON/OFF 4 PIN, 12V, 40A, REMOVABLE HOLDER, ELECTROMAGNETIC | No | 12 V | Double contact | DC | DC | No | 25 A | Flat plug-in connection | 0 . | 2 . | 0 . | 12 V | 12V | No | 2 x On/Off (Normally open) | Loose piece |
Yes
|
|
|
| MINI RELAY, DOUBLE BREAKING, ON/OFF, ELECTROMAGN. 5 PIN, 24V, 2 x 10A, REMOVABLE HOLDER | No | 24 V | Double contact | DC | DC | No | 10 A | Flat plug-in connection | 0 . | 2 . | 0 . | 24 V | 24V | No | 2 x On/Off (Normally open) | Loose piece |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| MINI RELAY, DOUBLE BREAKING, ON/OFF 4 PIN, 12V, 40A, REMOVABLE HOLDER, ELECTROMAGNETIC | EC001437 - Switching relay | 9.0 |
|
Mini relays - Electromagnetic | MINIRELÄ, DUBBELBRYTANDE, ON/OFF, ELEKTROMAGNETISK | ED005DLH |
Yes
|
|
|
| MINI RELAY, DOUBLE BREAKING, ON/OFF, ELECTROMAGN. 5 PIN, 24V, 2 x 10A, REMOVABLE HOLDER | EC001437 - Switching relay | 9.0 |
|
Mini relays - Electromagnetic | MINIRELÄ, DUBBELBRYTANDE, ON/OFF, ELEKTROMAGNETISK | ED008DLH |
Yes
|
|
|
- Total: 2
