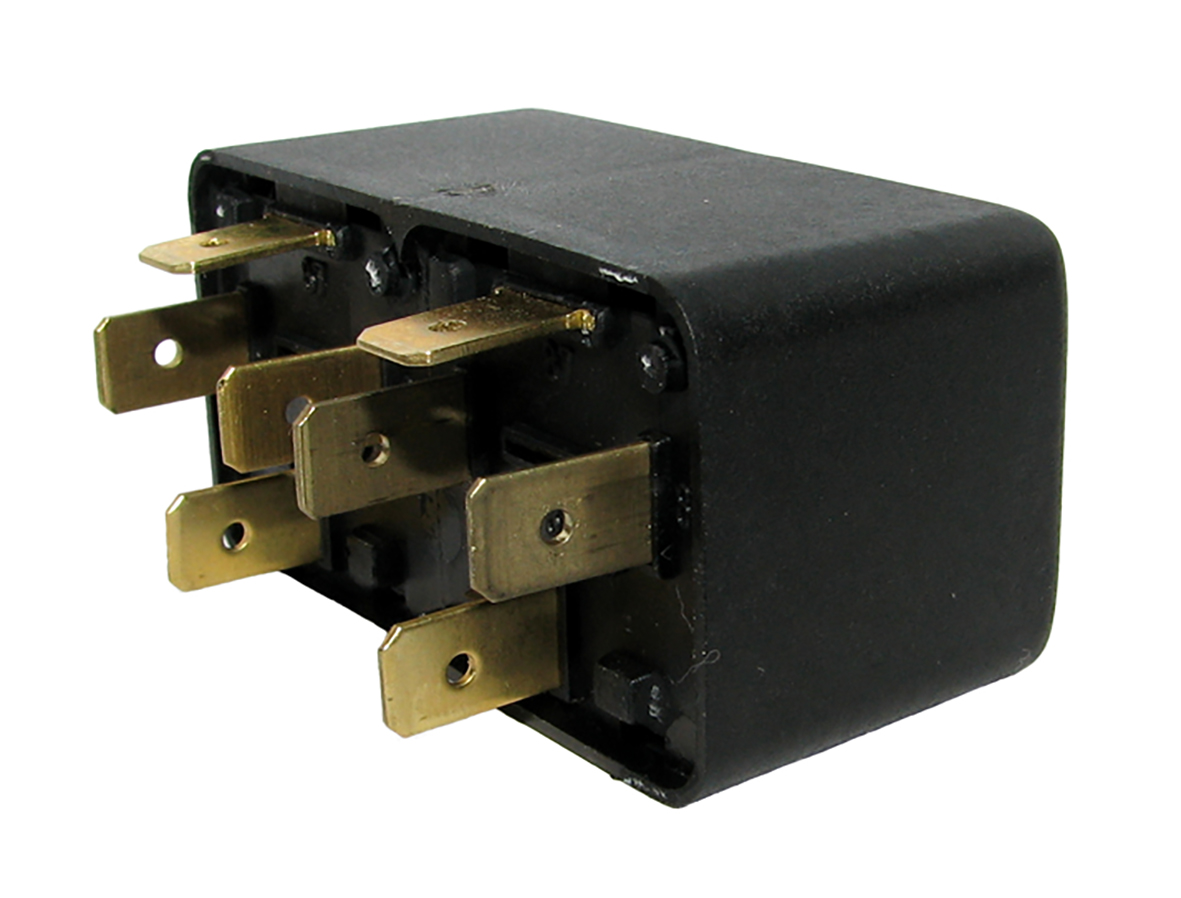

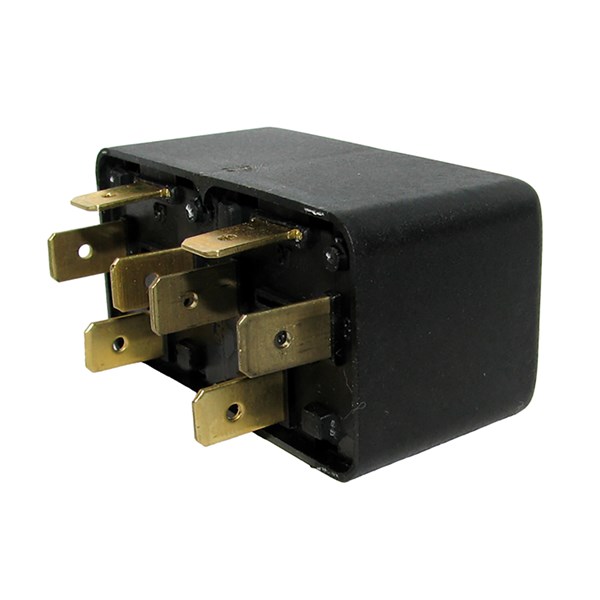

Elektromagnetiska - 2 x Enkel, On/Off, 4 stift, fast hållare

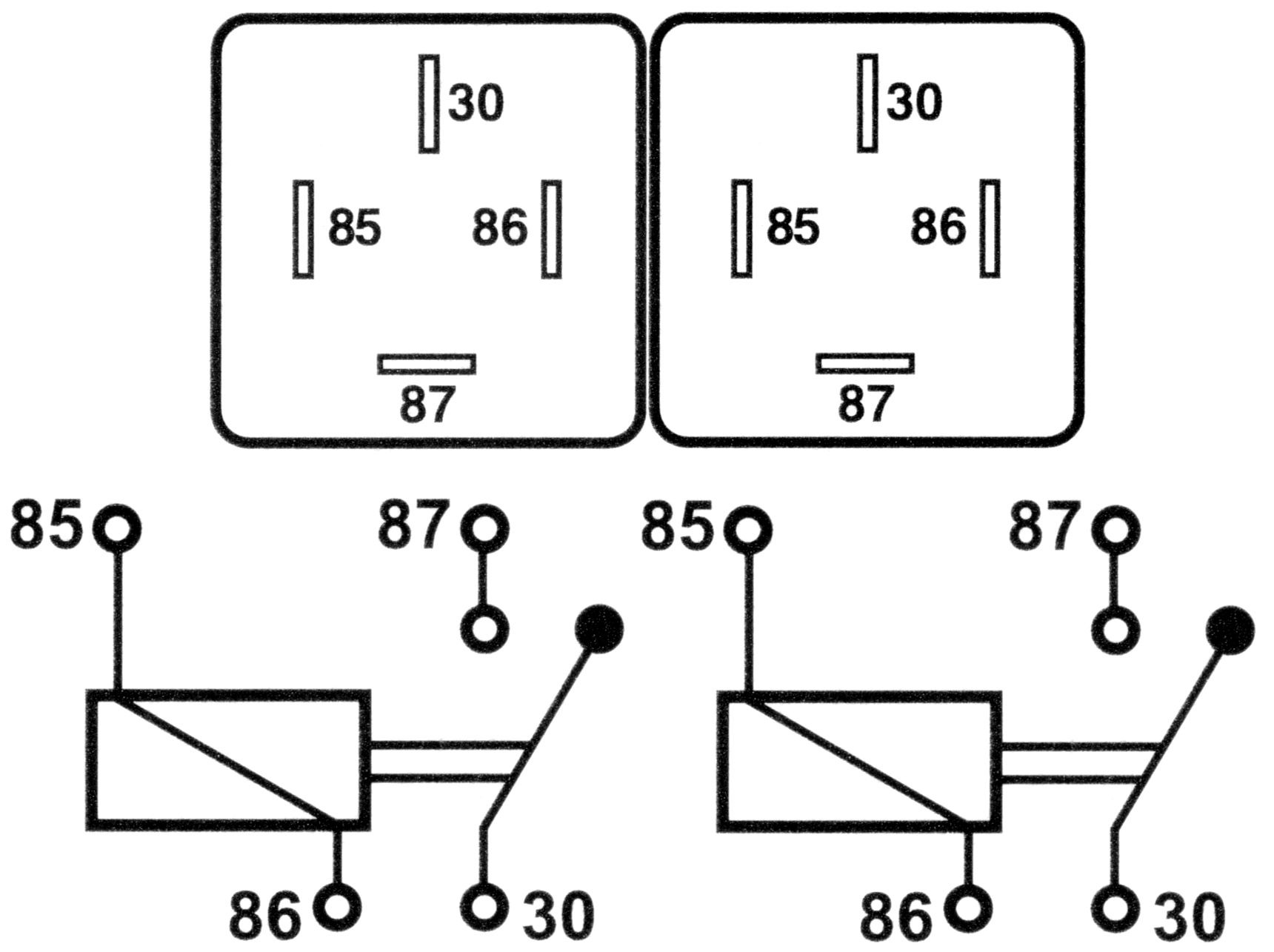

2 x On/Off, 4-stifts (6.3 x 0.8 mm) reläer i ett plasthus Normally open contacts.
Plasthus i storlek (L x B x H): 55 x 26 x 27 mm
HĂĄllare med skruvhĂĄl: 6 mm.
Artikelnummer med ändelse "-PP" = Butiksförpackad.
Technical properties
- Complete with socket:
- No
- Operating voltage DC:
- 12 V
- Type of switch contact:
- Double contact
- Voltage type (operating voltage):
- DC
- Voltage type for actuating:
- DC
- With LED indication:
- No
- Nominal voltage:
- 12 V
- Nominal current:
- 40 A
- Type of electric connection:
- Flat plug-in connection
- Number of contacts as normally closed contact:
- 0 .
- Number of contacts as normally open contact:
- 2 .
- Number of contacts as change-over contact:
- 0 .
- Rated control supply voltage DC:
- 12 V
- With detachable clamps:
- No
- Function:
- 2 x On/Off (Normally open)
- Packaging:
- Loose piece, Bag
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Dimensions
- Total: 2
Product Description | Depth | Width | Height | MOQ | Unit | Nominal voltage | Availability | ||
---|---|---|---|---|---|---|---|---|---|
MINI DOUBLE RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 40A, ELECTROMAGNETIC | 26 mm | 55 mm | 27 mm | 1 . | pck | 12 V |
Yes
|
|
|
MINI DOUBLE RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 40A, ELECTROMAGNETIC | 26 mm | 55 mm | 27 mm | 1 . | pcs | 12 V |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
Product Description | Availability | ||
---|---|---|---|
MINI DOUBLE RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 40A, ELECTROMAGNETIC |
Yes
|
|
|
MINI DOUBLE RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 40A, ELECTROMAGNETIC |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
Product Description | Complete with socket | Operating voltage DC | Type of switch contact | Voltage type (operating voltage) | Voltage type for actuating | With LED indication | Nominal voltage | Nominal current | Type of electric connection | Number of contacts as normally closed contact | Number of contacts as normally open contact | Number of contacts as change-over contact | Rated control supply voltage DC | With detachable clamps | Function | Packaging | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MINI DOUBLE RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 40A, ELECTROMAGNETIC | No | 12 V | Double contact | DC | DC | No | 12 V | 40 A | Flat plug-in connection | 0 . | 2 . | 0 . | 12 V | No | 2 x On/Off (Normally open) | Bag |
Yes
|
|
|
MINI DOUBLE RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 40A, ELECTROMAGNETIC | No | 12 V | Double contact | DC | DC | No | 12 V | 40 A | Flat plug-in connection | 0 . | 2 . | 0 . | 12 V | No | 2 x On/Off (Normally open) | Loose piece |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|---|
MINI DOUBLE RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 40A, ELECTROMAGNETIC | EC001437 - Switching relay | 9.0 |
|
Mini relays - Electromagnetic | DUBBEL MINIRELĂ„, ENKELBRYTANDE, ON/OFF | ED005DB-PP1 |
Yes
|
|
|
MINI DOUBLE RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 40A, ELECTROMAGNETIC | EC001437 - Switching relay | 9.0 |
|
Mini relays - Electromagnetic | MINIDUBBELRELĂ„, ENKELBRYTANDE, ON/OFF | ED005DB |
Yes
|
|
|
- Total: 2
