DM008

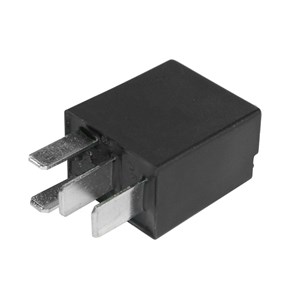

MICRO RELAY, SINGLE, ON/OFF, DIODE 4 PIN, 24V, 10A
DM008
- Availability:
-
Yes
- Total: 1
Related items
Diode - Single, On/Off, 4 pin

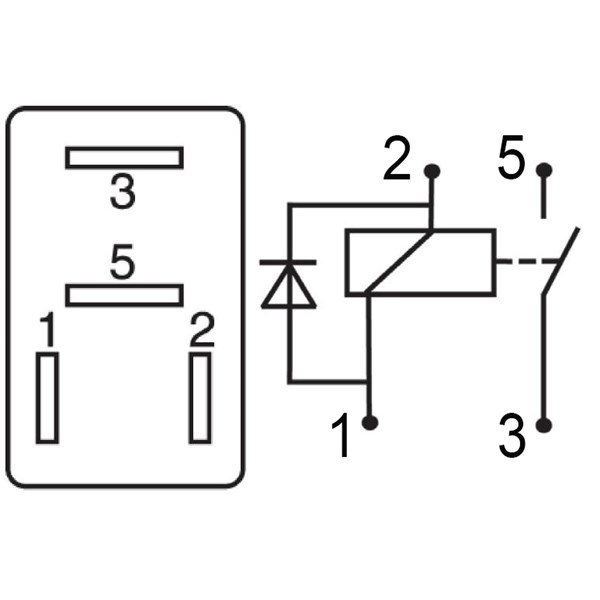

On/Off, 4-stift (2 st 4.8 x 0.8 & 2 st 6.3 x 0.8 mm) diod-relä. Normally open contacts.
Plasthus i storlek (L x B x H): 23 x 15 x 26 mm
Diod-reläer eliminerar spänningsspikar och skyddar elektroniken.
- Total: 1
Product Properties
| Complete with socket | No |
|---|---|
| Operating voltage DC | 24 V |
| Type of switch contact | Single contact |
| Voltage type (operating voltage) | DC |
| Voltage type for actuating | DC |
| With LED indication | No |
| Nominal current | 10 A |
| Type of electric connection | Flat plug-in connection |
| Number of contacts as normally closed contact | 0 . |
| Number of contacts as normally open contact | 1 . |
| Number of contacts as change-over contact | 0 . |
| Rated control supply voltage DC | 24 V |
| Voltage | 24V |
| With detachable clamps | No |
| Function | On/Off (Normally open) |
Product video
Dimensions
| Depth | 23 mm |
|---|---|
| Width | 15 mm |
| Height | 26 mm |
| MOQ | 1 . |
| Unit | pcs |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117612792 |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | DM008 |
| Taric code | 85364190 |
| Unit | pcs |
Approvals
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| POPs | No POPs |
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Other info
| ETIM-Class | EC001437 - Switching relay |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Micro relays - Diode |
| Search Description | MICRORELÄ, ENKEL, ON/OFF, DIOD |
| Alternative SKU | DM008 |
