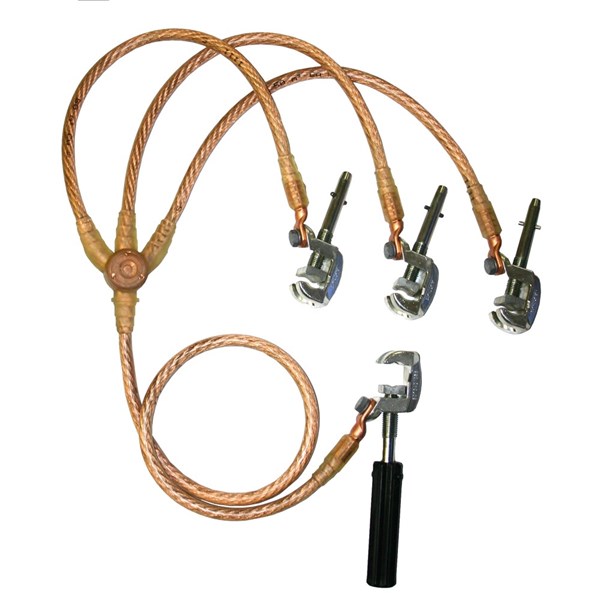

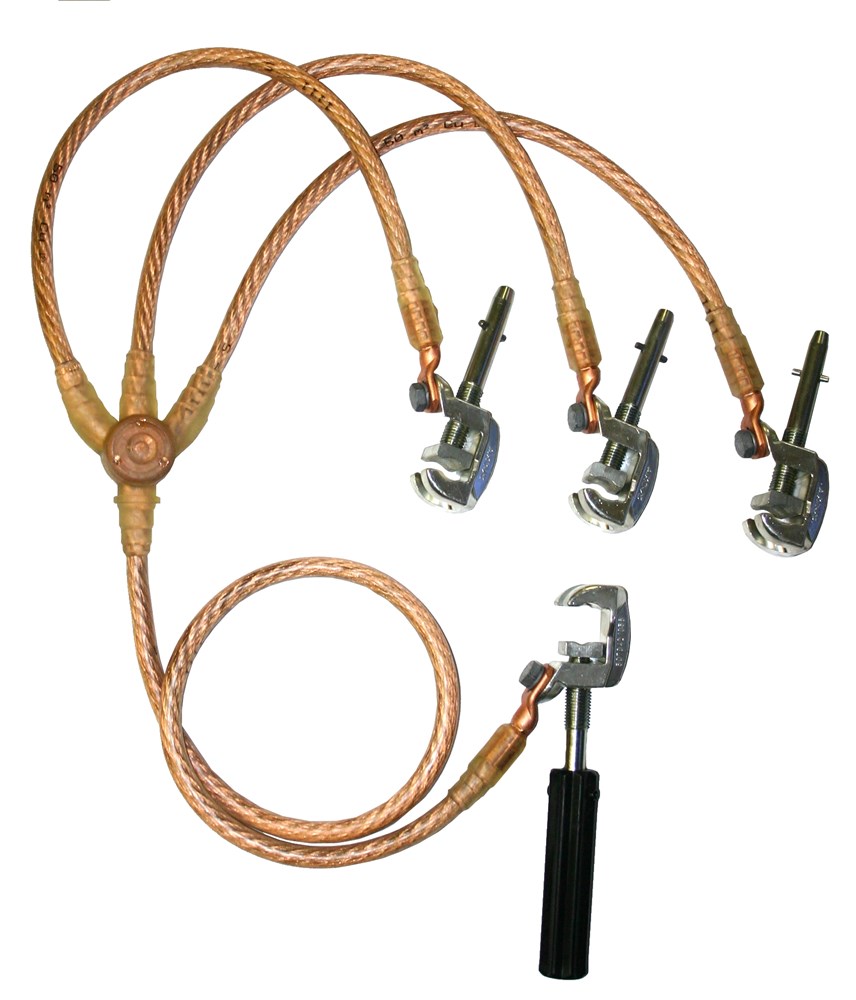

Jordningsdon
Jordningsdon finns i många olika konfigurationer (se ex. i nedan tabell). Nelco har därför arbetat fram en beställningsnyckel för att förenkla beskrivningen av produkten så mycket som möjligt. Beställningsnyckel JD3xAAA LK-BBB JU-YY JD = Jordningsdon 3x = 3 faslinor AAA = Area på faslinornas kabel, 035=35 mm². LK = Ledarklämma på faslinor enligt nedan. BBB = Area på jordkabel, 035=35 mm². JU = Jorduttag på jordlina enligt nedan. YY = Löpnummer, längd på kablar kan styras individuellt. Ledarklämmor och Jorduttag (LK & JU) LK & JU / Arcus nr. / Benämning 00. - Endast kabelskor! 01. 508 058. Sfärisk klämma för jord. M10. 20 mm kula. Isolerat handtag. 02. 508 060. Sfärisk klämma för jord. M12. 25 mm kula. Isolerat handtag. 03. 507 056. Universalklämma för jord. M10. 20 mm kula. Isolerat handtag. 04. 507 057. Universalklämma för jord. M12. 25 mm kula. Isolerat handtag. 05. 597 005. Universalklämma för jord. M12. 25/30 mm kula. Isolerat handtag. 06. - 07. 515 090. Jorduttag, M12. 08. 515 091. Jorduttag, M16. 09. - 10. 597 166. Universalklämma för fas. M12. 20/25 mm kula. 11. 507 042. Universalklämma för fas. M10. 20 mm kula. 12. 507 043. Universalklämma för fas. M12. 25 mm kula. 13. 597 015. Universalklämma för fas. M12. 25/30 mm kula. 14. 598 955. Universalklämma för fas. M12. 25/30 mm kula. 15. 508 057. Sfärisk klämma för fas. M10. 20 mm kula. 16. 508 059. Sfärisk klämma för fas. M12. 25 mm kula. 17. - 18. - 19. - 20. - 21. 515 047. Kabelsko med vingmutter 25 mm², M12. 22. 515 061. Kabelsko med vingmutter 35 mm², M12. 23. 515 062. Kabelsko med vingmutter 50 mm², M12. 24. 515 063. Kabelsko med vingmutter 70 mm², M12. 25. 515 066. Kabelsko med vingmutter 95 mm², M12. 26. 515 132. Kabelsko med vingmutter 35 mm², M16. 27. 515 133. Kabelsko med vingmutter 50 mm², M16. 28. 598 335. Kabelsko med vingmutter 70 mm², M16. 29. 515 064. Kabelsko med vingmutter 95 mm², M16. 30. 515 065. Kabelsk...
Technical properties
Show more
Item List
- Total: 23
- Total: 23
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 23
- Total: 23
Similar Options
Approvals
- Total: 23
- Total: 23
Technical Properties
- Total: 23
- Total: 23
Other information
- Total: 23
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| EARTHING DEVICE 95 mm², 3x1m+1x2m 3x597166 & 515066 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD. DON 95 MM², 3X1M+1X2M | JD3X09510-09525-02 |
No
|
|
|
| EARTHING DEVICE 35 mm², 4x1.2 m WITHOUT CLAMPS AND BOLT | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JD3X03500-03500-01 |
No
|
|
|
|
| EARTHING DEVICE 35 mm², 4x1.2 m 3x507042 & 507056 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JD3X03511-03503-01 |
No
|
|
|
|
| EARTHING DEVICE 35 mm², 4x1.2 m 4x507042 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JD3X03511-03511-01 |
No
|
|
|
|
| EARTHING DEVICE 35 mm², 4x1.2 m 4x507043 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JD3X03512-03512-01 |
No
|
|
|
|
| EARTHING DEVICE 70 mm², 3x1.5m+1x?m 3x597166 & 515066 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD. DON 70 MM², 3X1.5M+1X?M | JD3X07010-07025-01 |
No
|
|
|
| EARTHING DEVICE 70 mm², 4x3.0 m 4x507042 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JD3X07011-070-11-01 |
No
|
|
|
|
| EARTHING DEVICE 70 mm², 3x0.6+1x?mm 3x507043 & 598335 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD. DON 70 MM², 3X0.6+1X?MM | JD3X07012-07028-01 |
No
|
|
|
| EARTHING DEVICE 70 mm², 4x2.0 m 3x508059 & 515063 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JD3X07016-07024-01 |
No
|
|
|
|
| EARTHING DEVICE 95 mm², 3x1.5m+1x2m 3x597166 & 515066 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD. DON 95 MM², 3X1.5M+1X2M | JD3X09510-09525-01 |
No
|
|
|
| EARTHING DEVICE 95mm², 3x1.5m+1x3m 3x507043 & 515066 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD. DON 95MM², 3X1.5M+1X3M | JD3X09512-09525-01 |
No
|
|
|
| EARTHING DEVICE 95 mm², 3x1m+1x2m 3x507043 & 515066 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD. DON 95 MM², 3X1M+1X2M | JD3X09512-09525-02 |
No
|
|
|
| EARTHING DEVICE 95 mm², 4x1.5m 3x508057 & 515066 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD. DON 95 MM², 4X1.5M | JD3X09515-09525-02 |
No
|
|
|
| JORD.DON 120/50mm², 3x1.5m+2.5m 3x507043 & 1x507057 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD.DON 120/50MM², 3X1.5M+2.5M | JD3X12012-05004-01 |
No
|
|
|
| JORD.DON 120/50mm², 3x0.6m + 1x1.6m 3xM12 KS 1x515062 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD.DON 120/50MM², 3X0.6M, | JD3X12000-05023-0 |
No
|
|
|
| EARTHING DEVICE 120 mm², 3x0.6 m+1x3.5m 3x 507043 & 507057 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD. DON 120 MM², 3X0.6 M+1X3.5M | JD3X12012-12004-01 |
No
|
|
|
| EARTHING DEVICE 120 mm², 4x1.5 m 3x507043 & 515065 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD. DON 120 MM², 4X1.5 M | JD3X12012-12030-01 |
No
|
|
|
| EARTHING DEVICE 120 mm², 3x0.6m+1x2m 3x508059 & 515065 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD. DON 120 MM², 3X0.6M+1X2M | JD3X12016-12030-02 |
No
|
|
|
| EARTHING DEVICE 120 mm², 4x1.0 m 3x508059 & 515065 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD. DON 120 MM², 4X1.0 M | JD3X12016-12030-01 |
No
|
|
|
| JORD.DON 150 mm², 3x0.6m+1x2.5m 3x507043 & 1x507057 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD.DON 150 MM², 3X0.6M+1X2.5M | JD3X15012-15004-01 |
No
|
|
|
| JORD.DON 150 mm², 3x0.6m+1x1.8m 3x507043 & 1x507057 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD.DON 150 MM², 3X0.6M+1X1.8M | JD3X15012-15004-02 |
No
|
|
|
| EARTHING DEVICE 150 mm², 3x1m+1x2.5m 3x507043 & 1x507057 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JORD. DON 150 MM², 3X1M+1X2.5M | JD3X15012-15004-03 |
No
|
|
|
| EARTHING DEVICE 120 mm² 5x1.0 m 4x508059 & 515065 | EC002788 - Earthing and short-circuiting device | 9.0 |
|
Earthing and short circuiting devices & Accessories | JD4X12016-12030-01 |
No
|
|
|
- Total: 23
