1714400040

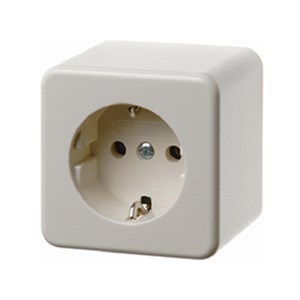

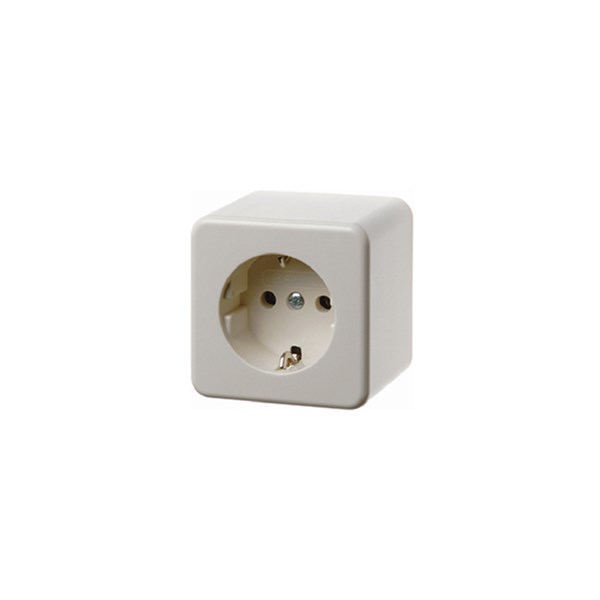

SOCKET OUTLET, 250V SURFACE MOUNTED
1714400040
- Availability:
-
No
- Total: 1
Related items
Socket outlet 250V - Berker
Socket outlet Schuko 16 A, 250 VAC IP21
Screwterminals
Width: 61 mm
Height: 61 mm
Depth: 47 mm
- Total: 1
Product Properties
| Number of loop throughs | 0 . |
|---|---|
| Number of ports USB-A | 0 . |
| Number of ports USB-C | 0 . |
| Protective contact | Earthing clips |
| With built-in bluetooth speaker | No |
| With Wi-Fi signal repeater | No |
| Impact strength | IK02 |
| Nominal voltage | 250 V |
| Connection type | Screwed terminal |
| Mounting method | Surface mounted |
| Overvoltage protection | No |
| With on/off switch | No |
| Surface finishing | Matt |
| Rotated central insert | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Mounting direction | Horizontal and vertical |
| Imprint/indication | None |
| Suitable for degree of protection (IP) | IP20 |
| With signal lamp | No |
| Label space/information surface | No |
| With hinged lid | No |
| Special power supply | None |
| With enhanced contact protection | No |
| Metallic colour | No |
| Lockable | No |
| Eject-mechanism | No |
| Insulated mounting | No |
| With function lighting | No |
| With orientation lighting | No |
| Fault current protection | No |
| With miniature fuse | No |
| With loop through function | No |
| Model | Socket outlet with protective contact CEE 7/3 (type F) |
| Nominal current | 16 A |
| Transparent | No |
| Type of fastening | Mounting with screw |
| Min. depth of built-in installation box | 0 mm |
| Frequency | 50-60 Hz |
| Colour | White |
| Surface protection | Untreated |
| Material | Plastic |
| Number of phases | 1 . |
Product video
Dimensions
| Number of active contacts (square) | 0 . |
|---|---|
| Number of socket outlets | 1 . |
| Number of modules (module system) | 0 . |
| Number of units | 1 . |
| Device width | 61 mm |
| Device height | 61 mm |
| Device depth | 47 mm |
| Min. depth of built-in installation box | 0 mm |
| Number of active contacts (round) | 2 . |
| Number of active contacts (flat) | 0 . |
| Number of socket outlets switchable | 0 . |
| Number of phases | 1 . |
| MOQ | 10 . |
| Unit | pcs |
| Nominal voltage | 250 V |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 401133438764 |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 10 . |
| Stock code | 1714400040 |
| Taric code | 85366990 |
| Unit | pcs |
Approvals
| Impact strength | IK02 |
|---|
Compliance
| REACH | No SVHC (Latest. 21 Jan 2025) |
|---|---|
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Documents
Other info
| ETIM-Class | EC000125 - Socket outlet |
|---|---|
| ETIM-Release | 10.0 |
| Trademark | Berker |
| Product Group | Socket outlets |
| Search Description | 40009940 |
| Alternative SKU | 1714400040 |
