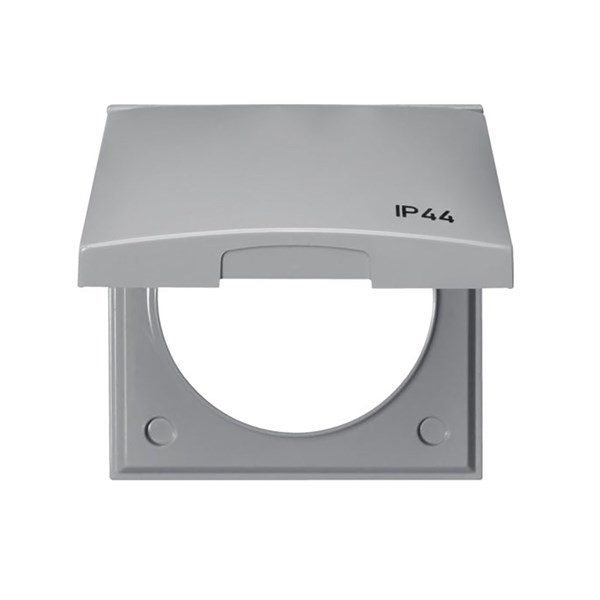

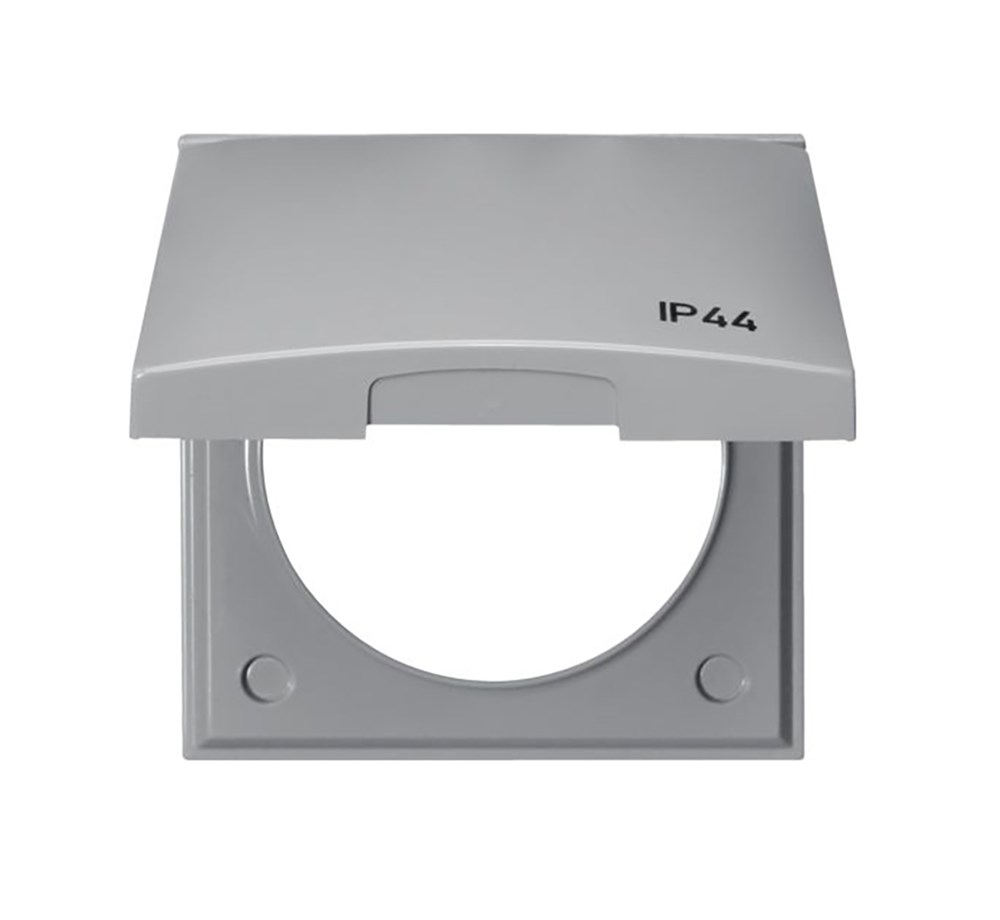

1-gang Frame with hinged cover IP44 - INTEGRO Flow
Imprint on the lid: IP44OBSERVE: Must fit with seal to ensure IP44 protection. Seal is not included with the frame.

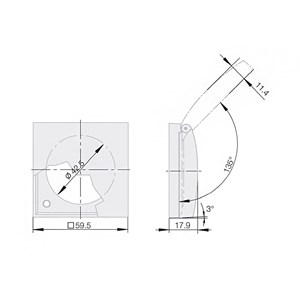

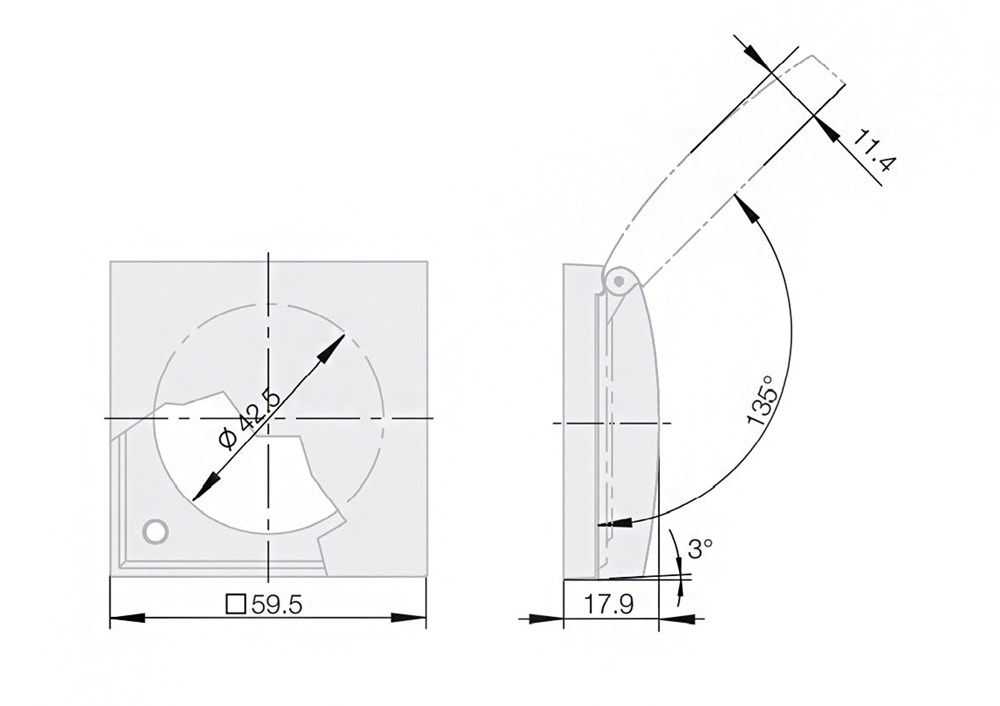

Size: 59.5 mm x 59.5 mm
Technical properties
- Anti-bacterial treatment:
- No
- Surface finishing:
- Matt, Glossy
- Mounting direction:
- Vertical
- Label space/information surface:
- No
- With mounting grid:
- No
- Flush-mounted installation:
- Yes
- Suitable for floor box:
- No
- Suitable for built-in installation:
- Yes
- With hinged lid:
- Yes
- Transparent:
- No
- Type of fastening:
- Engage (snap)
- RAL-number (similar):
- 7021 ., 7038 ., 9010 ., 9006 .
- Colour:
- Black, Grey, White, Chrome
- Surface protection:
- Untreated, Lacquered
- Material:
- Plastic
- Type of product:
- Ram
- Variant:
- N/A
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 4
| Product Description | Number of units | Number of units horizontal | Number of units vertical | Number of modules horizontal (module system) | Number of modules vertical (module system) | Number of switch inserts | Diameter bore hole (opening) | Depth | Width | Height | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FRAME 1-GANG WITH HINGED COVER GREYGLOSSY, INTEGRO FLOW, TRYCKT IP44 | 1 . | 1 . | 1 . | 1 . | 1 . | 1 . | 42.5 mm | 17.9 mm | 59.5 mm | 59.5 mm | 10 . | pcs |
No
|
|
|
| FRAME 1-GANG WITH HINGED COVER ANTHRACITE MATT, INTEGRO FLOW, TRYCKT IP44 | 1 . | 1 . | 1 . | 1 . | 1 . | 1 . | 42.5 mm | 17.9 mm | 59.5 mm | 59.5 mm | 10 . | pcs |
No
|
|
|
| FRAME 1-GANG WITH HINGED COVER CHROME MATT, LACQUERED, INTEGRO FLOW | 1 . | 1 . | 1 . | 1 . | 1 . | 42.5 mm | 17.9 mm | 59.5 mm | 59.5 mm | 10 . | pcs |
No
|
|
|
|
| FRAME 1-GANG WITH HINGED COVER POLAR WHITE GLOSSY, INTEGRO FLOW, TRYCKT IP44 | 1 . | 1 . | 1 . | 1 . | 1 . | 1 . | 42.5 mm | 17.9 mm | 59.5 mm | 59.5 mm | 10 . | pcs |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
- Total: 4
Technical Properties
- Total: 4
| Product Description | Anti-bacterial treatment | Surface finishing | Mounting direction | Label space/information surface | With mounting grid | Flush-mounted installation | Suitable for floor box | Suitable for built-in installation | With hinged lid | Transparent | Type of fastening | RAL-number (similar) | Colour | Surface protection | Material | Type of product | Variant | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FRAME 1-GANG WITH HINGED COVER GREYGLOSSY, INTEGRO FLOW, TRYCKT IP44 | No | Glossy | Vertical | No | No | Yes | No | Yes | Yes | No | Engage (snap) | 7038 . | Grey | Untreated | Plastic | Ram | N/A |
No
|
|
|
| FRAME 1-GANG WITH HINGED COVER ANTHRACITE MATT, INTEGRO FLOW, TRYCKT IP44 | No | Matt | Vertical | No | No | Yes | No | Yes | Yes | No | Engage (snap) | 7021 . | Black | Untreated | Plastic | Ram | N/A |
No
|
|
|
| FRAME 1-GANG WITH HINGED COVER CHROME MATT, LACQUERED, INTEGRO FLOW | No | Matt | Vertical | No | No | Yes | No | Yes | Yes | No | Engage (snap) | 9006 . | Chrome | Lacquered | Plastic |
No
|
|
|
||
| FRAME 1-GANG WITH HINGED COVER POLAR WHITE GLOSSY, INTEGRO FLOW, TRYCKT IP44 | No | Glossy | Vertical | No | No | Yes | No | Yes | Yes | No | Engage (snap) | 9010 . | White | Untreated | Plastic | Ram | N/A |
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| FRAME 1-GANG WITH HINGED COVER GREYGLOSSY, INTEGRO FLOW, TRYCKT IP44 | EC000007 - Cover frame for domestic switching devices | 9.0 |
|
Integro Flow | 918282597 | 171418282597 |
No
|
|
|
| FRAME 1-GANG WITH HINGED COVER ANTHRACITE MATT, INTEGRO FLOW, TRYCKT IP44 | EC000007 - Cover frame for domestic switching devices | 9.0 |
|
Integro Flow | 918282595 | 171418282595 |
No
|
|
|
| FRAME 1-GANG WITH HINGED COVER CHROME MATT, LACQUERED, INTEGRO FLOW | EC000007 - Cover frame for domestic switching devices | 9.0 |
|
Integro Flow | 918282568 | 171418282568 |
No
|
|
|
| FRAME 1-GANG WITH HINGED COVER POLAR WHITE GLOSSY, INTEGRO FLOW, TRYCKT IP44 | EC000007 - Cover frame for domestic switching devices | 9.0 |
|
Integro Flow | 918282599 | 171418282599 |
Yes
|
|
|
