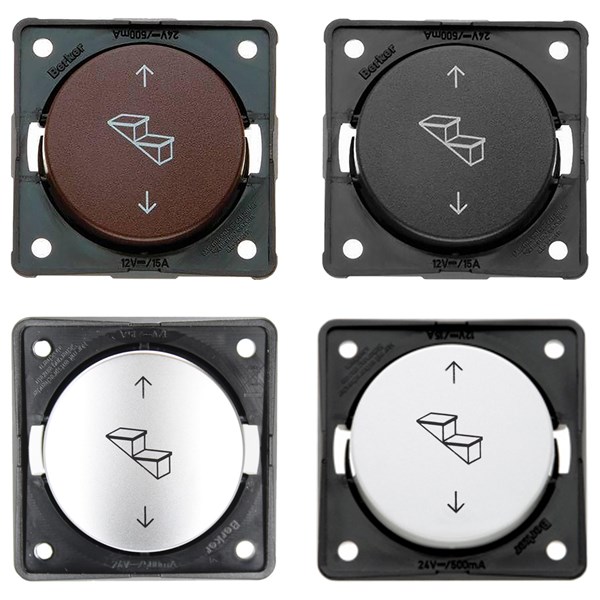

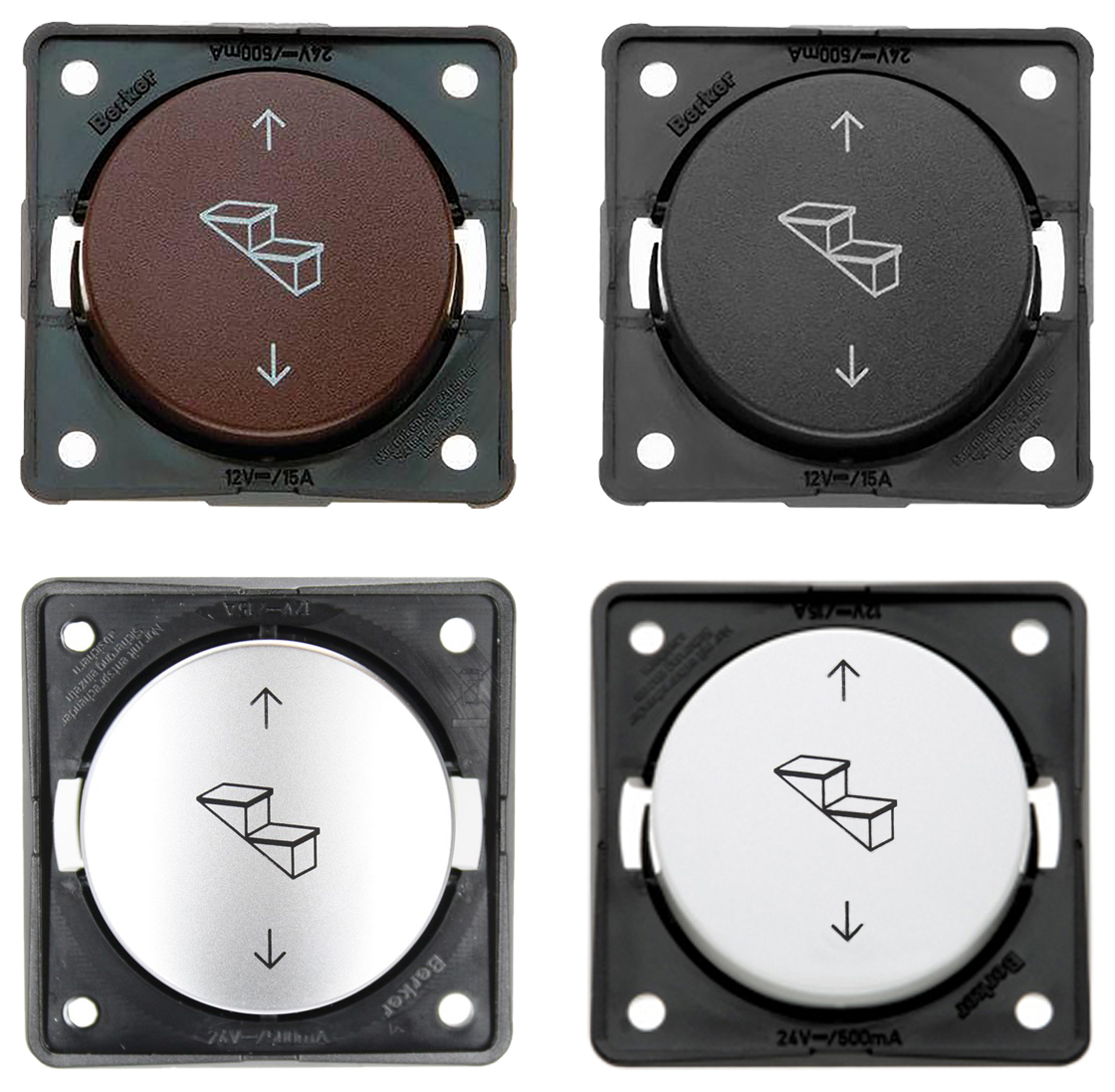

Reverse polarity push.button switch - INTEGRO Berker
Reverse polarity push button, 4 contacts
-e.g. for control of caravan steps.
Imprint: step and arrow symbols
Momentary current: 15A,at 12V
Momentary current: 7,5A,at 24V
4 contacts at the backside
Size: 55.5 mm x 55.5 mm
Flat connector 4.8 x 0.8 mm
Technical properties
- Nominal voltage:
- 12-24 V
- Connection type:
- Screwed terminal
- Rated current:
- 7.5-15 A
- Mounting method:
- Built-in installation
- Anti-bacterial treatment:
- No
- Surface finishing:
- Matt, Glossy
- Compatible with Apple HomeKit:
- No
- Compatible with Google Assistant:
- No
- Compatible with Amazon Alexa:
- No
- IFTTT support available:
- No
- Assembly arrangement:
- Basic element with central cover plate
- Wiring system:
- Other
- Method of operation:
- Rocker/button
- With mounting plate:
- No
- Illumination:
- No
- Feedback-signal contact:
- No
- Heating switch:
- No
- Washing machine switch:
- No
- Type of fastening:
- Screw mounting
- RAL-number (similar):
- 8017 ., 7021 ., 9010 ., 9023 ., 9006 .
- Min. depth of built-in installation box:
- 16 mm
- Colour:
- Brown, Anthracite, White, Chrome
- Material:
- Plastic
- Type of product:
- Strömbrytare
- Variant:
- 12V
- Built-in depth:
- 15.5 mm
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
| Product Description | Built-in depth | Number of modules (module system) | Device width | Device height | Device depth | Number of rockers | Min. depth of built-in installation box | MOQ | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A CHROME MATT, REVERSE POLARITY, INTEGRO | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 1 . | 16 mm | 10 . | pcs | 12-24 V |
No
|
|
|
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A BROWN MATT, REVERSE POLARITY, INTEGRO | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 1 . | 16 mm | 10 . | pcs | 12-24 V |
No
|
|
|
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A ANTHRACITE MATT, REVERSE POLARITY, INTEGRO | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 1 . | 16 mm | 10 . | pcs | 12-24 V |
No
|
|
|
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A POLAR WHITE GLOSSY, REVERSE POLARITY, INTEGRO | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 1 . | 16 mm | 10 . | pcs | 12-24 V |
No
|
|
|
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A CHROME MATT, REVERSE POLARITY, INTEGRO | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 1 . | 16 mm | 10 . | pcs | 12-24 V |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
- Total: 5
Technical Properties
- Total: 5
| Product Description | Nominal voltage | Connection type | Rated current | Mounting method | Anti-bacterial treatment | Surface finishing | Compatible with Apple HomeKit | Compatible with Google Assistant | Compatible with Amazon Alexa | IFTTT support available | Assembly arrangement | Wiring system | Method of operation | With mounting plate | Illumination | Feedback-signal contact | Heating switch | Washing machine switch | Type of fastening | RAL-number (similar) | Min. depth of built-in installation box | Colour | Material | Type of product | Variant | Built-in depth | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A CHROME MATT, REVERSE POLARITY, INTEGRO | 12-24 V | Screwed terminal | 7.5-15 A | Built-in installation | No | Matt | No | No | No | No | Basic element with central cover plate | Other | Rocker/button | No | No | No | Screw mounting | 9006 . | 16 mm | Chrome | Plastic | Strömbrytare | 12V | 15.5 mm |
No
|
|
|
||
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A BROWN MATT, REVERSE POLARITY, INTEGRO | 12-24 V | Screwed terminal | 7.5-15 A | Built-in installation | No | Matt | No | No | No | No | Basic element with central cover plate | Other | Rocker/button | No | No | No | Screw mounting | 8017 . | 16 mm | Brown | Plastic | Strömbrytare | 12V | 15.5 mm |
No
|
|
|
||
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A ANTHRACITE MATT, REVERSE POLARITY, INTEGRO | 12-24 V | Screwed terminal | 7.5-15 A | Built-in installation | No | Matt | No | No | No | No | Basic element with central cover plate | Other | Rocker/button | No | No | No | Screw mounting | 7021 . | 16 mm | Anthracite | Plastic | Strömbrytare | 12V | 15.5 mm |
No
|
|
|
||
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A POLAR WHITE GLOSSY, REVERSE POLARITY, INTEGRO | 12-24 V | Screwed terminal | 7.5-15 A | Built-in installation | No | Glossy | No | No | No | No | Basic element with central cover plate | Other | Rocker/button | No | No | No | No | No | Screw mounting | 9010 . | 16 mm | White | Plastic | Strömbrytare | 12V | 15.5 mm |
No
|
|
|
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A CHROME MATT, REVERSE POLARITY, INTEGRO | 12-24 V | Screwed terminal | 7.5-15 A | Built-in installation | No | Glossy | No | No | No | No | Basic element with central cover plate | Other | Rocker/button | No | No | No | Screw mounting | 9023 . | 16 mm | Chrome | Plastic | Strömbrytare | 12V | 15.5 mm |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A CHROME MATT, REVERSE POLARITY, INTEGRO | EC001590 - Installation switch | 9.0 |
|
Installation switches | 936992568 | 171436992568 |
No
|
|
|
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A BROWN MATT, REVERSE POLARITY, INTEGRO | EC001590 - Installation switch | 9.0 |
|
Installation switches | 936992501 | 171436992501 |
No
|
|
|
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A ANTHRACITE MATT, REVERSE POLARITY, INTEGRO | EC001590 - Installation switch | 9.0 |
|
Installation switches | 936992505 | 171436992505 |
No
|
|
|
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A POLAR WHITE GLOSSY, REVERSE POLARITY, INTEGRO | EC001590 - Installation switch | 9.0 |
|
Installation switches | 936992509 | 171436992509 |
No
|
|
|
| PUSH-BUTTON WITH IMPRINT FOR STEPS, 12V=15A CHROME MATT, REVERSE POLARITY, INTEGRO | EC001590 - Installation switch | 9.0 |
|
Installation switches | 936992528 | 171436992528 |
Yes
|
|
|
- Total: 5
