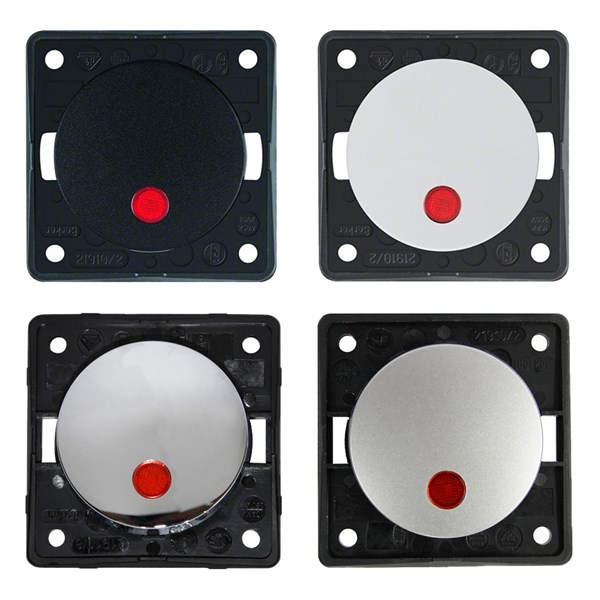

On/Off Control Rocker Switch - INTEGRO Berker
Control On/Off switch 2-pole with red light
Neon lamp current: 0.9 mA
With imprint "0"
16 A, 250 VAC
Size: 55.5 mm x 55.5 mm
Screw terminals
Technical properties
- Nominal voltage:
- 250 V
- Connection type:
- Screwed terminal
- Rated current:
- 10 A
- Mounting method:
- Built-in installation
- Anti-bacterial treatment:
- No
- Surface finishing:
- Matt, Glossy
- Compatible with Apple HomeKit:
- No
- Compatible with Google Assistant:
- No
- Compatible with Amazon Alexa:
- No
- IFTTT support available:
- No
- Assembly arrangement:
- Basic element with central cover plate
- Wiring system:
- 2-pole switch
- Method of operation:
- Rocker/button
- With mounting plate:
- No
- Label space/information surface:
- Yes
- Illumination:
- Yes
- Feedback-signal contact:
- No
- Heating switch:
- No
- Washing machine switch:
- No
- Type of fastening:
- Screw mounting
- RAL-number (similar):
- 8017 ., 7021 ., 9010 ., 9006 ., 9023 .
- Min. depth of built-in installation box:
- 16 mm
- Colour:
- Brown, Anthracite, White, Chrome
- Material:
- Plastic
- Type of product:
- Strömbrytare
- Variant:
- 250V
- Built-in depth:
- 15.5 mm
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents

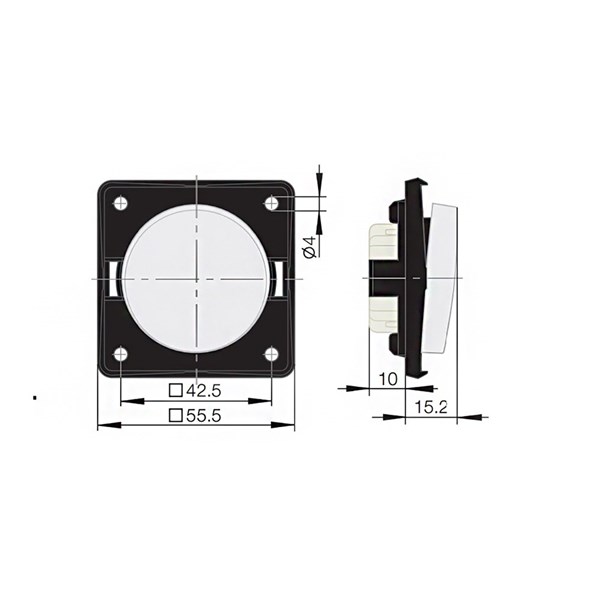

Dimensions
- Total: 5
Product Description | Built-in depth | Number of modules (module system) | Device width | Device height | Device depth | Number of rockers | Switching current for fluorescent lamps | Min. depth of built-in installation box | MOQ | Unit | Nominal voltage | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ON/OFF CONTROL ROCKER SWITCH W LAMP, 250V BROWN MATT, INTEGRO | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 1 . | 10 AX | 16 mm | 10 . | pcs | 250 V |
No
|
|
|
ON/OFF CONTROL ROCKER SWITCH W LAMP, 250V ANTHRACITE MATT, INTEGRO | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 1 . | 10 AX | 16 mm | 10 . | pcs | 250 V |
No
|
|
|
ON/OFF CONTROL ROCKER SWITCH W LAMP, 250V POLAR WHITE GLOSSY, INTEGRO | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 1 . | 10 AX | 16 mm | 10 . | pcs | 250 V |
Yes
|
|
|
ON/OFF CONTROL ROCKER SWITCH W LAMP, 250V CHROME, GLOSSY, GALV | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 1 . | 10 AX | 16 mm | 10 . | pcs | 250 V |
Yes
|
|
|
ON/OFF CONTROL ROCKER SWITCH 2 POL, 250V CHROMELACK MATT, BELYST RED LINS INTEGRO | 15.5 mm | 1 . | 55.5 mm | 55.5 mm | 25 mm | 1 . | 10 AX | 16 mm | 10 . | pcs | 250 V |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
- Total: 5
Technical Properties
- Total: 5
Product Description | Nominal voltage | Connection type | Rated current | Mounting method | Anti-bacterial treatment | Surface finishing | Compatible with Apple HomeKit | Compatible with Google Assistant | Compatible with Amazon Alexa | IFTTT support available | Assembly arrangement | Wiring system | Method of operation | With mounting plate | Label space/information surface | Illumination | Feedback-signal contact | Heating switch | Washing machine switch | Type of fastening | RAL-number (similar) | Min. depth of built-in installation box | Colour | Material | Type of product | Variant | Built-in depth | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ON/OFF CONTROL ROCKER SWITCH W LAMP, 250V BROWN MATT, INTEGRO | 250 V | Screwed terminal | 10 A | Built-in installation | No | Matt | No | No | No | No | Basic element with central cover plate | 2-pole switch | Rocker/button | Yes | No | No | Screw mounting | 8017 . | 16 mm | Brown | Plastic | Strömbrytare | 250V | 15.5 mm |
No
|
|
|
|||
ON/OFF CONTROL ROCKER SWITCH W LAMP, 250V ANTHRACITE MATT, INTEGRO | 250 V | Screwed terminal | 10 A | Built-in installation | No | Matt | No | No | No | No | Basic element with central cover plate | 2-pole switch | Rocker/button | Yes | Yes | No | No | Screw mounting | 7021 . | 16 mm | Anthracite | Plastic | Strömbrytare | 250V | 15.5 mm |
No
|
|
|
||
ON/OFF CONTROL ROCKER SWITCH W LAMP, 250V POLAR WHITE GLOSSY, INTEGRO | 250 V | Screwed terminal | 10 A | Built-in installation | No | Glossy | No | No | No | No | Basic element with central cover plate | 2-pole switch | Rocker/button | No | Yes | No | No | No | Screw mounting | 9010 . | 16 mm | White | Plastic | Strömbrytare | 250V | 15.5 mm |
Yes
|
|
|
|
ON/OFF CONTROL ROCKER SWITCH W LAMP, 250V CHROME, GLOSSY, GALV | 250 V | Screwed terminal | 10 A | Built-in installation | No | Glossy | No | No | No | No | Basic element with central cover plate | 2-pole switch | Rocker/button | Yes | No | No | Screw mounting | 9023 . | 16 mm | Chrome | Plastic | 15.5 mm |
Yes
|
|
|
|||||
ON/OFF CONTROL ROCKER SWITCH 2 POL, 250V CHROMELACK MATT, BELYST RED LINS INTEGRO | 250 V | Screwed terminal | 10 A | Built-in installation | No | Matt | No | No | No | No | Basic element with central cover plate | 2-pole switch | Rocker/button | Yes | Yes | No | No | Screw mounting | 9006 . | 16 mm | Chrome | Plastic | Strömbrytare | 250V | 15.5 mm |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|---|
ON/OFF CONTROL ROCKER SWITCH W LAMP, 250V BROWN MATT, INTEGRO | EC001590 - Installation switch | 9.0 |
|
Installation switches | 937522501 | 171437522501 |
No
|
|
|
ON/OFF CONTROL ROCKER SWITCH W LAMP, 250V ANTHRACITE MATT, INTEGRO | EC001590 - Installation switch | 9.0 |
|
Installation switches | 937522505 | 171437522505 |
No
|
|
|
ON/OFF CONTROL ROCKER SWITCH W LAMP, 250V POLAR WHITE GLOSSY, INTEGRO | EC001590 - Installation switch | 9.0 |
|
Installation switches | 937522509 | 171437522509 |
Yes
|
|
|
ON/OFF CONTROL ROCKER SWITCH W LAMP, 250V CHROME, GLOSSY, GALV | EC001590 - Installation switch | 9.0 |
|
Installation switches | 837522518 | 171437522518 |
Yes
|
|
|
ON/OFF CONTROL ROCKER SWITCH 2 POL, 250V CHROMELACK MATT, BELYST RED LINS INTEGRO | EC001590 - Installation switch | 9.0 |
|
Installation switches | 937522568 | 171437522568 |
Yes
|
|
|
