SPOTLIGHT TILL 3-FAS SKENA, SVART, 8W, DIMBAR., ZOOMABLE 15-55DEG.
N3PSPZ8B
- Availability:
-
Yes
- Total: 1
Related items

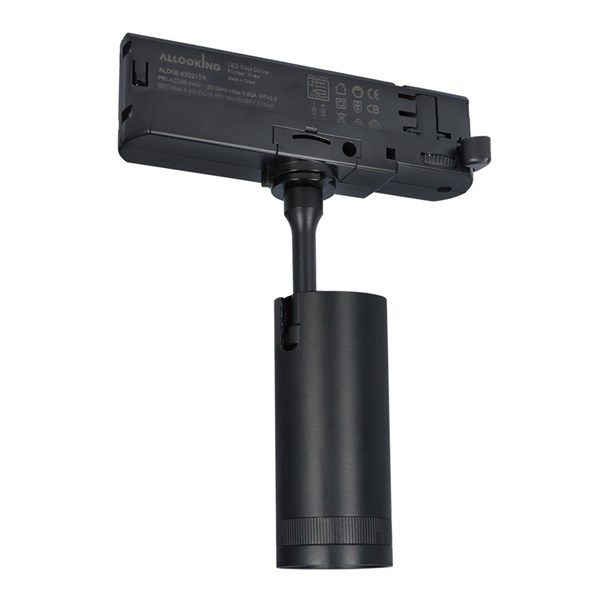

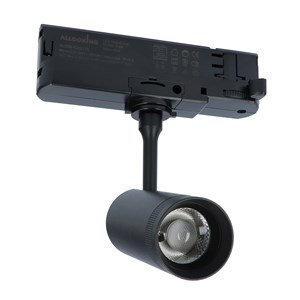

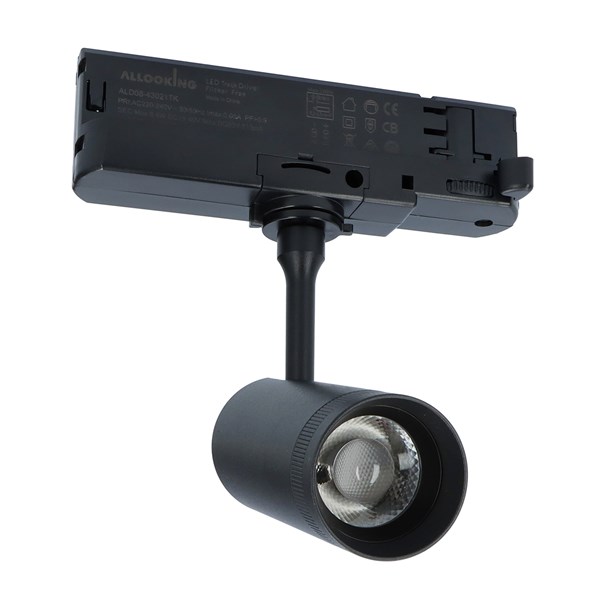

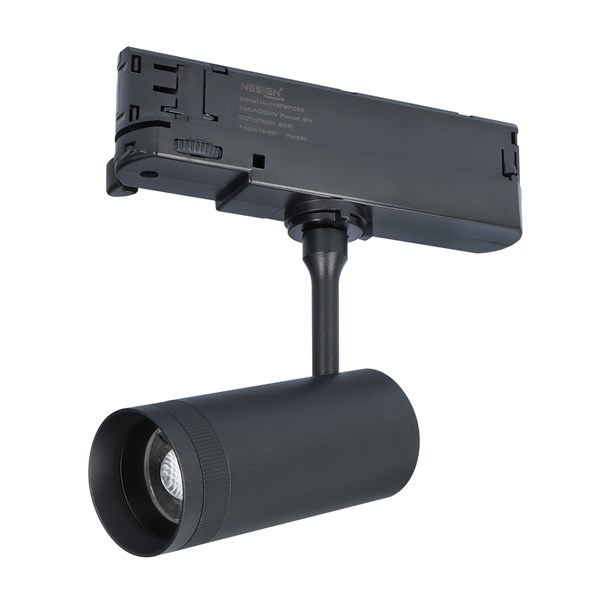

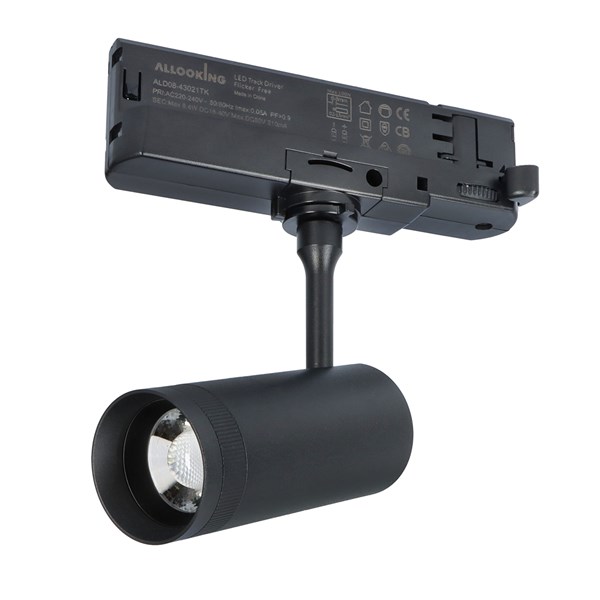

Zoom Light for 3-phase track, 8W
Zoom Light is a dimmable (triac) spotlight designed for 3-phase tracks with zoom functionality.

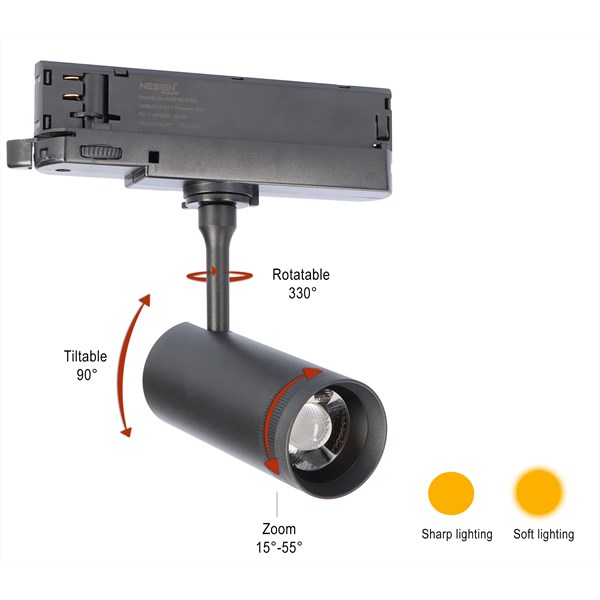

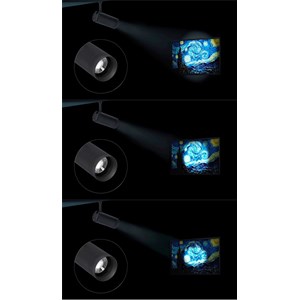

By turning the ring, one can smoothly adjust the beam angle from a focused 15° to a wider 55°. This enables precise control over the direction and intensity of the light, allowing optimal management of the light flow when actively illuminating specific areas.
Rotatable: 330°
Tiltable: 90°
Beam angle: 15°-55°
• Easy adjustment of the lighting directly without additional tools.
• Utilize already installed 3-phase tracks.
Spotlight diameter: 45 mm
Spotlight length: 105 mm
Maximum protrusion from track: 170 mm
Track adapter: 150 x 32 x 46 (L x W x H).
- Total: 1
Product Properties
| Dimming phase cut-on (leading edge) | Yes |
|---|---|
| Housing material | Aluminium |
| Suitable for surface mounting | Yes |
| Suitable for built-in mounting | No |
| Suitable for suspended mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | Yes |
| Suitable for clamp-mounting | No |
| Adjustability | Rotating and swivelling |
| With movement sensor | No |
| With light sensor | No |
| Lamp type | LED not exchangeable |
| With light source | Yes |
| Suitable for number of light sources | 1 . |
| Lamp holder | None |
| Housing colour | Black |
| Material cover | None |
| Surface brushed | No |
| Voltage type | AC |
| Nominal voltage | 220-240 V |
| Type of control gear | LED operating device current-controlled |
| With control gear | Yes |
| Reflector | High-gloss |
| Light distribution | Symmetric |
| Beam angle | Variable beam angle |
| Light outlet | Direct |
| Degree of protection (NEMA) | Other |
| Suitable for lamp power | 0 N/A |
| Max. system power | 8 W |
| Colour of light | White |
| Colour temperature | 2700 K |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Connection type | Other |
| Emergency power supply integrated | No |
| Surface protection | Powder coating |
Dimensions
| Built-in width | 0 N/A |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 150 mm |
Logistics
| Barcode | 733117641619 |
|---|---|
| Country of origin | CN |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | N3PSPZ8B |
| Taric code | 85395100 |
| Unit | pcs |
Approvals
| Voltage type | AC |
|---|---|
| Degree of protection (NEMA) | Other |
Other info
| ETIM-Class | EC001744 - Downlight/spot/floodlight |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NESIGN |
| Product Group | Track Lights |
| Search Description | SKV2024TOBIAS2 |
| Alternative SKU | N3PSPZ8B |
