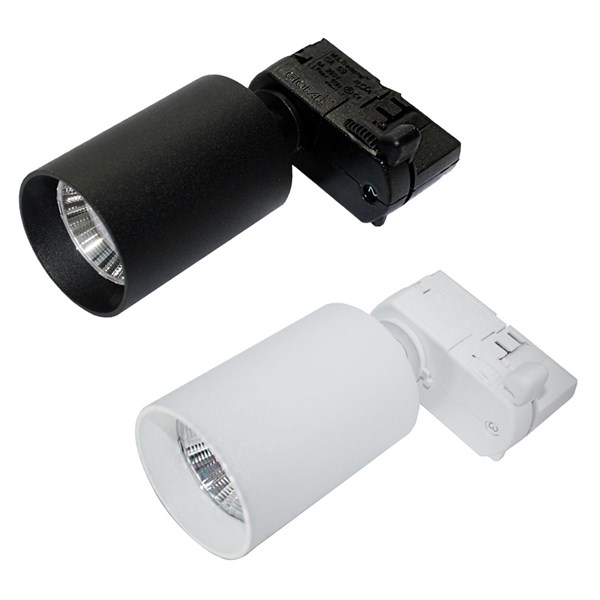

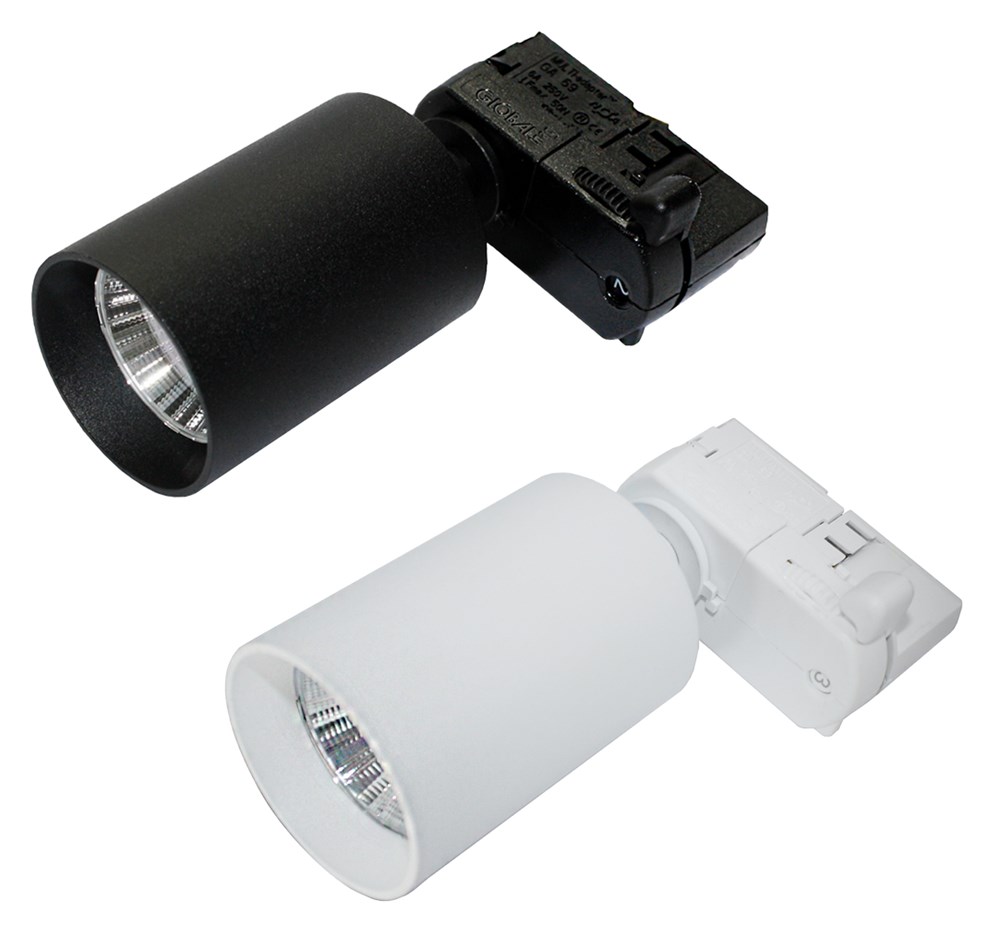

Dimbar spotlight till 3-fasskena, 8W
Spotlight levereras med 4 utbytbara reflektorer (15-60°) för att optimal kunna styra ljusflödet.
Vinklingsbar: 45°
Vridbar: 330°
Diameter på spotlight: 52 mm
Längd på spotlight: 74 mm
Maximalt utstick från skena: 108 mm
Adapter för skena: 70 x 32 x 40 (L x B x H).
Technical properties
- Dimming phase cut-on (leading edge):
- Yes
- Housing material:
- Aluminium
- Suitable for surface mounting:
- Yes
- Suitable for built-in mounting:
- No
- Suitable for suspended mounting:
- Yes
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- Yes
- Suitable for clamp-mounting:
- No
- Adjustability:
- Rotating and swivelling
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Lamp holder:
- None
- Housing colour:
- Black, White
- Material cover:
- None
- Surface brushed:
- No
- Voltage type:
- AC
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- Yes
- Reflector:
- High-gloss
- Light distribution:
- Symmetric
- Beam angle:
- Variable beam angle
- Light outlet:
- Direct
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Colour of light:
- White
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Covering of the luminaire with thermally insulating material possible:
- No
- Connection type:
- Other
- Emergency power supply integrated:
- No
- Surface protection:
- Powder coating
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | Built-in width | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|
| SPOTLIGHT TO 3-PHASE TRAY, WHITE 8W, 4xREFLECTOR 15/25/38/60GR | 0 N/A | 1 . | pcs |
Yes
|
|
|
| SPOTLIGHT TO 3-PHASE TRAY, BLACK 8W, 4xREFLECTOR 15/25/38/60GR | 0 N/A | 1 . | pcs |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Voltage type | Degree of protection (NEMA) | Availability | ||
|---|---|---|---|---|---|
| SPOTLIGHT TO 3-PHASE TRAY, WHITE 8W, 4xREFLECTOR 15/25/38/60GR | AC | Other |
Yes
|
|
|
| SPOTLIGHT TO 3-PHASE TRAY, BLACK 8W, 4xREFLECTOR 15/25/38/60GR | AC | Other |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Dimming phase cut-on (leading edge) | Housing material | Suitable for surface mounting | Suitable for built-in mounting | Suitable for suspended mounting | Suitable for ceiling mounting | Suitable for traverse mounting | Suitable for pedestal/floor mounting | Suitable for light-track mounting | Suitable for clamp-mounting | Adjustability | With movement sensor | With light sensor | Lamp type | With light source | Lamp holder | Housing colour | Material cover | Surface brushed | Voltage type | Type of control gear | With control gear | Reflector | Light distribution | Beam angle | Light outlet | Degree of protection (NEMA) | Suitable for lamp power | Colour of light | Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Covering of the luminaire with thermally insulating material possible | Connection type | Emergency power supply integrated | Surface protection | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPOTLIGHT TO 3-PHASE TRAY, WHITE 8W, 4xREFLECTOR 15/25/38/60GR | Yes | Aluminium | Yes | No | Yes | Yes | No | No | Yes | No | Rotating and swivelling | No | No | LED not exchangeable | Yes | None | White | None | No | AC | LED operating device current-controlled | Yes | High-gloss | Symmetric | Variable beam angle | Direct | Other | 0 N/A | White | No | No | Other | No | Powder coating |
Yes
|
|
|
| SPOTLIGHT TO 3-PHASE TRAY, BLACK 8W, 4xREFLECTOR 15/25/38/60GR | Yes | Aluminium | Yes | No | Yes | Yes | No | No | Yes | No | Rotating and swivelling | No | No | LED not exchangeable | Yes | None | Black | None | No | AC | LED operating device current-controlled | Yes | High-gloss | Symmetric | Variable beam angle | Direct | Other | 0 N/A | White | No | No | Other | No | Powder coating |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SPOTLIGHT TO 3-PHASE TRAY, WHITE 8W, 4xREFLECTOR 15/25/38/60GR | EC001744 - Downlight/spot/floodlight | 9.0 |
|
Track Lights | BLACKFRIDAYLIGHTING | N3PSPCYL08A15-60W |
Yes
|
|
|
| SPOTLIGHT TO 3-PHASE TRAY, BLACK 8W, 4xREFLECTOR 15/25/38/60GR | EC001744 - Downlight/spot/floodlight | 9.0 |
|
Track Lights | BLACKFRIDAYLIGHTING | N3PSPCYL08A15-60B |
Yes
|
|
|
- Total: 2
