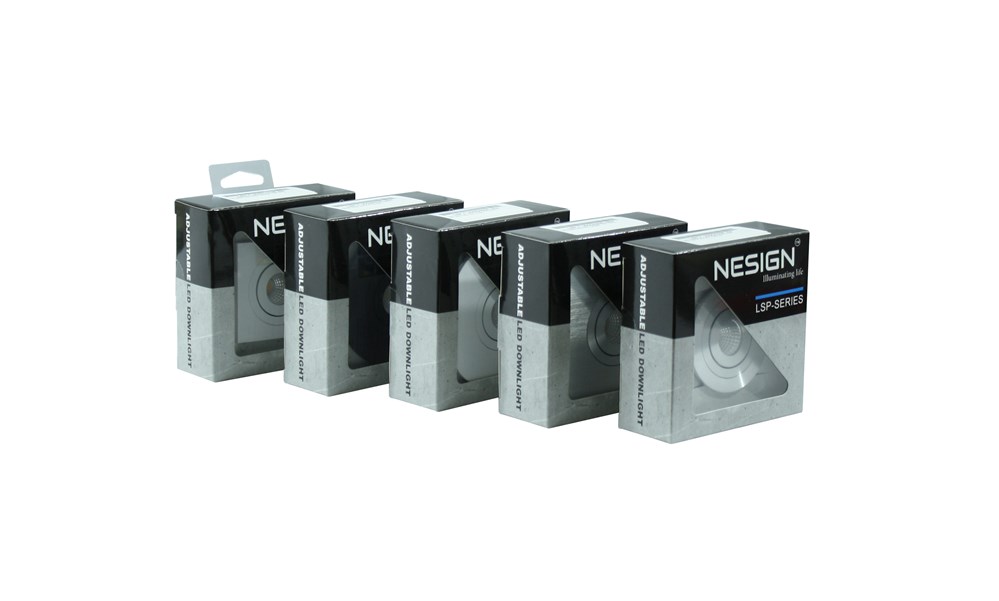

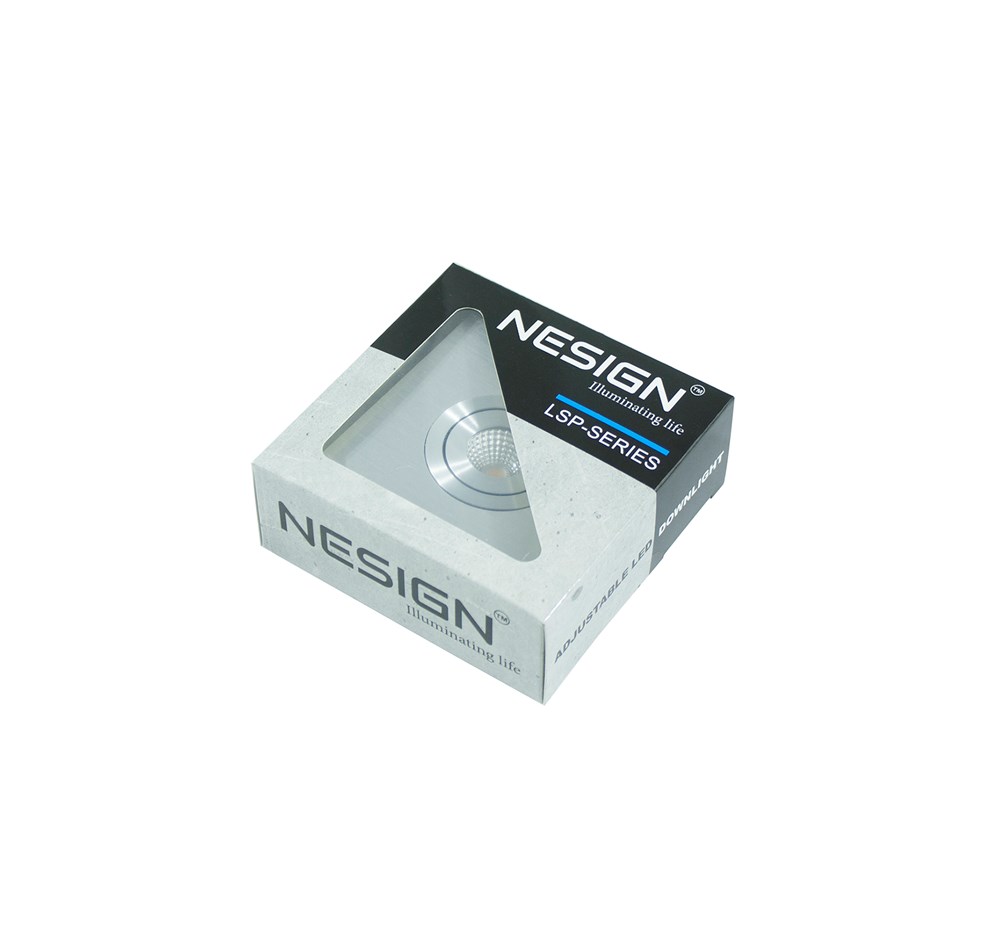

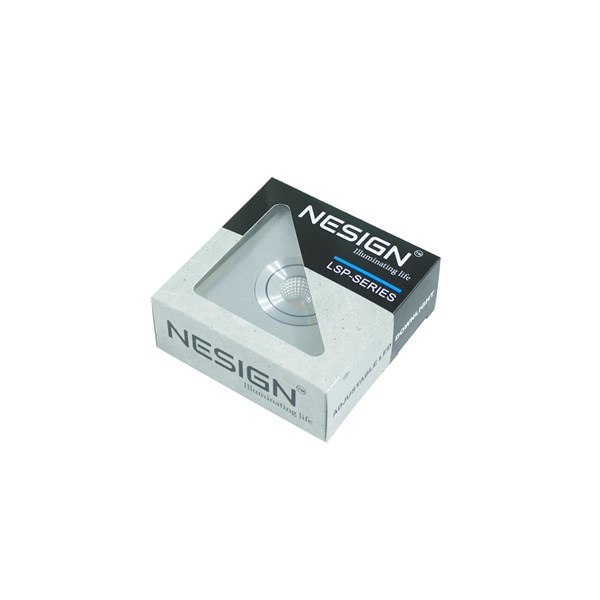

LSP Downlights Kvadratiska 1-Pack

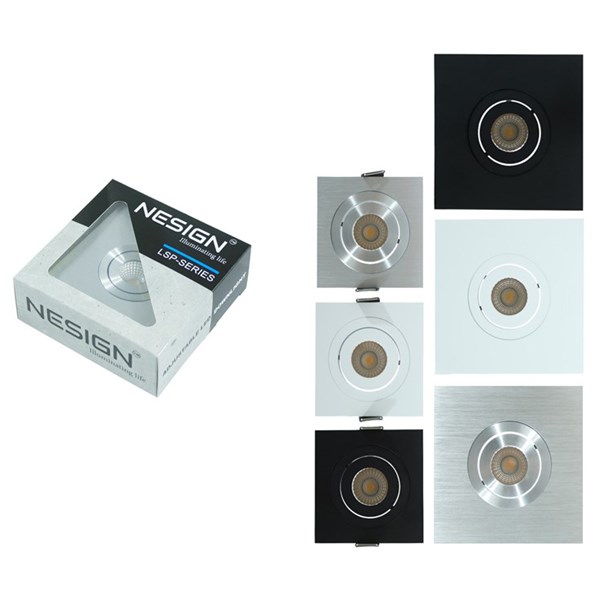

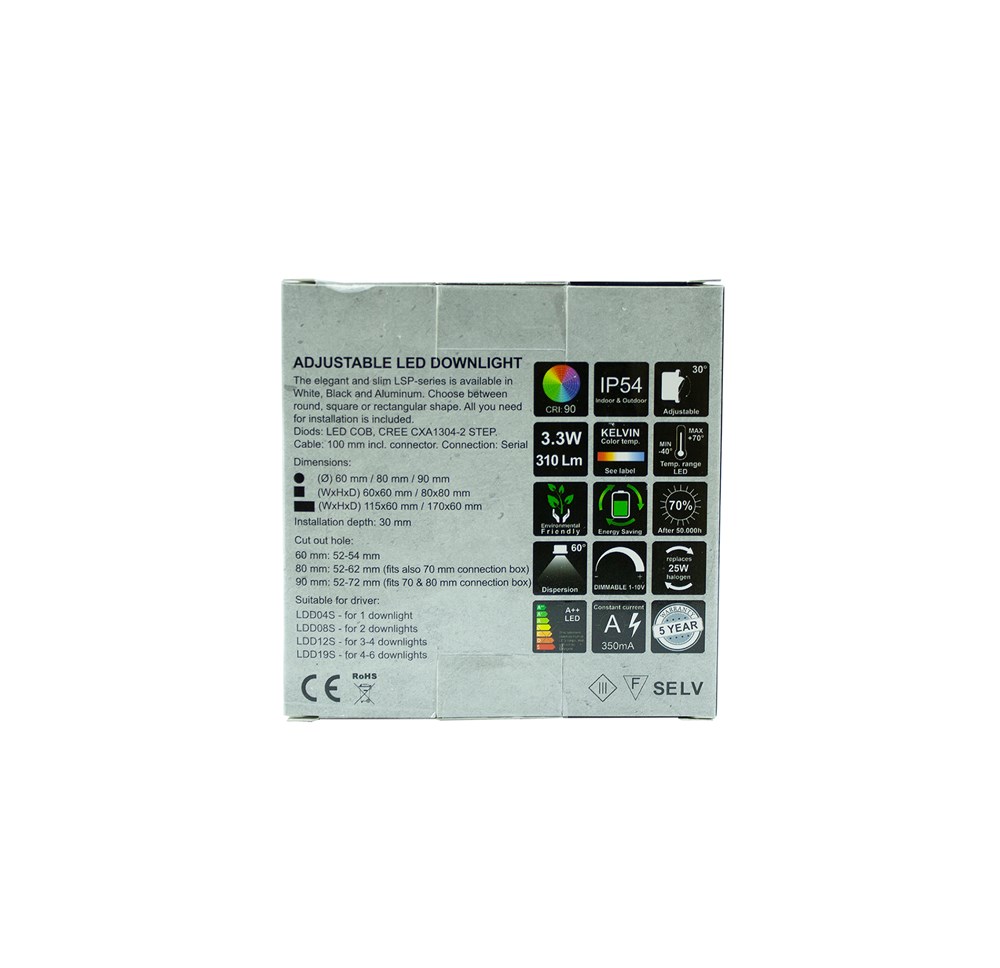

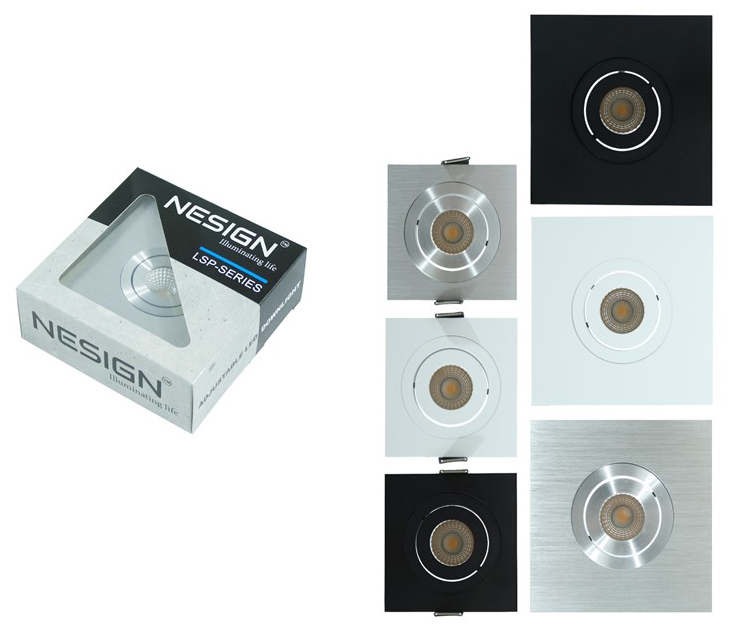

These downlights can be tilted, only use high quality components and has a premium feeling. Works for both indoor and outdoor use.Available in sizes 60x60mm or 80x80mm.60x60mm frames have springs and can be mounted in ceiling.Hole size: 52-54mm.80x80mm frames have metal wings and can be mounted in ceiling as well as in 70mm junction boxes.Hole size: 52-62mm.1-pack without driver. Drivers, extension cables and connectors to be bought separately.Technical data:Power: 3.3WLumen: See below.Dimmable: YesLight beam spread: 60°Color temp: See below.IP rating: IP54Temp. Range: -20°C to +50°CLife-span: 70% after 50.000hVoltage: 1-10VAmperage: 350mAAmount of LED’s: 1pcsType of LED: COB, CREE CXA1304-2 STEPCRI: 90Optics: Reflector with a prism in front of the LED.Glass: ClearEnergy rating: A++Cable: 100mm AWG22 with connector.Size: Depth=50mm, Height=60mmDownlight depth in box: Max 25mmAvailable in white, black or aluminum color.

Show item list

Technical properties

Dimmable:
Yes
Dimming 0-10 V:
No
Dimming 1-10 V:
No
Dimming DALI:
No
Dimming DSI:
No
Dimming DMX:
No
Dimming potentiometer (integrated):
No
Dimming GPRS:
No
Dimming LineSwitch:
No
Dimming manufacturer's proprietary system:
No
Dimming mains voltage modulation:
No
Dimming phase cut-off (trailing edge):
No
Dimming phase cut-on (leading edge):
No
Dimming programmable:
No
Dimming RF:
No
Dimming Sine Wave Reduction:
No
Dimming Touch and Dim:
No
Dimming Zigbee:
No
Dimming with push-button:
No
Protection class according to IEC 61140:
III
Housing material:
Aluminium
Suitable for surface mounting:
No
Suitable for built-in mounting:
Yes
Suitable for wall mounting:
No
Suitable for suspended mounting:
No
Suitable for ceiling mounting:
Yes
Suitable for traverse mounting:
No
Suitable for pedestal/floor mounting:
No
Suitable for light-track mounting:
No
Suitable for clamp-mounting:
No
Suitable for low voltage cable system:
No
Adjustability:
Rotatable
With movement sensor:
No
With light sensor:
No
Lamp type:
LED not exchangeable
With light source:
Yes
Suitable for number of light sources:
1 .
Lamp holder:
None
Housing colour:
Aluminium, Black, White
Material cover:
None
Surface brushed:
Yes, No
Voltage type:
AC
Nominal voltage:
220-240 V
Type of control gear:
LED operating device current-controlled
With control gear:
No
Dimming depending on control gear:
Yes
Reflector:
High-gloss
Light distributor:
Reflector
Light distribution:
Symmetric
Beam angle:
41-80° - Wide beam
Light outlet:
Direct
Energy efficiency class of the built-in lamp:
A++, A+, A (LED)
Degree of protection (NEMA):
Other
Suitable for lamp power:
0 N/A
Max. system power:
3.3 W
Colour of light:
White
Colour temperature:
2700 K
Colour rendering index CRI:
90-100
Luminous flux:
310 lm
Lamp efficacy:
94 lm/W
Luminous intensity:
368 cd
Number of poles:
2 .
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
No
Suitable for workplace according to EN 12464-1:
No
Covering of the luminaire with thermally insulating material possible:
Yes
Connection type:
Crimping
Frame shape:
Square
Degree of protection (IP):
IP54
Surface protection:
Other, Powder coating
Rated luminous flux according to IEC 62722-2-1:
310 lm

Show more

  • Total: 12

LSP-1 2700A60S-SP

Availability:
Yes

LSP-1 2700A80S-MW

Availability:
No

LSP-1 2700B60S-SP

Availability:
Yes

LSP-1 2700B80S-MW

Availability:
No

LSP-1 2700W60S-SP

Availability:
No

LSP-1 2700W80S-MW

Availability:
No

LSP-1 3000A60S-SP

Availability:
No

LSP-1 3000A80S-MW

Availability:
No

LSP-1 3000B60S-SP

Availability:
No

LSP-1 3000B80S-MW

Availability:
No

LSP-1 3000W60S-SP

Availability:
No

LSP-1 3000W80S-MW

Availability:
No
  • Total: 12
  • Total: 2
  • Total: 2
  • Total: 12
Product Description Availability
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, SPRINGS
Yes
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, SPRINGS
Yes
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, WINGS
No
  • Total: 12
  • Total: 12
Product Description Availability
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, SPRINGS
Yes
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, SPRINGS
Yes
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, WINGS
No
  • Total: 12
  • Total: 12
Product Description Availability
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, SPRINGS
Yes
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, SPRINGS
Yes
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, WINGS
No
  • Total: 12
  • Total: 12
Product Description Availability
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, SPRINGS
Yes
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm ALU, 2700K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, SPRINGS
Yes
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm BLACK, 2700K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm WHITE, 2700K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm ALU, 3000K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm BLACK, 3000K, 60gr, IP54, WINGS
No
LED DOWNLIGHT 60mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, SPRINGS
No
LED DOWNLIGHT 80mm, SQUARE, 3.3W, 310Lm WHITE, 3000K, 60gr, IP54, WINGS
No
  • Total: 12
