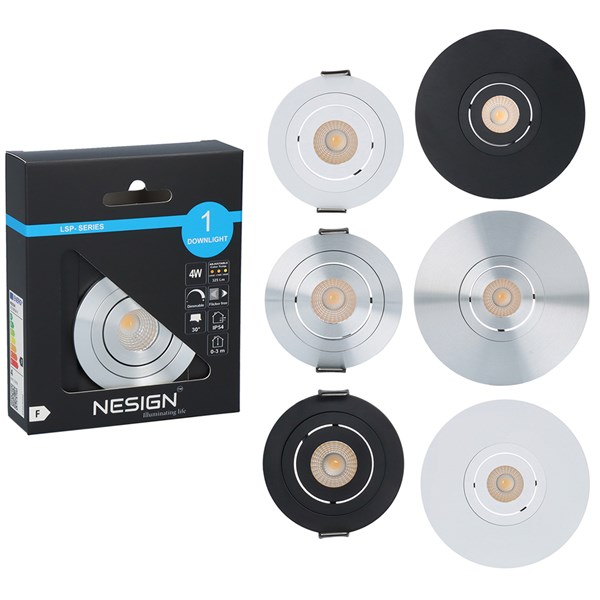

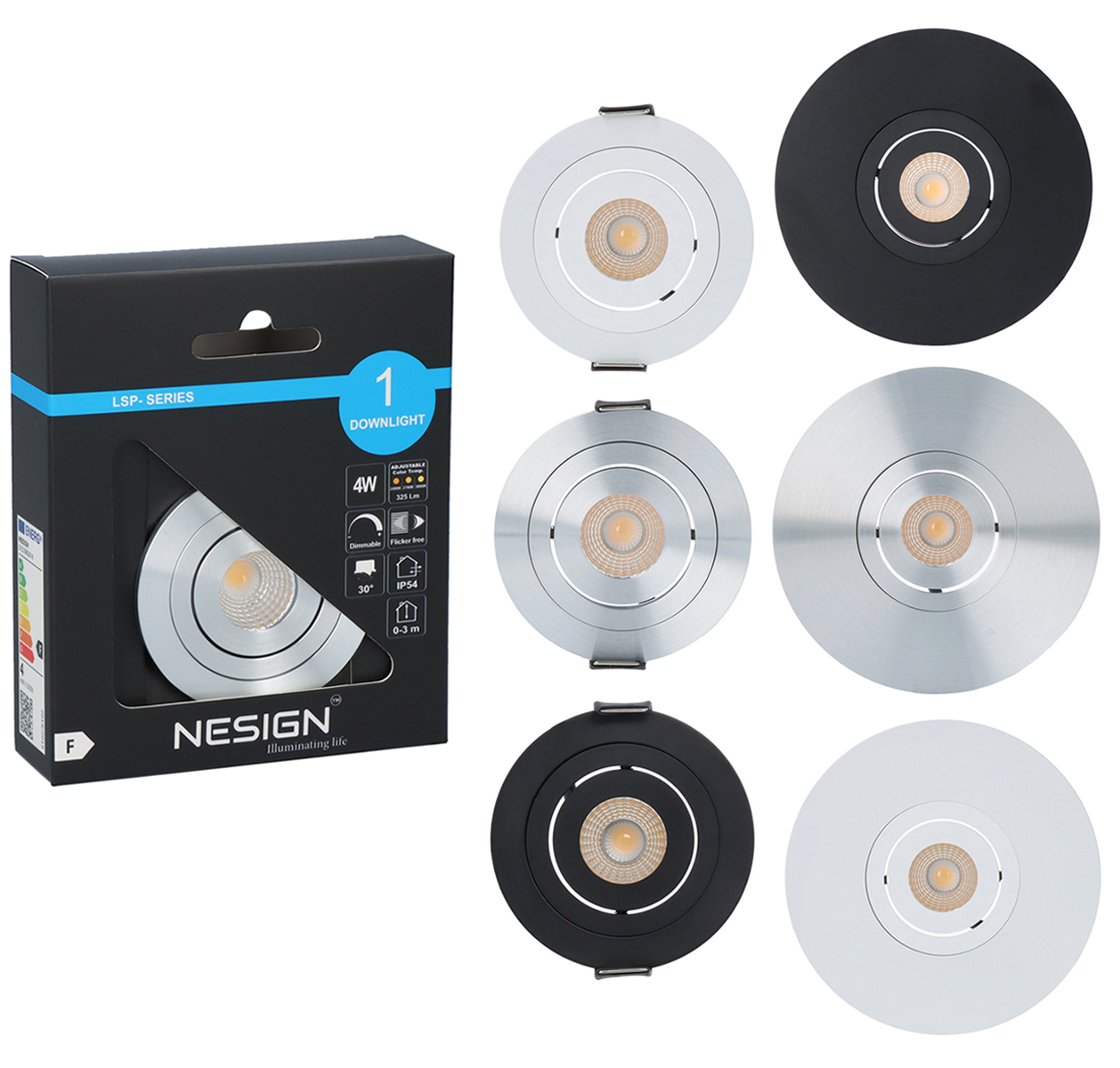

LSP Downlights 3CCT Runda

Vinklingsbara downlights med mycket hög kvalitetskänsla.

Fungerar för både inomhus och utomhus montage. Downlights med 3CCT (2400K, 2700K och 3000K) som enkelt väljs på kabeln.

Finns i diamter 60 mm, 80 mm & 90 mm.
60 mm ramar har fjädrar och kan monteras i undertak. Hålstorlek 52-54 mm
80 mm ramar har metallvingar och kan monteras i undertak samt i 70 mm dosor. HÃ¥lstorlek 52-62 mm 90 mm ramar har metallvingar och kan monteras i undertak samt i 80 mm dosor. HÃ¥lstorlek 52-72 mm
1-Pack. Kan kompletteras med drivdon, kablar och kopplingsplintar.

Teknisk data:
Effekt: 4 W
Ljusstyrka: Se nedan tabell
Dimmningsbara: Ja
Ljusvinkel: 60°
Ljustemperatur: Se nedan tabell
IP-klass: IP54
Temperaturområde: -20 till +50C
Livslängd: 70% efter 50.000 h
Spänning: 1-9 V
Ström: 350 mA
Antal LED;ar: 1st
LED: COB, CREE CXA1304-2 STEP
Color Rendering Index(CRI): 90
Optik: Reflektor med prisma framför LED
Glas: Klart
Energiklass: F
Kabel: 100mm AWG22 med brytare samt kontaktdon.
Downlight djup i dosa: Max 25 mm

Finns i vitt, svart eller aluminium utförande.

Show item list

Technical properties

Dimmable:
Yes
Dimming 0-10 V:
No
Dimming 1-10 V:
No
Dimming DALI:
No
Dimming DSI:
No
Dimming DMX:
No
Dimming potentiometer (integrated):
No
Dimming GPRS:
No
Dimming LineSwitch:
No
Dimming manufacturer's proprietary system:
No
Dimming mains voltage modulation:
No
Dimming phase cut-off (trailing edge):
No
Dimming phase cut-on (leading edge):
No
Dimming programmable:
No
Dimming RF:
No
Dimming Sine Wave Reduction:
No
Dimming Touch and Dim:
No
Dimming Zigbee:
No
Dimming with push-button:
No
Protection class according to IEC 61140:
III
Housing material:
Aluminium
Suitable for surface mounting:
No
Suitable for built-in mounting:
Yes
Suitable for wall mounting:
No
Suitable for suspended mounting:
No
Suitable for ceiling mounting:
Yes
Suitable for traverse mounting:
No
Suitable for pedestal/floor mounting:
No
Suitable for light-track mounting:
No
Suitable for clamp-mounting:
No
Suitable for low voltage cable system:
No
Adjustability:
Not adjustable, Rotatable
With movement sensor:
No
With light sensor:
No
Lamp type:
LED not exchangeable
With light source:
Yes
Suitable for number of light sources:
1 .
Lamp holder:
None
Housing colour:
Aluminium, Black, White
Material cover:
None
Surface brushed:
Yes, No
Voltage type:
AC
Nominal voltage:
220-240 V
Type of control gear:
LED operating device current-controlled
With control gear:
No
Dimming depending on control gear:
Yes
Reflector:
High-gloss
Light distributor:
Reflector
Light distribution:
Symmetric
Beam angle:
41-80° - Wide beam
Light outlet:
Direct
Energy efficiency class of the built-in lamp:
F
Degree of protection (NEMA):
Other
Suitable for lamp power:
0 N/A
Max. system power:
4 W
Colour of light:
White
Colour temperature:
2400-3000 K
Colour rendering index CRI:
80-89
Luminous flux:
325 lm
Lamp efficacy:
82 lm/W
Luminous intensity:
364 cd
Number of poles:
2 .
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
No
Suitable for workplace according to EN 12464-1:
No
Covering of the luminaire with thermally insulating material possible:
Yes
Connection type:
Crimping
Frame shape:
Round
Degree of protection (IP):
IP54
Surface protection:
Other, Powder coating
Rated luminous flux according to IEC 62722-2-1:
325 lm

Show more

  • Total: 15

LSP-1 3CCTA36R-MW

Availability:
Yes

LSP-1 3CCTA48R-MW

Availability:
Yes

LSP-1 3CCTA60R-SP

Availability:
Yes

LSP-1 3CCTA80R-MW

Availability:
Yes

LSP-1 3CCTA90R-MW

Availability:
No

LSP-1 3CCTB36R-MW

Availability:
Yes

LSP-1 3CCTB48R-MW

Availability:
Yes

LSP-1 3CCTB60R-SP

Availability:
No

LSP-1 3CCTB80R-MW

Availability:
Yes

LSP-1 3CCTB90R-MW

Availability:
Yes

LSP-1 3CCTW36R-MW

Availability:
Yes

LSP-1 3CCTW48R-MW

Availability:
Yes

LSP-1 3CCTW60R-SP

Availability:
No

LSP-1 3CCTW80R-MW

Availability:
Yes

LSP-1 3CCTW90R-MW

Availability:
No
  • Total: 15
  • Total: 15
Product Description Availability
LED DOWNLIGHT 36mm,4W, RUND, ALU, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 48mm, 4W, RUND, ALU, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 60mm, 4W, ALU, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR
Yes
LED DOWNLIGHT 80mm, 4W, ALU, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 90mm, 4W, ALU, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
No
LED DOWNLIGHT 36mm, 4W, RUND, SVART, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 48mm, 4W, RUND, SVART, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 60mm, 4W, SVART, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR
No
LED DOWNLIGHT 80mm, 4W, SVART, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 90mm, 4W, SVART, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 36mm, 4W, RUND, VIT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 48mm, 4W, RUND, VIT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 60mm, 4W, VIT, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR
No
LED DOWNLIGHT 80mm, 4W, VIT, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 90mm, 4W, VIT, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
No
  • Total: 15
  • Total: 15
Product Description Availability
LED DOWNLIGHT 36mm,4W, RUND, ALU, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 48mm, 4W, RUND, ALU, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 60mm, 4W, ALU, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR
Yes
LED DOWNLIGHT 80mm, 4W, ALU, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 90mm, 4W, ALU, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
No
LED DOWNLIGHT 36mm, 4W, RUND, SVART, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 48mm, 4W, RUND, SVART, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 60mm, 4W, SVART, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR
No
LED DOWNLIGHT 80mm, 4W, SVART, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 90mm, 4W, SVART, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 36mm, 4W, RUND, VIT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 48mm, 4W, RUND, VIT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 60mm, 4W, VIT, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR
No
LED DOWNLIGHT 80mm, 4W, VIT, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 90mm, 4W, VIT, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
No
  • Total: 15
  • Total: 15
Product Description Availability
LED DOWNLIGHT 36mm,4W, RUND, ALU, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 48mm, 4W, RUND, ALU, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 60mm, 4W, ALU, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR
Yes
LED DOWNLIGHT 80mm, 4W, ALU, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 90mm, 4W, ALU, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
No
LED DOWNLIGHT 36mm, 4W, RUND, SVART, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 48mm, 4W, RUND, SVART, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 60mm, 4W, SVART, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR
No
LED DOWNLIGHT 80mm, 4W, SVART, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 90mm, 4W, SVART, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 36mm, 4W, RUND, VIT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 48mm, 4W, RUND, VIT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 60mm, 4W, VIT, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR
No
LED DOWNLIGHT 80mm, 4W, VIT, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 90mm, 4W, VIT, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
No
  • Total: 15
  • Total: 15
Product Description Availability
LED DOWNLIGHT 36mm,4W, RUND, ALU, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 48mm, 4W, RUND, ALU, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 60mm, 4W, ALU, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR
Yes
LED DOWNLIGHT 80mm, 4W, ALU, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 90mm, 4W, ALU, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
No
LED DOWNLIGHT 36mm, 4W, RUND, SVART, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 48mm, 4W, RUND, SVART, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 60mm, 4W, SVART, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR
No
LED DOWNLIGHT 80mm, 4W, SVART, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 90mm, 4W, SVART, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 36mm, 4W, RUND, VIT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 48mm, 4W, RUND, VIT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 60mm, 4W, VIT, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR
No
LED DOWNLIGHT 80mm, 4W, VIT, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
Yes
LED DOWNLIGHT 90mm, 4W, VIT, RUND, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
No
  • Total: 15
