LSP Downlights 3CCT Kvadratiska
Vinklingsbara downlights med mycket hög kvalitetskänsla.
Fungerar för både inomhus och utomhus montage. Downlights med 3CCT (2400K, 2700K och 3000K) som enkelt väljs på kabeln.
Finns i storlek 60 x 60 mm eller 80 x 80 mm.
60 x 60 mm ramar har fjädrar och kan monteras i undertak. Hålstorlek 52-54 mm
80 x 80 mm ramar har metallvingar och kan monteras i undertak samt i 70 mm dosor. Hålstorlek 52-62 mm
1-Pack. Kan kompletteras med drivdon, kablar och kopplingsplintar.
Teknisk data:
Effekt: 4 W
Ljusstyrka: Se nedan tabell
Dimmningsbara: Ja
Ljusvinkel: 60°
Ljustemperatur: Se nedan tabell
IP-klass: IP54
Temperaturområde: -20 till +50° C
Livslängd: 70% efter 50.000 h
Spänning: 1-9 V
Ström: 350 mA
Antal LED;ar: 1 st
LED: COB, CREE CXA1304-2 STEP
Color Rendering Index(CRI): 90
Optik: Reflektor med prisma framför LED
Glas: Klart
Energiklass: F
Kabel: 100 mm AWG22 med brytare samt kontaktdon.
Downlight djup i dosa: Max 25 mm

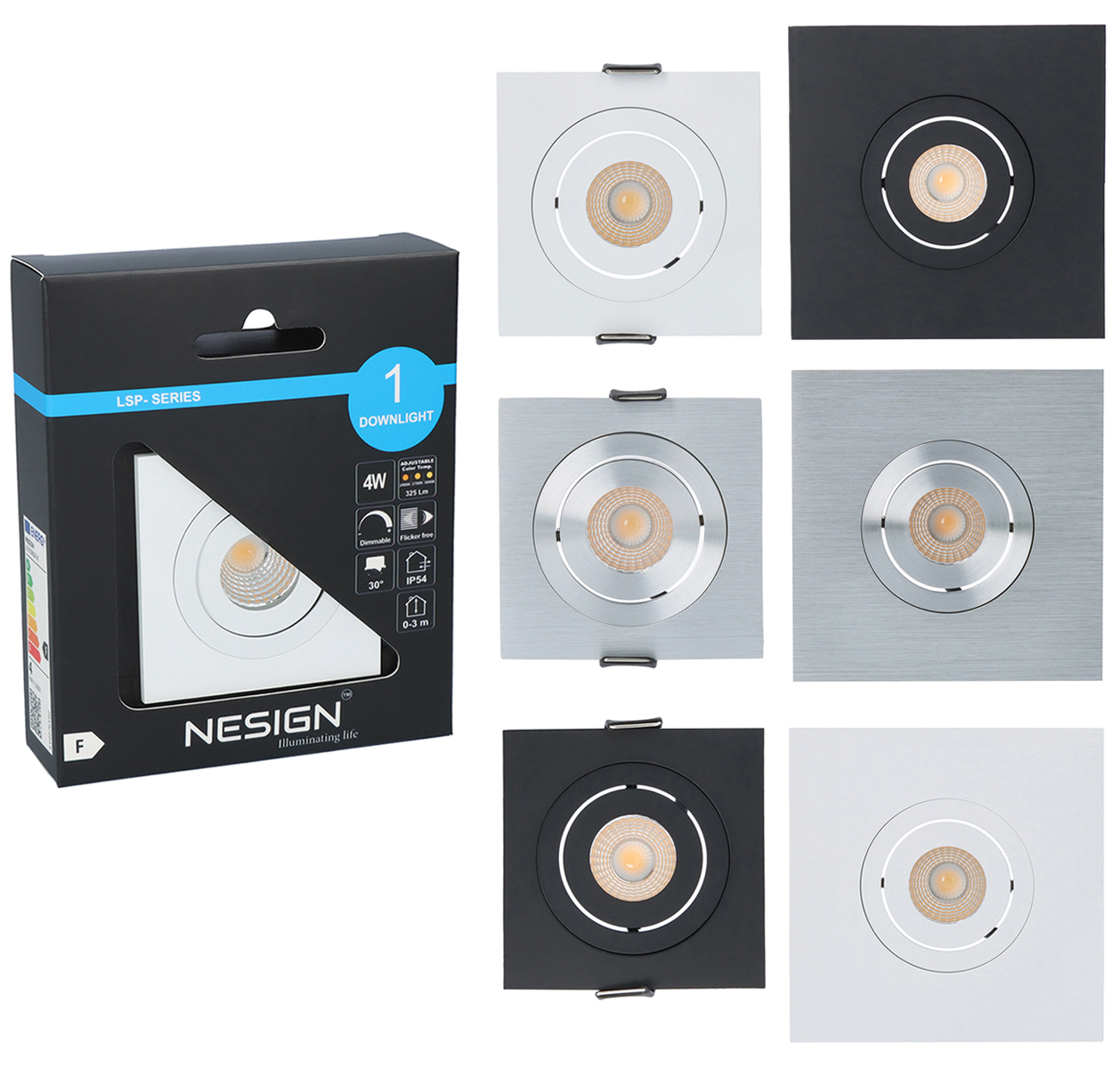

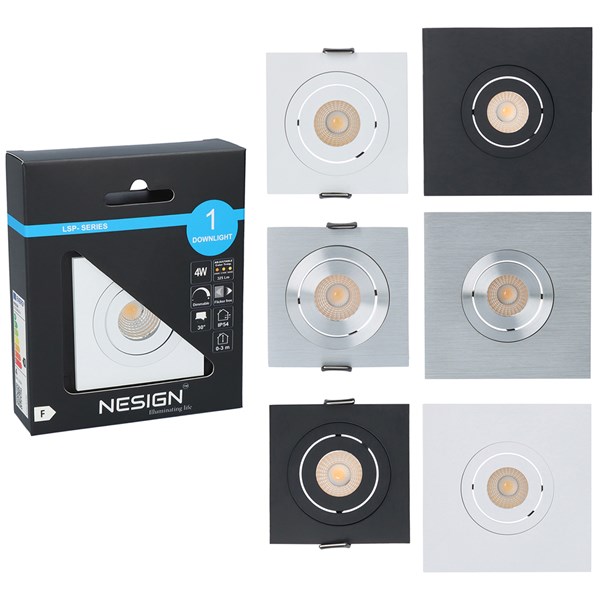

Finns i vitt, svart eller aluminium utförande.
Technical properties
- Dimmable:
- Yes
- Dimming 0-10 V:
- No
- Dimming 1-10 V:
- No
- Dimming DALI:
- No
- Dimming DSI:
- No
- Dimming DMX:
- No
- Dimming potentiometer (integrated):
- No
- Dimming GPRS:
- No
- Dimming LineSwitch:
- No
- Dimming manufacturer's proprietary system:
- No
- Dimming mains voltage modulation:
- No
- Dimming phase cut-off (trailing edge):
- No
- Dimming phase cut-on (leading edge):
- No
- Dimming programmable:
- No
- Dimming RF:
- No
- Dimming Sine Wave Reduction:
- No
- Dimming Touch and Dim:
- No
- Dimming Zigbee:
- No
- Dimming with push-button:
- No
- Protection class according to IEC 61140:
- III
- Housing material:
- Aluminium
- Suitable for surface mounting:
- No
- Suitable for built-in mounting:
- Yes
- Suitable for wall mounting:
- No
- Suitable for suspended mounting:
- No
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- No
- Suitable for clamp-mounting:
- No
- Suitable for low voltage cable system:
- No
- Adjustability:
- Rotatable
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Housing colour:
- Aluminium, Black, White
- Material cover:
- None
- Surface brushed:
- Yes, No
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- No
- Dimming depending on control gear:
- Yes
- Reflector:
- High-gloss
- Light distributor:
- Reflector
- Light distribution:
- Symmetric
- Beam angle:
- 41-80° - Wide beam
- Light outlet:
- Direct
- Energy efficiency class of the built-in lamp:
- F
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 4 W
- Colour of light:
- White
- Colour temperature:
- 2400-3000 K
- Colour rendering index CRI:
- 80-89
- Luminous flux:
- 325 lm
- Lamp efficacy:
- 82 lm/W
- Luminous intensity:
- 364 cd
- Number of poles:
- 2 .
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Suitable for workplace according to EN 12464-1:
- No
- Covering of the luminaire with thermally insulating material possible:
- Yes
- Connection type:
- Crimping
- Degree of protection (IP):
- IP54
- Surface protection:
- Other, Powder coating
- Rated luminous flux according to IEC 62722-2-1:
- 325 lm
Show more
Item List
- Total: 6
- Total: 6
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
LSP Product Information sheet_eng
Dimensions
- Total: 6
| Product Description | Width | Built-in width | Built-in length | Built-in diameter | Conductor cross section | MOQ | Connectable conductor cross section | Height/depth | Unit | Length | Outer diameter | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LED DOWNLIGHT 60mm, 4W, ALU, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR | 60 mm | 0 N/A | 0 N/A | 52-54 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 0 N/A | 0 mm |
No
|
|
|
| LED DOWNLIGHT 80mm, 4W, ALU, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR | 80 mm | 0 N/A | 0 N/A | 52-62 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 0 N/A | 0 mm |
Yes
|
|
|
| LED DOWNLIGHT 60mm, 4W, SVART, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR | 60 mm | 0 N/A | 0 N/A | 52-54 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 0 N/A | 0 mm |
No
|
|
|
| LED DOWNLIGHT 80mm, 4W, SVART, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR | 80 mm | 0 N/A | 0 N/A | 52-62 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 0 N/A | 0 mm |
Yes
|
|
|
| LED DOWNLIGHT 60mm, 4W, VIT, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR | 60 mm | 0 N/A | 0 N/A | 52-54 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 0 N/A | 0 mm |
Yes
|
|
|
| LED DOWNLIGHT 80mm, 4W, VIT, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR | 80 mm | 0 N/A | 0 N/A | 52-62 mm | 0.34 mm² | 1 . | 0.34 mm² | 3 mm | pck | 0 N/A | 0 mm |
No
|
|
|
- Total: 6
Similar Options
Approvals
- Total: 6
| Product Description | Rated luminous flux according to IEC 62722-2-1 | Protection class according to IEC 61140 | Voltage type | Degree of protection (NEMA) | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|---|---|---|---|
| LED DOWNLIGHT 60mm, 4W, ALU, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR | 325 lm | III | AC | Other | IP54 |
No
|
|
|
| LED DOWNLIGHT 80mm, 4W, ALU, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR | 325 lm | III | AC | Other | IP54 |
Yes
|
|
|
| LED DOWNLIGHT 60mm, 4W, SVART, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR | 325 lm | III | AC | Other | IP54 |
No
|
|
|
| LED DOWNLIGHT 80mm, 4W, SVART, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR | 325 lm | III | AC | Other | IP54 |
Yes
|
|
|
| LED DOWNLIGHT 60mm, 4W, VIT, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR | 325 lm | III | AC | Other | IP54 |
Yes
|
|
|
| LED DOWNLIGHT 80mm, 4W, VIT, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR | 325 lm | III | AC | Other | IP54 |
No
|
|
|
- Total: 6
Technical Properties
- Total: 6
| Product Description | Dimmable | Dimming 0-10 V | Dimming 1-10 V | Dimming DALI | Dimming DSI | Dimming DMX | Dimming potentiometer (integrated) | Dimming GPRS | Dimming LineSwitch | Dimming manufacturer's proprietary system | Dimming mains voltage modulation | Dimming phase cut-off (trailing edge) | Dimming phase cut-on (leading edge) | Dimming programmable | Dimming RF | Dimming Sine Wave Reduction | Dimming Touch and Dim | Dimming Zigbee | Dimming with push-button | Protection class according to IEC 61140 | Housing material | Suitable for surface mounting | Suitable for built-in mounting | Suitable for wall mounting | Suitable for suspended mounting | Suitable for ceiling mounting | Suitable for traverse mounting | Suitable for pedestal/floor mounting | Suitable for light-track mounting | Suitable for clamp-mounting | Suitable for low voltage cable system | Adjustability | With movement sensor | With light sensor | Lamp type | With light source | Suitable for number of light sources | Lamp holder | Housing colour | Material cover | Surface brushed | Voltage type | Nominal voltage | Type of control gear | With control gear | Dimming depending on control gear | Reflector | Light distributor | Light distribution | Beam angle | Light outlet | Energy efficiency class of the built-in lamp | Degree of protection (NEMA) | Suitable for lamp power | Max. system power | Colour of light | Colour temperature | Colour rendering index CRI | Luminous flux | Lamp efficacy | Luminous intensity | Number of poles | Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Suitable for workplace according to EN 12464-1 | Covering of the luminaire with thermally insulating material possible | Connection type | Degree of protection (IP) | Surface protection | Rated luminous flux according to IEC 62722-2-1 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LED DOWNLIGHT 60mm, 4W, ALU, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR | Yes | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | III | Aluminium | No | Yes | No | No | Yes | No | No | No | No | No | Rotatable | No | No | LED not exchangeable | Yes | 1 . | None | Aluminium | None | Yes | AC | 220-240 V | LED operating device current-controlled | No | Yes | High-gloss | Reflector | Symmetric | 41-80° - Wide beam | Direct | F | Other | 0 N/A | 4 W | White | 2400-3000 K | 80-89 | 325 lm | 82 lm/W | 364 cd | 2 . | No | No | Yes | Crimping | IP54 | Other | 325 lm |
No
|
|
|
| LED DOWNLIGHT 80mm, 4W, ALU, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR | Yes | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | III | Aluminium | No | Yes | No | No | Yes | No | No | No | No | No | Rotatable | No | No | LED not exchangeable | Yes | 1 . | None | Aluminium | None | Yes | AC | 220-240 V | LED operating device current-controlled | No | Yes | High-gloss | Reflector | Symmetric | 41-80° - Wide beam | Direct | F | Other | 0 N/A | 4 W | White | 2400-3000 K | 80-89 | 325 lm | 82 lm/W | 364 cd | 2 . | No | No | Yes | Crimping | IP54 | Other | 325 lm |
Yes
|
|
|
| LED DOWNLIGHT 60mm, 4W, SVART, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR | Yes | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | III | Aluminium | No | Yes | No | No | Yes | No | No | No | No | No | Rotatable | No | No | LED not exchangeable | Yes | 1 . | None | Black | None | No | AC | 220-240 V | LED operating device current-controlled | No | Yes | High-gloss | Reflector | Symmetric | 41-80° - Wide beam | Direct | F | Other | 0 N/A | 4 W | White | 2400-3000 K | 80-89 | 325 lm | 82 lm/W | 364 cd | 2 . | No | No | Yes | Crimping | IP54 | Powder coating | 325 lm |
No
|
|
|
| LED DOWNLIGHT 80mm, 4W, SVART, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR | Yes | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | III | Aluminium | No | Yes | No | No | Yes | No | No | No | No | No | Rotatable | No | No | LED not exchangeable | Yes | 1 . | None | Black | None | No | AC | 220-240 V | LED operating device current-controlled | No | Yes | High-gloss | Reflector | Symmetric | 41-80° - Wide beam | Direct | F | Other | 0 N/A | 4 W | White | 2400-3000 K | 80-89 | 325 lm | 82 lm/W | 364 cd | 2 . | No | No | Yes | Crimping | IP54 | Powder coating | 325 lm |
Yes
|
|
|
| LED DOWNLIGHT 60mm, 4W, VIT, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR | Yes | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | III | Aluminium | No | Yes | No | No | Yes | No | No | No | No | No | Rotatable | No | No | LED not exchangeable | Yes | 1 . | None | White | None | No | AC | 220-240 V | LED operating device current-controlled | No | Yes | High-gloss | Reflector | Symmetric | 41-80° - Wide beam | Direct | F | Other | 0 N/A | 4 W | White | 2400-3000 K | 80-89 | 325 lm | 82 lm/W | 364 cd | 2 . | No | No | Yes | Crimping | IP54 | Powder coating | 325 lm |
Yes
|
|
|
| LED DOWNLIGHT 80mm, 4W, VIT, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR | Yes | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | III | Aluminium | No | Yes | No | No | Yes | No | No | No | No | No | Rotatable | No | No | LED not exchangeable | Yes | 1 . | None | White | None | No | AC | 220-240 V | LED operating device current-controlled | No | Yes | High-gloss | Reflector | Symmetric | 41-80° - Wide beam | Direct | F | Other | 0 N/A | 4 W | White | 2400-3000 K | 80-89 | 325 lm | 82 lm/W | 364 cd | 2 . | No | No | Yes | Crimping | IP54 | Powder coating | 325 lm |
No
|
|
|
- Total: 6
Other information
- Total: 6
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| LED DOWNLIGHT 60mm, 4W, ALU, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR | EC001744 - Downlight/spot/floodlight | 9.0 |
|
415026 | SPOT 3CCT SKH2023TOBIAS4 | LSP-13CCTA60S-SP |
No
|
|
|
| LED DOWNLIGHT 80mm, 4W, ALU, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR | EC001744 - Downlight/spot/floodlight | 9.0 |
|
415026 | SPOT 3CCT SKH2023TOBIAS4 | LSP-13CCTA80S-MW |
Yes
|
|
|
| LED DOWNLIGHT 60mm, 4W, SVART, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR | EC001744 - Downlight/spot/floodlight | 9.0 |
|
415026 | SPOT 3CCT SKH2023TOBIAS4 | LSP-13CCTB60S-SP |
No
|
|
|
| LED DOWNLIGHT 80mm, 4W, SVART, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR | EC001744 - Downlight/spot/floodlight | 9.0 |
|
415026 | SPOT 3CCT SKH2023TOBIAS4 | LSP-13CCTB80S-MW |
Yes
|
|
|
| LED DOWNLIGHT 60mm, 4W, VIT, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, FJÄDRAR | EC001744 - Downlight/spot/floodlight | 9.0 |
|
415026 | SPOT 3CCT SKH2023TOBIAS4 | LSP-13CCTW60S-SP |
Yes
|
|
|
| LED DOWNLIGHT 80mm, 4W, VIT, KVADRAT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR | EC001744 - Downlight/spot/floodlight | 9.0 |
|
415026 | SPOT 3CCT SKH2023TOBIAS4 | LSP-13CCTW80S-MW |
No
|
|
|
- Total: 6
