MSP Downlight 1-Pack
A very powerful LED in frame which can tilt.The optic angle can be changed by switching between included reflectors. Honey comb is included to reduce blinding.

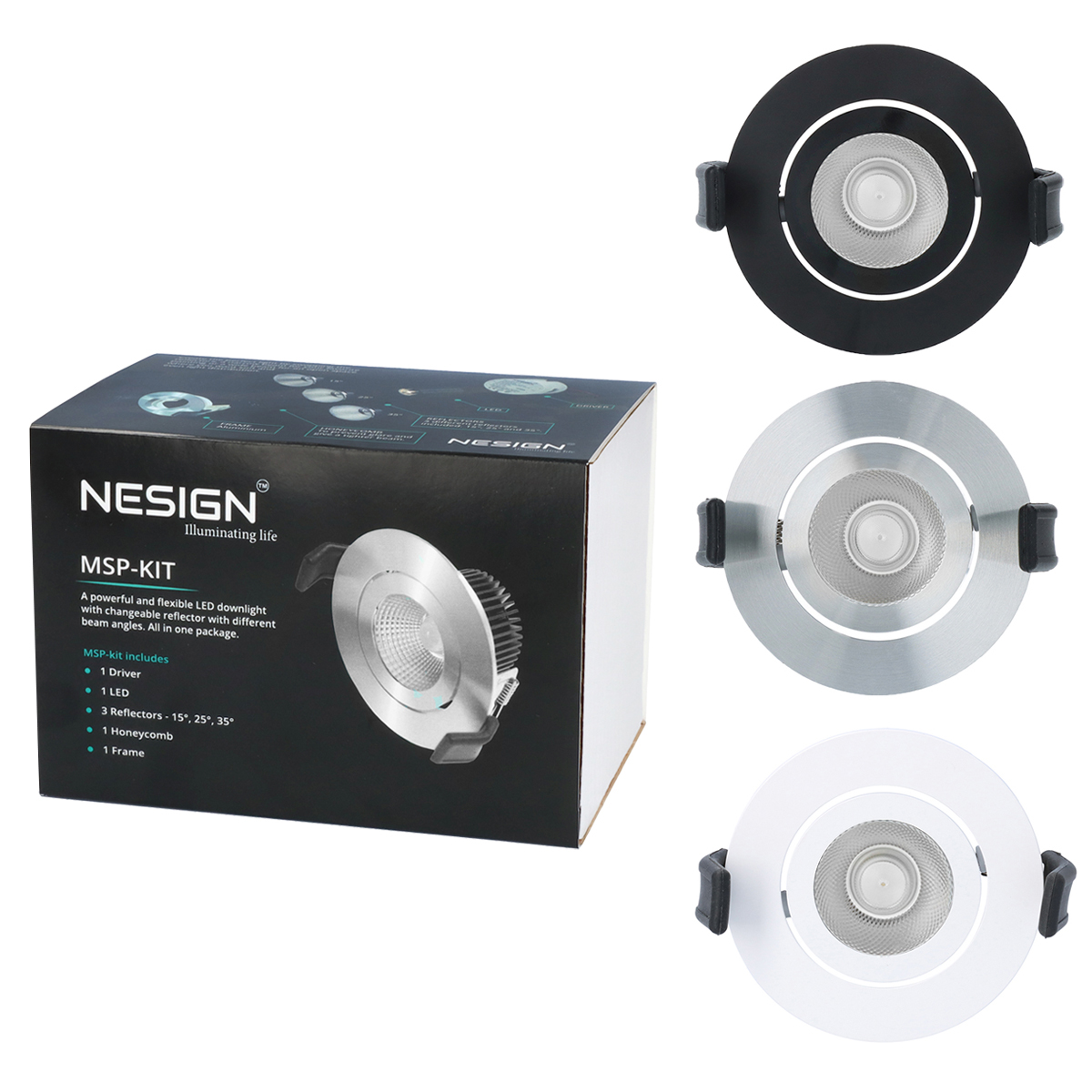

Delivered in a complete kit including spotlight, frame, driver, three different reflectors, 15°, 25° and 35° and honey comb.Available in white, black or aluminum color.
Technical data:
Power: 12W
Lumen: See below.
Dimmable: Yes
Light beam spread: See below.
Color temp: See below.
IP rating: IP20
Temp. Range: -10°C to +50°C
Life-span: 70% after 50.000 h
Amperage: 350mA (constant)
Amount of LED’s: 1pcs
Type of LED: COB, CREE
CRI: 90
Optics: Reflector with a prism in front of the LED.
Energy rating: A++
Cable: 400 mm AWG20
Size: Diameter = 93 mm, Depth = 65 mm
Installation: In holes sized 78-88 mm.
Springs with rubber protection. Parallel connector can be used if 12W is too powerful. Can be driven at 50% or 33% of full performance if 1 or 2 extra downlights are installed with parallel connector using the same driver.
Recommended drivers: LDD185 = 1 spotlight. Included in the kit.
Technical properties
- Dimmable:
- Yes
- Dimming 0-10 V:
- No
- Dimming 1-10 V:
- No
- Dimming DALI:
- No
- Dimming DSI:
- No
- Dimming DMX:
- No
- Dimming potentiometer (integrated):
- No
- Dimming GPRS:
- No
- Dimming LineSwitch:
- No
- Dimming manufacturer's proprietary system:
- No
- Dimming mains voltage modulation:
- No
- Dimming phase cut-off (trailing edge):
- Yes
- Dimming phase cut-on (leading edge):
- Yes
- Dimming programmable:
- No
- Dimming RF:
- No
- Dimming Sine Wave Reduction:
- No
- Dimming Touch and Dim:
- No
- Dimming Zigbee:
- No
- Dimming with push-button:
- No
- Protection class according to IEC 61140:
- III
- Housing material:
- Aluminium
- Suitable for surface mounting:
- No
- Suitable for built-in mounting:
- Yes
- Suitable for wall mounting:
- No
- Suitable for suspended mounting:
- No
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- No
- Suitable for clamp-mounting:
- No
- Suitable for low voltage cable system:
- No
- Adjustability:
- Rotatable
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Housing colour:
- Aluminium, Black, White
- Material cover:
- None
- Surface brushed:
- Yes, No
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- Yes
- Dimming depending on control gear:
- Yes
- Reflector:
- High-gloss
- Light distributor:
- Reflector
- Light distribution:
- Symmetric
- Beam angle:
- Variable beam angle
- Light outlet:
- Direct
- Energy efficiency class of the built-in lamp:
- A++, A+, A (LED)
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 13 W
- Colour of light:
- White
- Colour temperature:
- 3000 K
- Colour rendering index CRI:
- 90-100
- Luminous flux:
- 1170 lm
- Lamp efficacy:
- 90 lm/W
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Suitable for workplace according to EN 12464-1:
- No
- Covering of the luminaire with thermally insulating material possible:
- Yes
- Connection type:
- Crimping
- Frame shape:
- Round
- Degree of protection (IP):
- IP20
- Surface protection:
- Other, Powder coating
- Rated luminous flux according to IEC 62722-2-1:
- 1170 lm
Show more
Item List
- Total: 3
- Total: 3
Accessories
- Total: 1
-
LSC Förlängningskablar
Extension cables in different lengths.Used for when connectors or drivers can’t be placed adjacent to LED.
- Total: 1
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
MSP3000A93T00-SP_datasheet
Dimensions
- Total: 3
| Product Description | Width | Built-in width | Built-in length | Built-in diameter | Conductor cross section | MOQ | Connectable conductor cross section | Height/depth | Unit | Length | Outer diameter | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LED DOWNLIGHT 93mm, RUND. 12W, 1170 Lumen ALU, 3000K, 15, 25 & 35gr REFLEKTOR, IP21, FJÄDRAR | 0 mm | 0 N/A | 0 N/A | 78-88 mm | 0.5 mm² | 1 . | 0.5 mm² | 3 mm | pck | 0 N/A | 93 mm |
Yes
|
|
|
| LED DOWNLIGHT 93mm, RUND. 12W, 1170 Lumen SVART, 3000K, 15, 25&35gr REFLEKTOR, IP21, FJÄDRAR | 0 mm | 0 N/A | 0 N/A | 78-88 mm | 0.5 mm² | 1 . | 0.5 mm² | 3 mm | pck | 0 N/A | 93 mm |
Yes
|
|
|
| LED DOWNLIGHT 93mm, RUND. 12W, 1170 Lumen VIT, 3000K, 15, 25 & 35gr REFLEKTOR, IP21, FJÄDRAR | 0 mm | 0 N/A | 0 N/A | 78-88 mm | 0.5 mm² | 1 . | 0.5 mm² | 3 mm | pck | 0 N/A | 93 mm |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Rated luminous flux according to IEC 62722-2-1 | Protection class according to IEC 61140 | Voltage type | Degree of protection (NEMA) | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|---|---|---|---|
| LED DOWNLIGHT 93mm, RUND. 12W, 1170 Lumen ALU, 3000K, 15, 25 & 35gr REFLEKTOR, IP21, FJÄDRAR | 1170 lm | III | AC | Other | IP20 |
Yes
|
|
|
| LED DOWNLIGHT 93mm, RUND. 12W, 1170 Lumen SVART, 3000K, 15, 25&35gr REFLEKTOR, IP21, FJÄDRAR | 1170 lm | III | AC | Other | IP20 |
Yes
|
|
|
| LED DOWNLIGHT 93mm, RUND. 12W, 1170 Lumen VIT, 3000K, 15, 25 & 35gr REFLEKTOR, IP21, FJÄDRAR | 1170 lm | III | AC | Other | IP20 |
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Dimmable | Dimming 0-10 V | Dimming 1-10 V | Dimming DALI | Dimming DSI | Dimming DMX | Dimming potentiometer (integrated) | Dimming GPRS | Dimming LineSwitch | Dimming manufacturer's proprietary system | Dimming mains voltage modulation | Dimming phase cut-off (trailing edge) | Dimming phase cut-on (leading edge) | Dimming programmable | Dimming RF | Dimming Sine Wave Reduction | Dimming Touch and Dim | Dimming Zigbee | Dimming with push-button | Protection class according to IEC 61140 | Housing material | Suitable for surface mounting | Suitable for built-in mounting | Suitable for wall mounting | Suitable for suspended mounting | Suitable for ceiling mounting | Suitable for traverse mounting | Suitable for pedestal/floor mounting | Suitable for light-track mounting | Suitable for clamp-mounting | Suitable for low voltage cable system | Adjustability | With movement sensor | With light sensor | Lamp type | With light source | Suitable for number of light sources | Lamp holder | Housing colour | Material cover | Surface brushed | Voltage type | Nominal voltage | Type of control gear | With control gear | Dimming depending on control gear | Reflector | Light distributor | Light distribution | Beam angle | Light outlet | Energy efficiency class of the built-in lamp | Degree of protection (NEMA) | Suitable for lamp power | Max. system power | Colour of light | Colour temperature | Colour rendering index CRI | Luminous flux | Lamp efficacy | Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Suitable for workplace according to EN 12464-1 | Covering of the luminaire with thermally insulating material possible | Connection type | Frame shape | Degree of protection (IP) | Surface protection | Rated luminous flux according to IEC 62722-2-1 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LED DOWNLIGHT 93mm, RUND. 12W, 1170 Lumen ALU, 3000K, 15, 25 & 35gr REFLEKTOR, IP21, FJÄDRAR | Yes | No | No | No | No | No | No | No | No | No | No | Yes | Yes | No | No | No | No | No | No | III | Aluminium | No | Yes | No | No | Yes | No | No | No | No | No | Rotatable | No | No | LED not exchangeable | Yes | 1 . | None | Aluminium | None | Yes | AC | 220-240 V | LED operating device current-controlled | Yes | Yes | High-gloss | Reflector | Symmetric | Variable beam angle | Direct | A++, A+, A (LED) | Other | 0 N/A | 13 W | White | 3000 K | 90-100 | 1170 lm | 90 lm/W | No | No | Yes | Crimping | Round | IP20 | Other | 1170 lm |
Yes
|
|
|
| LED DOWNLIGHT 93mm, RUND. 12W, 1170 Lumen SVART, 3000K, 15, 25&35gr REFLEKTOR, IP21, FJÄDRAR | Yes | No | No | No | No | No | No | No | No | No | No | Yes | Yes | No | No | No | No | No | No | III | Aluminium | No | Yes | No | No | Yes | No | No | No | No | No | Rotatable | No | No | LED not exchangeable | Yes | 1 . | None | Black | None | No | AC | 220-240 V | LED operating device current-controlled | Yes | Yes | High-gloss | Reflector | Symmetric | Variable beam angle | Direct | A++, A+, A (LED) | Other | 0 N/A | 13 W | White | 3000 K | 90-100 | 1170 lm | 90 lm/W | No | No | Yes | Crimping | Round | IP20 | Powder coating | 1170 lm |
Yes
|
|
|
| LED DOWNLIGHT 93mm, RUND. 12W, 1170 Lumen VIT, 3000K, 15, 25 & 35gr REFLEKTOR, IP21, FJÄDRAR | Yes | No | No | No | No | No | No | No | No | No | No | Yes | Yes | No | No | No | No | No | No | III | Aluminium | No | Yes | No | No | Yes | No | No | No | No | No | Rotatable | No | No | LED not exchangeable | Yes | 1 . | None | White | None | No | AC | 220-240 V | LED operating device current-controlled | Yes | Yes | High-gloss | Reflector | Symmetric | Variable beam angle | Direct | A++, A+, A (LED) | Other | 0 N/A | 13 W | White | 3000 K | 90-100 | 1170 lm | 90 lm/W | No | No | Yes | Crimping | Round | IP20 | Powder coating | 1170 lm |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| LED DOWNLIGHT 93mm, RUND. 12W, 1170 Lumen ALU, 3000K, 15, 25 & 35gr REFLEKTOR, IP21, FJÄDRAR | EC001744 - Downlight/spot/floodlight | 9.0 |
|
415027 | LED DOWNLIGHT 93MM, RUND. 12W, 1170 LUMEN | MSP3000A93T00-SP |
Yes
|
|
|
| LED DOWNLIGHT 93mm, RUND. 12W, 1170 Lumen SVART, 3000K, 15, 25&35gr REFLEKTOR, IP21, FJÄDRAR | EC001744 - Downlight/spot/floodlight | 9.0 |
|
415027 | LED DOWNLIGHT 93MM, RUND. 12W, 1170 LUMEN | MSP3000B93T00-SP |
Yes
|
|
|
| LED DOWNLIGHT 93mm, RUND. 12W, 1170 Lumen VIT, 3000K, 15, 25 & 35gr REFLEKTOR, IP21, FJÄDRAR | EC001744 - Downlight/spot/floodlight | 9.0 |
|
415027 | LED DOWNLIGHT 93MM, RUND. 12W, 1170 LUMEN | MSP3000W93T00-SP |
Yes
|
|
|
- Total: 3
