Ringkabelskor (rullpress), bandvara
Temperaturområde: Upp till 110° C
Technical properties
- Reel/roll packaging:
- Yes, No
- Max. current (Imax):
- 27 A, 19 A, 16 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-110 °C
- Material:
- Copper, Brass
- Neck type:
- Open barrel crimp
Show more
Item List
- Total: 12
- Total: 12
Accessories
Related products
Spare Parts
Product video
Documents

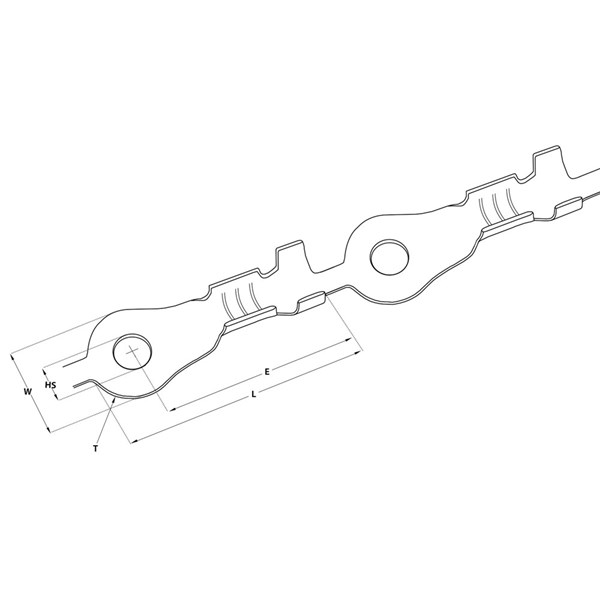

Dimensions
- Total: 12
| Product Description | HS | E | T | L | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M8 | 4000 . | pcs | 0.5-1 mm² |
No
|
|
|
||||||
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M10 | 2500 . | pcs | 1-2.5 mm² |
Yes
|
|
|
||||||
| UNINSULATED RING TERMINAL REEL, 6.0-12.0mm2, M6 | 1000 . | pcs | 0.5-1 mm² |
No
|
|
|
||||||
| UNINSULATED RING TERMINAL 0.2-0.6mm2, M4 | 40000 . | pcs | 4 . | 0.2-0.6 mm² |
No
|
|
|
|||||
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M4, DIN46225 | 4.3 mm | 17 mm | 0.6 mm | 21 mm | 8 mm | 5000 . | pcs | 4 . | 0.5-1 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M5, SRB-1.0T | 5.3 mm | 17 mm | 0.6 mm | 21.75 mm | 9.5 mm | 4000 . | pcs | 5 . | 0.5-1 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M6, SRB-1.0T | 6.5 mm | 17 mm | 0.6 mm | 21.75 mm | 9.5 mm | 4000 . | pcs | 6 . | 0.5-1 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M3, SRB-2.5T-M3 | 3.2 mm | 17 mm | 0.6 mm | 21 mm | 8 mm | 4000 . | pcs | 3 . | 1-2.5 mm² |
No
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M4, SRB-2.5T-M4 | 4.3 mm | 17 mm | 0.6 mm | 21 mm | 8 mm | 4000 . | pcs | 4 . | 1-2.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M5, SRB-2.5T-M5 | 5.3 mm | 17 mm | 0.6 mm | 21.75 mm | 9.5 mm | 4000 . | pcs | 5 . | 1-2.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M6, SRB-2.5T-M6 | 6.5 mm | 17 mm | 0.6 mm | 21.75 mm | 9.5 mm | 4000 . | pcs | 6 . | 1-2.5 mm² |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.5-2.5mm2, M8, BB 2585 R | 8.6 mm | 21 mm | 0.6 mm | 28 mm | 14 mm | 2500 . | pcs | 8 . | 1.5-2.5 mm² |
Yes
|
|
|
- Total: 12
Similar Options
Approvals
- Total: 12
| Product Description | UL-File No. | Approved according to CE | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M8 |
|
No
|
|
|
||
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M10 |
|
Yes
|
|
|
||
| UNINSULATED RING TERMINAL REEL, 6.0-12.0mm2, M6 |
|
No
|
|
|
||
| UNINSULATED RING TERMINAL 0.2-0.6mm2, M4 |
No
|
|
|
|||
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M4, DIN46225 | E42024 |
|
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M5, SRB-1.0T | E42024 |
|
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M6, SRB-1.0T | E42024 |
|
|
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M3, SRB-2.5T-M3 | E42024 |
|
|
No
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M4, SRB-2.5T-M4 | E42024 |
|
|
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M5, SRB-2.5T-M5 | E42024 |
|
|
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M6, SRB-2.5T-M6 | E42024 |
|
|
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.5-2.5mm2, M8, BB 2585 R |
Yes
|
|
|
- Total: 12
Technical Properties
- Total: 12
| Product Description | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Operating temperature | Material | Neck type | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M8 | Yes | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | Brass |
No
|
|
|
|||
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M10 | Yes | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | Brass |
Yes
|
|
|
|||
| UNINSULATED RING TERMINAL REEL, 6.0-12.0mm2, M6 | Yes | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | Brass |
No
|
|
|
|||
| UNINSULATED RING TERMINAL 0.2-0.6mm2, M4 | No | 19 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Open barrel crimp |
No
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M4, DIN46225 | Yes | 16 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M5, SRB-1.0T | Yes | 16 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M6, SRB-1.0T | Yes | 16 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M3, SRB-2.5T-M3 | Yes | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Brass | Open barrel crimp |
No
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M4, SRB-2.5T-M4 | Yes | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M5, SRB-2.5T-M5 | Yes | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M6, SRB-2.5T-M6 | Yes | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Brass | Open barrel crimp |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.5-2.5mm2, M8, BB 2585 R | Yes | 27 A | Ring shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Open barrel crimp |
Yes
|
|
|
- Total: 12
Other information
- Total: 12
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M8 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | OISOLERAD RINGKABELSKO | BB1585R |
No
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M10 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | OISOLERAD RINGKABELSKO | BB2510R |
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 6.0-12.0mm2, M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | OISOLERAD RINGKABELSKO | BB1065R |
No
|
|
|
| UNINSULATED RING TERMINAL 0.2-0.6mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | 42508-2 |
No
|
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M4, DIN46225 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | JST, 66534700 , SRB-1.0T-M4 | BB1543R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M5, SRB-1.0T | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | JST, 35900800 , SRB-1.0T-M5 | BB1553R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 0.5-1.0mm2, M6, SRB-1.0T | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | JST, 35901000 , SRB-1.0T-M6 | BB1565R |
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M3, SRB-2.5T-M3 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | JST, 35901900 , SRB-2.5T-M3 | BB2532R |
No
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M4, SRB-2.5T-M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | JST, 35902100 , SRB-2.5T-M4 | BB2543R |
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M5, SRB-2.5T-M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | JST, 35902300 , SRB-2.5T-M5 | BB2553R |
Yes
|
|
|
| UNINSULATED RING TERMINAL REEL, 1.0-2.5mm2, M6, SRB-2.5T-M6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | JST, 35902400 , SRB-2.5T-M6 | BB2565R |
Yes
|
|
|
| UNINSULATED RING TERMINAL 1.5-2.5mm2, M8, BB 2585 R | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Ring Terminals - Reel | 25221.123.011 |
Yes
|
|
|
- Total: 12
