360 view
B 1457 H6

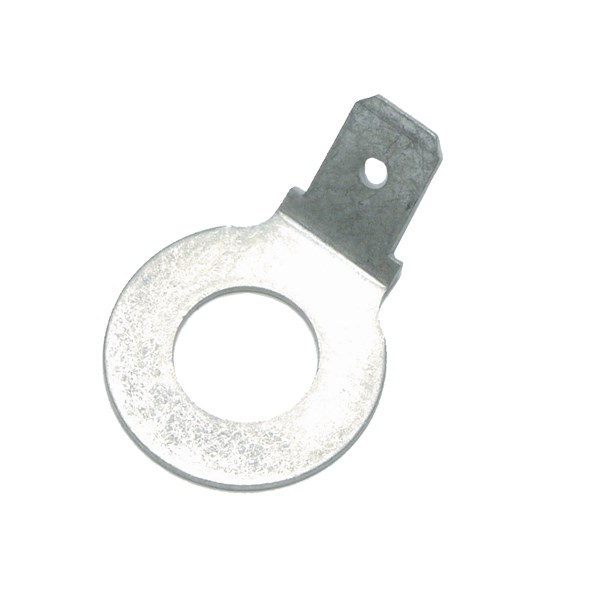

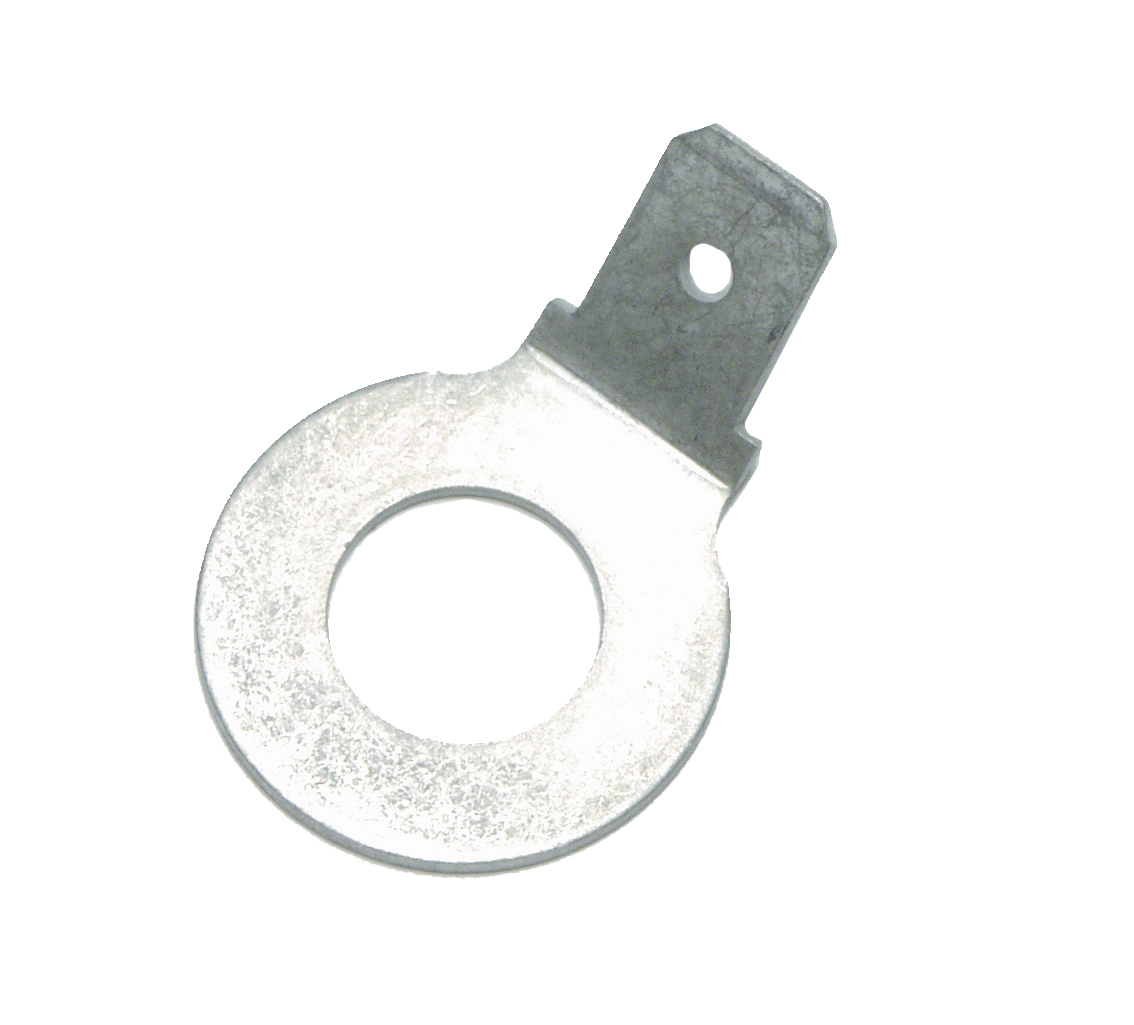

UNINSULATED TAB, SCREW MOUNTING 45°, 1x(6.3x0.8mm), M6
B 1457 H6
- Availability:
-
Yes
- Total: 1
Related items
Flatstift (skruvmontage)
Enkla flatstift i 45° vinkel för skruvmontage (rund platta)
Ytbehandling: > 3mc Sn
- Total: 1
Product Properties
| Model | Plug |
|---|---|
| Max. current (Imax) | 24 A |
| Insulation | Not isolated |
| Colour insulation | Other |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Other |
| Operating temperature | -40-110 °C |
| Material | Brass |
| Packaging | Loose piece |

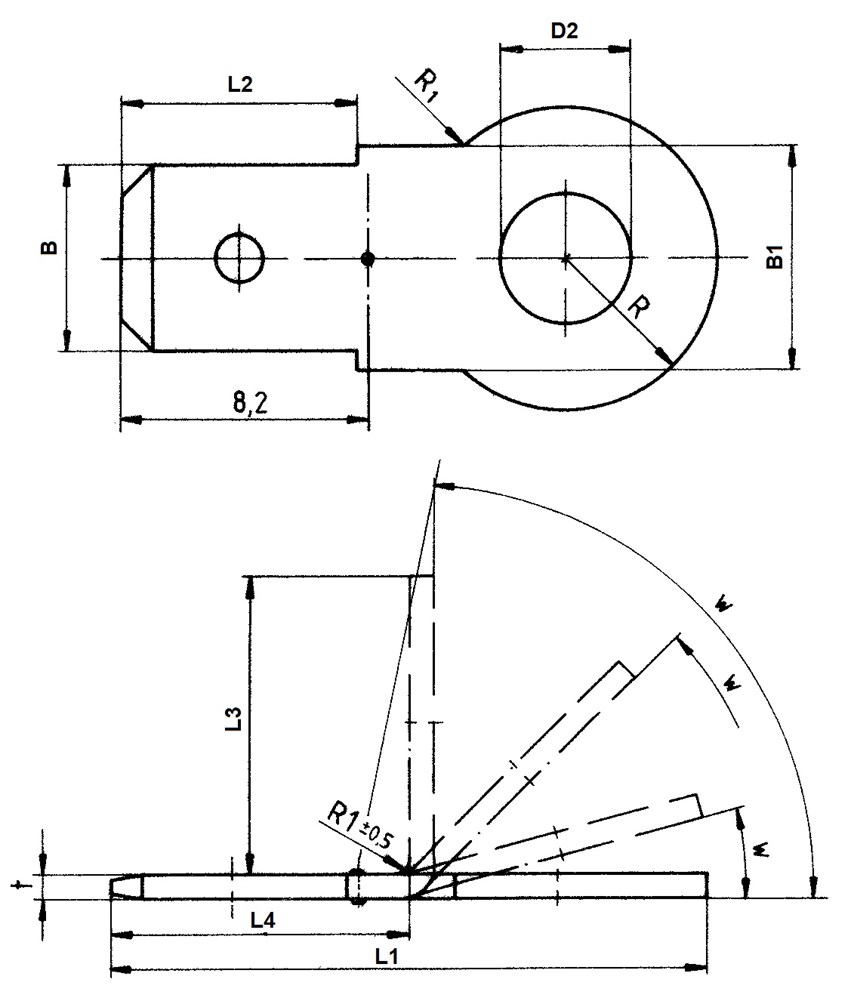

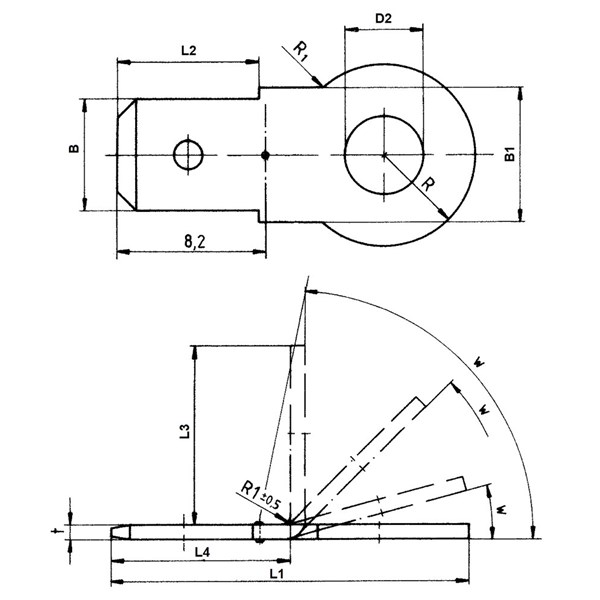

Dimensions
| B | 6.3 mm |
|---|---|
| D2 | 6.3 mm |
| B1 | 8.2 mm |
| T | 0.8 mm |
| R | 8.5 mm |
| L2 | 8 mm |
| L3 | 17 mm |
| L4 | 10 mm |
| W | 45 Degrees |
| R1 | 2.5 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 0.14-6.64 mm² |
| Plug dimensions | Flat 6.3x0.8 mm |
Logistics
| Barcode | 733117613482 |
|---|---|
| Country of origin | DE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | B 1457 H6 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Uninsulated Tab for screw mounting |
| Alternative SKU | B1457H6 |
Compliance
| Conflict Minerals | The company's general statement declares compliance with conflict mineral regulations. |
|---|---|
| Iron and Steel Sanction | Compliance |
| PFOA | No PFOA |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
