17148.123.025

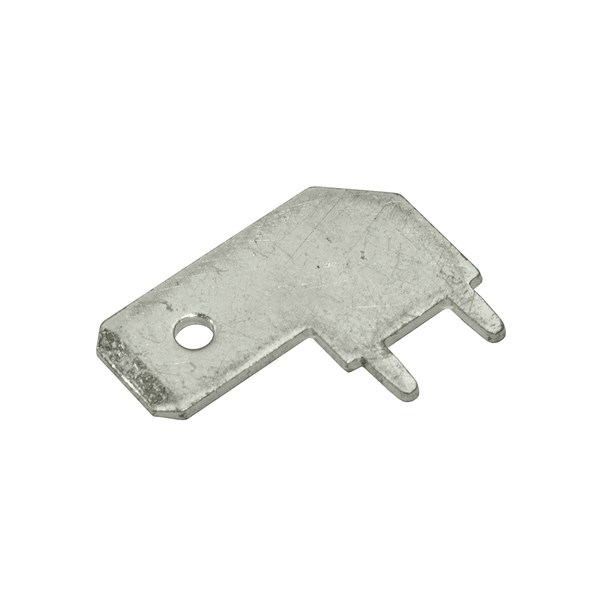

UNINSULATED TAB, CIRCUIT CARD 90GR, 1x(6.3x0.8mm), 2 LS
17148.123.025
- Availability:
-
Yes
- Total: 1
Related items
Flatstift (lödning)
90 grader, 1 x flatstift, 2 LS (lödstift)
Ytbehandling: > 3mc Sn
Kontaktering: Lödning
- Total: 1
Product Properties
| Model | Plug |
|---|---|
| Max. current (Imax) | 24 A |
| Insulation | Not isolated |
| Colour insulation | Other |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Other |
| Operating temperature | -40-110 °C |
| Material | Brass |
| Packaging | Loose piece |

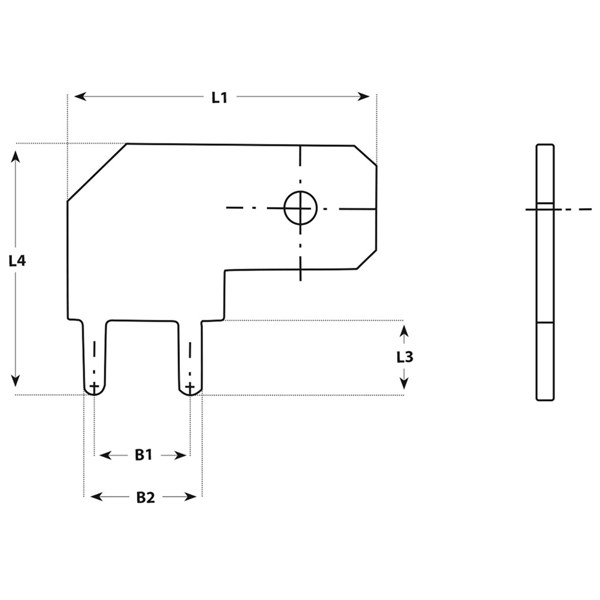

Dimensions
| B2 | 6.3 mm |
|---|---|
| B1 | 5 mm |
| L1 | 16.2 mm |
| L3 | 4 mm |
| L4 | 13 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 0.14-6.64 mm² |
| Plug dimensions | Flat 6.3x0.8 mm |
Logistics
| Barcode | 733117613363 |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | 17148.123.025 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Uninsulated Tab for soldering |
| Alternative SKU | 17148.123.025 |
Compliance
| Conflict Minerals | The company's general statement declares compliance with conflict mineral regulations. |
|---|---|
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
