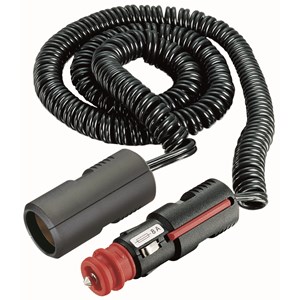

Cigg/DIN propp med förlängningskabel och DIN-uttag 12-24V Cigg/DIN propp med 8A utbytbar säkring DIN-uttag: ∅12 mm (DIN EN ISO 4165) Kabel: 4 m, 2 x 0,75 mm²

USB-uttag, runda för infällt montage. Matning: 12-24 volt DC. Skyddad mot kortslutning, överspänning(max 53V), överhettning och felvänd polanslutning. Anslutningar: Ca.15 cm kabel, 0.5 mm².

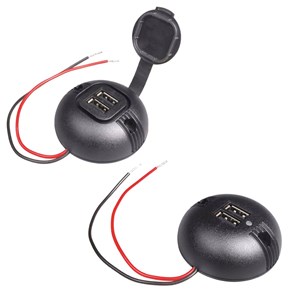

12-24 V DC, output 5 V DC, with integrated voltage converter. With blue control LED that shows voltage. Protection against: reverse polarity, overload, over temperature, overvoltage, short-circuit. Input: 8-34 V DC E1-approval. Port: 2 x USB-A Output max. 2 x 2.5 A (2 x 12.5 watts) Current consumption: < 3 mA Fastening by screws, cable connection pre-assembled approx. 15 cm, 2 x 0.5 mm² Dimensions: Ø 59 mm x Height 24 mm 175467327000: With blue control LED that shows voltage. 175467327100: With cap

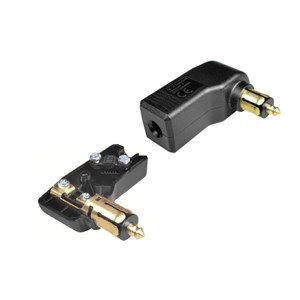

12-24 V DC, fitting for standard sockets (Ø 12 mm) following DIN EN ISO 4165. Optimal contacting, tight fit in the socket. For connecting additional devices, max. load up to 16 A. With screwed strain relief, screw terminals up to 2.5 mm². Cable passage: Ø 7.5 mm.

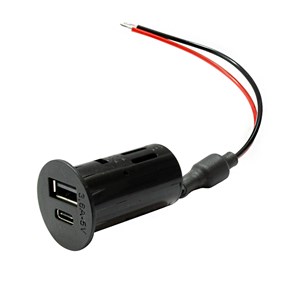

12-24 V DC / 5 V DC, 3.6 A with integrated power voltage converter. For charging and operating electronical devices that are suitable for charging by 5 Volt USB. Fastening by enclosed screws. Pre-assembled cable connection approx. 15 cm. Input voltage: 8-34 Volt E1 certificate, Current consumption: < 1 mA Overload protection, overtemperature protection, reverse polarity protection, short curcuit protection, overvoltage protection at short voltage peaks. Cable connection: 15 cm Cable cross section: 0.5 mm² Output current: max. 3.6 A Dimensions L x W x H: 85 x 35 x 33 mm
