3-fasskenan Finns i nedan färger och längder.

ändstycke till 3-fasskena

Frames for 2 or 3 LED downlights.Installation:4 springs.2 downlights 60 x 115 mm frame. Hole size: 52x99 mm.3 downlights 60 x 170 mm frame. Hole size: 52x146 mm.Available in white, black or aluminum color.

Frames with an outer diameter of 60mm, 80mm or 90mm.Installation:60x60mm frames have springs and can be mounted in recessed ceiling.Hole size: 52-54mm80mm frames have metal wings and can be mounted in ceiling as well as in 70mm junction boxes.Hole size: 52-62mm.90mm frames have metal wings and can be mounted in ceiling as well as in 80mm junction boxes.Hole size: 52-72mm.Available in white, black or aluminum color.

Tiltable frames with an outer diameter of 93mm.Installation:Springs.Hole size: 78-88mmAvailable in white, black or aluminum color.

Frames in sizes 60x60mm or 80x80mm.Installation:60x60mm frames have springs and can be mounted in recessed ceiling.Hole size: 52-54mm80mm frames have metal wings and can be mounted in ceiling as well as in 70mm junction boxes.Hole size: 52-62mm.Available in white, black or aluminum color.

LED Luminaires for pendant installation or surface mount to the ceiling. Technical data: Length: See below. Height: 60 mm Width: 60 mm Color temp: See below. Efficacy: Approx. 100lm/W, See below. Life-span: 50.000h Light beam spread: 110° Voltage: 110-250VAC Type of LED: SMD 2835 LED Power: See below. Dimmable: Yes CRI: RA80 Lens: PMMA Energy rating: A++ On/Off delay: <1s IP rating: IP20 Driver: On/Off, 0-10V or Dali. See below. Warranty: 3 years.

Drivers for LED StripsTechnical data:Voltage: 220-240 VACFrequency: 50-60 HzSize (LxWxH): 135x45x32mmTemp. Range: -20°C to +50°CIP rating: IP65Dimming: Leading Edge & TRIACIP rating: IP65 Installation:Cables for both input and output are 150mm, 1.5mm2.Suitable to be installed on top of suspended ceilings, inside lockers etc.See accessories below for appropriate connector.

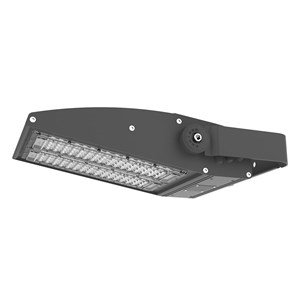

WOT är armaturerna för utomhusbelysning med högt ställda belysningskrav. Armaturens gedigna konstruktion och kraftiga belysning gör den lämplig för offentliga utrymmen såsom parkeringsplatser/garage, byggnader, bensinstationer marinor, uppställningsplatser m.m. Installation underlättas av ljusvinkelmarkörer/gradskalor på armaturens väggfäste. Dioder: Nichia Prestanda: 140 lm / W Effekt: 100 W / 150 W Dimbar: Ja CRI: RA75 IP-klass: IP65 Ljusvinkel: 60° x 90° Drivdon: 1-10 V Ljustemperatur: 4000 K Garanti: 5 år

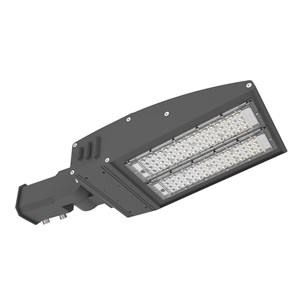

WOT är armaturerna för utomhusbelysning med högt ställda belysningskrav. Armaturens gedigna konstruktion och kraftiga belysning gör den lämplig för offentliga utrymmen såsom parkeringsplatser/garage, byggnader, bensinstationer marinor, uppställningsplatser m.m. Installation underlättas av ljusvinkelmarkörer/gradskalor på armaturens fäste. Dioder: Nichia Prestanda: 140 lm / W Effekt: 100 W Dimbar: Ja CRI: RA75 IP-klass: IP65 Ljusvinkel: 60° x 90° Drivdon: 1-10 V Ljustemperatur: 4000 K Garanti: 5 år

DC dimmer for use together with any push-button switch. Dim up to 96 watts (8A/12V or 4A/24V) of incandescent, halogen or LED lighting.Perfect for RVs, caravans, trailers, boats, cars, trucks, or anywhere 12 or 24 Volt DC power is present.Dims “non-dimmable” constant voltage LED’s.Suitable for 12VDC and 24VDC strip LED’s.Suitable for RGB or tunable white LED’sDigital control provides accurate and flicker free dimming to very low intensityNo minimum loadConnect any number of DC dimmers to a single push-button switch. 12V @ 8A24V @ 4A48V @ 2A

AC LED DIMMER ~ 230VAC, 125W (0.5A), 50Hz, IP20. Kompakt universell dimmer för återfjädrande tryckknappsbrytare. Lätt att installera bakom den befintliga ljusbrytaren. Kräver ingen neutral ledning. Lämplig för LED med externt drivdon samt för eftermonterad LED, halogen eller glödlampa. Trailing or Leading edge. Minne: återgår till tidigare dimmerinställning vid start. Vid strömförlust t.ex. strömavbrott startar dimmern på 50% vid start. Arbetstemperatur: -5 - + 45° C Mått: 36 x 36 x 12 mm Trådlängd: 60 mm IEC 60669-1IEC 60669-2-1

Drivers for LED downlights. Technical data: Voltage: 220-240 VAC Frequency: 50-60 Hz Size (LxWxH): See table below. Power: See table below. Temp. Range: -20°C to +50°C IP rating: IP65 Dimming: Leading or Trailing Edge Cable:Input: 100mm, 0.5mm2. Output: 200mm, AWG22. LDD04S: Suited for 1 LED’s from the LSP-series. LDD08S: Suited for 2 LED’s from the LSP-series. LDD12S: Suited for 2-3 LED’s from the LSP-series. LDD19S: Suited for 3-5 LED’s from the LSP-series. See accessories below for appropriate connectors.

Drivers for LED downlights. Technical data: Voltage: 220-240 VAC Frequency: 50-60 Hz Size (LxWxH): See table below. Power: See table below. Temperature range: -20°C to +50° CIP rating: IP65 Cable: Input: 100mm, 0.5mm2. Output: 200mm, AWG22. LDD26S: Suited for 6-8 LED from the LSP-series or 2 LED from the MSP-series. See accessories below for appropriate connectors.

DC dimmer in kit with a Berker Integro push-button switch for use with incandescent, halogen or LED lights/strips. Perfect for RVs, caravans, trailers, boats, cars, trucks, or anywhere 9- 48VDC is present. Accurate and flicker free dimming to very low intensity. No minimum load. Connect any number of DC dimmers to a single push-button switch. Connect any no of push-button switch to dimmer. Press dimmer switch once to turn on or off. The dimmer has memory function and returns to previous dimming when turned on. Press and hold switch to dim up or down and release at desired level. 9-48VDC, 96W, IP20 Temperature range: -5 - + 45° C Measures: 36 x 36 x 12 mm Cable lengths: 60 mm EMC CISPR 15 (2018-05 ED.9.00), IEC 61547 (2009) Safety IEC 61347-2-13:2014/AMD1:2016 with IEC 61347-1:2015 CE/EU Conformance Directive 2014/35/EU, Directive 2014/30/EU

AC dimmer in kit with a Berker Integro push-button switch for use with incandescent, halogen or LED lights with external driver. Universal push-button switch dimmer for universal load compatibility. The units utilise powerful and sophisticated dimming technology to provide full control of almost any type of load. The dimmer also incorporate overcurrent and over-temperature protection devices and are capable of withstanding persistent short circuit conditions. Accurate and flicker free dimming to very low intensity. Press dimmer switch once to turn on or off. The dimmer has memory function and returns to previous dimming when turned on. Press and hold switch to dim up or down and release at desired level. 230VAC, 125W (0.5A), 50Hz, IP20 Temperature range: -5 - + 45° C Measures: 36 x 36 x 12 mm Cable lengths: 60 mm EMC CISPR 15 (2018-05 ED.9.00), IEC 61547 (2009) Safety: IEC 60669-1: 2017, IEC 60669-2-1: 2015 CE/EU Conformance Directive 2014/35/EU, Directive 2014/30/EU

Choose reflector for different light beams.A honey comb to reduce blinding can be added for the MSP-series.

Strömanslutningar för en eller två 3-fasskenor

Vinklingsbara downlights med mycket hög kvalitetskänsla. Fungerar för både inomhus och utomhus montage. Downlights med 3CCT (2400K, 2700K och 3000K) som enkelt väljs på kabeln. Finns i storlek 2 eller 3 LED Spotlights och installeras med 4 fjädrar. 2 spotlights: 60 x 115 mm ramar. Hålstorlek: 52 mm x 105 mm eller 2 x 52-54 mm hål med CC 55 mm. 3 spotlights: 60 x 170 mm ramar. Hålstorlek: 52 mm x 160 mm eller 3 x 52-54 mm hål med CC 55 mm. Kan kompletteras med drivdon, kablar och kopplingsplintar. Teknisk data: Effekt: 4 W Ljusstyrka: Se nedan tabell Dimmningsbara: Ja Ljusvinkel: 60° Ljustemperatur: Se nedan tabell IP-klass: IP54 Temperaturområde: -20 till +50° C Livslängd: 70% efter 50.000 h Spänning: 1-9 V Ström: 350 mA Antal LED;ar: 1 st LED: COB, CREE CXA1304-2 STEP Color Rendering Index(CRI): 90 Optik: Reflektor med prisma framför LED Glas: Klart Energiklass: F Kabel: 100 mm AWG22 med brytare samt kontaktdon. Finns i vitt, svart eller aluminium utförande.

Zoom Light is a dimmable (triac) spotlight designed for 3-phase tracks with zoom functionality. By turning the ring, one can smoothly adjust the beam angle from a focused 15° to a wider 55°. This enables precise control over the direction and intensity of the light, allowing optimal management of the light flow when actively illuminating specific areas. Rotatable: 330° Tiltable: 90° Beam angle: 15°-55° • Easy adjustment of the lighting directly without additional tools. • Utilize already installed 3-phase tracks. Spotlight diameter: 45 mm Spotlight length: 105 mm Maximum protrusion from track: 170 mm Track adapter: 150 x 32 x 46 (L x W x H).

ArtLight is a contour spotlight with advanced optics, ideal for actively illuminating selected areas. With simple adjustments, you can switch from circular to rectangular or square light distribution with sharp or diffuse edges and change the beam angle between 20°-35°. This flexibility opens up many possibilities for illuminating artworks or other objects. Framing, for example, a painting by projecting light within its edges creates a dramatic self-illuminating effect. Rotatable: 330° Tiltable: 90° Beam angle: 20°-35° • Easy to adjust the lighting directly without extra tools. • Enhances the colors of art or pictures in the best way with excellent color rendering with a CRI of 95. • Uses already installed 3-phase tracks. Spotlight diameter: 45 mm Spotlight length: 150 mm Maximum projection from track: 216 mm Track adapter: 150 x 32 x 46 (L x W x H).

COB-LED strip för ljussättnig av bastu. COB tekniken gör att ljuset upplevs som en oavbruten sträng och ger ett jämnt ljus över hela listen. LED stripen är 5m och det kan förkortas till önskad längd med 5cm intervall. På LED listen finns det klipppunkter med kopparbleck där LED stripen kan klippas till önskad längd. På dessa bleck kan man löda på nya kablar, löddningspunkterna behöver tätas med silikon för att uppnå IP67 kaplingsklass. IP67 Max temperatur: 105° Color Rendering Index(CRI): 90 TUV-CE, UL, RoHs

230V LED strip där inget drivdon behövs. För att undvika problemet om vart man ska gömma drivdonet är denna LED strip lösningen, då det inte behövs något drivdon utan kan kopplas med 230V direkt. LED stripen är 5m och det kan förkortas till önskad längd med 10cm intevall. På LED stripen finns det klipppunkter med kopparbleck där LED stripen kan klippas till önskad längd. På dessa bleck kan man löda på nya kablar, löddningspunkterna behöver tätas med silikon för att uppnå IP65 kaplingsklass. IP65 Color Rendering Index(CRI): 80 TUV-CE, RoHs

Luminaires for industrial use, garages, warehouses, gymnasiums etc. This luminaire is newly developed and very compact in size, perfect for modern buildings where there are lots of other components and installations that must fit. Technical data: Diodes: Nichia Performance: 150 lm / W Power: 40-200 W. Dimmable: Yes CRI: RA80 IP rating: IP65 Light beam spread: 60-120°. See below. Driver: On/Off, 0-10 V or Dali. See below. Color temp: 3500-4500 K (Standard), other color temperatures per customer request. Warranty: 5 years. Options: Can be mounted with different types of holders, chains, motion detectors, light sensors etc.
