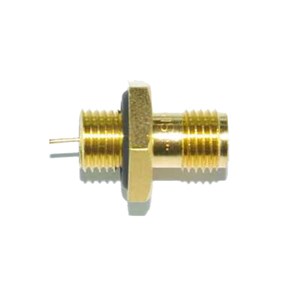

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead receptacle
Coaxial_Connector_SMA_50Ohm_Straight_bulkhead_vp
Rak SMA hylsdon med tab-kontakt. Fyrkantsfläns, för chassimontage.
- Type of connector:
- SMA
- Model:
- Plug/plug
- Impedance:
- 50 Ohm
- Construction type:
- Straight
- Type of connector:
- Other
- Model:
- Plug/plug
- Impedance:
- 50 Ohm
- Construction type:
- Straight
RADOX 125 Multi conductor unscreened
140201
Halogen-free cable suitable both for fixed installation or as a connection cable in dry, damp and wet areas both indoors and outdoors.
Due to the good mechanical properties and the high chemical resistance, RADOX 125 is especially suitable in industry in demanding environments, eg for machines and industrial equipment.
- Number of cores:
- 2-27 .
- Protective conductor:
- No
- Material outer sheath:
- None
- Colour outer sheath:
- Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Conductor material:
- Copper
- Screen:
- No
- Armouring/reinforcement:
- None
- Drain wire:
- No
- Nominal voltage:
- 1000 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Operating temperature:
- -40-125 °C
- Conductor surface:
- Tinned
- Halogen free:
- Yes
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- Yes
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
RXL 125 S2
RXL 125 S2
Halogen-free cable suitable both for fixed installation or as a connection cable in dry, damp and wet areas both indoors and outdoors.
Due to the good mechanical properties and the high chemical resistance, RADOX 125 is especially suitable in industry in demanding environments, eg for machines and industrial equipment.
- Number of cores:
- 4-16 .
- Protective conductor:
- No
- Material outer sheath:
- None
- Colour outer sheath:
- Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Conductor material:
- Copper
- Screen:
- No
- Drain wire:
- No
- Nominal voltage:
- 1000 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Operating temperature:
- -40-125 °C
- Conductor surface:
- Tinned
- Halogen free:
- Yes
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- Yes
RG/K
Radox_RG/K_vp
RG KABEL OCH HALOGENFRI ALTERNATIV - Standard RG kabel med breddat utbud av prestanda
- Number of cores:
- 1 .
- Material core insulation:
- Fluorinated ethylene propylene (FEP), Polytetrafluoroethylene (PTFE)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Colour outer sheath:
- Brown, Black
- Permitted cable outer temperature after assembling without vibration:
- -40-165 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 165 °C
- Protective barrier:
- N/A
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500-5000 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Black, Brown
- Material insulation:
- Polyvinyl chloride (PVC), Polyolefin (POE), PTFE, FEP
- Operating temperature:
- -25-85 °C
- Core colour:
- Brown
- Conductor surface:
- Bare, Silver-plated, Tinned
- Halogen free:
- Yes, No
- Min. permitted bending radius, stationary application/permanent installation:
- 9.3-37.5 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
Coaxial connectors
1089015
Crimping coaxial for Huber & Suhner coaxial connectors.
22544754: Small tool without dies
22544755: Small tool incl. 3 sets of dies (1/2A, 2B, 2C)
Dies:
1/2A: 76 Z-0-2-51, square 0.7/1.6 mm, hexagon 3.3 mm
2B: 76 Z-0-3-51, square 1.6 mm, hexagon 5.5 mm
2C: 76 Z-0-4-51, square 1.6 mm, hexagon 6.5 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Screen connector
- Construction/operation:
- Mechanical
- For component:
- Coaxial
- Compression shape:
- Hexagon
RADOX 3271
141901
Flexibel kopplingskabel för intern kabeldragning i lampor, uppvärmningsanordningar, elektriska maskiner, styr- och apparatskåp, samt inom byggnadsindustrin. Idealisk för installation inuti rör samt för utanpåliggande installation.
Mycket goda elektriska och mekaniska egenskaper. Brett temperaturområde samt hög tålighet mot oljor, ozon, hydrolys och mekanisk påverkan. Kopplingstråden är svårantändlig, vid brand utvecklas minimalt med rök och inga korrosiva gaser avges.
- Number of cores:
- 1 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue, Brown, Yellow, Grey, Orange, Red, Black, White, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-125 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 125 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Conductor category:
- Class 5 = flexible
- Colour:
- Black, Grey, Orange, Yellow, Green/yellow, Brown, Red, White, Blue
- Material insulation:
- Polyolefin (POE)
- Operating temperature:
- -40-125 °C
- Core colour:
- Blue, Brown, Grey, Green/yellow, Red, Black, White
- Conductor surface:
- Tinned
- Halogen free:
- No
- Packaging:
- Drum, Spool HS400, Spool HS401
- Min. permitted bending radius, stationary application/permanent installation:
- 7.8-33.3 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- Yes
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No

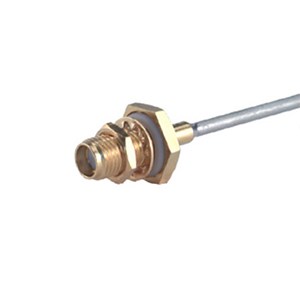

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable
Coaxial_Connector_SMA_50Ohm_Straight_bulkhead2_vp
- Type of connector:
- SMA
- Model:
- Plug/plug
- Suitable cable:
- EZ-86-TP-M17, MULTIFLEX-86, SUCOFORM-86
- Impedance:
- 50 Ohm
- Construction type:
- Straight
RADOX 4 GKW-AX (EN50264-3-1) 1800/3000 V - Single conductor
140901
Halogenfri dubbelisolerad kopplingskabel för fast förläggning i tågapplikationer både inom- och utomhus.
Lämplig i styr- och apparatskåp, konverterare och kontrollpaneler. Tålig mot hög mekanisk belastning, olja och bränsle.
Uppbyggnad:
Ledare: Förtent flertrådig koppar enligt IEC 60228 klass 5
Ledarisolation innermantel: RADOX GKW K (polyolefin-copolymer)
Ledarisolation yttermantel: RADOX GKW S (polyolefin-copolymer)
Mantelfärg: Svart
Tekniska data:
Driftspänning: 1.8/3.0 kV AC, 2.25/4.5 kV DC
Provspänning: 6500 V (50 Hz, 15 min)
Temp. område: -40º C till +120º C
Minsta böjradie: 3 x kabelns diameter (se datablad)
Godkännanden, flambeständighet
BS 6853
DIN 5510
NF F16-101
BS 4066-3, BS 6583
BS 6853 kat. D
BS 6853 kat. B
DIN EN 50265-2-1
DIN EN 50266-2-4
DIN EN 50266-2-5
DIN EN 50268-2
NF C32-070 TEST 2
NF X10-702-2
NF X70-100
IEC 60332-1, EN 50265-2-1
IEC 60332-3-24, EN 50266-2-4
IEC 60754-1, EN 50267-2-1
IEC 60754-2, EN 50267-2-3
IEC 61034-2, EN 50268-2
- Number of cores:
- 1 .
- Colour outer sheath:
- Black
- Nominal voltage:
- 1800 V
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Operating temperature:
- -40-120 °C
- Conductor surface:
- Bare
- Halogen free:
- Yes
- Packaging:
- Spool HS400
- Low smoke (according to EN 61034-2):
- Yes
- Availability:
-
Yes

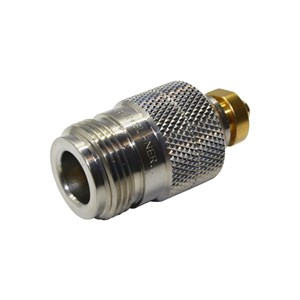

- Type of connector:
- N
- Model:
- Plug/plug
- Impedance:
- 50 Ohm
- Construction type:
- Straight
