360 view
45-1774

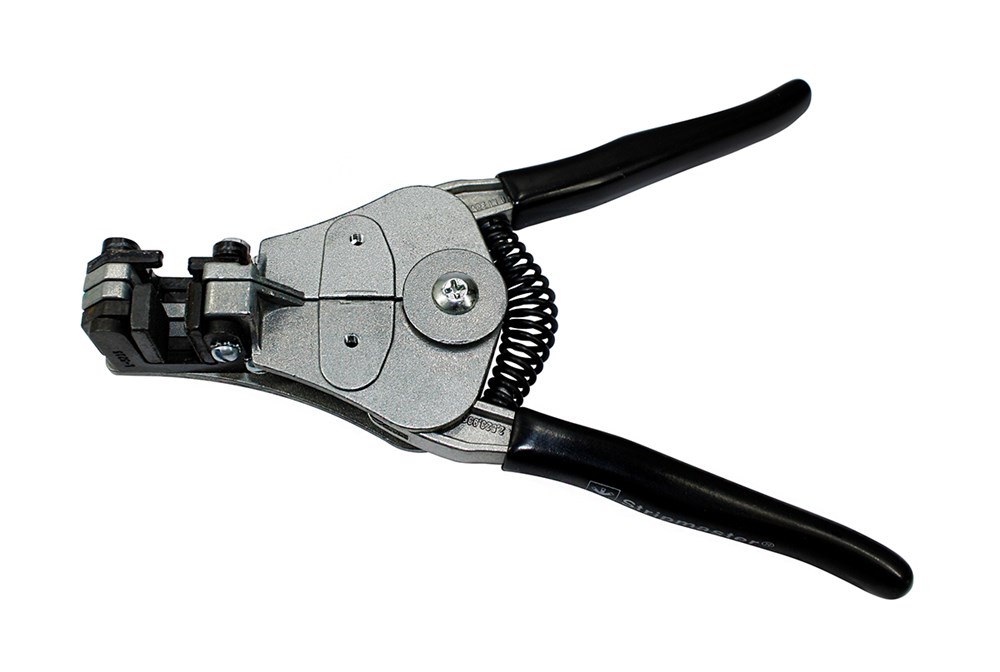

PLIER CUSTOM STRIPMASTER YD 2.0 & 3.0mm
45-1774
- Availability:
-
Yes
- Total: 1
Related items
Stripping tool (fixed sizes with replaceable blade)
Custom Stripmaster-serien med MIL-spec
Skalverktyg från Ideal med utbytbara V-skär. Speciellt tillverkade med MIL-specifikationer för hårda material som PTFE.
Halkskyddade svarta handtag.
Max. skallängd: 22 mm
Greppytorna består av två breda sandpapper-liknande ytor, som greppar kabelns isolering.
45-1513: MIL-W-18044, Kynar AWG 26-16 (0.13-1.31 mm²)
45-1551: MIL-W-81381/1/2/5/6/7/8/9/10/17/21, AWG 26-16 (0.13-1.31 mm²)
45-1578: MIL-W-81381, AWG 14-10 (2.08-5.27 mm²)
45-1581: MIL-W-81044 Type 11/12, AWG 14-12 (2.08-3.31 mm²)
45-1610: MIL-W-81044/16/17, AWG 26-16 (0.13-1.31 mm²)
45-1611: MIL-W-81044/11/12/13/16/17, 16878/4, AWG 14-10 (2.08-5.27 mm²)
45-1633: MIL-W-81381/17/21, AWG 26-16 (0.13-1.31 mm²)
45-1773: För 0.2, 0.4, 0.6, 1.0, 1.2" ytterdiameter (0.51, 1.02, 1.52, 2.54, 3.05 mm)
45-1774: För 2.0 och 3.0 mm ytterdiameter
45-1792: AWG 24-20 (0.25-0.52 mm²)
45-1915: AWG 22, 18, 16, 12, (0.325, 0.823, 1.31, 3.31 mm²)
45-1976: MIL-W-22759/16/17, AWG 26-16 (0.13-1.31 mm²)
45-1987: MIL-W-22759/16/17, AWG 26-16 (0.13-1.31 mm²)
45-500: MIL-W-5086, AWG 16-14 (1.31-2.08 mm²)
45-877: MIL-W-16878, AWG 26-16 (0.13-1.31 mm²), med svartoxiderad korrosionsbeständig stålram
Längd: 180 mm
- Total: 1
Product Properties
| Depth of notch adjustable | No |
|---|---|
| Longitudinal section | No |
| Round edge | Yes |
| Spiral cut | No |
| Strip length adjustable | No |
| With wire cutter | No |
| Grip design | 1-component |
| ESD tested | No |
| With impact protection | No |
| Insulated | Yes |
| Stripping tool type | Fasta uttag, utbytbara skär |
| Isolation protection 1000 V | No |
Dimensions
| MOQ | 1 . |
|---|---|
| Unit | pcs |
| Length | 180 mm |
Logistics
| Barcode | 783250256556 |
|---|---|
| Country of origin | US |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | 45-1774 |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
| VDE tested | No |
|---|---|
| Isolation protection 1000 V | No |
Other info
| ETIM-Class | EC002109 - Wire stripper pliers |
|---|---|
| ETIM-Release | 7.0 |
| Trademark | IDEAL |
| Product Group | Wire Stripper Pliers (fixed sizes) |
| Alternative SKU | 45-1774 |
Compliance
| REACH | No SVHC (224 Subs. 10 June 2022) |
|---|---|
| RoHS | N/A |
