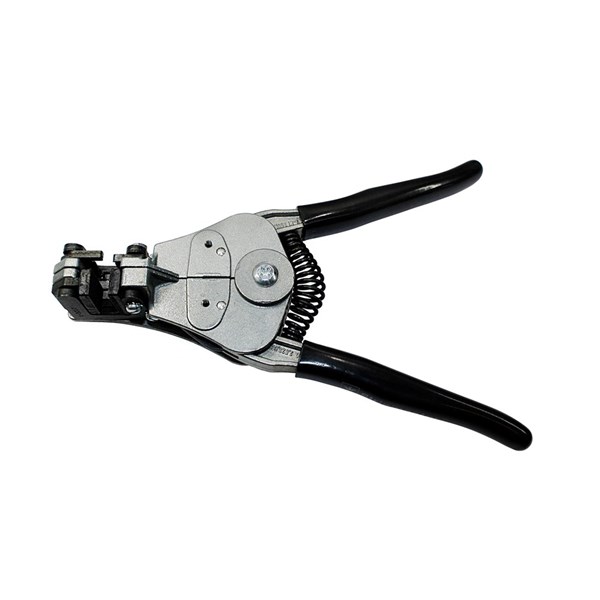

Stripping tool (fixed sizes with replaceable blade)
Custom Stripmaster-serien med MIL-spec
Skalverktyg från Ideal med utbytbara V-skär. Speciellt tillverkade med MIL-specifikationer för hårda material som PTFE.
Halkskyddade svarta handtag.
Max. skallängd: 22 mm
Greppytorna består av två breda sandpapper-liknande ytor, som greppar kabelns isolering.
45-1513: MIL-W-18044, Kynar AWG 26-16 (0.13-1.31 mm²)
45-1551: MIL-W-81381/1/2/5/6/7/8/9/10/17/21, AWG 26-16 (0.13-1.31 mm²)
45-1578: MIL-W-81381, AWG 14-10 (2.08-5.27 mm²)
45-1581: MIL-W-81044 Type 11/12, AWG 14-12 (2.08-3.31 mm²)
45-1610: MIL-W-81044/16/17, AWG 26-16 (0.13-1.31 mm²)
45-1611: MIL-W-81044/11/12/13/16/17, 16878/4, AWG 14-10 (2.08-5.27 mm²)
45-1633: MIL-W-81381/17/21, AWG 26-16 (0.13-1.31 mm²)
45-1773: För 0.2, 0.4, 0.6, 1.0, 1.2" ytterdiameter (0.51, 1.02, 1.52, 2.54, 3.05 mm)
45-1774: För 2.0 och 3.0 mm ytterdiameter
45-1792: AWG 24-20 (0.25-0.52 mm²)
45-1915: AWG 22, 18, 16, 12, (0.325, 0.823, 1.31, 3.31 mm²)
45-1976: MIL-W-22759/16/17, AWG 26-16 (0.13-1.31 mm²)
45-1987: MIL-W-22759/16/17, AWG 26-16 (0.13-1.31 mm²)
45-500: MIL-W-5086, AWG 16-14 (1.31-2.08 mm²)
45-877: MIL-W-16878, AWG 26-16 (0.13-1.31 mm²), med svartoxiderad korrosionsbeständig stålram
Längd: 180 mm
Technical properties
- Depth of notch adjustable:
- No
- Longitudinal section:
- No
- Round edge:
- Yes
- Spiral cut:
- No
- Strip length adjustable:
- No
- With wire cutter:
- No
- Grip design:
- 1-component
- ESD tested:
- No
- With impact protection:
- No
- Insulated:
- Yes
- Stripping tool type:
- Fasta uttag, utbytbara skär
- Isolation protection 1000 V:
- No
Show more
Item List
- Total: 11
- Total: 11
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 11
| Product Description | Strip range cross-section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| PLIER CUSTOM STRIPMASTER AWG10-14 | 1 . | pcs | 180 mm |
No
|
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-81044 | 0.14-1.5 mm² | 1 . | pcs | 180 mm |
No
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-81381 | 0.14-1.5 mm² | 1 . | pcs | 180 mm |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 14-10, MIL-W-81381 | 2.5-6 mm² | 1 . | pcs | 180 mm |
No
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-81044 | 0.14-1.5 mm² | 1 . | pcs | 180 mm |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 14-10, MIL-W-81044 | 2.5-6 mm² | 1 . | pcs | 180 mm |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-UNILAY | 0.14-16 mm² | 1 . | pcs | 180 mm |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER YD 0.2, 0.4, 0.6, 1.0, 1.2" | 1 . | pcs | 180 mm |
Yes
|
|
|
|
| PLIER CUSTOM STRIPMASTER YD 2.0 & 3.0mm | 1 . | pcs | 180 mm |
Yes
|
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 22, 18, 16, 12 | 0.34-4 mm² | 1 . | pcs | 180 mm |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-22759 | 0.14-1.5 mm² | 1 . | pcs | 180 mm |
Yes
|
|
|
- Total: 11
Similar Options
Approvals
- Total: 11
| Product Description | VDE tested | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|
| PLIER CUSTOM STRIPMASTER AWG10-14 | No | No |
No
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-81044 | No | No |
No
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-81381 | No | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 14-10, MIL-W-81381 | No | No |
No
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-81044 | No | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 14-10, MIL-W-81044 | No | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-UNILAY | No | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER YD 0.2, 0.4, 0.6, 1.0, 1.2" | No | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER YD 2.0 & 3.0mm | No | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 22, 18, 16, 12 | No | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-22759 | No | No |
Yes
|
|
|
- Total: 11
Technical Properties
- Total: 11
| Product Description | Depth of notch adjustable | Longitudinal section | Round edge | Spiral cut | Strip length adjustable | With wire cutter | Grip design | ESD tested | With impact protection | Insulated | Stripping tool type | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLIER CUSTOM STRIPMASTER AWG10-14 | No | No | Yes | No | No | No | 1-component | No | No | Yes | No |
No
|
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-81044 | No | No | Yes | No | No | No | 1-component | No | No | Yes | Fasta uttag, utbytbara skär | No |
No
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-81381 | No | No | Yes | No | No | No | 1-component | No | No | Yes | Fasta uttag, utbytbara skär | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 14-10, MIL-W-81381 | No | No | Yes | No | No | No | 1-component | No | No | Yes | Fasta uttag, utbytbara skär | No |
No
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-81044 | No | No | Yes | No | No | No | 1-component | No | No | Yes | Fasta uttag, utbytbara skär | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 14-10, MIL-W-81044 | No | No | Yes | No | No | No | 1-component | No | No | Yes | Fasta uttag, utbytbara skär | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-UNILAY | No | No | Yes | No | No | No | 1-component | No | No | Yes | Fasta uttag, utbytbara skär | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER YD 0.2, 0.4, 0.6, 1.0, 1.2" | No | No | Yes | No | No | No | 1-component | No | No | Yes | Fasta uttag, utbytbara skär | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER YD 2.0 & 3.0mm | No | No | Yes | No | No | No | 1-component | No | No | Yes | Fasta uttag, utbytbara skär | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 22, 18, 16, 12 | No | No | Yes | No | No | No | 1-component | No | No | Yes | Fasta uttag, utbytbara skär | No |
Yes
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-22759 | No | No | Yes | No | No | No | 1-component | No | No | Yes | Fasta uttag, utbytbara skär | No |
Yes
|
|
|
- Total: 11
Other information
- Total: 11
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| PLIER CUSTOM STRIPMASTER AWG10-14 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | SKALVERKTYG CUSTOM STRIPMASTER | 45-1939 |
No
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-81044 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-1513 |
No
|
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-81381 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-1551 |
Yes
|
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 14-10, MIL-W-81381 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-1578 |
No
|
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-81044 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-1610 |
Yes
|
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 14-10, MIL-W-81044 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-1611 |
Yes
|
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-UNILAY | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-1633 |
Yes
|
|
|
|
| PLIER CUSTOM STRIPMASTER YD 0.2, 0.4, 0.6, 1.0, 1.2" | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-1773 |
Yes
|
|
|
|
| PLIER CUSTOM STRIPMASTER YD 2.0 & 3.0mm | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-1774 |
Yes
|
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 22, 18, 16, 12 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-1915 |
Yes
|
|
|
|
| PLIER CUSTOM STRIPMASTER AWG 26-16, MIL-W-22759 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-1987 |
Yes
|
|
|
- Total: 11
