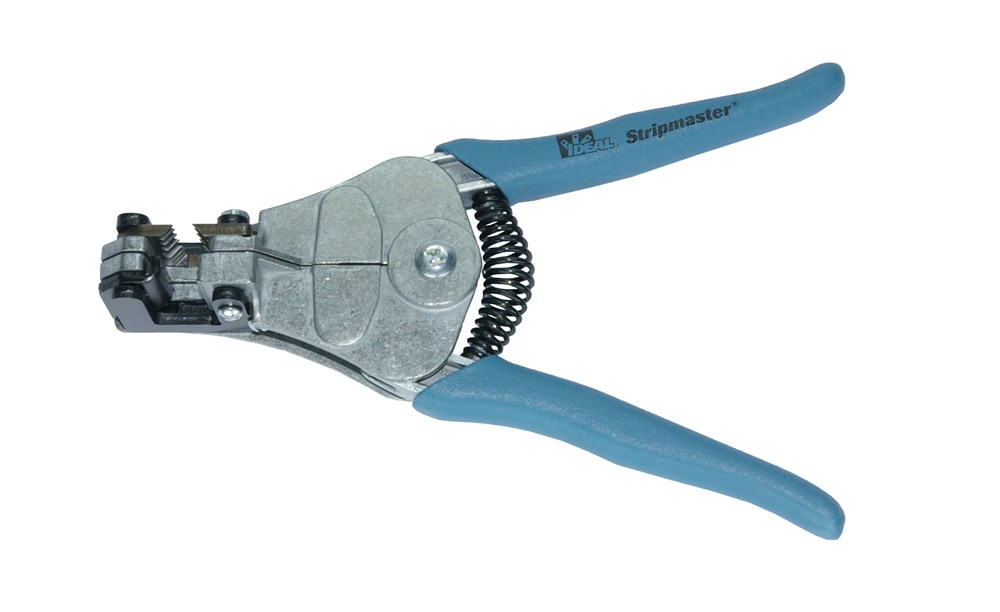

Stripping tool (fixed sizes with replaceable blade)
Stripmaster Series
STRIPPING TOOL from Ideal with replaceable knife cutter. Strips most insulation materials, eg PVC, rubber etc., but not PTFE.Max. shell length: 22 mmSlip-proof blue soft-grip handle.The grippers consist of a groove and a spiky part that seals the insulation of the cable.
L 5619: Tools without cut with cable tie and semi-skidL 5620: Tools without cutting45-089: For flat cable 0.28x0.5mm, 0.25x0.5mm and 0.13x0.38mm OUTER DIAMETER45-090: AWG 12-8 (5.27-8.35 mm²)45-091: AWG 18-10 (0.82-5.27 mm²)45-092: AWG 22-10 (0.325-5.27 mm²)45-092 M: 0.75-6.0 mm²45-093: AWG 22-14 (0.325-2.08 mm²)45-097: AWG 26-16 (0.128-1.31 mm²)45-098: AWG 30-20 (0.05-0.52 mm²)45-099: AWG 10-8 and 18-16 (5.27-8.35 mm² and 0.82-1.31 mm²)
Length: 180 mm
Technical properties
- Depth of notch adjustable:
- No
- Longitudinal section:
- No
- Round edge:
- Yes
- Spiral cut:
- No
- Strip length adjustable:
- No
- With wire cutter:
- No
- Grip design:
- 1-component
- With impact protection:
- No
- Insulated:
- Yes
- Stripping tool type:
- Fasta uttag, utbytbara skär
- Isolation protection 1000 V:
- No
Show more
Item List
- Total: 11
- Total: 11
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 11
| Product Description | Strip range cross-section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| PLIER STRIPMASTER FLAT CABLE, BLADE L 8762 | 1 . | pcs | 180 mm |
No
|
|
|
|
| PLIER STRIPMASTER AWG 12-8, BLADE L 4419 | 5.27-8.35 mm² | 1 . | pcs | 180 mm |
Yes
|
|
|
| PLIER STRIPMASTER AWG 18-10, BLADE L 4420 | 0.82-5.27 mm² | 1 . | pcs | 180 mm |
No
|
|
|
| PLIER STRIPMASTER AWG 22-10, BLADE L 4421 | 0.325-5.27 mm² | 1 . | pcs | 180 mm |
Yes
|
|
|
| PLIER STRIPMASTER 0.75-6.0mm2, BLADE L 4421 M | 0.75-6 mm² | 1 . | pcs | 180 mm |
Yes
|
|
|
| PLIER STRIPMASTER AWG 22-14, BLADE L 4422 | 0.325-2.08 mm² | 1 . | pcs | 180 mm |
Yes
|
|
|
| PLIER STRIPMASTER AWG 26-16, BLADE L 4994 | 0.128-1.31 mm² | 1 . | pcs | 180 mm |
No
|
|
|
| PLIER STRIPMASTER AWG 30-20, BLADE L 5361 | 0.05-0.52 mm² | 1 . | pcs | 180 mm |
No
|
|
|
| PLIER STRIPMASTER AWG 10-8/18-16, BLADE L 8763 | 0.75-10 mm² | 1 . | pcs | 180 mm |
No
|
|
|
| STRIPPING TOOL STRIPMASTER WIRE STOP/LATCH | 1 . | pcs |
No
|
|
|
||
| STRIPPING TOOL STRIPMASTER FRAME WITHOUT REPLACEMENT BLADE | 1 . | pcs |
Yes
|
|
|
- Total: 11
Similar Options
Approvals
- Total: 11
| Product Description | VDE tested | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|
| PLIER STRIPMASTER FLAT CABLE, BLADE L 8762 | No | No |
No
|
|
|
| PLIER STRIPMASTER AWG 12-8, BLADE L 4419 | No | No |
Yes
|
|
|
| PLIER STRIPMASTER AWG 18-10, BLADE L 4420 | No | No |
No
|
|
|
| PLIER STRIPMASTER AWG 22-10, BLADE L 4421 | No | No |
Yes
|
|
|
| PLIER STRIPMASTER 0.75-6.0mm2, BLADE L 4421 M | No | No |
Yes
|
|
|
| PLIER STRIPMASTER AWG 22-14, BLADE L 4422 | No | No |
Yes
|
|
|
| PLIER STRIPMASTER AWG 26-16, BLADE L 4994 | No | No |
No
|
|
|
| PLIER STRIPMASTER AWG 30-20, BLADE L 5361 | No | No |
No
|
|
|
| PLIER STRIPMASTER AWG 10-8/18-16, BLADE L 8763 | No | No |
No
|
|
|
| STRIPPING TOOL STRIPMASTER WIRE STOP/LATCH |
No
|
|
|
||
| STRIPPING TOOL STRIPMASTER FRAME WITHOUT REPLACEMENT BLADE |
Yes
|
|
|
- Total: 11
Technical Properties
- Total: 11
| Product Description | Depth of notch adjustable | Longitudinal section | Round edge | Spiral cut | Strip length adjustable | With wire cutter | Grip design | With impact protection | Insulated | Stripping tool type | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLIER STRIPMASTER FLAT CABLE, BLADE L 8762 | No | No | Yes | No | No | No | 1-component | No | Yes | Fasta uttag, utbytbara skär | No |
No
|
|
|
| PLIER STRIPMASTER AWG 12-8, BLADE L 4419 | No | No | Yes | No | No | No | 1-component | No | Yes | Fasta uttag, utbytbara skär | No |
Yes
|
|
|
| PLIER STRIPMASTER AWG 18-10, BLADE L 4420 | No | No | Yes | No | No | No | 1-component | No | Yes | Fasta uttag, utbytbara skär | No |
No
|
|
|
| PLIER STRIPMASTER AWG 22-10, BLADE L 4421 | No | No | Yes | No | No | No | 1-component | No | Yes | Fasta uttag, utbytbara skär | No |
Yes
|
|
|
| PLIER STRIPMASTER 0.75-6.0mm2, BLADE L 4421 M | No | No | Yes | No | No | No | 1-component | No | Yes | Fasta uttag, utbytbara skär | No |
Yes
|
|
|
| PLIER STRIPMASTER AWG 22-14, BLADE L 4422 | No | No | Yes | No | No | No | 1-component | No | Yes | Fasta uttag, utbytbara skär | No |
Yes
|
|
|
| PLIER STRIPMASTER AWG 26-16, BLADE L 4994 | No | No | Yes | No | No | No | 1-component | No | Yes | Fasta uttag, utbytbara skär | No |
No
|
|
|
| PLIER STRIPMASTER AWG 30-20, BLADE L 5361 | No | No | Yes | No | No | No | 1-component | No | Yes | Fasta uttag, utbytbara skär | No |
No
|
|
|
| PLIER STRIPMASTER AWG 10-8/18-16, BLADE L 8763 | No | No | Yes | No | No | No | 1-component | No | Yes | Fasta uttag, utbytbara skär | No |
No
|
|
|
| STRIPPING TOOL STRIPMASTER WIRE STOP/LATCH |
No
|
|
|
|||||||||||
| STRIPPING TOOL STRIPMASTER FRAME WITHOUT REPLACEMENT BLADE |
Yes
|
|
|
- Total: 11
Other information
- Total: 11
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| PLIER STRIPMASTER FLAT CABLE, BLADE L 8762 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | SKALVERKTYG STRIPMASTER, FÖR FLATKABEL,0.28X0.5 MM | 45-089 |
No
|
|
|
| PLIER STRIPMASTER AWG 12-8, BLADE L 4419 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | SKALVERKTYG STRIPMASTER | 45-090 |
Yes
|
|
|
| PLIER STRIPMASTER AWG 18-10, BLADE L 4420 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | SKALVERKTYG STRIPMASTER | 45-091 |
No
|
|
|
| PLIER STRIPMASTER AWG 22-10, BLADE L 4421 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-092 |
Yes
|
|
|
|
| PLIER STRIPMASTER 0.75-6.0mm2, BLADE L 4421 M | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-092M |
Yes
|
|
|
|
| PLIER STRIPMASTER AWG 22-14, BLADE L 4422 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-093 |
Yes
|
|
|
|
| PLIER STRIPMASTER AWG 26-16, BLADE L 4994 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-097 |
No
|
|
|
|
| PLIER STRIPMASTER AWG 30-20, BLADE L 5361 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | 45-098 |
No
|
|
|
|
| PLIER STRIPMASTER AWG 10-8/18-16, BLADE L 8763 | EC002109 - Wire stripper pliers | 9.0 |
|
Wire Stripper Pliers (fixed sizes) | SKALVERKTYG STRIPMASTER,AWG 10-8/18-16 | 45-099 |
No
|
|
|
| STRIPPING TOOL STRIPMASTER WIRE STOP/LATCH | EC011822 - Accessories/spare parts for pliers and clamps | 9.0 |
|
Spare parts, Wire Stripping tools | L5619 |
No
|
|
|
|
| STRIPPING TOOL STRIPMASTER FRAME WITHOUT REPLACEMENT BLADE | EC011822 - Accessories/spare parts for pliers and clamps | 9.0 |
|
Spare parts, Wire Stripping tools | L5620 |
Yes
|
|
|
- Total: 11
