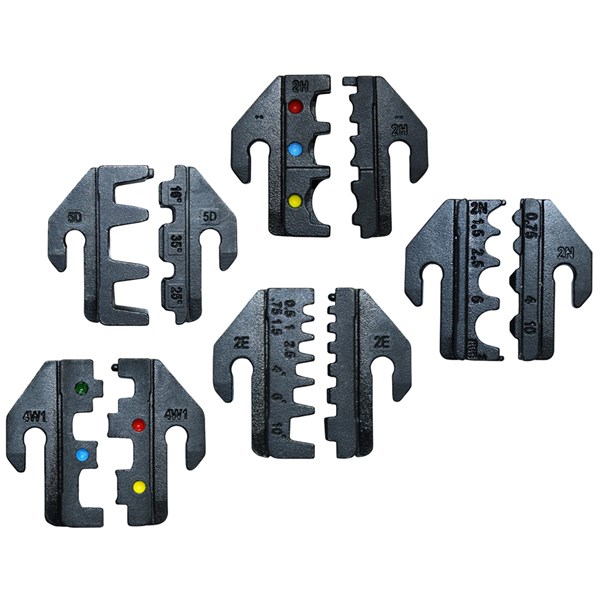

Crimp dies - CrimpXchange, NCXD-series
Crimp dies for hand tool NCX RAM. Also suitable for HD RAM and XLHD RAM as well as battery tool NMBT DHD.
Technical properties
- Application:
- Pipe cable lug and connectors, Cable end sleeves, Cable compression lugs and connectors, Insulated tube cable lug and connector
- Compression shape:
- Oval pressing, Round compression, Trapezoid compression, Roll compression (shrinking), Arbour clamping, Square compression
Show more
Item List
- Total: 12
- Total: 12
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Tillbehör för Installation av solceller
Dimensions
- Total: 12
| Product Description | Cross section | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|
| CRIMP DIES OPEN BARREL 0.1-1.0mm2 . | 0.1-1 mm² | 1 . | pcs |
Yes
|
|
|
| CRIMP DIES COPPER TUBE LUGS KR/KRF 0.5-10mm2 . | 0.5-10 mm² | 1 . | pcs |
Yes
|
|
|
| CRIMP DIES COPPER TUBE LUGS KR/KRT 0.5-10mm2 . | 0.5-10 mm² | 1 . | pcs |
Yes
|
|
|
| CRIMP DIES HEAT-SHRINK INSULATED TERMINALS 0.3-6.0mm2 & CLOSED END CONNECTORS 0.5-6mm2 | 0.3-6 mm² | 1 . | pcs |
Yes
|
|
|
| CRIMP DIES SOLAR CELL CONNECTORS MC3 2.5-6mm2(AWG14-10) | 2.5-6 mm² | 1 . | pcs |
Yes
|
|
|
| CRIMP DIES OPEN BARREL 0.5-6mm2 . | 0.5-6 mm² | 1 . | pcs |
No
|
|
|
| CRIMP DIES COPPER TUBE LUGS KRF 4-16mm2 . | 4-16 mm² | 1 . | pcs |
Yes
|
|
|
| CRIMP DIES INSULATED TERMINALS 0.5-6mm2 . | 0.5-6 mm² | 1 . | pcs |
Yes
|
|
|
| CRIMP DIES DEUTSCH . | 0.5-4 mm² | 1 . | pcs |
Yes
|
|
|
| CRIMP DIES SOLAR CELL CONNECTORS MC4 2.5-6mm2(AWG14-10) | 2.5-6 mm² | 1 . | pcs |
Yes
|
|
|
| CRIMP DIES END-SLEEVES 0.5-10mm2 . | 0.5-10 mm² | 1 . | pcs |
Yes
|
|
|
| CRIMP DIES END-SLEEVES 16-35mm2 . | 16-35 mm² | 1 . | pcs |
Yes
|
|
|
- Total: 12
Similar Options
Approvals
- Total: 12
- Total: 12
Technical Properties
- Total: 12
| Product Description | Application | Compression shape | Availability | ||
|---|---|---|---|---|---|
| CRIMP DIES OPEN BARREL 0.1-1.0mm2 . | Cable compression lugs and connectors | Roll compression (shrinking) |
Yes
|
|
|
| CRIMP DIES COPPER TUBE LUGS KR/KRF 0.5-10mm2 . | Pipe cable lug and connectors | Arbour clamping |
Yes
|
|
|
| CRIMP DIES COPPER TUBE LUGS KR/KRT 0.5-10mm2 . | Pipe cable lug and connectors | Arbour clamping |
Yes
|
|
|
| CRIMP DIES HEAT-SHRINK INSULATED TERMINALS 0.3-6.0mm2 & CLOSED END CONNECTORS 0.5-6mm2 | Insulated tube cable lug and connector | Oval pressing |
Yes
|
|
|
| CRIMP DIES SOLAR CELL CONNECTORS MC3 2.5-6mm2(AWG14-10) | Pipe cable lug and connectors | Square compression |
Yes
|
|
|
| CRIMP DIES OPEN BARREL 0.5-6mm2 . | Cable compression lugs and connectors | Roll compression (shrinking) |
No
|
|
|
| CRIMP DIES COPPER TUBE LUGS KRF 4-16mm2 . | Pipe cable lug and connectors | Arbour clamping |
Yes
|
|
|
| CRIMP DIES INSULATED TERMINALS 0.5-6mm2 . | Insulated tube cable lug and connector | Oval pressing |
Yes
|
|
|
| CRIMP DIES DEUTSCH . | Pipe cable lug and connectors | Round compression |
Yes
|
|
|
| CRIMP DIES SOLAR CELL CONNECTORS MC4 2.5-6mm2(AWG14-10) | Cable compression lugs and connectors | Roll compression (shrinking) |
Yes
|
|
|
| CRIMP DIES END-SLEEVES 0.5-10mm2 . | Cable end sleeves | Trapezoid compression |
Yes
|
|
|
| CRIMP DIES END-SLEEVES 16-35mm2 . | Cable end sleeves | Trapezoid compression |
Yes
|
|
|
- Total: 12
Other information
- Total: 12
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CRIMP DIES OPEN BARREL 0.1-1.0mm2 . | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimping dies for one hand tools | PRESSBACK RULLPRESSNING 0.1-1.0MM2 | NCXDF0110 |
Yes
|
|
|
| CRIMP DIES COPPER TUBE LUGS KR/KRF 0.5-10mm2 . | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimping dies for one hand tools | DKB 0760 | NCXDUF0510 |
Yes
|
|
|
| CRIMP DIES COPPER TUBE LUGS KR/KRT 0.5-10mm2 . | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimping dies for one hand tools | PRESSBACK RÖRKABELSKOR KR/KRT 0.5-10MM2 | NCXDUT0510 |
Yes
|
|
|
| CRIMP DIES HEAT-SHRINK INSULATED TERMINALS 0.3-6.0mm2 & CLOSED END CONNECTORS 0.5-6mm2 | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimping dies for one hand tools | PRESSBACK LIMKABELSKOR 0.8-6MM2 & | NCXDS0860 |
Yes
|
|
|
| CRIMP DIES SOLAR CELL CONNECTORS MC3 2.5-6mm2(AWG14-10) | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimping dies for one hand tools | PRESSBACK MC3 SOLAR-KONTAKTER | NCXDMC3 |
Yes
|
|
|
| CRIMP DIES OPEN BARREL 0.5-6mm2 . | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimping dies for one hand tools | PRESSBACK RULLPRESSNING 0.5-6MM2 | NCXDF0560 |
No
|
|
|
| CRIMP DIES COPPER TUBE LUGS KRF 4-16mm2 . | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimping dies for one hand tools | PRESSBACK RÖRKABELSKOR KR/KRF 4-16MM2 | NCXDUF416 |
Yes
|
|
|
| CRIMP DIES INSULATED TERMINALS 0.5-6mm2 . | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimping dies for one hand tools | PRESSBACK ISOLERADE KABELSKOR 0.5-6MM2 | NCXDI0560 |
Yes
|
|
|
| CRIMP DIES DEUTSCH . | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimping dies for one hand tools | PRESSBACK DEUTSCH | NCXDDT-DTM-DTP |
Yes
|
|
|
| CRIMP DIES SOLAR CELL CONNECTORS MC4 2.5-6mm2(AWG14-10) | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimping dies for one hand tools | SCK2023 | NCXDMC4 |
Yes
|
|
|
| CRIMP DIES END-SLEEVES 0.5-10mm2 . | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimping dies for one hand tools | PRESSBACK ÄNDHYLSOR 0.5-10MM2 | NCXDE0510 |
Yes
|
|
|
| CRIMP DIES END-SLEEVES 16-35mm2 . | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimping dies for one hand tools | KEBC 1025 | NCXDE1635 |
Yes
|
|
|
- Total: 12
