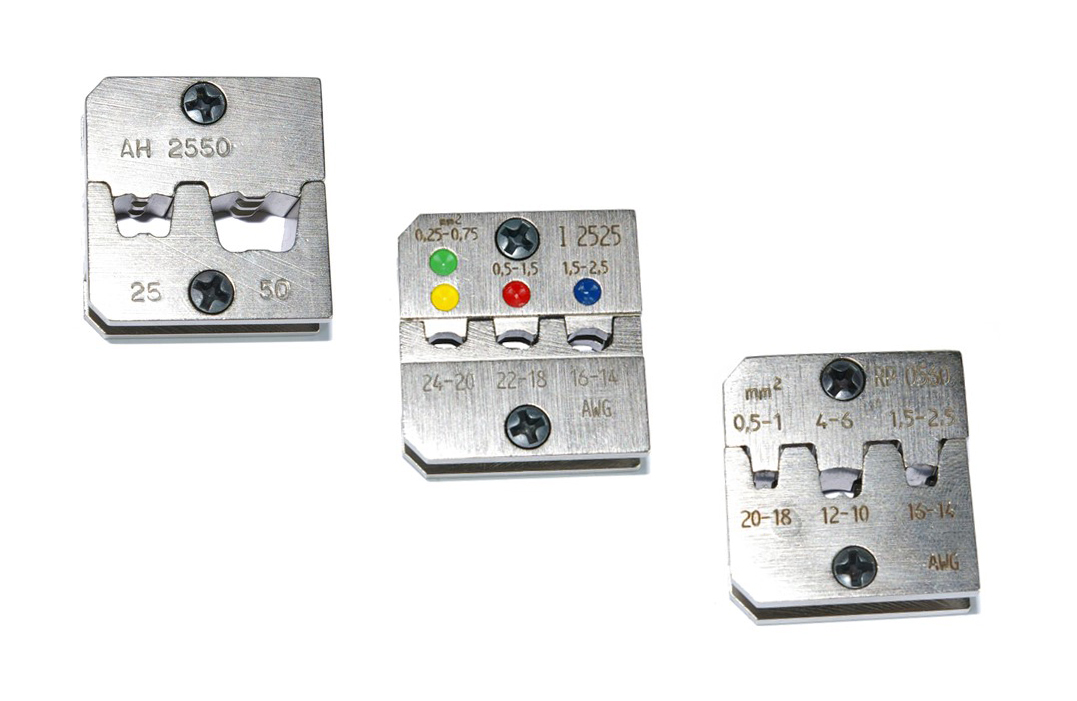

WDT - Crimp dies
Pressbackar till WDT:s handverktyg samt maskiner.(till visa maskiner behövs adaptrar för att hålla backen).
Pressbackar till handverktyg 190942 eller maskin UP 35 & UP 60 med adapter.
Technical properties
- Application:
- Cable end sleeves, Insulated tube cable lug and connector, Cable compression lugs and connectors, Pipe cable lug and connectors
- Compression shape:
- Oval pressing, Trapezoid compression, Square compression, Hexagon, Roll compression (shrinking), Arbour clamping
Show more
Item List
- Total: 25
- Total: 25
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 25
- Total: 25
Similar Options
Approvals
- Total: 25
- Total: 25
Technical Properties
- Total: 25
| Product Description | Application | Compression shape | Availability | ||
|---|---|---|---|---|---|
| WDT-BACK, END-SLEEVES 6.0-16.0 mm², 18mm LONG | Cable end sleeves | Trapezoid compression |
No
|
|
|
| WDT-RÅBACK, FÖR SPECIALBACKAR |
No
|
|
|
||
| WDT-BACK, END-SLEEVES 25.0-35.0 mm² | Cable end sleeves | Trapezoid compression |
Yes
|
|
|
| WDT-BACK, END-SLEEVES 25.0 & 50.0 mm² | Cable end sleeves | Trapezoid compression |
Yes
|
|
|
| WDT-BACK, END-SLEEVES 6.0-16.0 mm² | Cable end sleeves | Trapezoid compression |
No
|
|
|
| WDT-CRIMP DIES, COPPER CUBE LUGS KRF/KRT 10.0 mm² | Pipe cable lug and connectors | Arbour clamping |
No
|
|
|
| WDT-CRIMP DIES, COPPER CUBE LUGS KRF/KRT 16.0 mm² | Pipe cable lug and connectors | Arbour clamping |
Yes
|
|
|
| WDT-CRIMP DIES, T-CONTACTS 0.75-4.0 mm² | Cable end sleeves | Square compression |
Yes
|
|
|
| WDT-CRIMP DIES, INSULATED TERMINALS 0.14-2.5 mm², SYMMETRICAL | Insulated tube cable lug and connector | Oval pressing |
Yes
|
|
|
| WDT-CRIMP DIES, INSULATED TERMINALS 0.5-1.5 mm², ASYMMETRIC | Insulated tube cable lug and connector | Oval pressing |
Yes
|
|
|
| WDT-CRIMP DIES, INSULATED TERMINALS 1.5-2.5 mm², ASYMMETRIC | Insulated tube cable lug and connector | Oval pressing |
Yes
|
|
|
| WDT-CRIMP DIES, INSULATED FLAG TERMINALS 0.5-2.5 mm² | Insulated tube cable lug and connector | Oval pressing |
Yes
|
|
|
| WDT-CRIMP DIES, OPEN BARREL CRIMP 0.5-1.5 mm² | Cable compression lugs and connectors | Roll compression (shrinking) |
Yes
|
|
|
| WDT-CRIMP DIES, T-CONTACTS 0.5-2.5 mm² | Cable end sleeves | Hexagon |
Yes
|
|
|
| WDT-BACK, END-SLEEVES 0.25-6.0 mm² | Cable end sleeves | Trapezoid compression |
Yes
|
|
|
| WDT-CRIMP DIES, INSULATED TERMINALS 0.5-6.0 mm², SYMMETRICAL | Insulated tube cable lug and connector | Oval pressing |
No
|
|
|
| WDT-CRIMP DIES, INSULATED TERMINALS 0.5-6.0 mm², ASYMMETRIC | Insulated tube cable lug and connector | Oval pressing |
Yes
|
|
|
| WDT-CRIMP DIES, INSULATED TERMINALS 0.25-2.5 mm², SYMMETRICAL | Insulated tube cable lug and connector | Oval pressing |
Yes
|
|
|
| WDT-CRIMP DIES, OPEN BARREL CRIMP 0.5-6.0mm² | Cable compression lugs and connectors | Roll compression (shrinking) |
No
|
|
|
| WDT-CRIMP DIES, OPEN BARREL CRIMP 0.14-0.75 mm² | Cable compression lugs and connectors | Roll compression (shrinking) |
Yes
|
|
|
| WDT-CRIMP DIES, OPEN BARREL CRIMP 1.5-2.5 mm² | Cable compression lugs and connectors | Roll compression (shrinking) |
Yes
|
|
|
| WDT-CRIMP DIES, COPPER CUBE LUGS KR 0.5-6.0mm2 | Pipe cable lug and connectors | Arbour clamping |
Yes
|
|
|
| WDT-CRIMP DIES, FO178/316, BLD8218 RG122/174/180/187/188/195 | Hexagon |
No
|
|
|
|
| WDT-CRIMP DIES, OPEN BARREL CRIMP 0.14-1.5 mm² | Cable compression lugs and connectors | Roll compression (shrinking) |
No
|
|
|
| WDT-CRIMP DIES, OPEN BARREL CRIMP 6.0 mm² | Cable compression lugs and connectors | Roll compression (shrinking) |
Yes
|
|
|
- Total: 25
Other information
- Total: 25
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| WDT-BACK, END-SLEEVES 6.0-16.0 mm², 18mm LONG | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, ÄNDHYLSOR | AH6016LÅNG |
No
|
|
|
| WDT-RÅBACK, FÖR SPECIALBACKAR | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | RÅBACK |
No
|
|
|
|
| WDT-BACK, END-SLEEVES 25.0-35.0 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, ÄNDHYLSOR | AH2535 |
Yes
|
|
|
| WDT-BACK, END-SLEEVES 25.0 & 50.0 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, ÄNDHYLSOR | AH2550 |
Yes
|
|
|
| WDT-BACK, END-SLEEVES 6.0-16.0 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, ÄNDHYLSOR | AH6016 |
No
|
|
|
| WDT-CRIMP DIES, COPPER CUBE LUGS KRF/KRT 10.0 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, RÖRKABELSKOR KRF/KRT | RQ10 |
No
|
|
|
| WDT-CRIMP DIES, COPPER CUBE LUGS KRF/KRT 16.0 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, RÖRKABELSKOR KRF/KRT | RQ16 |
Yes
|
|
|
| WDT-CRIMP DIES, T-CONTACTS 0.75-4.0 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, T-CONTACTS | GK7540 |
Yes
|
|
|
| WDT-CRIMP DIES, INSULATED TERMINALS 0.14-2.5 mm², SYMMETRICAL | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, ISOL KS | I1425/UF |
Yes
|
|
|
| WDT-CRIMP DIES, INSULATED TERMINALS 0.5-1.5 mm², ASYMMETRIC | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, ISOL KS | I1500 |
Yes
|
|
|
| WDT-CRIMP DIES, INSULATED TERMINALS 1.5-2.5 mm², ASYMMETRIC | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, ISOL KS | I2500 |
Yes
|
|
|
| WDT-CRIMP DIES, INSULATED FLAG TERMINALS 0.5-2.5 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, ISOL FLAGGKS | I/W0525 |
Yes
|
|
|
| WDT-CRIMP DIES, OPEN BARREL CRIMP 0.5-1.5 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, RULLPRESS | RPW0515 |
Yes
|
|
|
| WDT-CRIMP DIES, T-CONTACTS 0.5-2.5 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, T-CONTACTS | WP0525 |
Yes
|
|
|
| WDT-BACK, END-SLEEVES 0.25-6.0 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, ÄNDHYLSOR | AH2560 |
Yes
|
|
|
| WDT-CRIMP DIES, INSULATED TERMINALS 0.5-6.0 mm², SYMMETRICAL | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, ISOL KS | I0560EE |
No
|
|
|
| WDT-CRIMP DIES, INSULATED TERMINALS 0.5-6.0 mm², ASYMMETRIC | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, ISOL KS | I0560V/3 |
Yes
|
|
|
| WDT-CRIMP DIES, INSULATED TERMINALS 0.25-2.5 mm², SYMMETRICAL | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, ISOL KS | I2525 |
Yes
|
|
|
| WDT-CRIMP DIES, OPEN BARREL CRIMP 0.5-6.0mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, RULLPRESS | RP0560-6.3 |
No
|
|
|
| WDT-CRIMP DIES, OPEN BARREL CRIMP 0.14-0.75 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, RULLPRESS | RP1475 |
Yes
|
|
|
| WDT-CRIMP DIES, OPEN BARREL CRIMP 1.5-2.5 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, RULLPRESS | RPW1525 |
Yes
|
|
|
| WDT-CRIMP DIES, COPPER CUBE LUGS KR 0.5-6.0mm2 | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, RÖRKABELSKOR KR | RQ0560 |
Yes
|
|
|
| WDT-CRIMP DIES, FO178/316, BLD8218 RG122/174/180/187/188/195 | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 | Crimp dies WDT | WDT-BACK, FO178/316, BLD8218 | RG-DIF |
No
|
|
|
|
| WDT-CRIMP DIES, OPEN BARREL CRIMP 0.14-1.5 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 | Crimp dies WDT | WDT-BACK, RULLPRESS | RP1475IV |
No
|
|
|
|
| WDT-CRIMP DIES, OPEN BARREL CRIMP 6.0 mm² | EC001282 - Insert for crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Crimp dies WDT | WDT-BACK, RULLPRESS | RP60 |
Yes
|
|
|
- Total: 25
