360 view
AS PZ 6 ROTO
SORTIMENT ÄNDHYLSOR. SEXKANTSPRESSNING, 0.25-6.0mm2, STRIPAX, PZ 6 ROTO,OGCL RATCHET
AS PZ 6 ROTO
- Availability:
-
No
- Total: 1
Related items
Crimp tool - PZ
Pressverktyg med front eller sidomatning, för ändhylsor från 0.14 – 16 mm².
En ratchettång som säkerställer att pressningen fullföljs.
- Total: 1

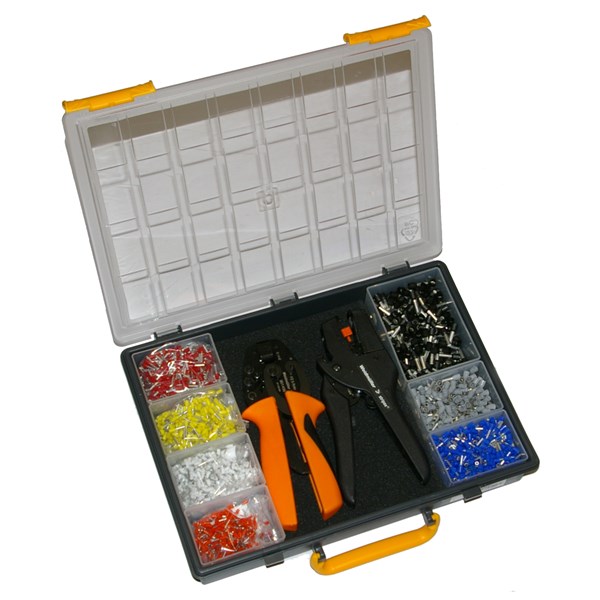

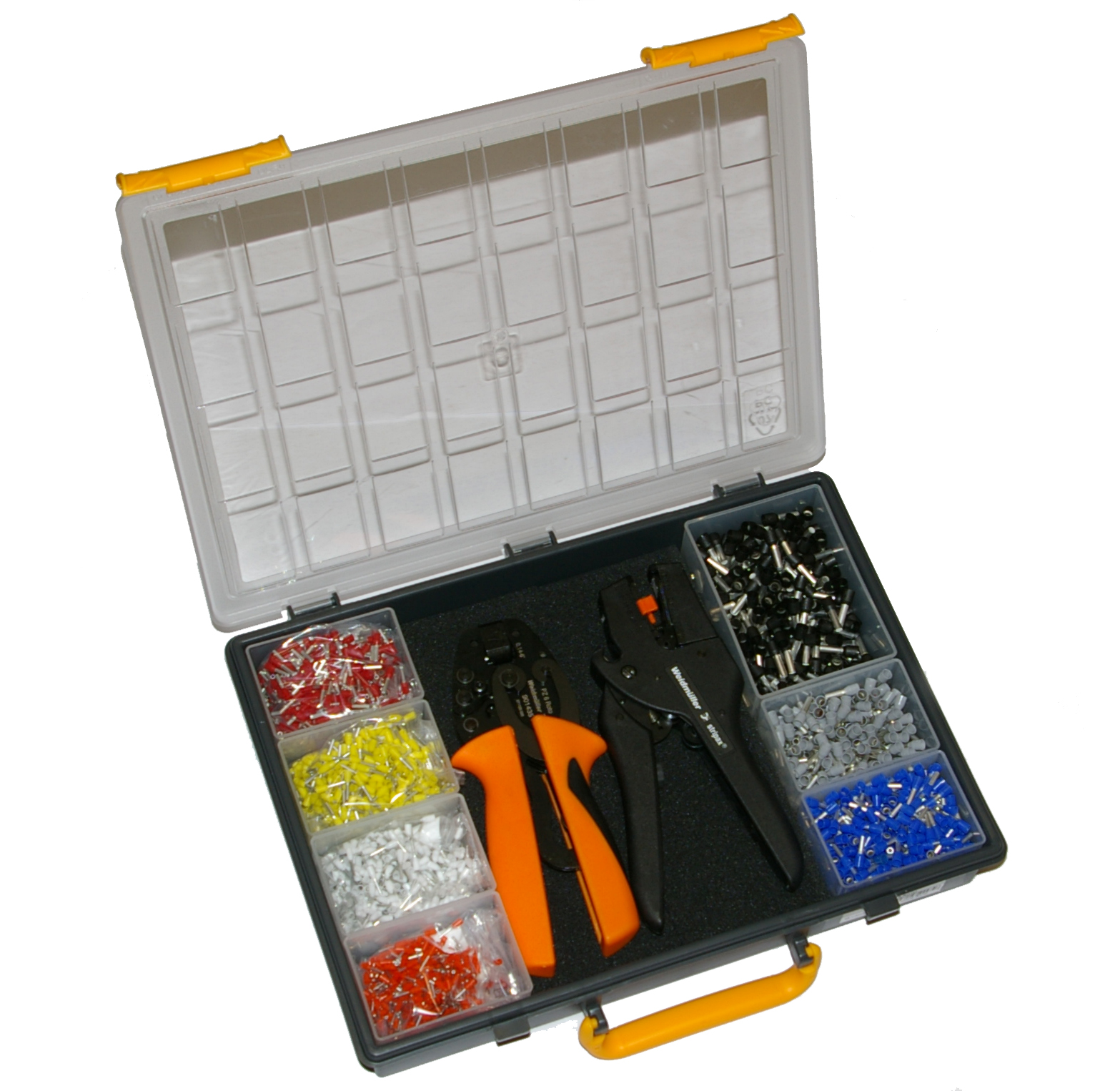

Sortimentlåda med 7 olika isolerade ändhyslor 0.5-6.0 mm², samt ett pressverktyg och en skåltång.
Innehåll:
1 st PZ 6 ROTO, pressverktyg för 0.25-6.0 mm²
1 st STRIPAX, skalverktyg för 0.08-6.0 mm²
500 st 0.5 mm² - orange
500 st 0.75 mm² - vit
500 st 1.0 mm² - gul
500 st 1.5 mm² - röd
500 st 2.5 mm² - blå
250 st 4.0 mm² - grå
250 st 6.0 mm² - svart
Dimensioner (L x B x H): 340 x 260 x 60 mm.
Product Properties
| With locking device (for mechanical tools) | Yes |
|---|---|
| Inserts exchangeable | No |
| Number of included inserts | 1 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Cable end sleeves |
| Construction/operation | Mechanical |
| For component | End sleeves |
| Compression shape | Hexagon |
Dimensions
| Cross section | 0.14-6 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 340 mm |
Logistics
| Barcode | 403224822474 |
|---|---|
| Country of origin | SE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | AS PZ 6 ROTO |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Weidmüller |
| Product Group | One Hand (ratchet) |
| Alternative SKU | ASPZ6ROTO |
Compliance
| REACH | Yes. CAS 7439-92-1, < 4 % |
|---|---|
| RoHS | RoHS 3 (Exemption 6c) |
| SCIP | 38f212cf-c4d9-4333-af7a-0188cf14ab94 |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_AK, AKK, AKP, AKS, AS
Generate Datasheet:
