360 view
DKB 0325
PRESSVERKTYG OISOLERADE KABELSKOR, 0.3-2.5mm2
DKB 0325
- Availability:
-
Yes
- Total: 1
Related items
DKB 0325

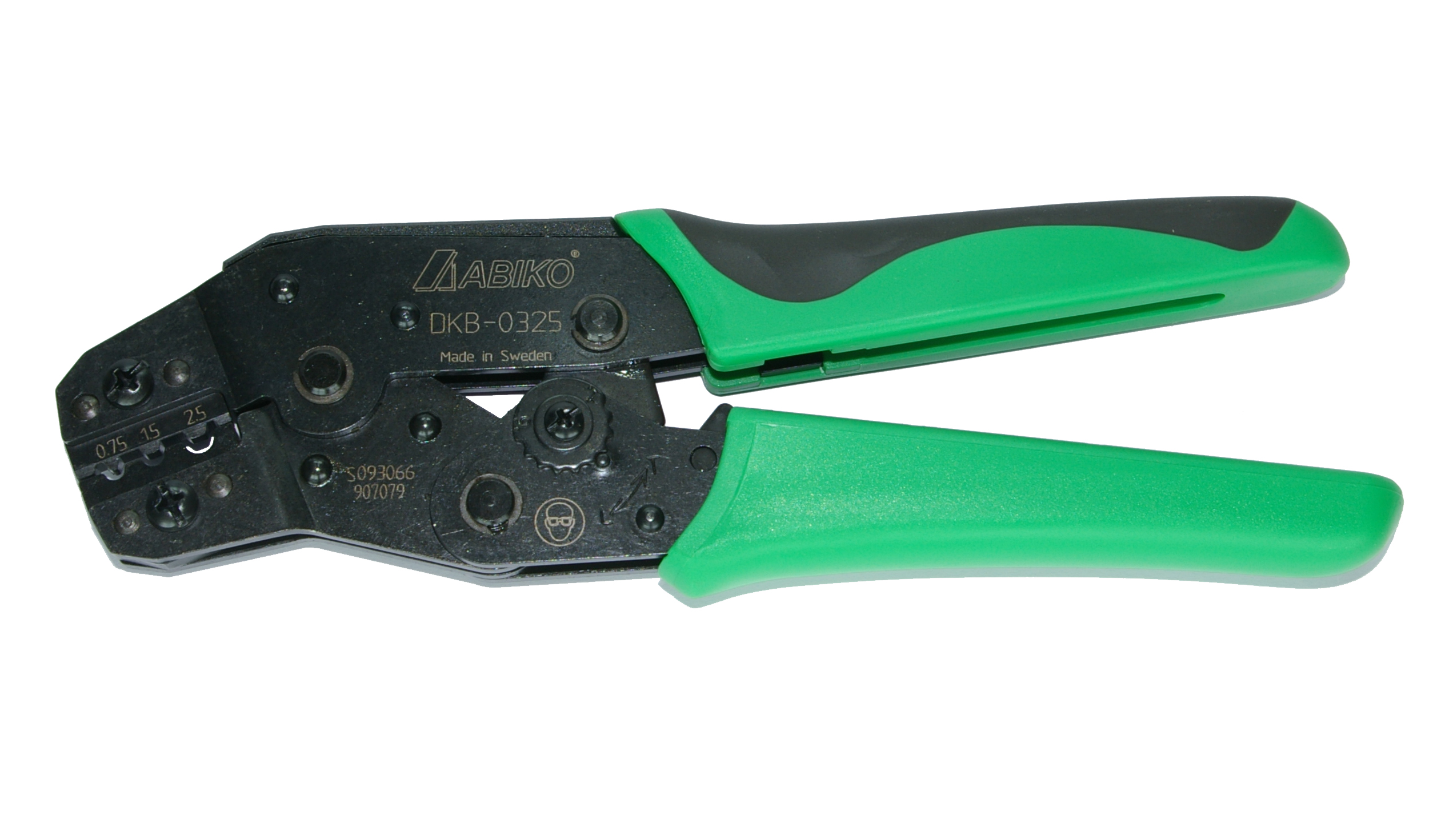

DKB 0325 är ett pressverktyg för 0.3-2.5 mm² oisolerade kabelskor. Levereras i blisterförpackning för butiksexponering.
Det finns 3 uttag i verktygets pressback:
1: 0.3-0.75 mm²
2: 0.75-1.5 mm²
3: 1.5-2.5 mm²
Pressverktyget är en ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
Längd: 195 mm
- Total: 1
E1630115.
Product Properties
| With locking device (for mechanical tools) | Yes |
|---|---|
| Inserts exchangeable | No |
| Number of included inserts | 1 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Cable lugs and connectors |
| Construction/operation | Mechanical |
| For component | Non-insulated Cu tube and sheet terminals |
| Compression shape | Arbour clamping |
Dimensions
| Cross section | 0.3-2.5 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 195 mm |
Logistics
| Barcode | 739293300012 |
|---|---|
| Country of origin | SE |
| E-no | E1630115. |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | DKB 0325 |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | ABIKO |
| Product Group | One Hand (ratchet) |
| Search Description | PRESSVERKTYG OISOLERADE KABELSKOR |
| Alternative SKU | DKB0325 |
Compliance
| Extended Minerals | N/A, contains no extended minerals |
|---|---|
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
