Multifunctional Battery Operated Tool: NGB2
Tool for efficiency and flexibility in a wide range of tasks. Our battery-powered tool is designed to be adaptable with various heads, allowing you to handle multiple work areas with a single device. Switch between different heads to perform tasks ranging from hexagonal crimping of cable lugs from 16-400 mm² Cu & 16-300 mm² Al with the HX400, to a powerful cable cutter that cuts up to 45 mm Cu and 40 mm ACSR with the CC40. For convenience, we sell both the machine and the heads separately as well as complete machines, enabling you to purchase according to your needs.
NGB2 Usage Areas:

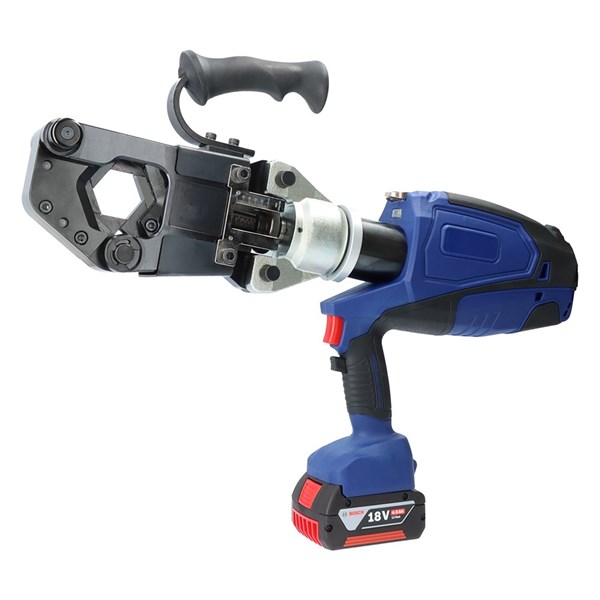

HX400 - Seamless hexagonal crimping for cable lugs and splice connectors from 16-400 mm² Cu & 16-300 mm² Al.

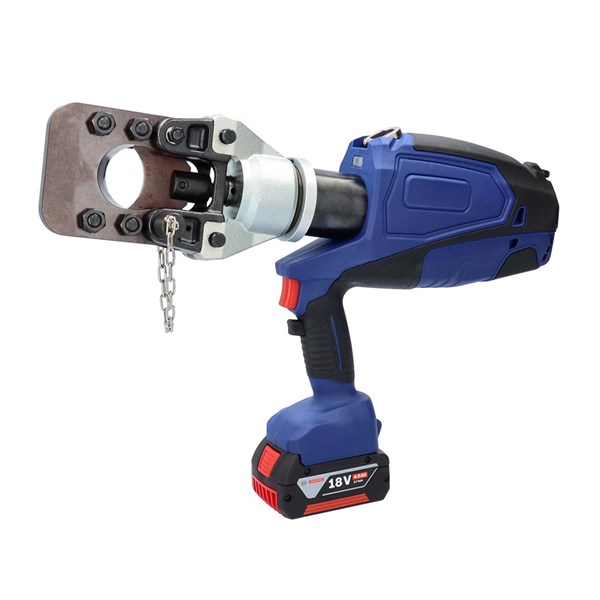

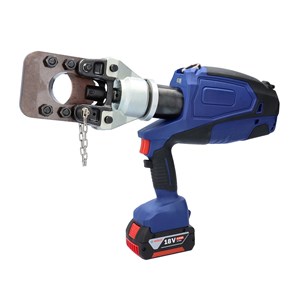

CC40 - Cable cutter that cuts up to 45 mm Cu and 40 mm ACSR.
Technical properties
- Grip design:
- 2-components, Other
- With impact protection:
- No
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 124.6 kN
- Suitable for:
- Cable lugs and connectors
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes, No
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- No
- Construction/operation:
- Accumulator-hydraulic, Hydraulic cutter head
- Isolation protection 1000 V:
- No
- Compression shape:
- Hexagon
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
| Product Description | Cross section | Max. cable cross section | MOQ | Unit | Suitable for max. cable diameter | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| BATTERY OPERATED CRIMPING TOOL HEX 16-400mm2 IN CASE WITH CHARGER, 18V 4.0Ah Li-lon BATTERY | 16-400 mm² | 1 . | pcs | 570 mm |
No
|
|
|
||

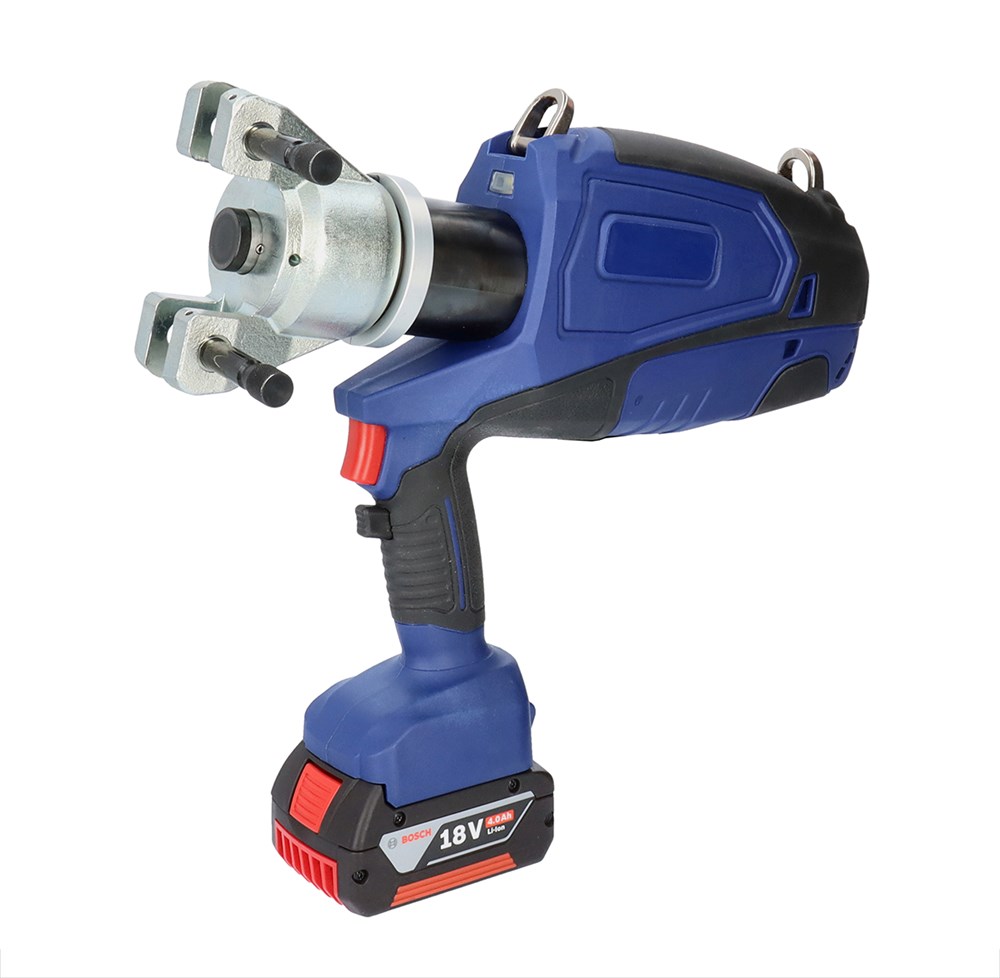

| BATTERIDRIVET PRESSVERKTYG I VÄSKA , UTAN HUVUD, BATTERI OCH LADDARE | 1 . | pcs |
Yes
|
|
|
||||
| KAPVERKTYG KABEL, BATTERIDRIVEN MAX D=44mm, I VÄSKA MED LADDARE, 18V 4.0Ah Li-Ion BATTERI | 400 mm² | 1 . | pcs | 45 mm |
No
|
|
|
||
| KABELKAP HUVUD , ACSR 40mm, CU 44mm | 400 mm² | 1 . | pcs | 45 mm |
No
|
|
|
||
| PRESSHUVUD HEX , 16-400mm2 | 16-400 mm² | 1 . | pcs |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | VDE tested | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|
| BATTERY OPERATED CRIMPING TOOL HEX 16-400mm2 IN CASE WITH CHARGER, 18V 4.0Ah Li-lon BATTERY |
No
|
|
|
||
| BATTERIDRIVET PRESSVERKTYG I VÄSKA , UTAN HUVUD, BATTERI OCH LADDARE |
Yes
|
|
|
||
| KAPVERKTYG KABEL, BATTERIDRIVEN MAX D=44mm, I VÄSKA MED LADDARE, 18V 4.0Ah Li-Ion BATTERI | No | No |
No
|
|
|
| KABELKAP HUVUD , ACSR 40mm, CU 44mm | No | No |
No
|
|
|
| PRESSHUVUD HEX , 16-400mm2 |
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Grip design | With impact protection | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Compression force | Suitable for | Replaceable cutting head | Cutting jaws exchangeable | With strip function | Insulated | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Construction/operation | Isolation protection 1000 V | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BATTERY OPERATED CRIMPING TOOL HEX 16-400mm2 IN CASE WITH CHARGER, 18V 4.0Ah Li-lon BATTERY | No | No | 1 . | No | 5 s | 124.6 kN | Cable lugs and connectors | Accumulator-hydraulic | Hexagon |
No
|
|
|
||||||||||
| BATTERIDRIVET PRESSVERKTYG I VÄSKA , UTAN HUVUD, BATTERI OCH LADDARE |
Yes
|
|
|
|||||||||||||||||||
| KAPVERKTYG KABEL, BATTERIDRIVEN MAX D=44mm, I VÄSKA MED LADDARE, 18V 4.0Ah Li-Ion BATTERI | 2-components | No | Yes | Yes | No | Yes | Yes | Yes | No | Accumulator-hydraulic | No |
No
|
|
|
||||||||
| KABELKAP HUVUD , ACSR 40mm, CU 44mm | Other | No | Yes | Yes | No | No | Yes | Yes | No | Hydraulic cutter head | No |
No
|
|
|
||||||||
| PRESSHUVUD HEX , 16-400mm2 | No | 1 . | 5 s | 124.6 kN | Cable lugs and connectors | Accumulator-hydraulic | Hexagon |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Warranty | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| BATTERY OPERATED CRIMPING TOOL HEX 16-400mm2 IN CASE WITH CHARGER, 18V 4.0Ah Li-lon BATTERY | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
1 years | Battery Tools | SKV2024TOBIAS4, ENR2024V | NGB2HX400 |
No
|
|
|
| BATTERIDRIVET PRESSVERKTYG I VÄSKA , UTAN HUVUD, BATTERI OCH LADDARE | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 | Battery Tools | NGB2X |
Yes
|
|
|
|||
| KAPVERKTYG KABEL, BATTERIDRIVEN MAX D=44mm, I VÄSKA MED LADDARE, 18V 4.0Ah Li-Ion BATTERI | EC000142 - Cable shears | Battery Tools | ENR2024V | NGB2CC40 |
No
|
|
|
|||
| KABELKAP HUVUD , ACSR 40mm, CU 44mm | EC000142 - Cable shears | Battery Tools | KABELKAP HUVUD, ENR2024V | NXX2CC40 |
No
|
|
|
|||
| PRESSHUVUD HEX , 16-400mm2 | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 | Battery Tools | ENR2024V | NXX2HX400 |
Yes
|
|
|
- Total: 5
